8-80 — WINDSHIELD WIPER AND WASHER (#128) — 139 parça

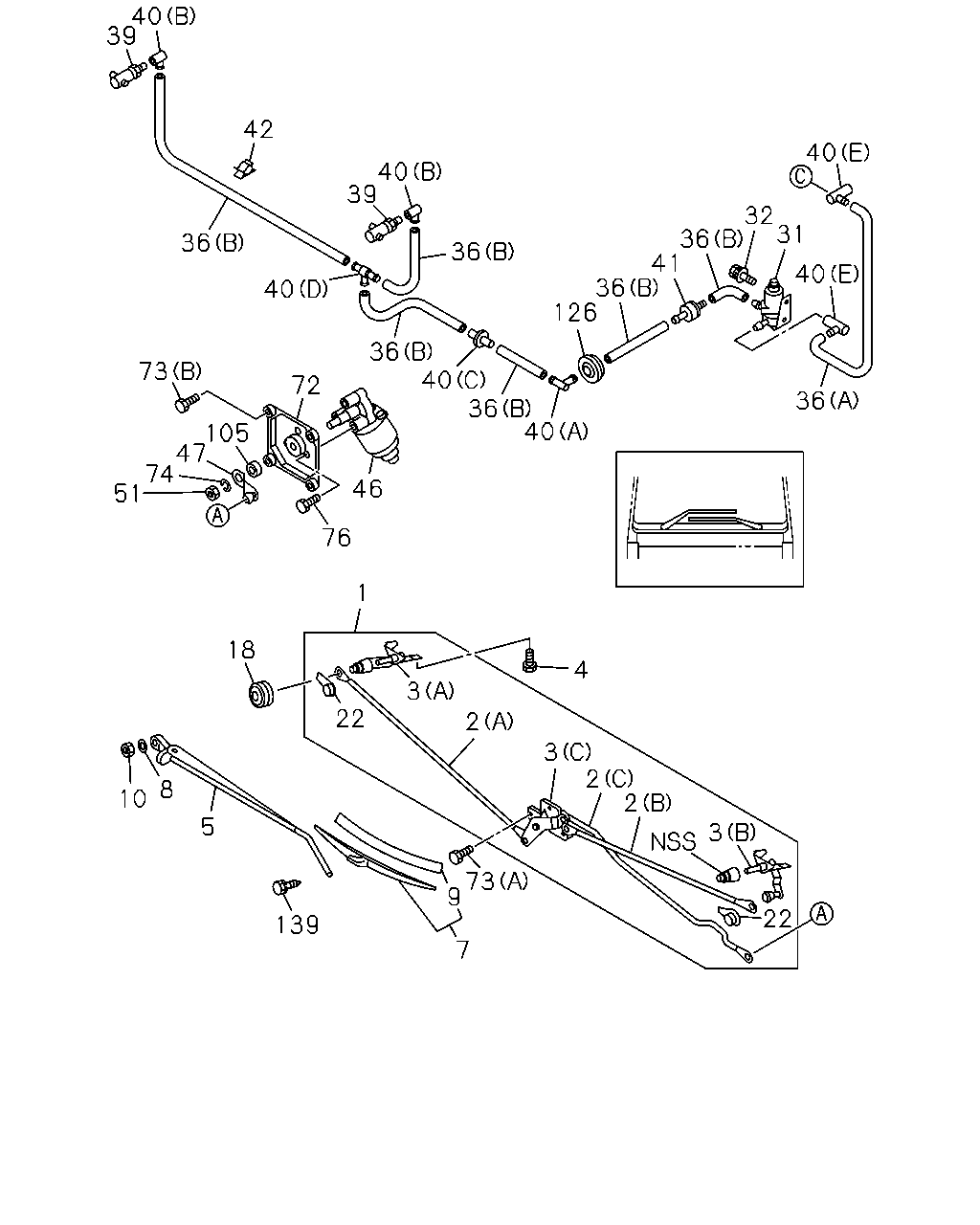

39 40 42 36 40 39 40 36 36 40 36 40 126 36 41 36 32 31 40 36 40 46 76 72 73 105 47 74 51 1 18 4 3 22 2 3 2 2 3 22 73 9 7 139 5 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINK ASM; FRT WIPER THAILAND EQUIPMENT(PM9)	1-83312-053-3	01	1	9202-	●
1	LINK ASM; FRT WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83312-057-2	01	1	9202-	●	●
2	LINK; FRT WIPER THAILAND EQUIPMENT(PM9) (A)	1-83312-064-0	01	1	9202-	●
2	LINK; FRT WIPER THAILAND EQUIPMENT(PM9) (B)	1-83312-065-0	01	1	9202-	●
2	LINK; FRT WIPER THAILAND EQUIPMENT(PM9) (C)	1-83312-066-0	01	1	9202-	●
2	LINK; FRT WIPER EXC. THAILAND EQUIPMENT(PM9) (C)	1-83312-060-0	01	1	9202-	●	●
2	LINK; FRT WIPER EXC. THAILAND EQUIPMENT(PM9) (A)	1-83312-061-0	01	1	9202-	●	●
2	LINK; FRT WIPER EXC. THAILAND EQUIPMENT(PM9) (B)	1-83312-062-0	01	1	9202-	●	●
3	PIVOT ASM; FRT WIPER THAILAND EQUIPMENT(PM9) (A)	1-83313-060-2	01	1	9202-	●
3	PIVOT ASM; FRT WIPER THAILAND EQUIPMENT(PM9) (B)	1-83313-061-2	01	1	9202-	●
3	PIVOT ASM; FRT WIPER THAILAND EQUIPMENT(PM9) (C)	1-83313-062-2	01	1	9202-	●
3	PIVOT ASM; FRT WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83313-069-0	02	1	9202-	●	●
4	BOLT; WIPER LINK TO BODY M6X20 W/LK&PL WASHER	1-09980-490-0	04	1	9202-	●	●
5	ARM; WIPER THAILAND EQUIPMENT(PM9)	1-83314-098-0	01	1	9202-	●
5	ARM; WIPER THAILAND EQUIPMENT(PM9)	1-83314-097-0	01	1	9202-	●
5	ARM; WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83314-075-0	01	1	9202-	●	●
5	ARM; WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83314-074-0	01	1	9202-	●	●
7	BLADE; WIPER THAILAND EQUIPMENT(PM9)	1-83315-027-0	02	1	9202-	●
7	BLADE; WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83315-028-0	02	1	9202-	●	●
8	WASHER; LK,PIVOT ID=10.2	9-09150-510-0	02	1	9202-	●	●
9	RUBBER; FRT WIPER BLADE THAILAND EQUIPMENT(PM9)	1-83355-004-0	02	1	9202-	●
9	RUBBER; FRT WIPER BLADE EXC. THAILAND EQUIPMENT(PM9)	1-83355-003-0	02	1	9202-	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10	9-09111-410-0	02	1	9202-	●	●
18	GROMMET; WIPER PIVOT HOLE	1-09983-060-1	02	1	9202-	●	●
22	CAP; PIVOT FRT WIPER LINK THAILAND EQUIPMENT(PM9)	1-83319-040-0	02	1	9202-	●
31	PUMP ASM; WINDSHIELD WASHER	1-83331-005-1	01	1	9202-	●	●
32	BOLT; WASHER PUMP M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●
36	HOSE; WASHER (A) SERVICED BY L=10000	8-94153-780-0	01	1	9202-	●	●
36	HOSE; WASHER (B)	9-09914-906-0	AR	1	9202-	●	●
39	NOZZLE; WINDSHIELD WASHER	1-83334-028-0	02	1	9202-	●	●
40	JOINT; WASHER HOSE (B)	1-83338-003-0	02	1	9202-	●	●
40	JOINT; WASHER HOSE (C)	1-83338-004-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (D)	1-83338-005-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (A)	1-83338-006-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (F)	1-83339-006-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (E)	5-83363-006-0	02	1	9202-	●	●
40	JOINT; WASHER HOSE (E)	5-83363-006-0	01	1	9202-	●	●
41	VALVE; CHECK,WASHER TANK	1-83338-007-1	01	1	9202-	●	●
42	CLIP; WASHER HOSE 1 SET=5 PIECE	1-09987-214-0	09	1	9202-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THAILAND EQUIPMENT(PM9)	1-83311-050-0	01	1	9202-	●
46	MOTOR ASM; FRT WINDSHIELD WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83311-046-0	01	1	9202-	●	●
47	ARM; CRANK,WIPER MOTOR THAILAND EQUIPMENT(PM9)	1-83314-096-0	01	1	9202-	●
47	ARM; CRANK,WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	1-83314-091-1	01	1	9202-9203	●	●
47	ARM; CRANK,WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	1-83314-125-0	01	1	9204-	●	●
51	NUT; WIPER MOTOR LINK THAILAND EQUIPMENT(PM9)	1-83319-012-0	01	1	9202-	●
51	NUT; WIPER MOTOR LINK EXC. THAILAND EQUIPMENT(PM9)	9-09111-408-0	01	1	9202-	●	●
72	BRACKET; WIPER MOTOR THAILAND EQUIPMENT(PM9)	1-83318-032-0	01	1	9202-	●
72	BRACKET; WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	1-83318-029-0	01	1	9202-	●	●
73	BOLT (A) M6X20 W/LK&PL WASHER	1-09980-490-0	03	1	9202-	●	●
73	BOLT (B) M6X20 W/LK&PL WASHER	1-09980-490-0	04	1	9202-	●	●
74	WASHER; ARM TO MOTOR THAILAND EQUIPMENT(PM9)	1-83319-011-0	01	1	9202-	●
74	WASHER; ARM TO MOTOR EXC. THAILAND EQUIPMENT(PM9) (B)	1-83319-005-1	01	1	9202-	●	●
74	WASHER; ARM TO MOTOR EXC. THAILAND EQUIPMENT(PM9) (A)	9-09150-508-0	01	1	9202-	●	●
76	SCREW; BRKT TO WIPER MOTOR THAILAND EQUIPMENT(PM9)	1-83319-010-0	03	1	9202-	●
76	SCREW; BRKT TO WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	8-94232-910-0	03	1	9202-	●	●
105	CAP; SEALED THAILAND EQUIPMENT(PM9)	1-83318-031-0	01	1	9202-	●
126	GROMMET; FRT WASHER TANK HOSE	1-83338-009-0	01	1	9202-	●	●
139	SCREW; FRT WIPER BLADE THAILAND EQUIPMENT(PM9)	1-83319-013-0	04	1	9202-	●

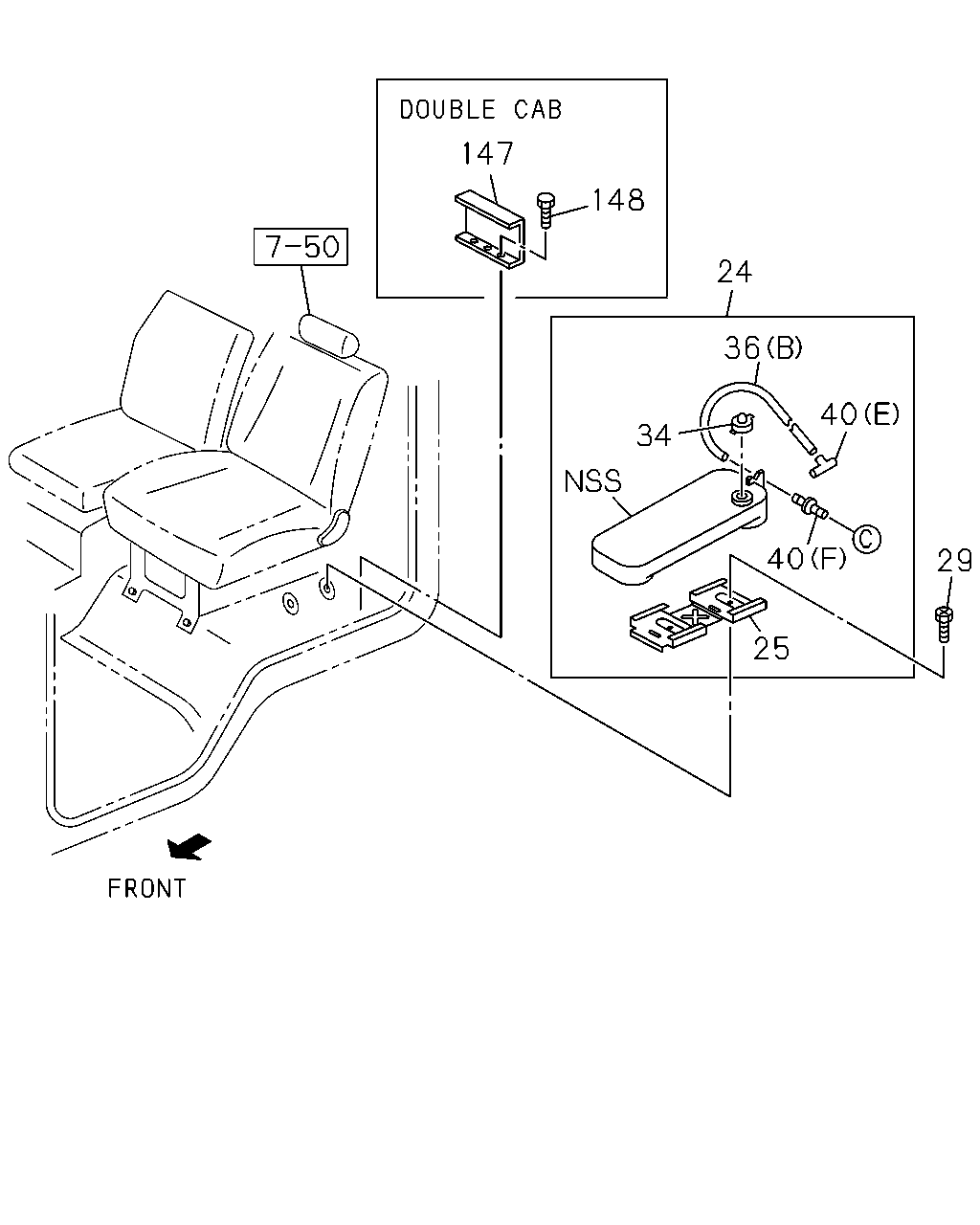

147 148 24 36 40 34 40 29 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	TANK ASM; WASHER	1-83332-022-4	01	1	9202-	●	●
25	BRACKET; WASHER TANK	1-83338-012-1	01	1	9202-	●	●
29	SCREW; WASHER TANK TO BODY M6X14 W/LK&PL WASHER	9-03920-614-0	02	1	9202-	●	●
34	CAP; WASHER TANK	1-83362-013-0	01	1	9202-	●	●
36	HOSE; WASHER (A) SERVICED BY L=10000	8-94153-780-0	01	1	9202-	●	●
36	HOSE; WASHER (B)	9-09914-906-0	AR	1	9202-	●	●
40	JOINT; WASHER HOSE (B)	1-83338-003-0	02	1	9202-	●	●
40	JOINT; WASHER HOSE (C)	1-83338-004-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (D)	1-83338-005-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (A)	1-83338-006-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (F)	1-83339-006-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (E)	5-83363-006-0	02	1	9202-	●	●
40	JOINT; WASHER HOSE (E)	5-83363-006-0	01	1	9202-	●	●
147	PROTECTOR; WASHER TANK	1-73948-007-1	01	1	9202-		●
148	SCREW; PROTECTOR M16X16	1-09981-402-0	02	1	9202-		●

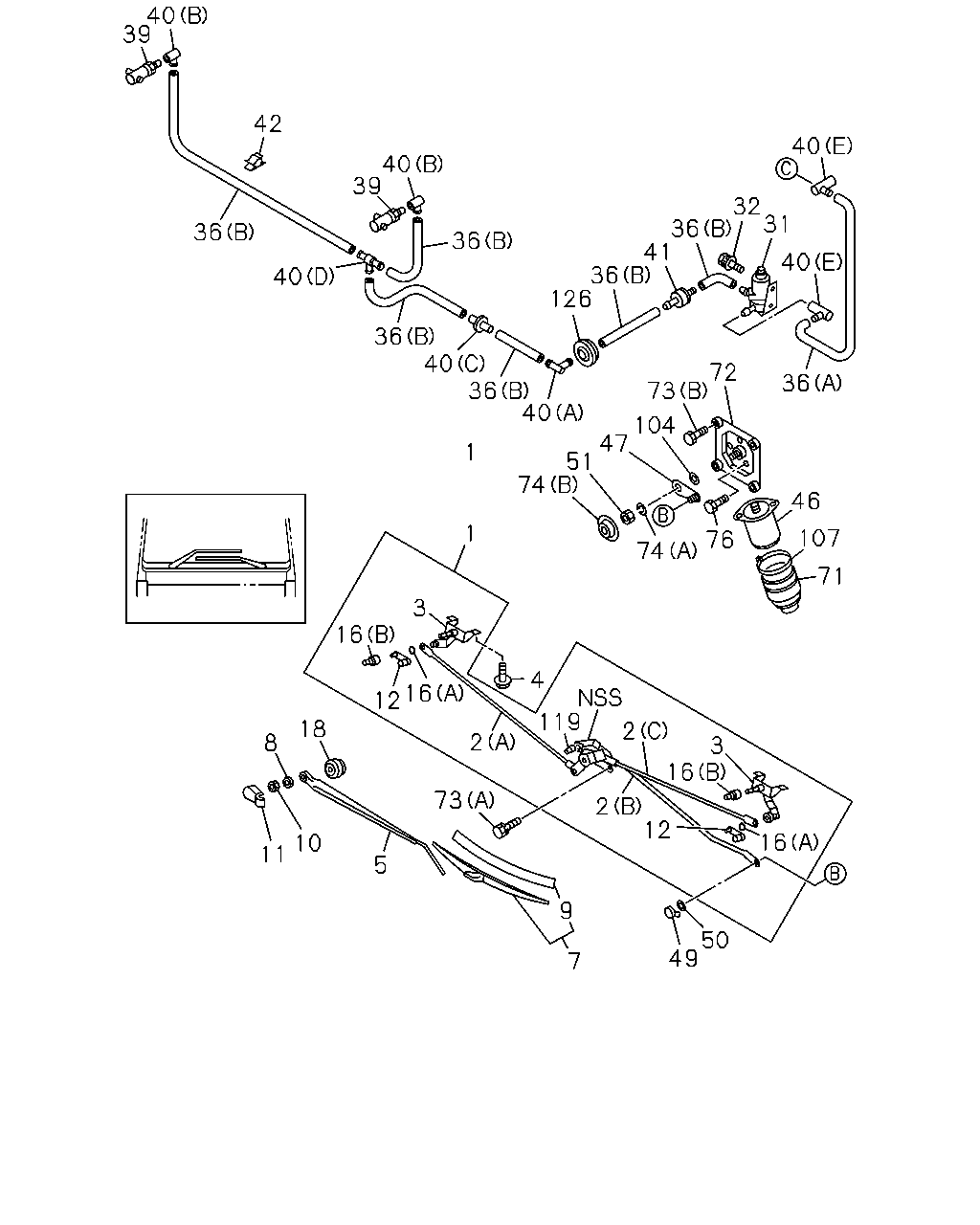

39 40 36 42 40 39 40 36 36 40 36 40 126 36 41 36 32 31 40 40 36 72 73 104 47 51 74 74 76 46 107 71 1 3 16 12 16 4 2 119 2 3 16 2 12 16 50 49 7 9 73 5 18 8 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINK ASM; FRT WIPER THAILAND EQUIPMENT(PM9)	1-83312-053-3	01	1	9202-	●
1	LINK ASM; FRT WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83312-057-2	01	1	9202-	●	●
2	LINK; FRT WIPER THAILAND EQUIPMENT(PM9) (A)	1-83312-064-0	01	1	9202-	●
2	LINK; FRT WIPER THAILAND EQUIPMENT(PM9) (B)	1-83312-065-0	01	1	9202-	●
2	LINK; FRT WIPER THAILAND EQUIPMENT(PM9) (C)	1-83312-066-0	01	1	9202-	●
2	LINK; FRT WIPER EXC. THAILAND EQUIPMENT(PM9) (C)	1-83312-060-0	01	1	9202-	●	●
2	LINK; FRT WIPER EXC. THAILAND EQUIPMENT(PM9) (A)	1-83312-061-0	01	1	9202-	●	●
2	LINK; FRT WIPER EXC. THAILAND EQUIPMENT(PM9) (B)	1-83312-062-0	01	1	9202-	●	●
3	PIVOT ASM; FRT WIPER THAILAND EQUIPMENT(PM9) (A)	1-83313-060-2	01	1	9202-	●
3	PIVOT ASM; FRT WIPER THAILAND EQUIPMENT(PM9) (B)	1-83313-061-2	01	1	9202-	●
3	PIVOT ASM; FRT WIPER THAILAND EQUIPMENT(PM9) (C)	1-83313-062-2	01	1	9202-	●
3	PIVOT ASM; FRT WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83313-069-0	02	1	9202-	●	●
4	BOLT; WIPER LINK TO BODY M6X20 W/LK&PL WASHER	1-09980-490-0	04	1	9202-	●	●
5	ARM; WIPER THAILAND EQUIPMENT(PM9)	1-83314-098-0	01	1	9202-	●
5	ARM; WIPER THAILAND EQUIPMENT(PM9)	1-83314-097-0	01	1	9202-	●
5	ARM; WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83314-075-0	01	1	9202-	●	●
5	ARM; WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83314-074-0	01	1	9202-	●	●
7	BLADE; WIPER THAILAND EQUIPMENT(PM9)	1-83315-027-0	02	1	9202-	●
7	BLADE; WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83315-028-0	02	1	9202-	●	●
8	WASHER; LK,PIVOT ID=10.2	9-09150-510-0	02	1	9202-	●	●
9	RUBBER; FRT WIPER BLADE THAILAND EQUIPMENT(PM9)	1-83355-004-0	02	1	9202-	●
9	RUBBER; FRT WIPER BLADE EXC. THAILAND EQUIPMENT(PM9)	1-83355-003-0	02	1	9202-	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10	9-09111-410-0	02	1	9202-	●	●
11	COVER; WIPER ARM EXC. THAILAND EQUIPMENT(PM9)	1-83319-015-0	02	1	9202-	●	●
12	RETAINER; BALL JOINT,FRT WIPER LINK EXC. THAILAND EQUIPMENT(PM9)	1-83318-026-0	03	1	9202-	●	●
16	SEAL; BALL JOINT EXC. THAILAND EQUIPMENT(PM9) (B)	1-83318-022-0	02	1	9202-	●	●
16	SEAL; BALL JOINT EXC. THAILAND EQUIPMENT(PM9) (A)	8-94235-628-0	03	1	9202-	●	●
18	GROMMET; WIPER PIVOT HOLE	1-09983-060-1	02	1	9202-	●	●
31	PUMP ASM; WINDSHIELD WASHER	1-83331-005-1	01	1	9202-	●	●
32	BOLT; WASHER PUMP M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●
36	HOSE; WASHER (A) SERVICED BY L=10000	8-94153-780-0	01	1	9202-	●	●
36	HOSE; WASHER (B)	9-09914-906-0	AR	1	9202-	●	●
39	NOZZLE; WINDSHIELD WASHER	1-83334-028-0	02	1	9202-	●	●
40	JOINT; WASHER HOSE (B)	1-83338-003-0	02	1	9202-	●	●
40	JOINT; WASHER HOSE (C)	1-83338-004-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (D)	1-83338-005-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (A)	1-83338-006-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (F)	1-83339-006-0	01	1	9202-	●	●
40	JOINT; WASHER HOSE (E)	5-83363-006-0	02	1	9202-	●	●
40	JOINT; WASHER HOSE (E)	5-83363-006-0	01	1	9202-	●	●
41	VALVE; CHECK,WASHER TANK	1-83338-007-1	01	1	9202-	●	●
42	CLIP; WASHER HOSE 1 SET=5 PIECE	1-09987-214-0	09	1	9202-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THAILAND EQUIPMENT(PM9)	1-83311-050-0	01	1	9202-	●
46	MOTOR ASM; FRT WINDSHIELD WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83311-046-0	01	1	9202-	●	●
47	ARM; CRANK,WIPER MOTOR THAILAND EQUIPMENT(PM9)	1-83314-096-0	01	1	9202-	●
47	ARM; CRANK,WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	1-83314-091-1	01	1	9202-9203	●	●
47	ARM; CRANK,WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	1-83314-125-0	01	1	9204-	●	●
49	SEAL; BALL JOINT,CRANK ARM,FRT WIPER EXC. THAILAND EQUIPMENT(PM9)	8-94235-628-0	01	1	9202-9203	●	●
49	SEAL; BALL JOINT,CRANK ARM,FRT WIPER EXC. THAILAND EQUIPMENT(PM9)	1-83319-035-0	01	1	9204-	●	●
50	RETAINER; BALL JOINT,CRANK ARM,FRT WIP EXC. THAILAND EQUIPMENT(PM9)	1-83318-026-0	01	1	9202-	●	●
51	NUT; WIPER MOTOR LINK THAILAND EQUIPMENT(PM9)	1-83319-012-0	01	1	9202-	●
51	NUT; WIPER MOTOR LINK EXC. THAILAND EQUIPMENT(PM9)	9-09111-408-0	01	1	9202-	●	●
71	COVER; WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	1-83319-007-0	01	1	9202-9203	●	●
72	BRACKET; WIPER MOTOR THAILAND EQUIPMENT(PM9)	1-83318-032-0	01	1	9202-	●
72	BRACKET; WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	1-83318-029-0	01	1	9202-	●	●
73	BOLT (A) M6X20 W/LK&PL WASHER	1-09980-490-0	03	1	9202-	●	●
73	BOLT (B) M6X20 W/LK&PL WASHER	1-09980-490-0	04	1	9202-	●	●
74	WASHER; ARM TO MOTOR THAILAND EQUIPMENT(PM9)	1-83319-011-0	01	1	9202-	●
74	WASHER; ARM TO MOTOR EXC. THAILAND EQUIPMENT(PM9) (B)	1-83319-005-1	01	1	9202-	●	●
74	WASHER; ARM TO MOTOR EXC. THAILAND EQUIPMENT(PM9) (A)	9-09150-508-0	01	1	9202-	●	●
76	SCREW; BRKT TO WIPER MOTOR THAILAND EQUIPMENT(PM9)	1-83319-010-0	03	1	9202-	●
76	SCREW; BRKT TO WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	8-94232-910-0	03	1	9202-	●	●
104	SEAL; ARM,FRT WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	1-83318-020-0	01	1	9202-	●	●
107	BAND; RUBBER,FRT WIPER MOTOR EXC. THAILAND EQUIPMENT(PM9)	1-83319-006-0	01	1	9202-9203	●	●
119	STOPPER; WIPER LINK EXC. THAILAND EQUIPMENT(PM9)	1-83318-030-0	01	1	9202-	●	●
126	GROMMET; FRT WASHER TANK HOSE	1-83338-009-0	01	1	9202-	●	●
