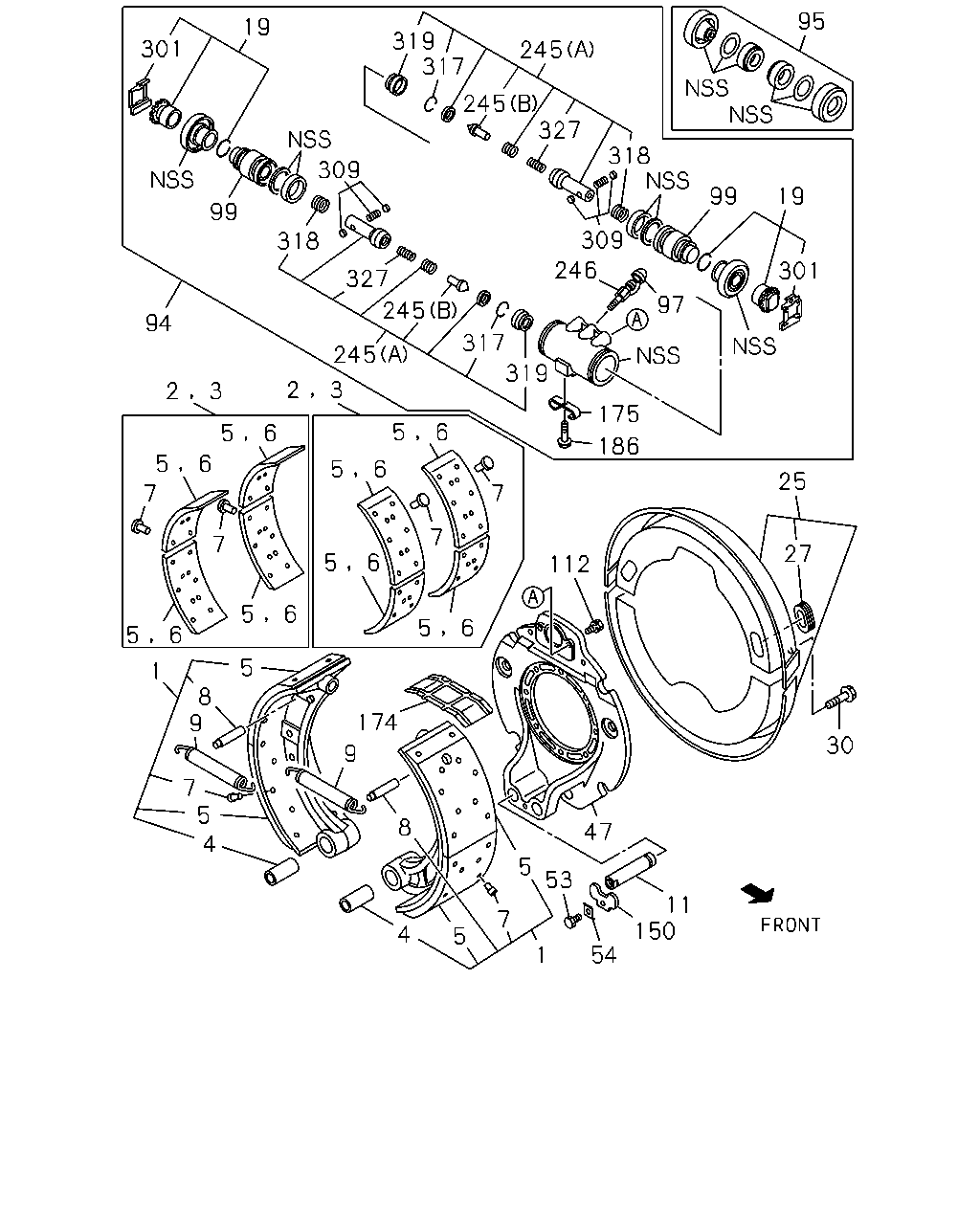

3-05 — REAR WHEEL BRAKE (#12798) — 166 parça
çizim 143140
95 19 319 317 301 245 245 327 318 309 99 19 99 309 318 246 301 327 97 245 94 317 245 319 2 3 2 3 175 5 6 5 6 186 5 6 5 6 25 7 7 7 7 6 27 5 112 5 5 6 6 6 5 5 1 8 9 174 30 9 7 5 8 47 4 5 53 11 150 7 4 5 54 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
THA 		1-47170-441-0 04 1 1103-
1 SHOE; BRK,RR
LEADING 		1-47170-496-0 01 1 0808-0812
1 SHOE; BRK,RR
THA 		1-47170-441-0 04 1 0901-1102
1 SHOE; BRK,RR
TRAILING 		1-47170-497-0 01 1 0808-0812
1 SHOE; BRK,RR
LEADING 		1-47170-498-0 01 1 0808-0812
1 SHOE; BRK,RR
TRAILING 		1-47170-499-0 01 1 0808-0812
2 LINING SET; RR BRK,STANDARD 1-88311-353-1 02 1 1103-
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 0808-0812
2 LINING SET; RR BRK,STANDARD 1-88311-353-1 02 1 0901-1102
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 0808-0812
3 LINING SET; RR BRK,OVER SIZE 1-88311-354-1 02 1 1103-
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 0808-0812
3 LINING SET; RR BRK,OVER SIZE 1-88311-354-1 02 1 0901-1102
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 0808-0812
4 BUSHING; BRK SHOE,RR WHEEL
THA 		1-47112-011-0 04 1 1103-
4 BUSHING; BRK SHOE,RR WHEEL
THA 		1-47112-011-0 04 1 0808-1102
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-758-0 08 1 1103-
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 0808-0812
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-758-0 08 1 0901-1102
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-759-0 08 1 1103-
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 0808-0812
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-759-0 08 1 0901-1102
7 RIVET; LINING,RR BRK
L=18.5 THA 		1-09732-034-0 80 1 1103-
7 RIVET; LINING,RR BRK
TRAILING L=18.5 THA 		1-09732-034-0 40 1 0808-0812
7 RIVET; LINING,RR BRK
L=18.5 THA 		1-09732-034-0 80 1 0901-1102
7 RIVET; LINING,RR BRK
LEADING L=15.5 THA 		1-09732-053-0 40 1 0808-0812
8 PIN; RETURN SPRING,RR BRK SHOE
L=73.5 THA 		1-47119-017-1 04 1 1103-
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 0808-0812
8 PIN; RETURN SPRING,RR BRK SHOE
L=73.5 THA 		1-47119-017-1 04 1 0901-1102
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-175-0 02 1 1103-
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 0808-0812
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-175-0 02 1 0901-1102
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 THA 		1-47131-038-0 04 1 1103-
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 THA 		1-47131-038-0 04 1 0808-1102
19 ADJUSTER; RR BRK 1-47621-015-0 04 1 0808-0812
25 COVER SET; RR BRK DRUM 1-47151-458-1 02 1 1103-
25 COVER SET; RR BRK DRUM 1-47151-458-1 02 1 0808-1102
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 0808-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 1103-
30 BOLT; DRUM COVER
M10X12 THA 		1-47159-187-0 12 1 0808-0812
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0901-0906
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1102
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
THA 		1-47137-112-4 02 1 1103-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-577-0 02 1 0808-0812
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
THA 		1-47137-112-4 02 1 0901-1102
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1103-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0808-1102
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 1103-
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 0808-1102
94 CYLINDER; WHEEL,RR BRK
THA 		1-47600-524-1 02 1 1103-
94 CYLINDER; WHEEL,RR BRK 1-47601-183-0 02 1 0808-0812
94 CYLINDER; WHEEL,RR BRK
THA 		1-47600-524-1 02 1 0901-1102
95 CUP SET; RR WHEEL CYL 1-87830-527-0 02 1 1103-
95 CUP SET; RR WHEEL CYL 1-87830-985-0 02 1 0808-0812
95 CUP SET; RR WHEEL CYL 1-87830-527-0 02 1 0901-1102
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 1103-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 0808-1102
99 PISTON; RR WHEEL CYL
THA 		1-47624-302-0 04 1 1103-
99 PISTON; RR WHEEL CYL 1-47624-371-0 04 1 0808-0812
99 PISTON; RR WHEEL CYL
THA 		1-47624-302-0 04 1 0901-1102
112 BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER 		0-50551-232-0 04 1 1103-
112 BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER 		0-50051-232-0 04 1 0808-0906
112 BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER 		0-50551-232-0 04 1 0907-1102
150 PLATE; LK,ANCHOR PIN
THA 		1-47133-005-0 02 1 0808-0812
174 COVER; CYL,RR WHEEL CYL 1-47159-197-0 02 1 0808-0812
175 HANGER; RR WHEEL BRK 1-47619-145-0 02 1 0808-0812
186 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 0808-0812
245 SHAFT
(A) 		1-47623-027-1 04 1 0808-0812
245 SHAFT
(B) 		1-47629-121-0 04 1 0808-0812
246 BLEEDER
THA 		1-47615-002-0 02 1 0808-0812
301 CLIP; ANTI LOTATION 1-47621-016-0 04 1 0808-0812
309 SPRING; ADJUSTER SHAFT 1-09580-544-0 04 1 0808-0812
317 RING; RETAINER 1-47629-119-0 04 1 0808-0812
318 SPRING; ADJ 1-09580-542-0 04 1 0808-0812
319 RING; DRIVE 1-47629-120-0 04 1 0808-0812
327 SPRING; ADJ 1-09580-543-0 04 1 0808-0812

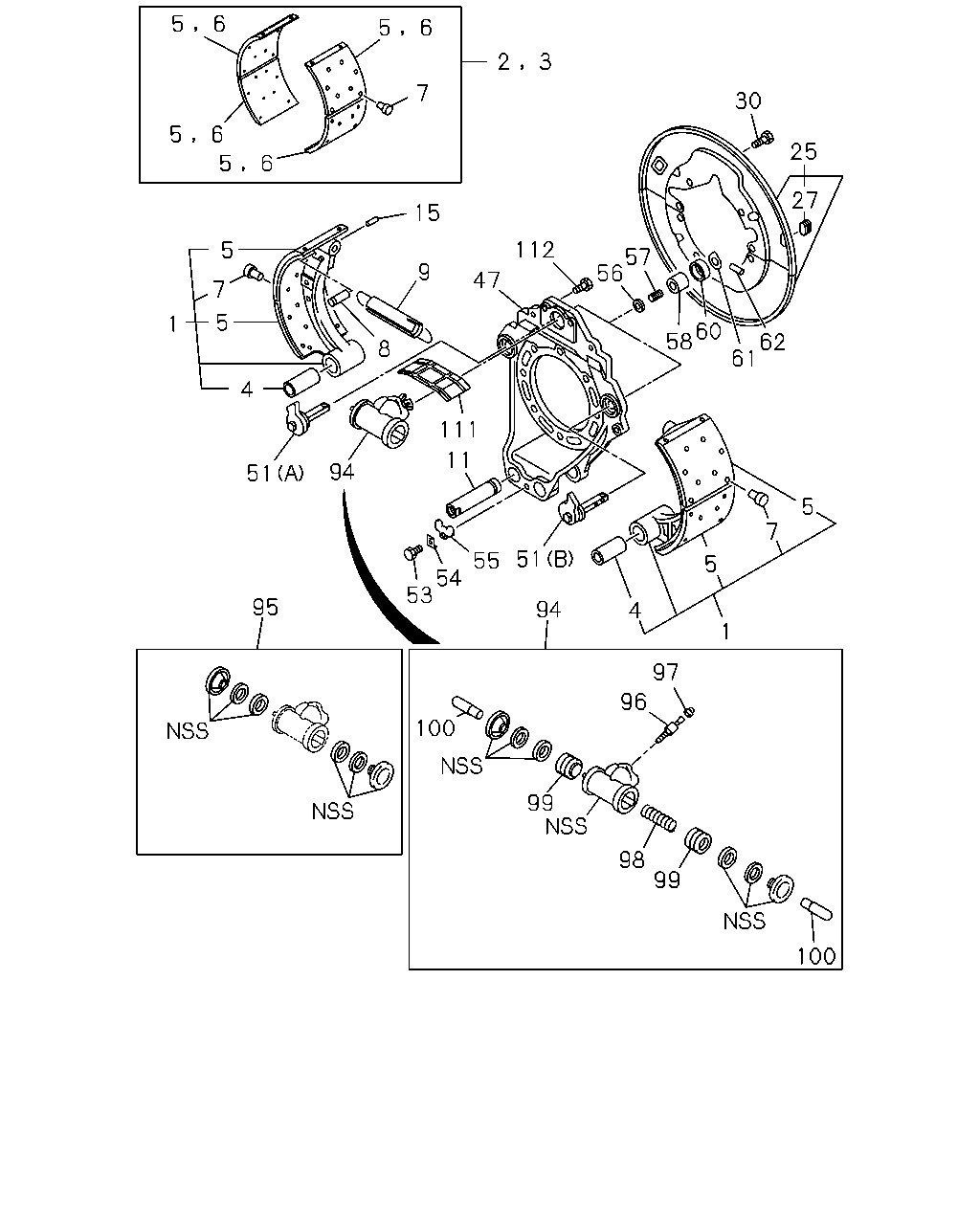

çizim 143316
5 6 5 6 2 3 7 30 5 6 25 5 6 27 15 112 5 57 56 9 47 7 5 1 60 58 62 61 8 4 111 11 94 51 5 7 51 55 5 54 53 95 94 4 1 97 96 100 99 98 99 100
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
THA 		1-47170-441-0 04 1 1103-
1 SHOE; BRK,RR
LEADING 		1-47170-496-0 01 1 0808-0812
1 SHOE; BRK,RR
THA 		1-47170-441-0 04 1 0901-1102
1 SHOE; BRK,RR
TRAILING 		1-47170-497-0 01 1 0808-0812
1 SHOE; BRK,RR
LEADING 		1-47170-498-0 01 1 0808-0812
1 SHOE; BRK,RR
TRAILING 		1-47170-499-0 01 1 0808-0812
2 LINING SET; RR BRK,STANDARD 1-88311-353-1 02 1 1103-
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 0808-0812
2 LINING SET; RR BRK,STANDARD 1-88311-353-1 02 1 0901-1102
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 0808-0812
3 LINING SET; RR BRK,OVER SIZE 1-88311-354-1 02 1 1103-
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 0808-0812
3 LINING SET; RR BRK,OVER SIZE 1-88311-354-1 02 1 0901-1102
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 0808-0812
4 BUSHING; BRK SHOE,RR WHEEL
THA 		1-47112-011-0 04 1 1103-
4 BUSHING; BRK SHOE,RR WHEEL
THA 		1-47112-011-0 04 1 0808-1102
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-758-0 08 1 1103-
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 0808-0812
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-758-0 08 1 0901-1102
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-759-0 08 1 1103-
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 0808-0812
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-759-0 08 1 0901-1102
7 RIVET; LINING,RR BRK
L=18.5 THA 		1-09732-034-0 80 1 1103-
7 RIVET; LINING,RR BRK
TRAILING L=18.5 THA 		1-09732-034-0 40 1 0808-0812
7 RIVET; LINING,RR BRK
L=18.5 THA 		1-09732-034-0 80 1 0901-1102
7 RIVET; LINING,RR BRK
LEADING L=15.5 THA 		1-09732-053-0 40 1 0808-0812
8 PIN; RETURN SPRING,RR BRK SHOE
L=73.5 THA 		1-47119-017-1 04 1 1103-
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 0808-0812
8 PIN; RETURN SPRING,RR BRK SHOE
L=73.5 THA 		1-47119-017-1 04 1 0901-1102
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-175-0 02 1 1103-
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 0808-0812
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-175-0 02 1 0901-1102
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 THA 		1-47131-038-0 04 1 1103-
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 THA 		1-47131-038-0 04 1 0808-1102
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK
THA 		1-47116-002-0 04 1 1103-
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK
THA 		1-47116-002-0 04 1 0901-1102
25 COVER SET; RR BRK DRUM 1-47151-458-1 02 1 1103-
25 COVER SET; RR BRK DRUM 1-47151-458-1 02 1 0808-1102
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 0808-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 1103-
30 BOLT; DRUM COVER
M10X12 THA 		1-47159-187-0 12 1 0808-0812
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0901-0906
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1102
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
THA 		1-47137-112-4 02 1 1103-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-577-0 02 1 0808-0812
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
THA 		1-47137-112-4 02 1 0901-1102
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) THA 		1-47165-058-1 02 1 1103-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) THA 		1-47165-059-1 02 1 1103-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) THA 		1-47165-058-1 02 1 0901-1102
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) THA 		1-47165-059-1 02 1 0901-1102
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1103-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0808-1102
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 1103-
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 0808-1102
55 PLATE; LK,RR WHEEL CYL
THA 		1-47133-005-0 02 1 1103-
55 PLATE; LK,RR WHEEL CYL
THA 		1-47133-005-0 02 1 0901-1102
56 WASHER; ADJ CAM,RR WHEEL BRK
THA 		1-47169-033-0 04 1 1103-
56 WASHER; ADJ CAM,RR WHEEL BRK
THA 		1-47169-033-0 04 1 0901-1102
57 SPRING; ADJ CAM,RR WHEEL BRK
THA 		1-47169-046-0 04 1 1103-
57 SPRING; ADJ CAM,RR WHEEL BRK
THA 		1-47169-046-0 04 1 0901-1102
58 BOOT; ADJ CAM,RR WHEEL BRK
THA 		1-47169-034-0 04 1 1103-
58 BOOT; ADJ CAM,RR WHEEL BRK
THA 		1-47169-034-0 04 1 0901-1102
60 COVER; ADJ CAM BOOT,RR WHEEL BRK
THA 		1-47169-031-0 04 1 1103-
60 COVER; ADJ CAM BOOT,RR WHEEL BRK
THA 		1-47169-031-0 04 1 0901-1102
61 INDICATOR; WEAR,RR BRK SHOE
THA 		1-47169-032-1 04 1 1103-
61 INDICATOR; WEAR,RR BRK SHOE
THA 		1-47169-032-1 04 1 0901-1102
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK
THA 		1-47169-030-0 04 1 1103-
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK
THA 		1-47169-030-0 04 1 0901-1102
94 CYLINDER; WHEEL,RR BRK
THA 		1-47600-524-1 02 1 1103-
94 CYLINDER; WHEEL,RR BRK 1-47601-183-0 02 1 0808-0812
94 CYLINDER; WHEEL,RR BRK
THA 		1-47600-524-1 02 1 0901-1102
95 CUP SET; RR WHEEL CYL 1-87830-527-0 02 1 1103-
95 CUP SET; RR WHEEL CYL 1-87830-985-0 02 1 0808-0812
95 CUP SET; RR WHEEL CYL 1-87830-527-0 02 1 0901-1102
96 SCREW; BLEEDER,RR BRK
L=66.5 THA 		1-47615-005-0 02 1 1103-
96 SCREW; BLEEDER,RR BRK
L=66.5 THA 		1-47615-005-0 02 1 0901-1102
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 1103-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 0808-1102
98 SPRING; RR WHEEL CYL
THA 		1-09580-019-0 02 1 1103-
98 SPRING; RR WHEEL CYL
THA 		1-09580-019-0 02 1 0901-1102
99 PISTON; RR WHEEL CYL
THA 		1-47624-302-0 04 1 1103-
99 PISTON; RR WHEEL CYL 1-47624-371-0 04 1 0808-0812
99 PISTON; RR WHEEL CYL
THA 		1-47624-302-0 04 1 0901-1102
100 ROD; PUSH,RR WHEEL CYL
THA 		1-47621-009-0 04 1 1103-
100 ROD; PUSH,RR WHEEL CYL
THA 		1-47621-009-0 04 1 0901-1102
111 COVER; WHEEL CYL
THA 		1-47159-080-0 02 1 1103-
111 COVER; WHEEL CYL
THA 		1-47159-080-0 02 1 0901-1102
112 BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER 		0-50551-232-0 04 1 1103-
112 BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER 		0-50051-232-0 04 1 0808-0906
112 BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER 		0-50551-232-0 04 1 0907-1102
