4-65 — REAR LEAF SPRING (#1279) — 80 parça

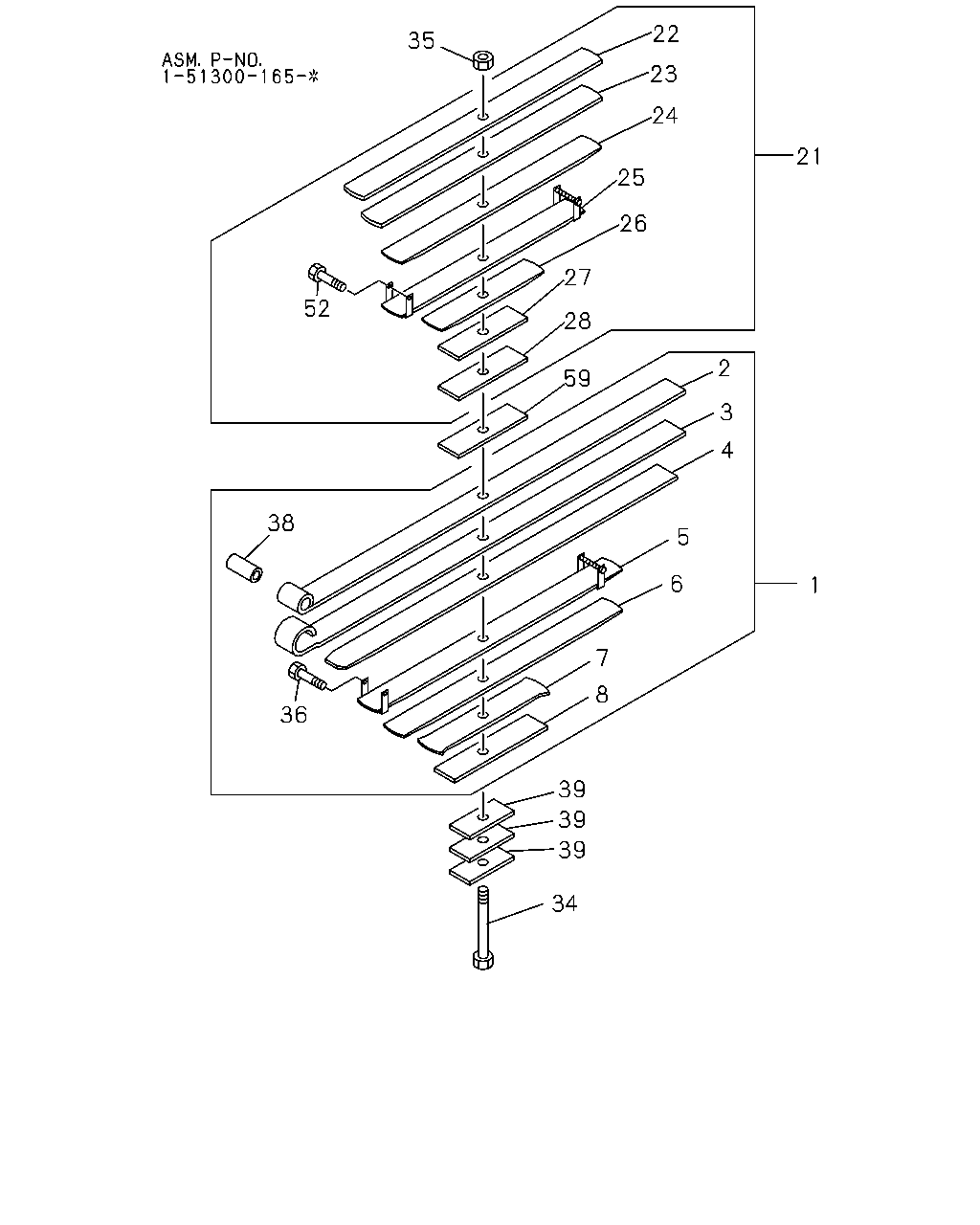

çizim 92560
22 35 23 24 21 25 26 27 52 28 2 59 3 4 38 5 6 1 7 8 36 39 39 39 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51310-449-3 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51310-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51311-449-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51311-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51312-449-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51312-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51313-449-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51313-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51314-449-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51314-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51315-449-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
W/CLIP ASM PART: B = 1-51300-352-0 		1-51315-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51316-449-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51316-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51317-449-1 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51317-721-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 1-51300-165-4 		1-51340-337-2 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 1-51300-352-0 		1-51340-450-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 1-51300-165-4 		1-51341-337-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 1-51300-352-0 		1-51341-450-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 1-51300-165-4 		1-51342-337-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 1-51300-352-0 		1-51342-450-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 1-51300-165-4 		1-51343-337-1 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: B = 1-51300-352-0 		1-51343-450-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 1-51300-165-4 		1-51344-337-2 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP ASM PART: B = 1-51300-352-0 		1-51344-450-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 1-51300-165-4 		1-51345-337-1 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 1-51300-352-0 		1-51345-450-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 1-51300-165-4 		1-51346-337-1 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 1-51300-352-0 		1-51346-450-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
ASM PART: A = 1-51300-165-4 		1-51347-337-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: B = 1-51300-352-0 		1-51356-131-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=235 ASM PART: A = 1-51300-165-4 		1-51356-140-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-165-4, B = 1-51300-352-0 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 1-51300-165-4, B = 1-51300-352-0 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-165-4, B = 1-51300-352-0 		1-51351-010-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: B = 1-51300-352-0 		1-51377-118-0 05 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: A = 1-51300-165-4 		1-51377-118-0 03 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: A = 1-51300-165-4, B = 1-51300-352-0 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-165-4, B = 1-51300-352-0 		1-51377-118-0 01 1 -
çizim 92590
35 22 23 24 21 25 26 27 52 2 59 3 4 5 38 6 1 7 8 9 36 39 39 39 39 39 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51310-449-3 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51310-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51311-449-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51311-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51312-449-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51312-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51313-449-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51313-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51314-449-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51314-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51315-449-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
W/CLIP ASM PART: B = 1-51300-352-0 		1-51315-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51316-449-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51316-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51300-165-4 		1-51317-449-1 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51317-721-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: B = 1-51300-352-0 		1-51318-721-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 1-51300-165-4 		1-51340-337-2 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 1-51300-352-0 		1-51340-450-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 1-51300-165-4 		1-51341-337-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 1-51300-352-0 		1-51341-450-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 1-51300-165-4 		1-51342-337-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 1-51300-352-0 		1-51342-450-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 1-51300-165-4 		1-51343-337-1 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: B = 1-51300-352-0 		1-51343-450-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 1-51300-165-4 		1-51344-337-2 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP ASM PART: B = 1-51300-352-0 		1-51344-450-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 1-51300-165-4 		1-51345-337-1 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 1-51300-352-0 		1-51345-450-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 1-51300-165-4 		1-51346-337-1 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 1-51300-352-0 		1-51346-450-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: B = 1-51300-352-0 		1-51356-131-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=235 ASM PART: A = 1-51300-165-4 		1-51356-140-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-165-4, B = 1-51300-352-0 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 1-51300-165-4, B = 1-51300-352-0 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-165-4, B = 1-51300-352-0 		1-51351-010-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: B = 1-51300-352-0 		1-51377-118-0 05 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: A = 1-51300-165-4 		1-51377-118-0 03 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: A = 1-51300-165-4, B = 1-51300-352-0 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-165-4, B = 1-51300-352-0 		1-51377-118-0 01 1 -
