2-20 — MANUAL TRANSMISSION ASM AND CASE (#12788) — 125 parça

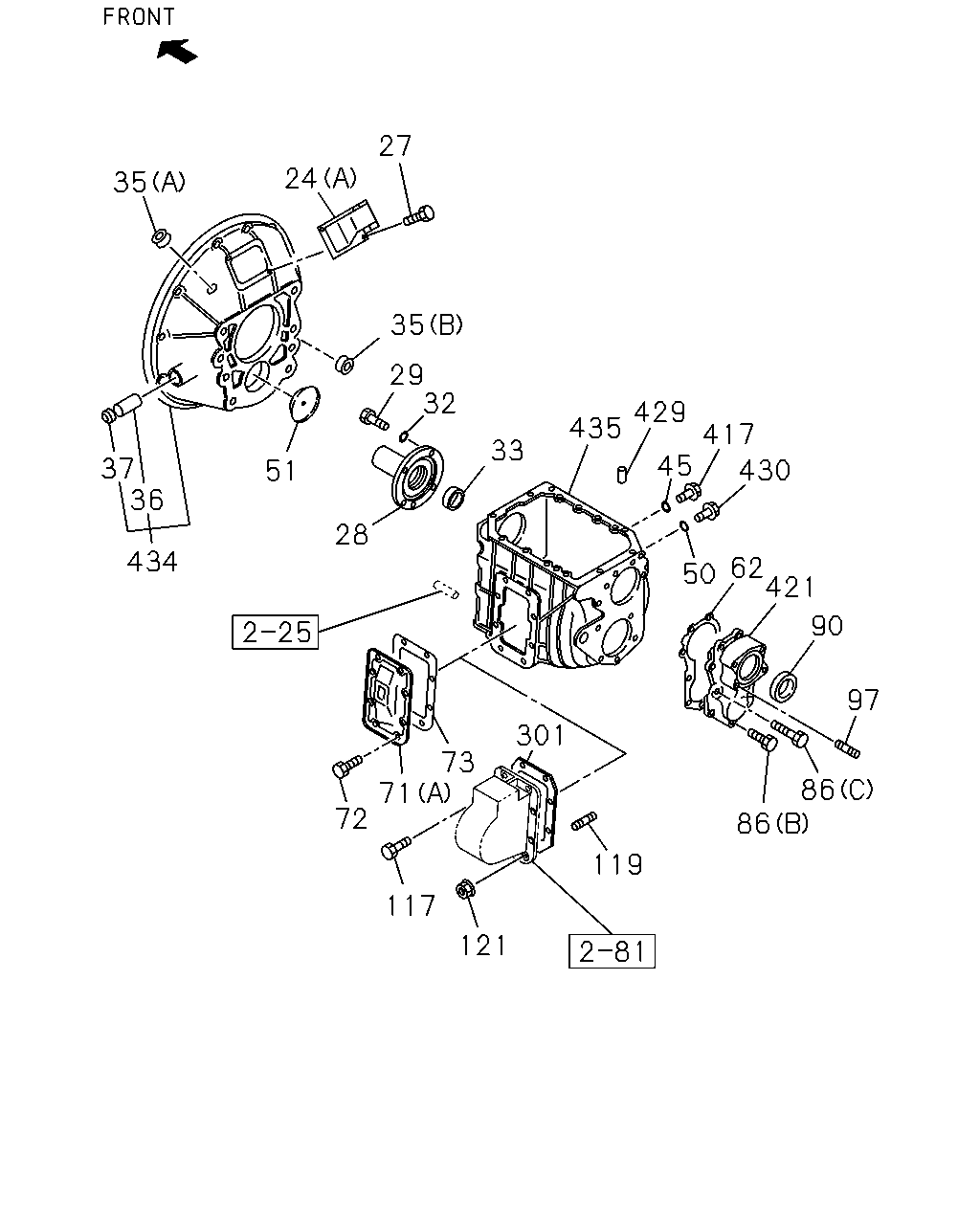

35 24 27 35 32 29 33 28 51 37 36 434 435 429 430 421 62 50 90 301 119 73 71 72 117 121 86 86 97 417 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0808-0912	●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1001-1102	●	●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1103-1410		●
24	COVER; CHECK HOLE,DUST (B)	8-98283-062-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	0808-1102	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1001-1410		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-		●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0808-1102	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0808-1102	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0808-1102	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0808-1102	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1001-		●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0808-1102	●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0808-1102	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0808-1102	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0808-1102	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0808-1102	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0808-1102	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1404		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0808-1102	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0808-1102	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-33141-033-0	01	1	0808-1102	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98122-318-0	01	1	1001-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X16 FLANGE THA	0-28151-016-0	08	1	0808-1102	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1001-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-036-0	01	1	1001-1102	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0808-1102	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0808-1102	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1001-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1001-1102	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0808-0912	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1103-1103		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●
97	STUD; PARKING BRK M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0808-1102	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0808-1102	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	0808-1102	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1001-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X30 L=45	0-44011-030-0	02	1	0808-1102	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	0808-1102	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38119-037-0	01	1	0808-1102	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0808-1102	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1001-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0808-1102	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1001-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0808-1102	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0808-1102	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1001-1404		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
434	HOUSING; CLU	1-31110-169-0	01	1	0808-1102	●
434	HOUSING; CLU	8-98004-506-2	01	1	1001-		●
435	CASE; TRANS	1-33111-355-0	01	1	0808-1102	●
435	CASE; TRANS	8-98123-098-1	01	1	1001-1102		●
435	CASE; TRANS	8-98123-098-1	01	1	1103-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●

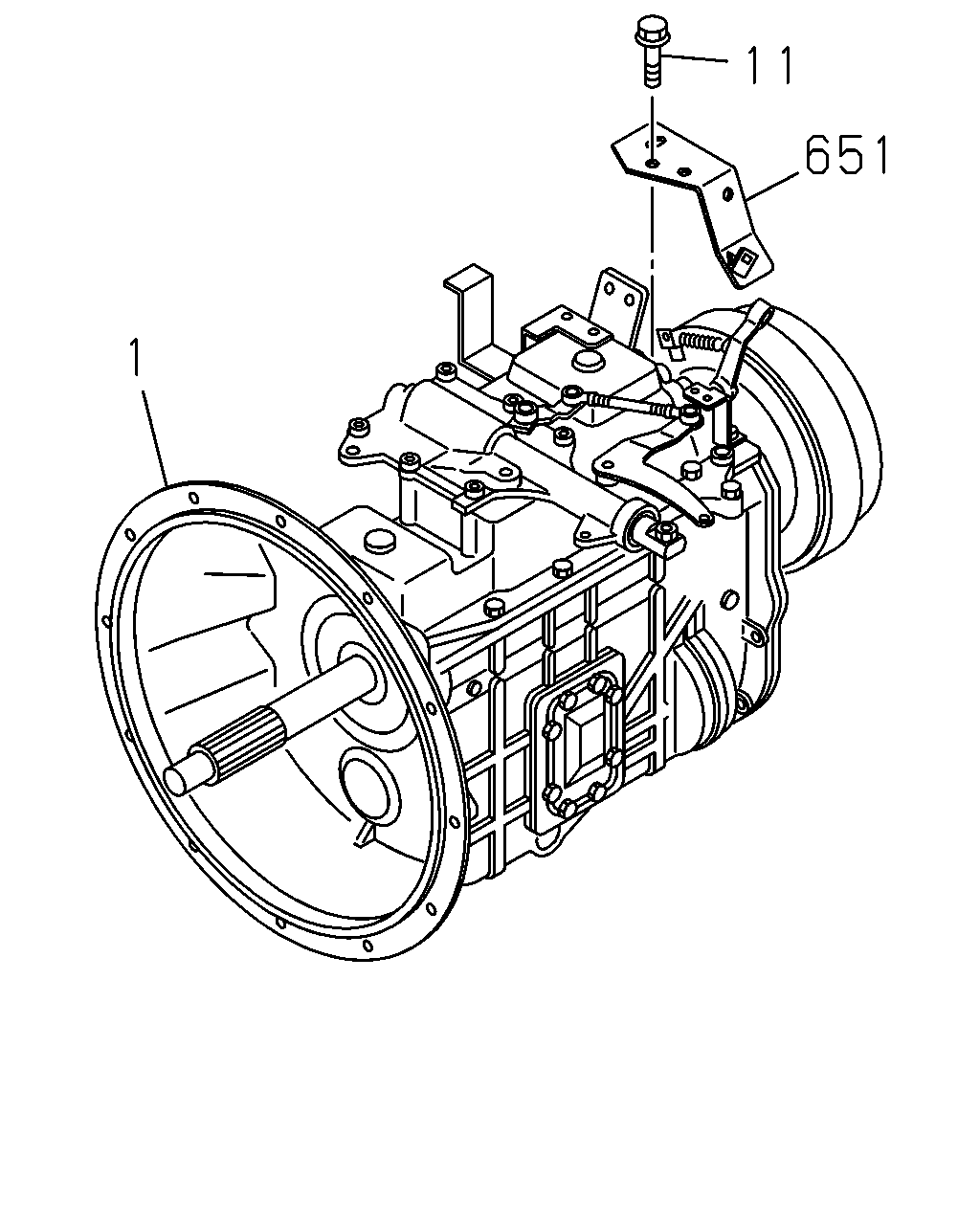

11 651

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	11	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0808-1102	●
	651	BRACKET; T/M HARNESS	8-98120-315-0	01	1	0808-1102	●

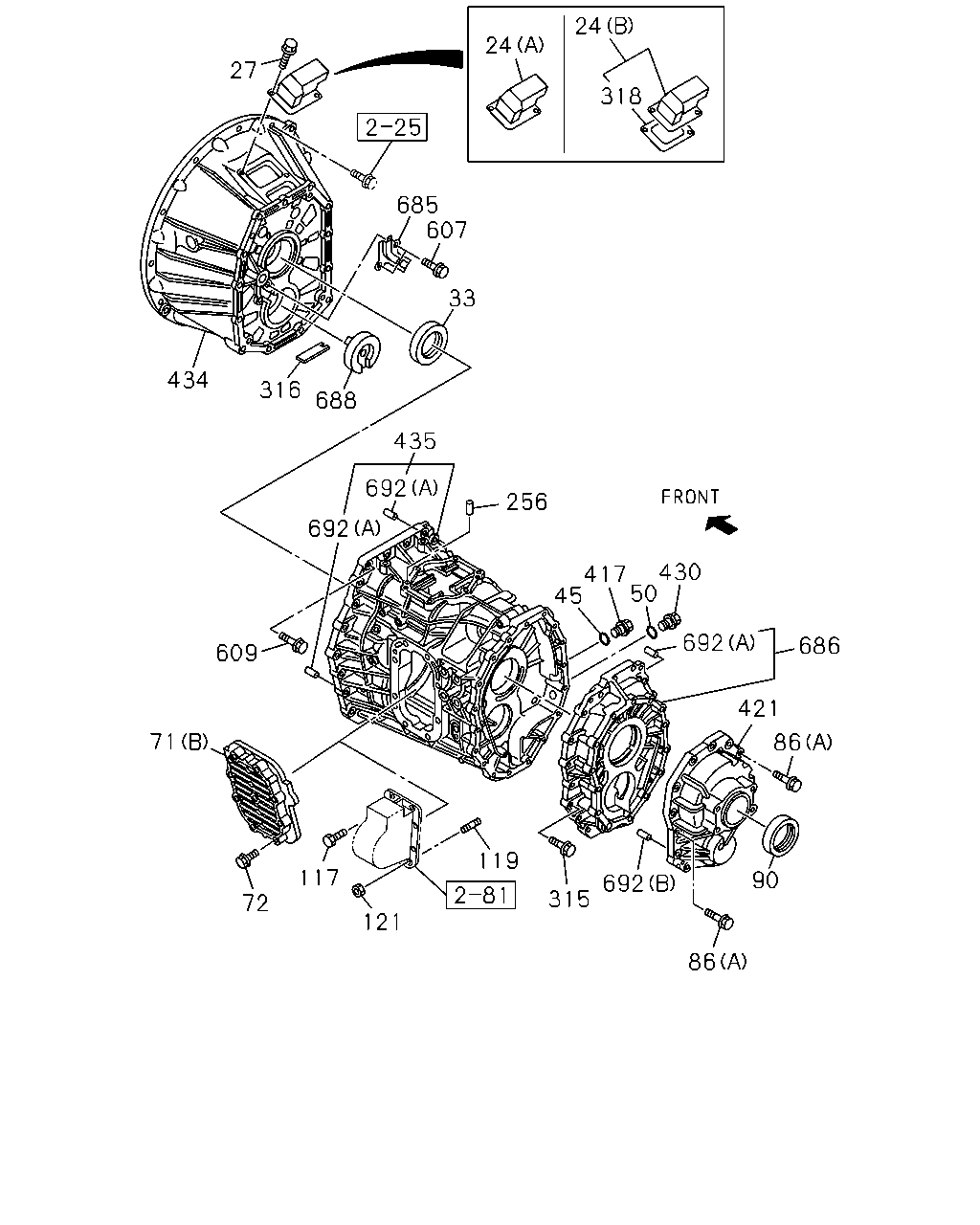

27 24 24 318 685 607 33 688 316 434 435 256 692 692 609 71 117 72 121 119 315 692 86 90 86 686 692 430 50 417 45 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0808-0912	●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1001-1102	●	●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1103-1410		●
24	COVER; CHECK HOLE,DUST (B)	8-98283-062-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	0808-1102	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1001-1410		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0808-1102	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1001-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0808-1102	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0808-1102	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1404		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-33141-033-0	01	1	0808-1102	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98122-318-0	01	1	1001-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X16 FLANGE THA	0-28151-016-0	08	1	0808-1102	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1001-		●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0808-1102	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0808-1102	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1001-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1001-1102	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0808-0912	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1103-1103		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	0808-1102	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1001-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X30 L=45	0-44011-030-0	02	1	0808-1102	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	0808-1102	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1001-		●
315	BOLT; CASE M8X40 FLANGE THA	0-28050-840-0	18	1	1001-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1001-		●
318	GASKET; COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-31139-023-0	01	1	1411-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0808-1102	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1001-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0808-1102	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1001-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0808-1102	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1001-1404		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
434	HOUSING; CLU	1-31110-169-0	01	1	0808-1102	●
434	HOUSING; CLU	8-98004-506-2	01	1	1001-		●
435	CASE; TRANS	1-33111-355-0	01	1	0808-1102	●
435	CASE; TRANS	8-98123-098-1	01	1	1001-1102		●
435	CASE; TRANS	8-98123-098-1	01	1	1103-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
607	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	1001-		●
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1001-		●
685	COVER; OIL PORT	8-98018-864-1	01	1	1001-		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	1001-		●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	1001-1110		●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508		●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1001-		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1001-		●

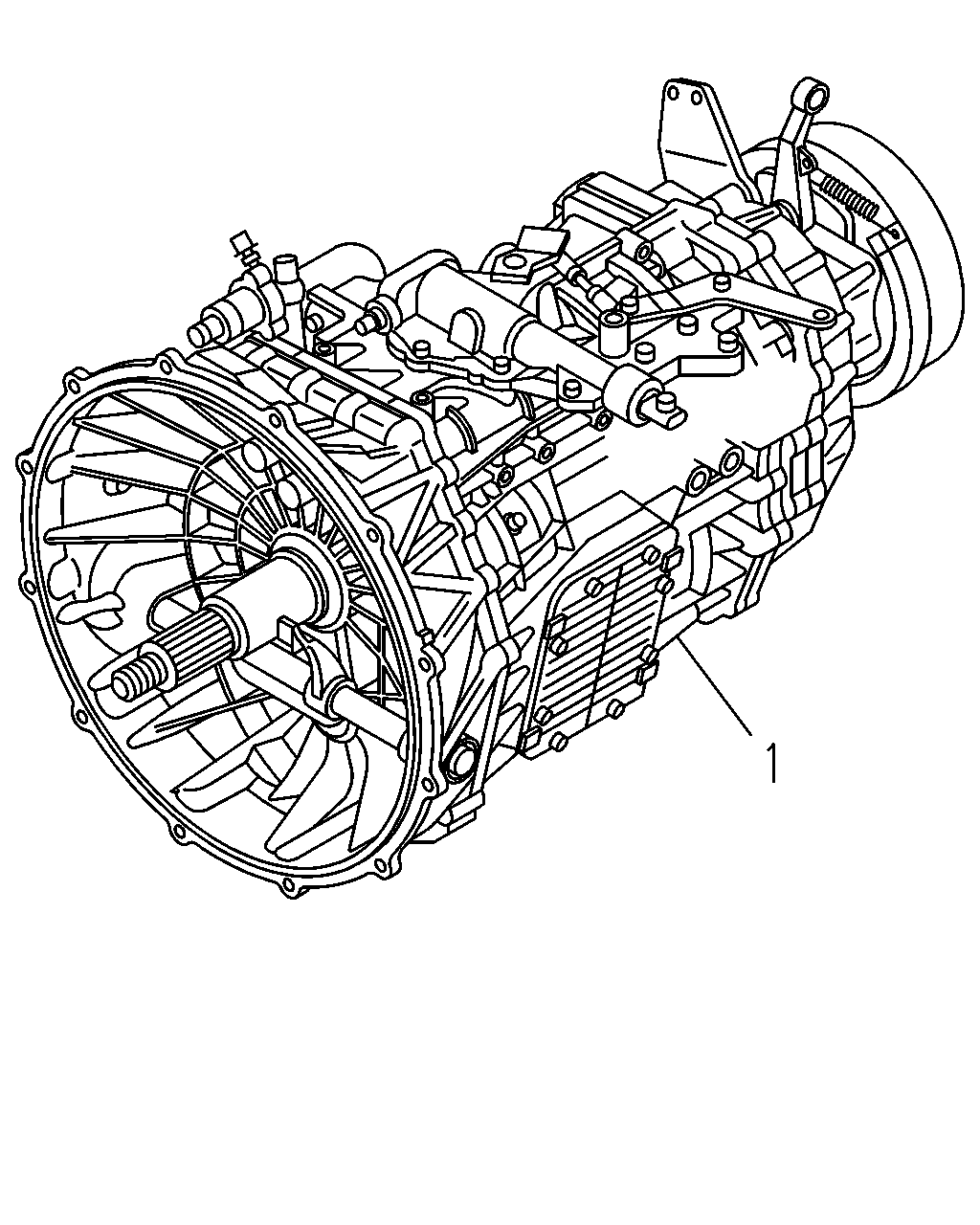

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-352-0	01	1	0808-1102	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33044-352-0	01	1	0808-1102	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98147-576-0	01	1	1001-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98147-576-0	01	1	1001-		●
