1 |

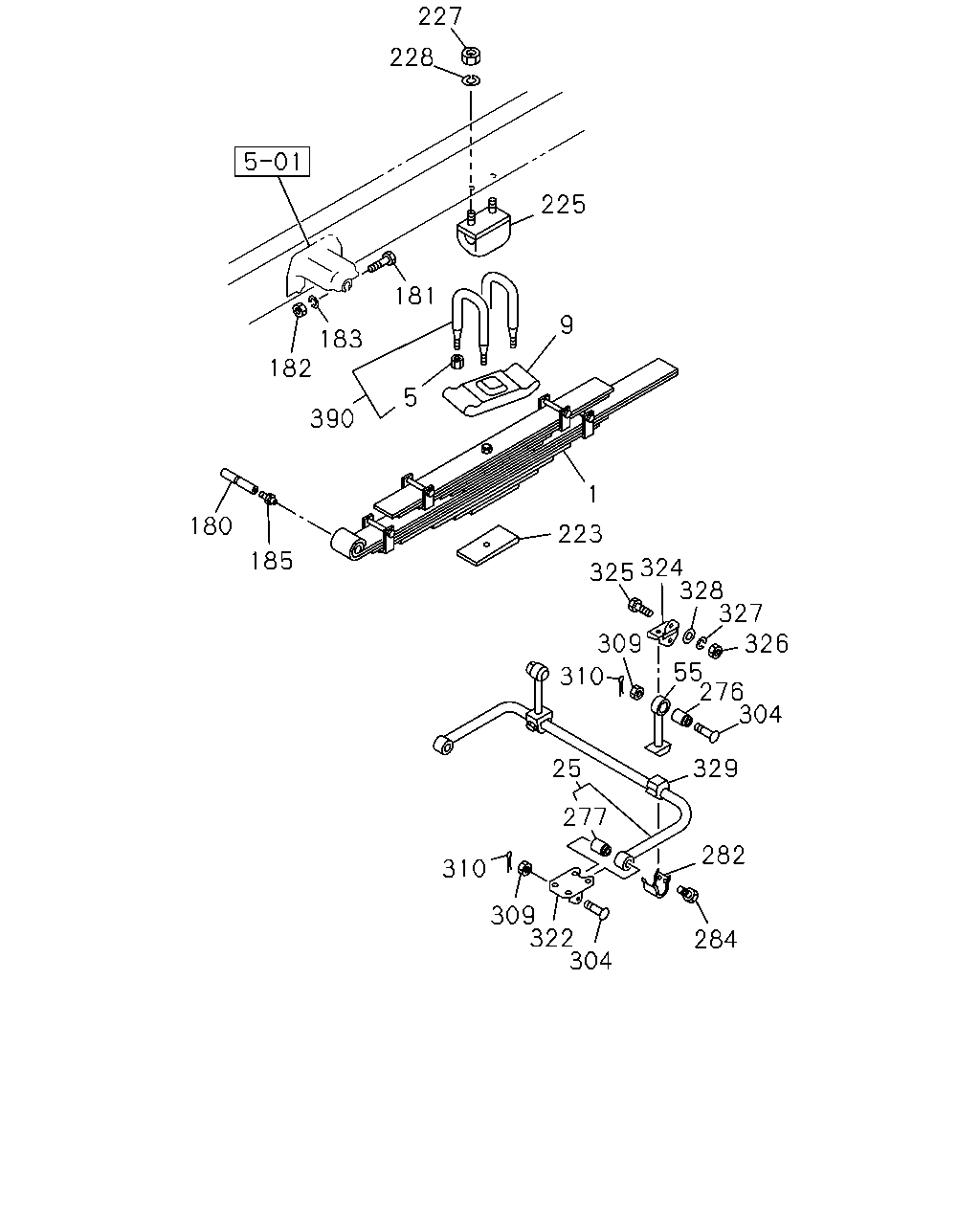

SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
SUSPENSION HEAVY DUTY VAR2(F41)
|
1-51300-165-4 |
02 |
1 |
9202- |
● |
● |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
EXC. SUSPENSION HEAVY DUTY VAR2(F41)
14-LEAF
|
1-51300-352-0 |
02 |
1 |
9202- |
● |
● |
| |
5 |
NUT; U-BOLT,RR SPR
M24
|
9-99112-824-0 |
08 |
1 |
9202- |
● |
● |
| |
9 |
PAD; U BOLT,RR SPR
|
1-51372-030-0 |
02 |
1 |
9202- |
● |
● |
| |
25 |
BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61>
|
1-51770-030-2 |
01 |
1 |
9202-9404 |
● |
● |
| |
55 |
ROD; STAB
REAR STABILIZER SHAFT<F61>
|
1-51770-035-0 |
02 |
1 |
9202-9404 |
● |
● |
| |
180 |
PIN; RR SPR
|
1-51361-020-0 |
02 |
1 |
9202- |
● |
● |
| |
181 |
BOLT; SPR & SHACKLE
M14X80
|
0-10806-480-0 |
02 |
1 |
9202- |
● |
● |
| |
182 |
NUT; PIN,RR SPR
M14
|
9-99110-414-0 |
02 |
1 |
9202- |
● |
● |
| |
183 |
WASHER; LK,PIN,RR SPR
ID=14.2
|
9-09150-514-0 |
02 |
1 |
9202- |
● |
● |
| |
185 |
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9202- |
● |
● |
| |
223 |
SPACER; U BOLT,RR SPR
|
1-51377-227-0 |
02 |
1 |
9202-9202 |
● |
|
| |
223 |
SPACER; U BOLT,RR SPR
|
1-51377-327-0 |
02 |
1 |
9203- |
● |
|
| |
223 |
SPACER; U BOLT,RR SPR
|
1-51377-215-1 |
02 |
1 |
9202-9508 |
|
● |
| |
223 |
SPACER; U BOLT,RR SPR
|
1-51377-357-0 |
02 |
1 |
9509- |
|
● |
| |
225 |
RUBBER; CUSHION,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41)
|
1-53366-045-0 |
02 |
1 |
9202- |
● |
● |
| |
225 |
RUBBER; CUSHION,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41)
|
1-53366-085-1 |
02 |
1 |
9202- |
● |
● |
| |
227 |
NUT; CUSHION RUBBER
M12
|
9-99110-512-0 |
04 |
1 |
9202- |
● |
● |
| |
228 |
WASHER; LK,CUSHION RUBBER
ID=12.2
|
9-09150-512-0 |
04 |
1 |
9202- |
● |
● |
| |
276 |
BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61>
|
1-51779-019-0 |
04 |
1 |
9202-9404 |
● |
● |
| |
277 |
BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61>
|
1-51779-067-0 |
02 |
1 |
9202-9404 |
● |
● |
| |
282 |
RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61>
|
1-51789-015-2 |
02 |
1 |
9202-9404 |
● |
● |
| |
284 |
BOLT; RET TO RET
REAR STABILIZER SHAFT<F61>
M10X25
|
8-94463-351-0 |
08 |
1 |
9202-9404 |
● |
● |
| |
304 |
PIN; STAB ROD
REAR STABILIZER SHAFT<F61>
|
1-51789-020-1 |
04 |
1 |
9202-9404 |
● |
● |
| |
309 |
NUT; STAB ROD
REAR STABILIZER SHAFT<F61>
M24
|
9-99116-424-0 |
04 |
1 |
9202-9404 |
● |
● |
| |
310 |
PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61>
OD=4.6 L=45
|
9-08115-045-0 |
04 |
1 |
9202-9404 |
● |
● |
| |
322 |
BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61>
|
1-51781-048-3 |
02 |
1 |
9202-9404 |
● |
● |
| |
324 |
BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61>
|
1-51781-059-0 |
02 |
1 |
9202-9404 |
● |
● |
| |
325 |
BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61>
M14X40
|
0-20801-440-0 |
06 |
1 |
9202-9305 |
● |
● |
| |
325 |
BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61>
M14X45
|
9-92061-445-0 |
06 |
1 |
9306-9404 |
● |
● |
| |
326 |
NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61>
M14
|
9-99110-414-0 |
06 |
1 |
9202-9305 |
● |
● |
| |
326 |
NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61>
M14
|
9-99110-514-0 |
06 |
1 |
9306-9404 |
● |
● |
| |
327 |
WASHER; LK,BRKT TO FRAME
REAR STABILIZER SHAFT<F61>
ID=14.2
|
9-09150-614-0 |
06 |
1 |
9202-9305 |
● |
● |
| |
328 |
WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61>
ID=15
|
9-09651-069-0 |
12 |
1 |
9306-9404 |
● |
● |
| |
329 |
BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61>
|
1-51789-016-0 |
02 |
1 |
9202-9404 |
● |
● |
| |
390 |
U-BOLT SET; RR SPRING
SUSPENSION HEAVY DUTY VAR2(F41)
L=470
|
1-87870-092-1 |
04 |
1 |
9202-9207 |
● |
● |
| |
390 |
U-BOLT SET; RR SPRING
EXC. SUSPENSION HEAVY DUTY VAR2(F41)
L=490
|
1-87870-036-2 |
04 |
1 |
9202-9207 |
● |
● |
| |
390 |
U-BOLT SET; RR SPRING
L=490
|
1-87870-036-2 |
04 |
1 |
9208- |
● |
● |
