◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11125 - FTR(THAI)EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#12779) — 181 parça
çizim 143090
415 97 22 105 128 11 12 506 17
BalonParca AdiParca NoAdetTipApplied Date
11 PIPE; EXH,RR
WHEEL BASE 3600MM<36W> THA 		8-97924-667-0 01 1 0808-
11 PIPE; EXH,RR
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> THA 		8-97924-543-0 01 1 0808-
12 SILENCER ASM; EXH 8-98090-389-2 01 1 0808-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 0808-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 0808-1102
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 03 1 1103-1203
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 07 1 1204-
22 CLAMP; EXH PIPE
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) ID=94-98 THA 		1-22133-237-0 02 1 1310-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
(C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) ID=94-98 THA 		1-22133-237-0 02 1 0808-1305
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0808-1305
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0808-
97 WASHER; PL,CLAMP
ID=10.5 OD=26 		9-09160-710-0 01 1 0808-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> M10 FLANGE THA 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 0808-1305
105 NUT; CLAMP
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> M10 FLANGE THA 		0-91180-210-0 02 1 0808-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 01 1 0808-
128 PIPE; EXH,RR
WHEEL BASE 3600MM<36W> THA 		8-97924-539-0 01 1 0808-
128 PIPE; EXH,RR
WHEEL BASE 4200MM<42W> THA 		8-97924-540-0 01 1 0808-
128 PIPE; EXH,RR
WHEEL BASE 5000MM<50W> THA 		8-97924-541-0 01 1 0808-
128 PIPE; EXH,RR
WHEEL BASE 5500MM<55W> THA 		8-97924-666-0 01 1 0808-
415 BOLT; CLAMP
M10X35 FLANGE THA 		0-28651-035-0 01 1 0808-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0808-1203

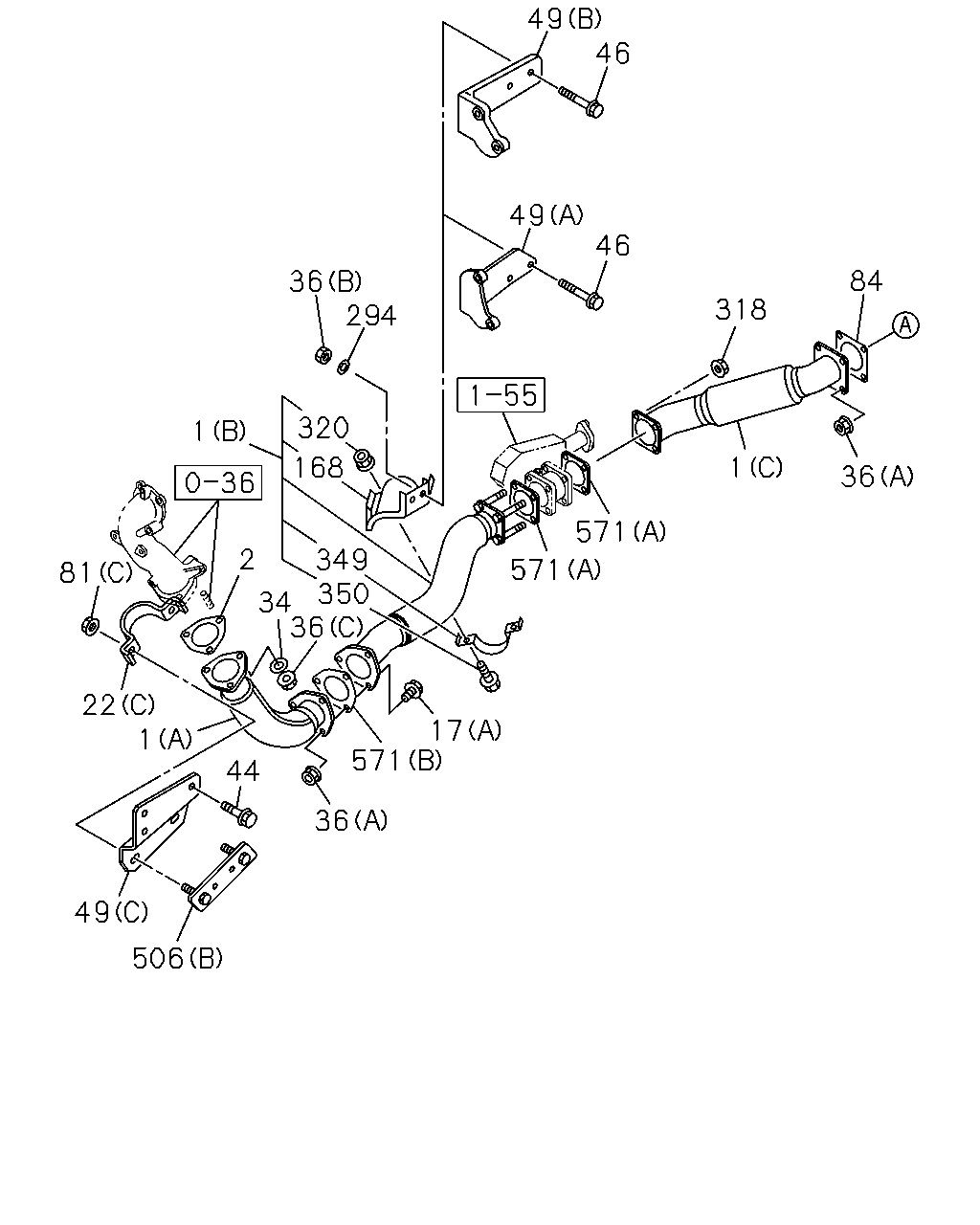

çizim 143099
1 36 294 320 168 349 350 36 34 2 81 22 1 44 49 506 36 571 17 571 571 1 36 84 318 46 49 46 49
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98119-515-0 01 1 1103-1209
1 PIPE; EXH
(B) 		8-98230-001-0 01 1 1210-1309
1 PIPE; EXH
(B) 		8-98245-502-0 01 1 1310-1406
1 PIPE; EXH
(B) 		8-98234-516-1 01 1 1407-
1 PIPE; EXH
(A) THA 		8-98090-385-0 01 1 0808-1102
1 PIPE; EXH
(A) 		8-98073-006-3 01 1 1103-
1 PIPE; EXH
(C) THA 		8-98096-668-2 01 1 0808-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0808-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 0808-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 0808-1102
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 03 1 1103-1203
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 07 1 1204-
22 CLAMP; EXH PIPE
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) ID=94-98 THA 		1-22133-237-0 02 1 1310-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
(C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) ID=94-98 THA 		1-22133-237-0 02 1 0808-1305
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0808-1305
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0808-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0808-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0808-
36 NUT; EXH PIPE
(A) M12 FLANGE THA 		0-91180-212-0 07 1 0808-
36 NUT; EXH PIPE
(C) M12 		1-09400-010-0 03 1 0808-
44 BOLT; BRKT
M10X20 FLANGE THA 		0-28751-020-0 03 1 1305-
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0808-0808
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0809-
49 BRACKET; EXH PIPE TO TRANS
(C) 		8-97629-970-0 01 1 1305-
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T<RSZ> (A) 		8-98120-493-0 01 1 1001-1102
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98120-493-0 01 1 1103-
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98113-012-0 01 1 0808-0912
49 BRACKET; EXH PIPE TO TRANS
MLD6W M/T<Y2C> (B) 		8-98113-012-0 01 1 1001-1102
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1303-
81 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0808-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0808-1305
81 NUT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 0808-1305
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 0808-1302
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 0808-1302
81 NUT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) M10 FLANGE THA 		0-91180-210-0 02 1 0808-1302
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1303-
81 NUT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) M10 FLANGE THA 		0-91180-210-0 02 1 1303-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 0808-
84 GASKET; EXH PIPE 8-98096-305-0 01 1 0808-
168 BRACKET; EXH PIPE,FRT 8-98071-144-0 01 1 0808-1209
168 BRACKET; EXH PIPE,FRT 8-98221-369-1 01 1 1210-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0808-
318 NUT; EXH PIPE,FRT
M10 FLANGE THA 		0-91180-210-0 04 1 0808-
320 NUT; CLAMP,EXH PIPE
M10 FLANGE THA 		0-91180-210-0 02 1 0808-
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 0808-
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE THA 		0-28651-030-0 02 1 0808-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0808-1203
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0808-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0808-

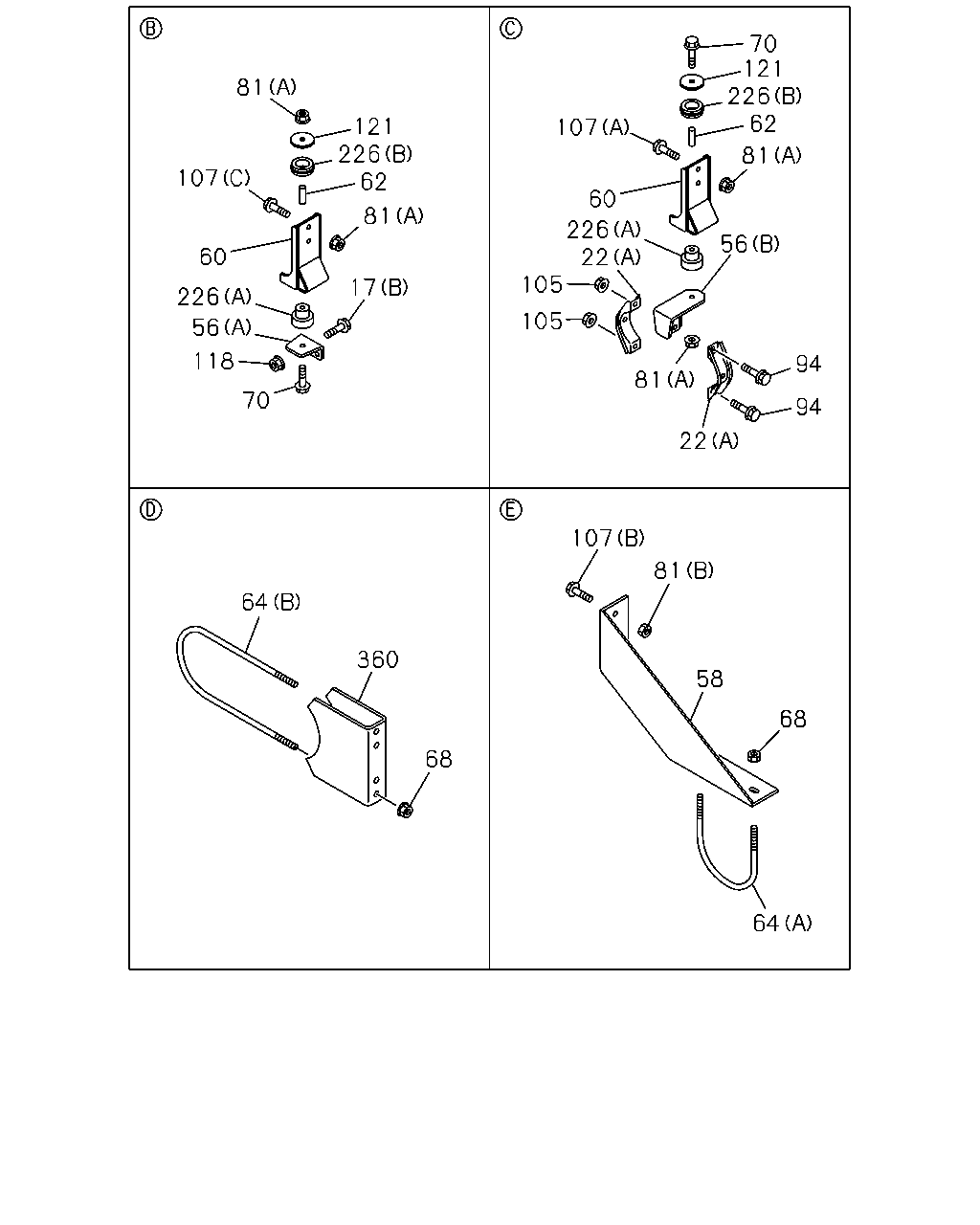

çizim 143103
68 58 81 107 68 360 64 22 94 94 81 105 105 56 22 226 60 81 62 226 121 70 107 17 70 118 56 226 60 81 62 226 121 107 81 64
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 0808-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 0808-1102
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 03 1 1103-1203
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 07 1 1204-
22 CLAMP; EXH PIPE
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) ID=94-98 THA 		1-22133-237-0 02 1 1310-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
(C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) ID=94-98 THA 		1-22133-237-0 02 1 0808-1305
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0808-1305
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0808-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3600MM<36W> (B) 		8-98245-538-0 01 1 1306-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (B) 		8-98245-536-0 01 1 1306-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) 		8-98245-536-0 01 1 1306-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1306-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3600MM<36W> (B) 		8-98101-361-0 01 1 0808-1305
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) 		8-98070-639-0 01 1 0808-1305
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (B) 		8-98070-639-0 01 1 0808-1305
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0808-1305
58 BRACKET; EXH PIPE,RR
THA 		8-98056-460-0 01 1 0808-
60 BRACKET; FRAME TO BRKT 8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT 8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> 		8-98245-532-0 01 1 1306-
60 BRACKET; FRAME TO BRKT 8-98070-628-0 01 1 0808-1305
60 BRACKET; FRAME TO BRKT 8-98070-628-0 01 1 0808-1305
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> 		8-98070-628-0 01 1 0808-1305
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1306-
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1306-
62 TUBE; DIST,BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> L=39 		8-98060-852-0 01 1 1306-
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 0808-1305
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 0808-1305
62 TUBE; DIST,BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> L=39 		8-98060-852-0 01 1 0808-1305
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-100-0 01 1 0808-
64 U-BOLT; EXH PIPE,RR
(B) THA 		1-22113-063-1 01 1 0808-0903
64 U-BOLT; EXH PIPE,RR
(B) THA 		8-97917-676-0 01 1 0904-1304
64 U-BOLT; EXH PIPE,RR
(B) THA 		8-97926-650-0 01 1 1305-
68 NUT; U BOLT
M8 FLANGE THA 		0-91180-108-0 04 1 0808-0808
68 NUT; U BOLT
M8 FLANGE THA 		0-91180-108-0 02 1 0809-
68 NUT; U BOLT
M8 FLANGE THA 		0-91180-108-0 02 1 0809-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1310-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1310-
70 BOLT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> M10X70 FLANGE THA 		0-28051-070-0 01 1 1310-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 0808-1305
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 0808-1305
70 BOLT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> M10X70 FLANGE THA 		0-28051-070-0 01 1 0808-1305
70 BOLT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> M10X35 FLANGE THA 		0-28651-035-0 02 1 0808-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1303-
81 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0808-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0808-1305
81 NUT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) M10 FLANGE THA 		0-91180-210-0 01 1 0808-1305
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 0808-1302
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 0808-1302
81 NUT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) M10 FLANGE THA 		0-91180-210-0 02 1 0808-1302
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1303-
81 NUT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) M10 FLANGE THA 		0-91180-210-0 02 1 1303-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 0808-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1310-
94 BOLT; CLAMP
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> M10X40 FLANGE THA 		0-28651-040-0 02 1 1310-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 0808-1305
94 BOLT; CLAMP
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> M10X40 FLANGE THA 		0-28651-040-0 02 1 0808-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> M10 FLANGE THA 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 0808-1305
105 NUT; CLAMP
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> M10 FLANGE THA 		0-91180-210-0 02 1 0808-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 01 1 0808-
107 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 0808-1102
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28051-035-0 02 1 0808-0809
107 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 0808-
107 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28651-035-0 02 1 0808-0809
107 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28651-035-0 04 1 0810-
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0808-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1310-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1310-
121 WASHER; PL,BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=11 OD=54 		1-09503-154-2 01 1 1310-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0808-1305
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0808-1305
121 WASHER; PL,BRKT
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=11 OD=54 		1-09503-154-2 01 1 0808-1305
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1306-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1306-
226 RUBBER; CUSHION
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) 		8-94457-277-1 01 1 1306-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1306-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1306-
226 RUBBER; CUSHION
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) 		8-94457-278-1 01 1 1306-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0808-1305
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0808-1305
226 RUBBER; CUSHION
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) 		8-94457-277-1 01 1 0808-1305
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0808-1305
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0808-1305
226 RUBBER; CUSHION
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) 		8-94457-278-1 01 1 0808-1305
360 PIECE; DIST,EXH PIPE
THA 		8-97917-674-1 01 1 0808-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
