Isuzu WW
▶
TRUCKS
▶
FTR
▶
11125 - FTR(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#12774) — 56 parça
◀

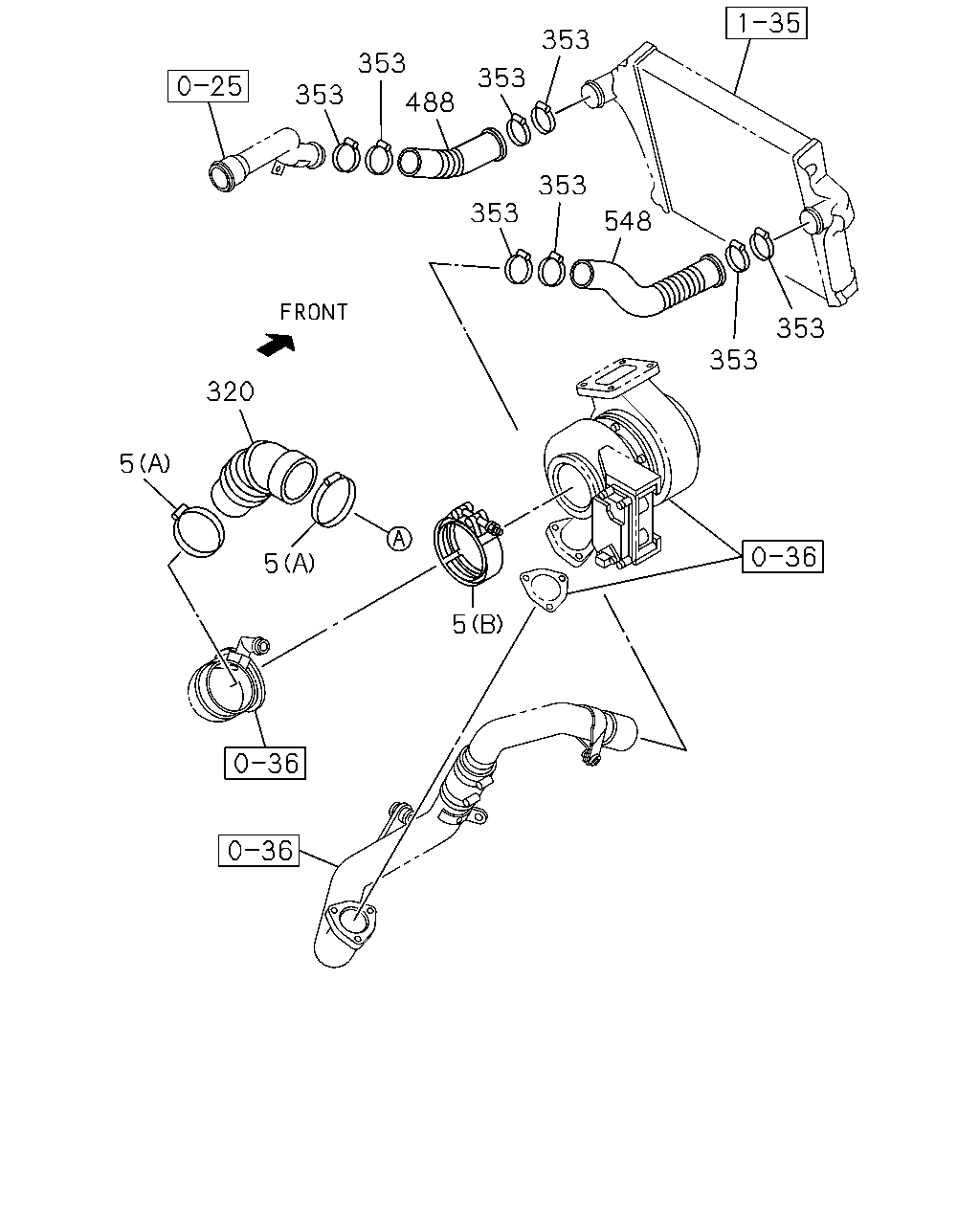

[131A] PIPING (15 parça)
[131A] DUCT FIXING (41 parça)
▶
353
353
353
353
488
353
353
548
353
353
320
5
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=100-120
8-98133-366-0
01
1
0901-1102
5
CLIP; AIR DUCT
(A) ID=90-110
8-98133-365-0
01
1
1103-1507
5
CLIP; AIR DUCT
(A) ID=90-110
8-98308-275-0
01
1
1508-
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
0808-1102
5
CLIP; AIR DUCT
(A) ID=104-139
1-09707-200-0
01
1
0808-0812
5
CLIP; AIR DUCT
(A) ID=104-139
1-09707-200-0
01
1
0808-0812
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
0901-1507
5
CLIP; AIR DUCT
(A) ID=110-130
8-98308-276-0
01
1
1508-
320
HOSE; CONN,ACL
8-98012-859-2
01
1
0808-1102
320
HOSE; CONN,ACL
8-98167-258-0
01
1
1103-
353
CLIP; RUBBER HOSE
ID=58-76 THA
1-09707-203-0
08
1
0808-0811
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
0812-1507
353
CLIP; RUBBER HOSE
ID=55-75 THA
8-98141-459-0
08
1
1508-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
0808-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98065-044-0
01
1
0808-
49
242
58
56
56
49
49
56
56
58
242
242
245
61
58
48
58
560
26
49
252
450
316
71
543
558
543
368
174
543
564
480
225
424
159
379
357
210
209
357
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
0808-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
0808-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
0808-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
0808-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
0808-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
0808-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
0808-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
0808-
58
SUPPORT; AIR INL DUCT
(B)
1-14119-452-0
01
1
0808-0810
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
0811-
61
BOLT; BRKT,AIR DUCT
M8X20 FLANGE
8-98061-920-0
02
1
0808-
71
CLIP; AIR DUCT
ID=104-139
1-09707-200-0
01
1
0808-0812
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
0901-1507
71
CLIP; AIR DUCT
ID=120-140
8-98308-277-0
01
1
1508-
159
BOLT; AIR PIPE
M6X16 FLANGE THA
0-28050-616-0
02
1
0808-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
0808-1102
209
BRACKET; ACL
8-98021-995-1
01
1
0808-
210
BOLT; ACL BRKT
M10X25 FLANGE THA
0-28651-025-0
04
1
0808-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
0808-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
0808-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
0808-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
0808-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0808-
252
DUCT; AIR INT
8-98012-861-1
01
1
0808-
296
NUT; ACL
M8 FLANGE THA
0-91180-108-0
04
1
0808-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
0908-
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
01
1
0808-
357
CLIP; RUBBER HOSE
ID=29.5
8-97354-979-0
01
1
0808-
368
SENSOR; TEMP
8-98065-377-0
01
1
1103-
379
HOSE; RUBBER
8-97619-194-0
01
1
0808-
424
PIPE; AIR,INL
8-98081-834-0
01
1
0808-
450
CLAMP; HOSE
9-09915-504-1
01
1
0808-
480
ADAPTER
8-98086-417-0
01
1
1103-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA
0-36230-412-0
02
1
1103-
543
SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER THA
0-36230-410-0
02
1
0808-0811
543
SCREW; SENSOR
(C) M5X14 W/LK WASHER
0-36220-514-0
01
1
1103-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
0808-
558
CLIP; AIR FLOW SENSOR
L=250 THA
5-09707-030-1
02
1
0808-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1103-
560
FILTER; VERTICAL DUCT
8-98061-675-0
02
1
0808-1102
564
GASKET; ADAPTER
8-98071-416-0
01
1
1103-
