Isuzu WW
▶
TRUCKS
▶
FTR
▶
11125 - FTR(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#12770) — 29 parça
◀

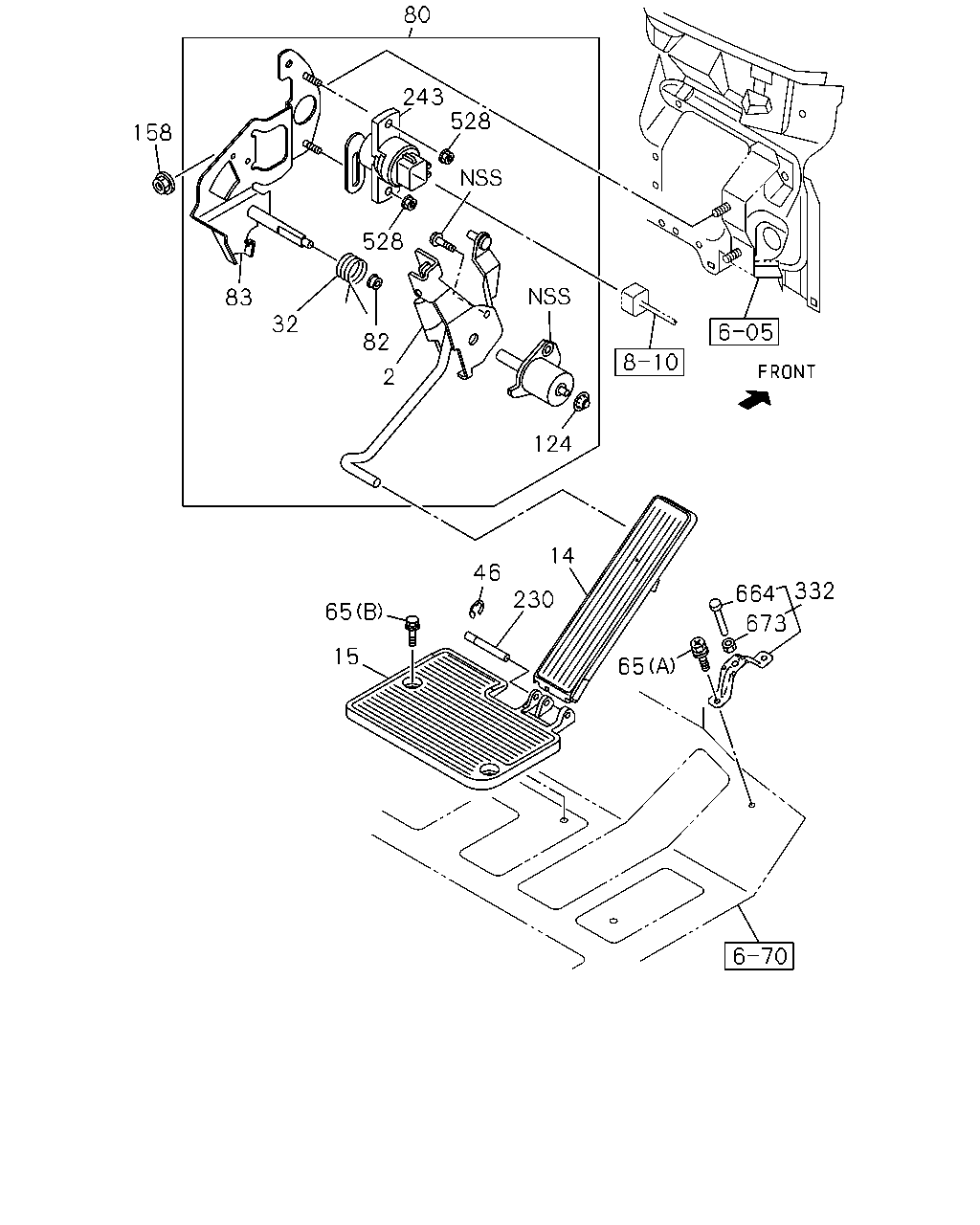

[101A] NO.1 (21 parça)
[101A] NO.3 (5 parça)
[101A] NO.2 (3 parça)
▶
80
243
528
158
83
32
528
82
2
124
14
46
230
65
15
65
673
664
332
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
8-98049-120-1
01
1
0808-
14
PAD; PEDAL,ACCEL
8-97859-101-0
01
1
0808-
15
STAND; HEEL,ACCEL PEDAL
8-98022-259-2
01
1
0808-
32
SPRING; RETURN,ACCEL PEDAL
8-98031-665-0
01
1
0808-
46
RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
0808-
65
BOLT
(D) M10X60
0-16861-060-0
01
1
0808-
65
BOLT
(C) M10X20 FLANGE THA
0-28151-020-0
01
1
0808-
65
BOLT
(B) M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0808-
65
BOLT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0808-
80
LINK ASM; ENG CONT
8-98038-418-4
01
1
0808-
82
BUSHING; ENG CONT LVR
8-97581-053-0
01
1
0808-
83
BRACKET; CONT LINK
8-98020-217-0
01
1
0808-
124
NUT; LEVER
ID=7.9 PUSH NUT THA
8-94368-617-0
01
1
0808-
158
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
0808-
230
PIN; JOINT,ACCEL PEDAL TO BRKT
8-98026-806-0
01
1
0808-
243
SENSOR; ACCEL
8-97602-416-0
01
1
0808-0908
243
SENSOR; ACCEL
8-98131-263-0
01
1
0909-
332
BRACKET; ACCEL PEDAL STOPPER
8-98011-468-2
01
1
0808-
528
NUT; ACCEL SENSOR
M5
8-94169-022-0
02
1
0808-
664
BOLT; STOPPER
M8X40
0-20850-840-0
01
1
0808-
673
NUT; STOPPER
M8 THA
0-91110-508-0
01
1
0808-

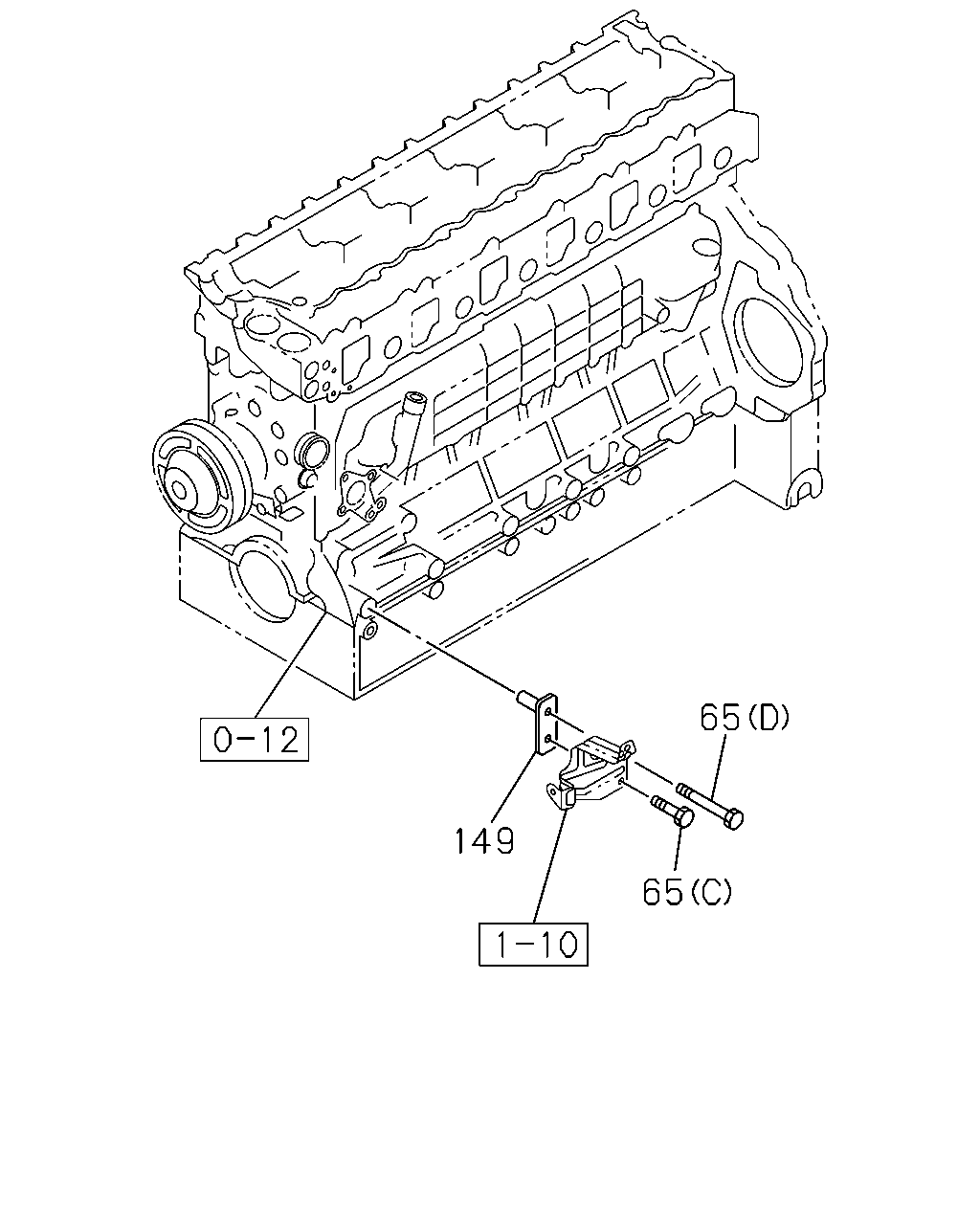

65
149
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
BOLT
(D) M10X60
0-16861-060-0
01
1
0808-
65
BOLT
(C) M10X20 FLANGE THA
0-28151-020-0
01
1
0808-
65
BOLT
(B) M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0808-
65
BOLT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0808-
149
BRACKET; ENG CONT
8-98045-009-0
01
1
0808-

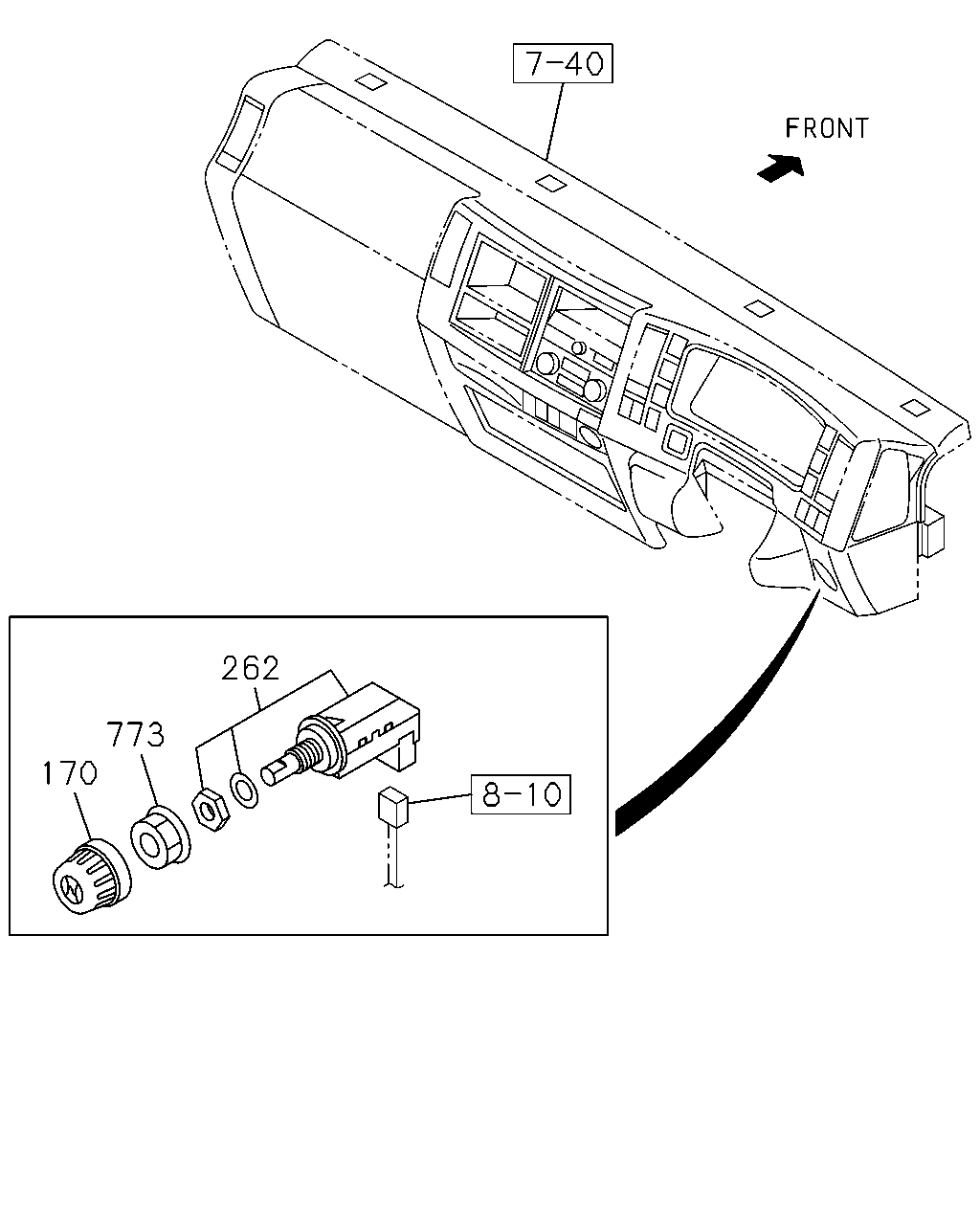

262
773
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
170
KNOB
8-98013-420-0
01
1
0808-
262
SWITCH; ACCEL,IDLE
8-98013-418-0
01
1
0808-
773
HOLDER; ACCEL PEDAL
8-97352-127-0
01
1
0808-
