4-55 — FRONT LEAF SPRING (#1277) — 75 parça

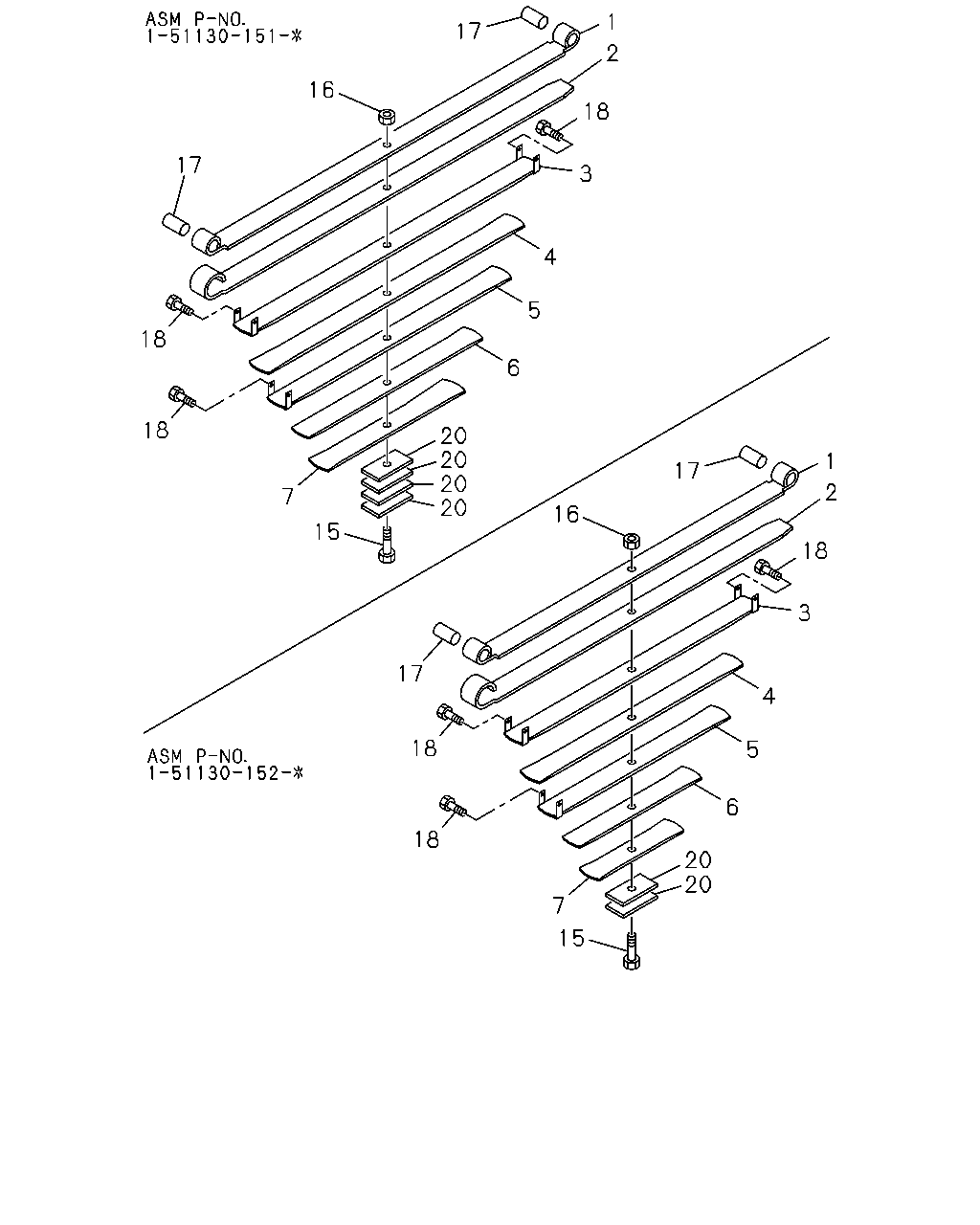

1 17 2 16 18 17 3 4 5 18 6 18 20 20 20 20 1 17 2 7 16 15 18 3 17 4 18 5 6 18 20 20 7 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-070-0	1-51131-070-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-071-0	1-51131-071-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-151-0	1-51131-151-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-152-0	1-51131-152-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-070-0	1-51132-070-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-071-0	1-51132-071-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-151-0	1-51132-151-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-152-0	1-51132-152-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-070-0	1-51133-070-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-071-0	1-51133-071-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-151-0	1-51133-151-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-152-0	1-51133-152-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-071-0	1-51134-071-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-151-0	1-51134-151-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51130-152-0	1-51134-152-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51130-071-0	1-51135-071-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51130-151-0	1-51135-151-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51130-152-0	1-51135-152-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-071-0	1-51136-071-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-151-0	1-51136-151-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51130-152-0	1-51136-152-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51130-071-0	1-51137-071-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-151-0	1-51137-151-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51130-152-0	1-51137-152-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: A = 1-51130-070-0, D = 1-51130-152-0	1-51156-110-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=150 ASM PART: B = 1-51130-071-0, C = 1-51130-151-0	1-51156-307-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-070-0, C = 1-51130-151-0, D = 1-51130-152-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT ASM PART: B = 1-51130-071-0	1-09400-307-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-070-0, B = 1-51130-071-0, C = 1-51130-151-0, D = 1-51130-152-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-070-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: B = 1-51130-071-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: C = 1-51130-151-0, D = 1-51130-152-0	1-09000-328-0	03	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: A = 1-51130-070-0	1-51177-109-0	04	1	-
20	SEAT; LEAF SPR,FRT T=9 ASM PART: C = 1-51130-151-0	1-51177-114-0	04	1	-
20	SEAT; LEAF SPR,FRT T=11 ASM PART: D = 1-51130-152-0	1-51177-160-0	04	1	-
20	SEAT; LEAF SPR,FRT T=13 ASM PART: B = 1-51130-071-0	1-51177-181-0	01	1	-

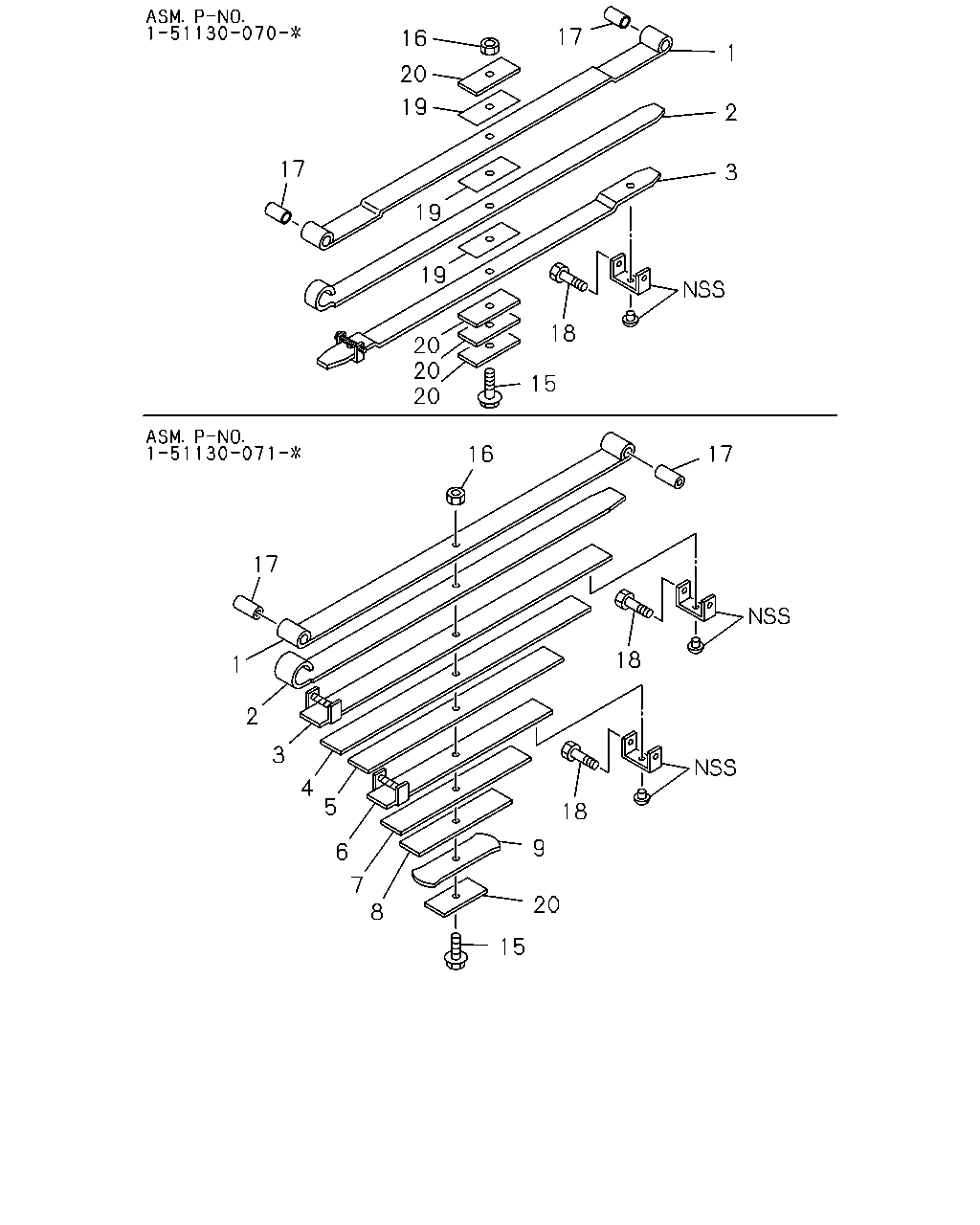

17 16 1 20 19 2 17 3 19 19 18 20 20 20 15 17 16 17 18 1 2 3 4 5 18 9 6 7 8 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-070-0	1-51131-070-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-071-0	1-51131-071-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-151-0	1-51131-151-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-152-0	1-51131-152-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-070-0	1-51132-070-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-071-0	1-51132-071-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-151-0	1-51132-151-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-152-0	1-51132-152-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-070-0	1-51133-070-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-071-0	1-51133-071-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-151-0	1-51133-151-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-152-0	1-51133-152-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-071-0	1-51134-071-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-151-0	1-51134-151-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51130-152-0	1-51134-152-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51130-071-0	1-51135-071-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51130-151-0	1-51135-151-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51130-152-0	1-51135-152-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-071-0	1-51136-071-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-151-0	1-51136-151-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51130-152-0	1-51136-152-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51130-071-0	1-51137-071-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-151-0	1-51137-151-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51130-152-0	1-51137-152-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51130-071-0	1-51138-071-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51130-071-0	1-51139-071-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: A = 1-51130-070-0, D = 1-51130-152-0	1-51156-110-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=150 ASM PART: B = 1-51130-071-0, C = 1-51130-151-0	1-51156-307-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-070-0, C = 1-51130-151-0, D = 1-51130-152-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT ASM PART: B = 1-51130-071-0	1-09400-307-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-070-0, B = 1-51130-071-0, C = 1-51130-151-0, D = 1-51130-152-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-070-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: B = 1-51130-071-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: C = 1-51130-151-0, D = 1-51130-152-0	1-09000-328-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-070-0	1-51177-071-0	03	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: A = 1-51130-070-0	1-51177-109-0	04	1	-
20	SEAT; LEAF SPR,FRT T=9 ASM PART: C = 1-51130-151-0	1-51177-114-0	04	1	-
20	SEAT; LEAF SPR,FRT T=11 ASM PART: D = 1-51130-152-0	1-51177-160-0	04	1	-
20	SEAT; LEAF SPR,FRT T=13 ASM PART: B = 1-51130-071-0	1-51177-181-0	01	1	-
