0-36 — TURBOCHARGER SYSTEM (#12756) — 131 parça

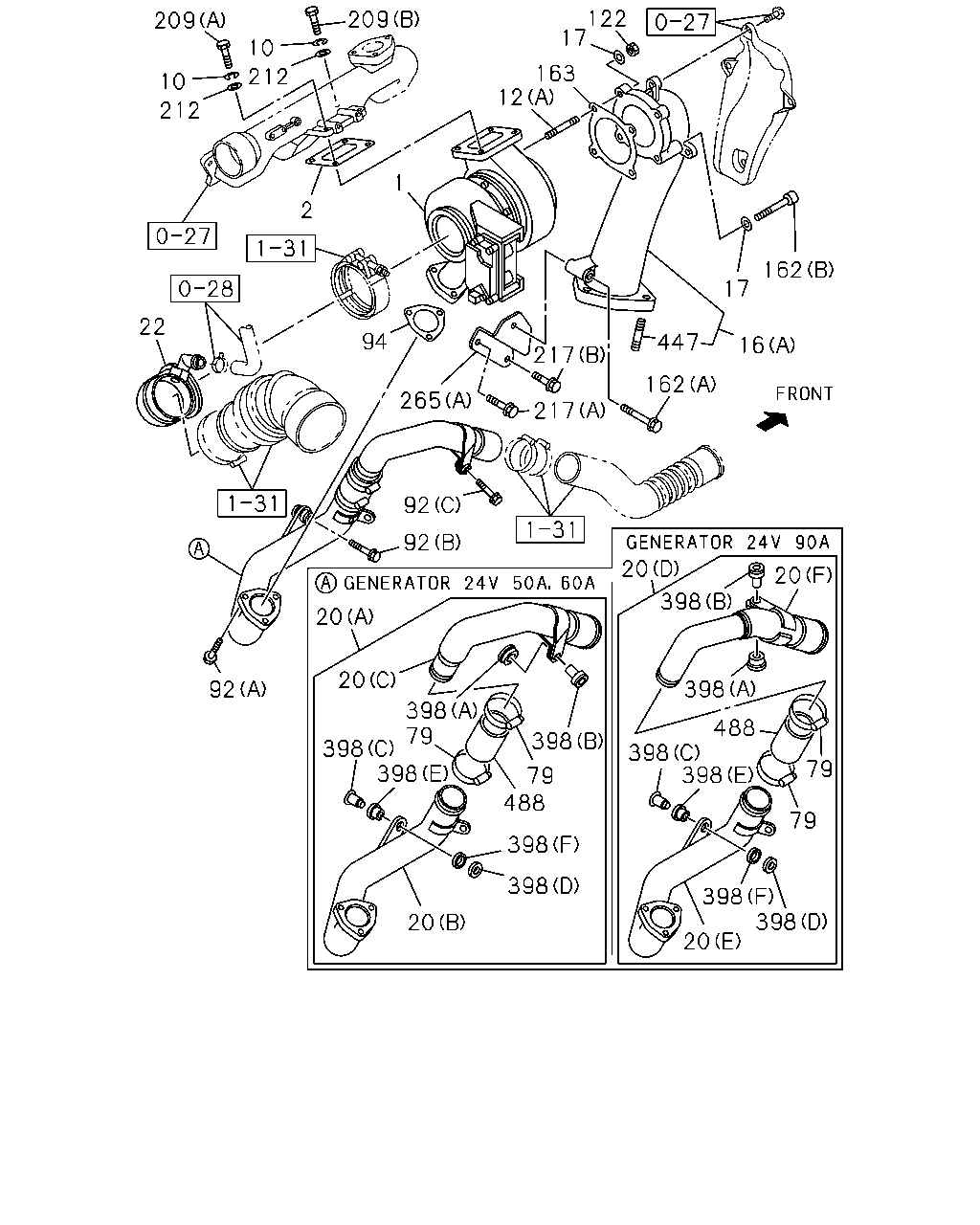

çizim 143039
122 17 209 209 10 163 12 212 10 212 1 2 162 17 22 94 447 16 217 162 265 217 92 92 20 20 398 20 20 398 488 92 398 79 398 398 398 398 398 79 79 488 79 398 398 398 398 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0808-1102
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1103-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0808-1102
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1103-
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0808-1102
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1103-
12 STUD; TURBOCHARGER
(C) M10X80 		9-04731-080-0 02 1 1103-
12 STUD; TURBOCHARGER
(A) M8X25 L=36 		8-94476-282-0 02 1 0808-1102
12 STUD; TURBOCHARGER
(B) M8X25 		9-04130-825-0 01 1 1103-
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0808-1102
16 ADAPTER; EXH PIPE
(B) 		8-98069-083-0 01 1 1103-
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0808-1102
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1103-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (A) 		8-98046-167-3 01 1 0808-1102
20 PIPE; INL,TURBOCHARGER OUT
(G) 		8-97606-675-1 01 1 1103-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (B) 		8-98046-168-1 01 1 0808-1102
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-97618-726-2 01 1 1103-1408
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-98251-577-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (C) 		8-98046-169-1 01 1 0808-1102
20 PIPE; INL,TURBOCHARGER OUT
(I) 		8-97618-734-0 01 1 1103-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (D) 		8-97617-214-2 01 1 0808-1102
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (E) 		8-97617-215-0 01 1 0808-1102
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (F) 		8-97617-216-0 01 1 0808-1102
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 0808-1102
79 CLIP; RUBBER HOSE
ID=58-76 THA 		1-09707-203-0 02 1 0808-0811
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903-
92 BOLT; INL PIPE
(A) M8X30 FLANGE THA 		0-28650-830-0 03 1 0808-1102
92 BOLT; INL PIPE
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 0808-
92 BOLT; INL PIPE
(C) M8X40 FLANGE THA 		0-28650-840-0 01 1 0808-
94 GASKET; INL PIPE 8-98053-830-0 01 1 0808-
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0808-1102
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1103-
162 BOLT; ADAPTER
(A) M10X60 FLANGE THA 		0-28051-060-0 01 1 0808-1102
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 05 1 1103-
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0808-0910
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 0911-1102
163 GASKET; ADAPTER TO EXH PIPE 8-94392-553-1 01 1 0808-1102
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0808-1102
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0808-1102
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0808-
217 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0808-1102
217 BOLT; BRKT
(C) M12X30 		8-94394-324-0 03 1 1103-
217 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28751-025-0 01 1 0808-1102
265 BRACKET; EXH PIPE
(A) 		8-97609-517-1 01 1 0808-1102
265 BRACKET; EXH PIPE
(B) 		8-94395-764-2 01 1 1103-
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0808-
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0808-
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0808-
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0808-
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0808-
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0808-
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0808-1102
488 HOSE; RUBBER 8-98046-356-0 01 1 0808-1102
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 1103-1408
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409-

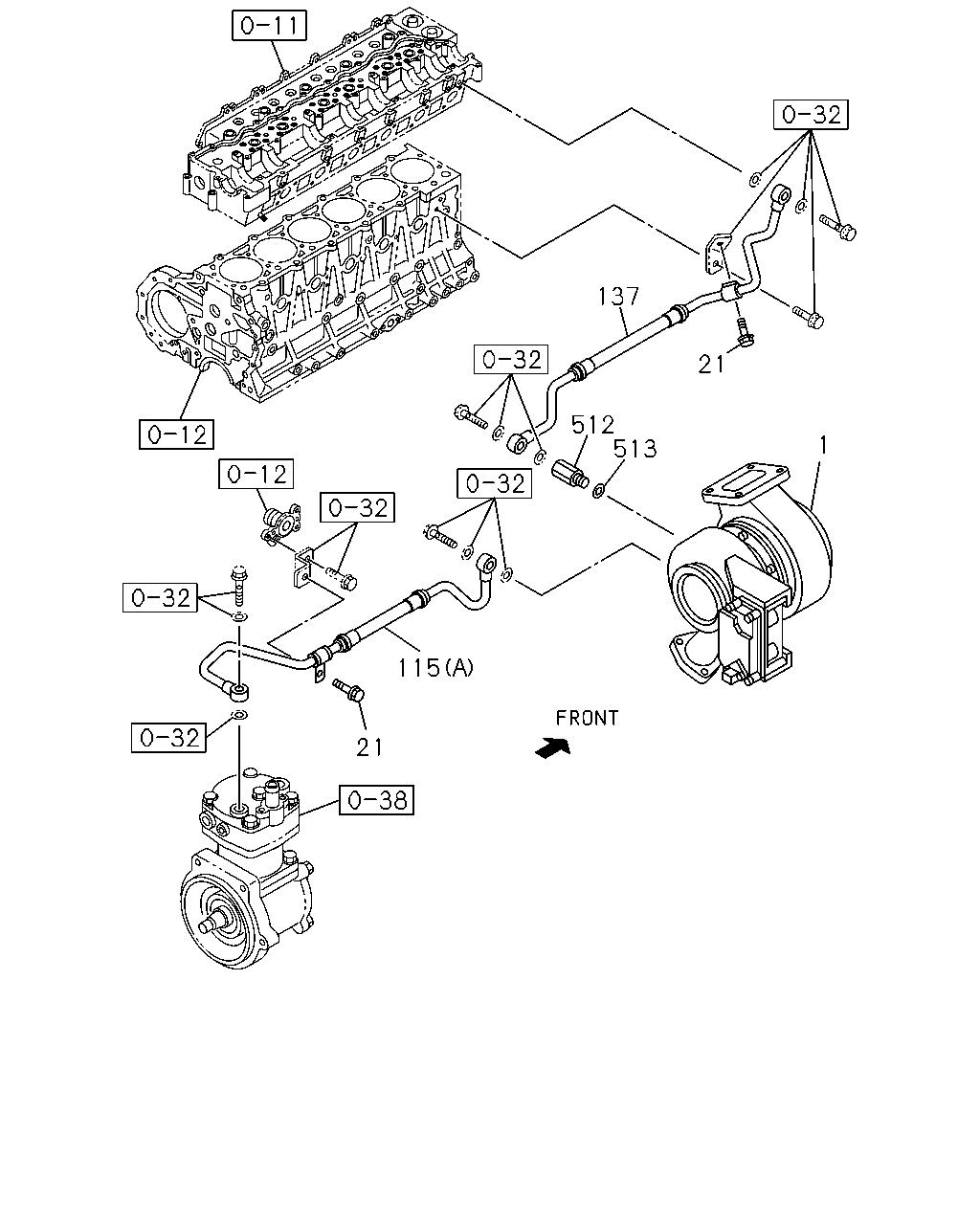

çizim 143055
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0808-1102
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1103-
21 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0808-1102
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94395-454-4 01 1 1103-
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97615-877-0 01 1 0808-1102
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94392-950-0 01 1 1103-
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0808-1102
137 PIPE; WATER,TURBOCHARGER IN 8-97618-808-0 01 1 1103-
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0808-1102
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0808-1102
çizim 143334
2 12 217 275 265 162 17 16 388 212 10 11 212 11 217 275 162 17 122 17 66 12 1 20 20 79 398 79 398 398 398 488 92 28 398 398 92 20 143 98 143
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0808-1102
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1103-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0808-1102
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1103-
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0808-1102
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1103-
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1103-
12 STUD; TURBOCHARGER
(C) M10X80 		9-04731-080-0 02 1 1103-
12 STUD; TURBOCHARGER
(A) M8X25 L=36 		8-94476-282-0 02 1 0808-1102
12 STUD; TURBOCHARGER
(B) M8X25 		9-04130-825-0 01 1 1103-
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0808-1102
16 ADAPTER; EXH PIPE
(B) 		8-98069-083-0 01 1 1103-
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0808-1102
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1103-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (A) 		8-98046-167-3 01 1 0808-1102
20 PIPE; INL,TURBOCHARGER OUT
(G) 		8-97606-675-1 01 1 1103-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (B) 		8-98046-168-1 01 1 0808-1102
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-97618-726-2 01 1 1103-1408
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-98251-577-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (C) 		8-98046-169-1 01 1 0808-1102
20 PIPE; INL,TURBOCHARGER OUT
(I) 		8-97618-734-0 01 1 1103-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (D) 		8-97617-214-2 01 1 0808-1102
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (E) 		8-97617-215-0 01 1 0808-1102
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (F) 		8-97617-216-0 01 1 0808-1102
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 1103-
66 STUD; EXH PIPE
M12X30 L=48 		8-98059-951-0 03 1 1103-
79 CLIP; RUBBER HOSE
ID=58-76 THA 		1-09707-203-0 02 1 0808-0811
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903-
92 BOLT; INL PIPE
(A) M8X30 FLANGE THA 		0-28650-830-0 03 1 0808-1102
92 BOLT; INL PIPE
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 0808-
92 BOLT; INL PIPE
(C) M8X40 FLANGE THA 		0-28650-840-0 01 1 0808-
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 1103-1408
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		8-98245-240-0 01 1 1409-
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0808-1102
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1103-
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 1103-
162 BOLT; ADAPTER
(A) M10X60 FLANGE THA 		0-28051-060-0 01 1 0808-1102
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 05 1 1103-
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0808-0910
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 0911-1102
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0808-
217 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0808-1102
217 BOLT; BRKT
(C) M12X30 		8-94394-324-0 03 1 1103-
217 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28751-025-0 01 1 0808-1102
265 BRACKET; EXH PIPE
(A) 		8-97609-517-1 01 1 0808-1102
265 BRACKET; EXH PIPE
(B) 		8-94395-764-2 01 1 1103-
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 1103-
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 1103-
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0808-
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0808-
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0808-
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0808-
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0808-
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0808-
488 HOSE; RUBBER 8-98046-356-0 01 1 0808-1102
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 1103-1408
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409-

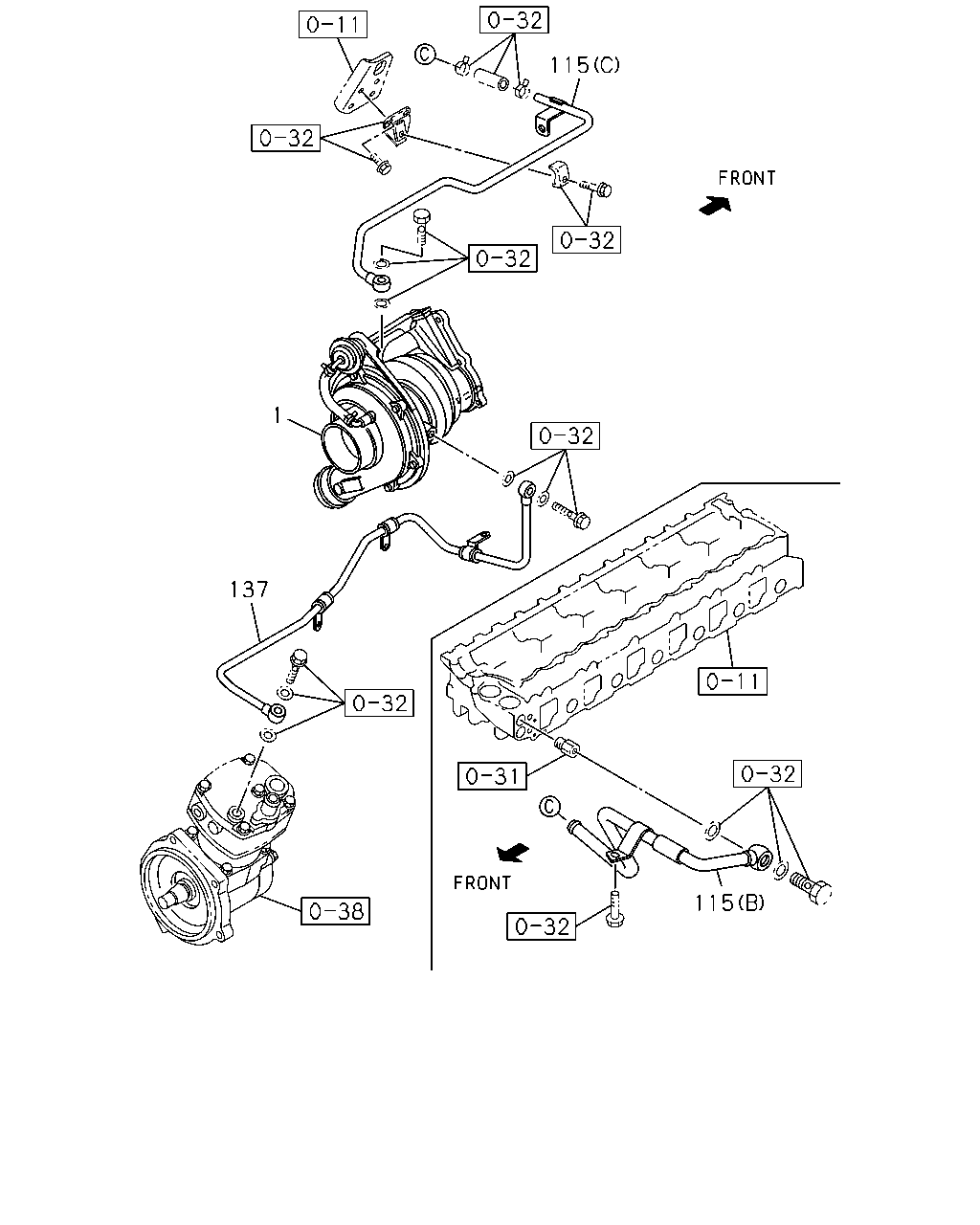

çizim 143336
115 1 137 115
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0808-1102
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1103-
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94395-454-4 01 1 1103-
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97615-877-0 01 1 0808-1102
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94392-950-0 01 1 1103-
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0808-1102
137 PIPE; WATER,TURBOCHARGER IN 8-97618-808-0 01 1 1103-
