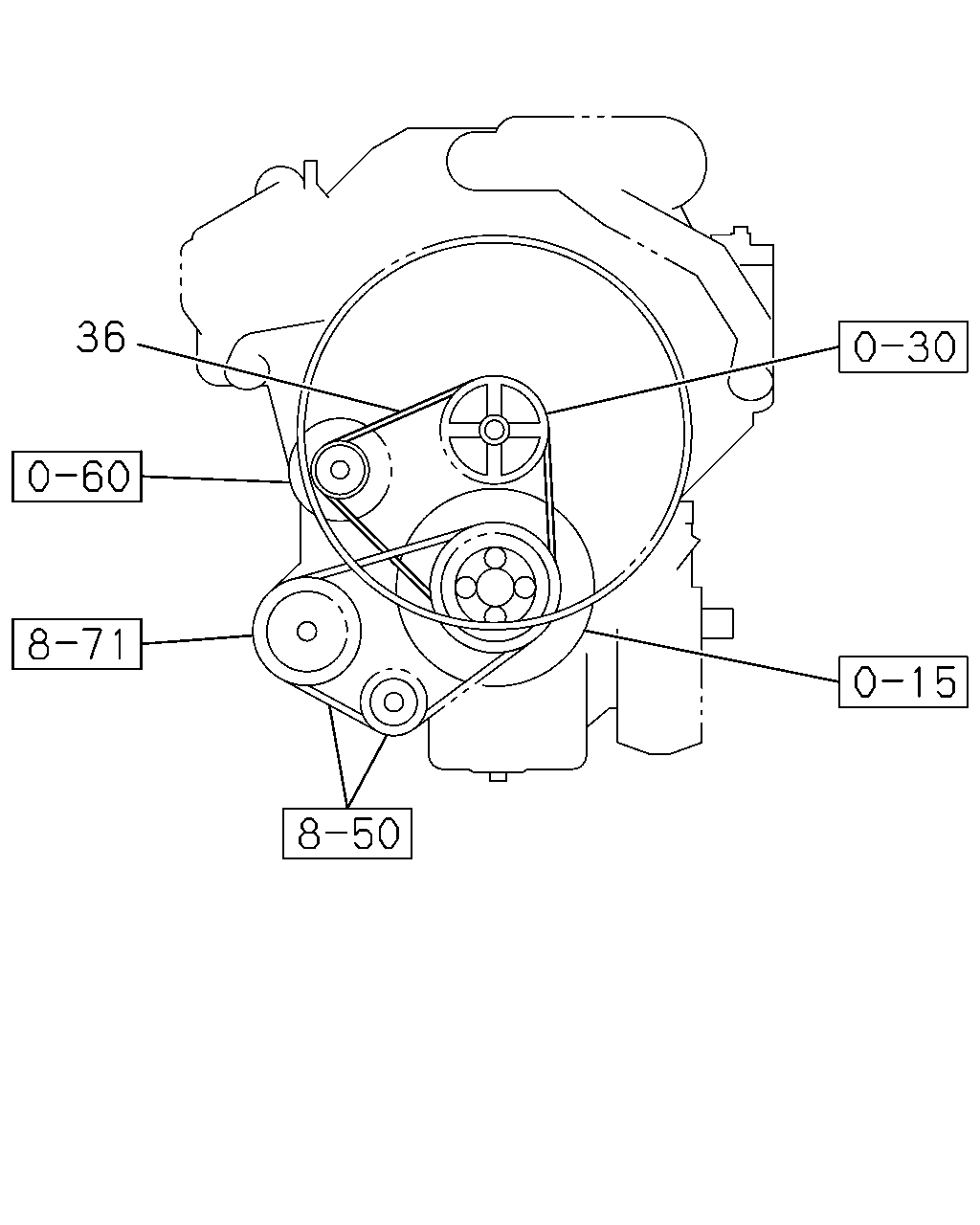

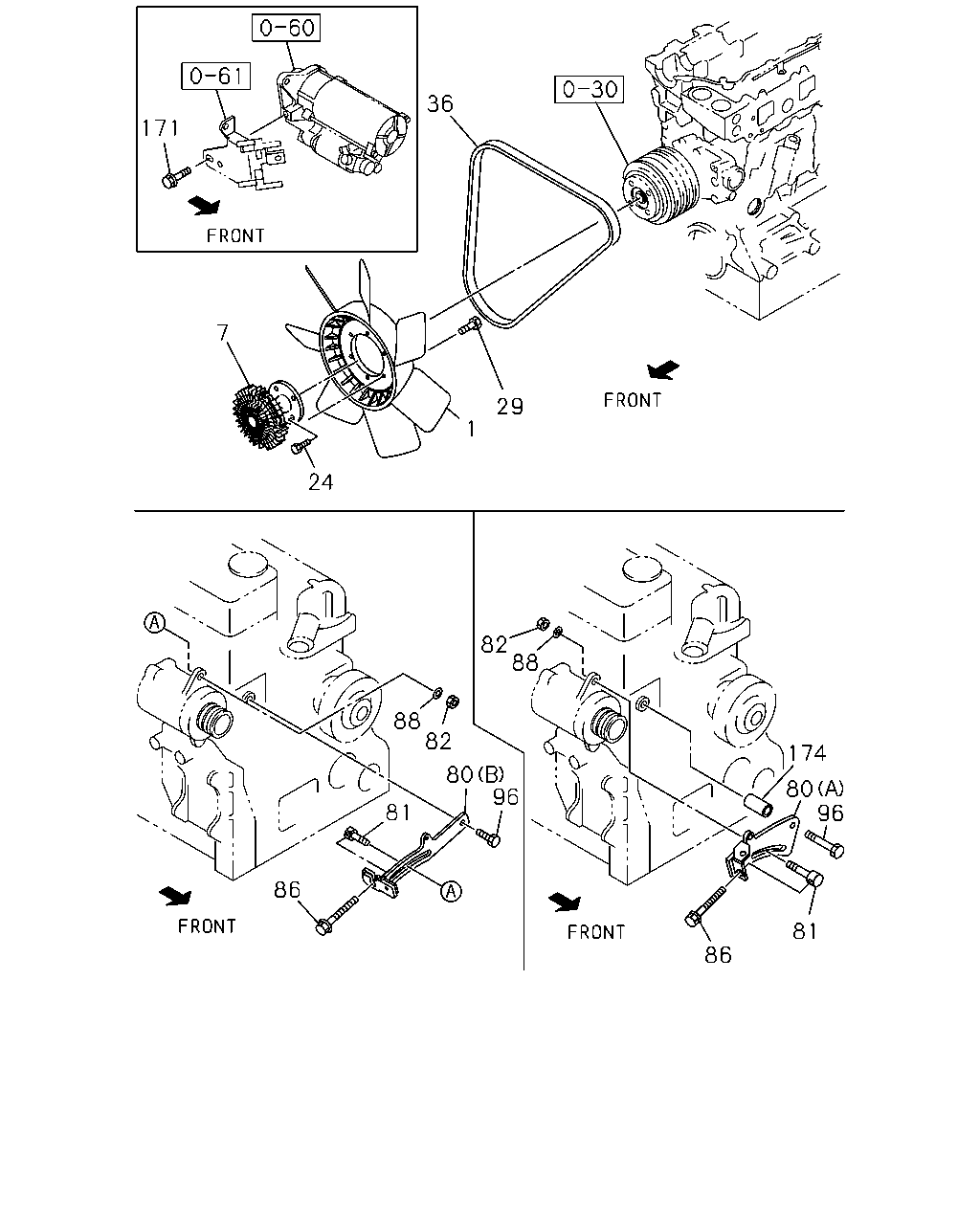

0-33 — FAN AND FAN BELT
(#12754) — 32 parça
◀
[033A] COOLING FAN (26 parça)
[033A] FAN BELT (6 parça)
▶
171
36
29
1
24
7
88
82
80
96
81
86
82
88
174
80
96
81
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
OD=560
8-98073-467-1
01
1
0808-
7
COUPLING; FAN
8-98075-290-1
01
1
0808-
24
BOLT; FAN
M10X25 FLANGE THA
0-28151-025-0
04
1
0808-
29
BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE THA
0-28050-816-0
06
1
0808-
36
BELT; COOLING FAN
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> L=1170 MITSUBOSHI
8-97611-859-1
01
1
0808-1102
36
BELT; COOLING FAN
L=1170 MITSUBOSHI
8-97611-859-1
01
1
1103-
36
BELT; COOLING FAN
GENERATOR 24V90A<K44> L=1190 MITSUBOSHI
8-97611-860-0
01
1
0808-1102
36
BELT; COOLING FAN
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> BEST VALUE PARTS
1-87610-105-0
01
1
0808-1102
36
BELT; COOLING FAN
GENERATOR 24V90A<K44> BEST VALUE PARTS
1-87610-106-0
01
1
0808-1102
36
BELT; COOLING FAN
BEST VALUE PARTS
1-87610-105-0
01
1
1103-
80
PLATE; ADJ
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (B)
8-97601-020-1
01
1
0808-1102
80
PLATE; ADJ
(B)
8-97601-020-1
01
1
1103-
80
PLATE; ADJ
GENERATOR 24V90A<K44> (A)
8-97617-940-0
01
1
0808-1102
81
PIECE; SLIDING
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> M12X45
1-13674-160-0
01
1
0808-1102
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
1103-
81
PIECE; SLIDING
GENERATOR 24V90A<K44> M12X59
1-13674-161-0
01
1
0808-1102
82
NUT; ADJ PLATE
M12 FLANGE THA
0-91180-112-0
01
1
0808-
86
BOLT; ADJ
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> M10X155 FLANGE
1-09009-114-1
01
1
0808-1102
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
1103-
86
BOLT; ADJ
GENERATOR 24V90A<K44> M10X135
1-09009-113-1
01
1
0808-1102
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
0-91614-712-0
01
1
0808-
96
BOLT; ADJ PLATE
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> M10X45 FLANGE THA
0-28151-045-0
01
1
0808-1102
96
BOLT; ADJ PLATE
M10X45 FLANGE THA
0-28151-045-0
01
1
1103-
96
BOLT; ADJ PLATE
GENERATOR 24V90A<K44> M10X75 FLANGE
8-94399-669-1
01
1
0808-1102
171
BOLT; HEAT PROTECTOR
M10X20 FLANGE THA
0-28051-020-0
01
1
0808-
174
SPACER; ADJ PLATE
GENERATOR 24V90A<K44>
8-98056-785-0
01
1
0808-1102
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
BELT; COOLING FAN
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> L=1170 MITSUBOSHI
8-97611-859-1
01
1
0808-1102
36
BELT; COOLING FAN
L=1170 MITSUBOSHI
8-97611-859-1
01
1
1103-
36
BELT; COOLING FAN
GENERATOR 24V90A<K44> L=1190 MITSUBOSHI
8-97611-860-0
01
1
0808-1102
36
BELT; COOLING FAN
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> BEST VALUE PARTS
1-87610-105-0
01
1
0808-1102
36
BELT; COOLING FAN
GENERATOR 24V90A<K44> BEST VALUE PARTS
1-87610-106-0
01
1
0808-1102
36
BELT; COOLING FAN
BEST VALUE PARTS
1-87610-105-0
01
1
1103-
