◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#12732) — 17 parça

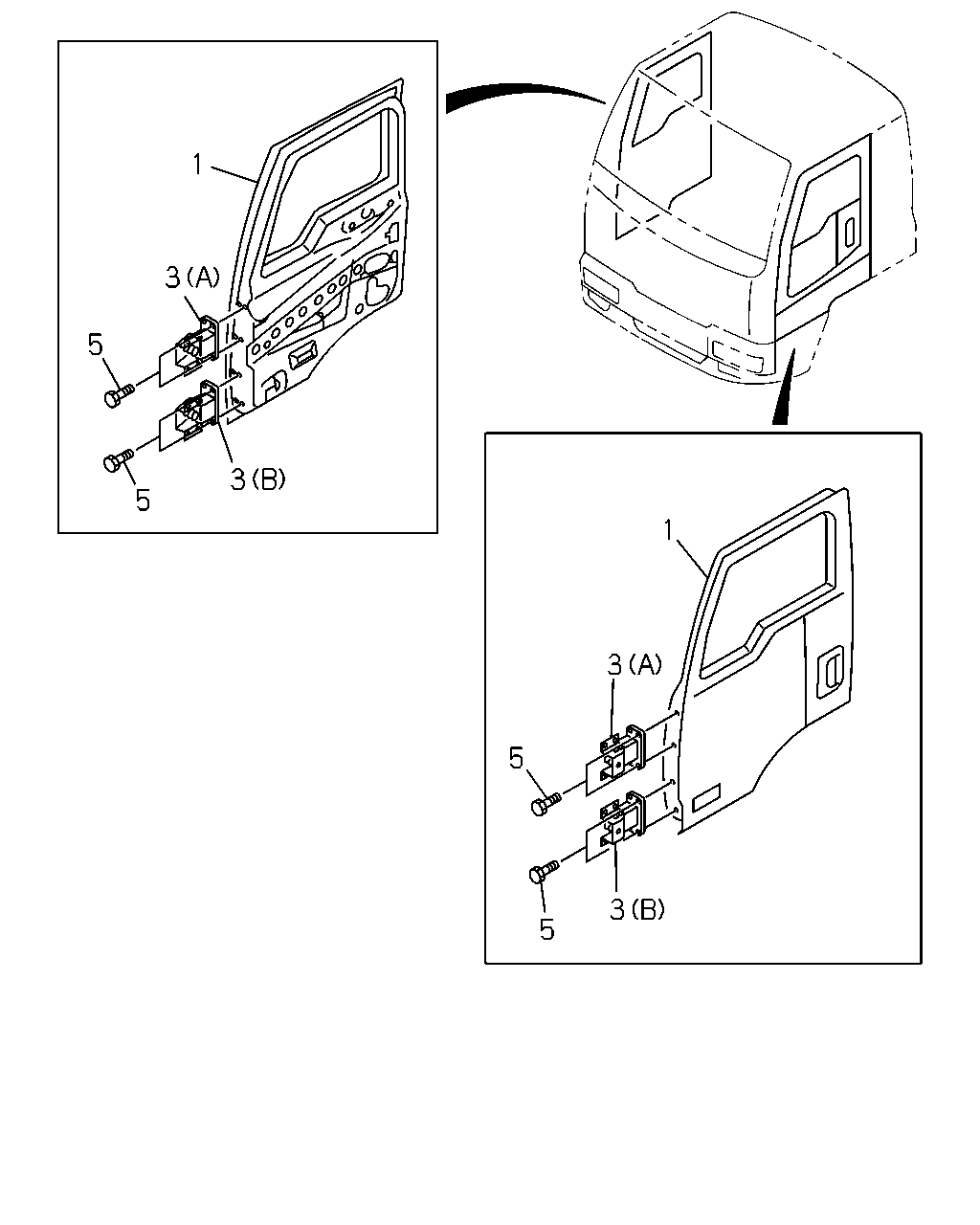

çizim 83705
1 3 5 3 5 1 3 5 3 5
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> PRIMER 		1-64080-389-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER 		1-64080-391-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER 		1-64080-392-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
OPENABLE ANGLE DOOR NARROW<NGJ> PRIMER 		1-64080-392-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2> OPENABLE ANGLE DOOR NARROW<NGJ> PRIMER 		1-64080-388-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2> PRIMER 		1-64080-390-2 01 1 0105-
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> (B) LOWER 		1-64780-090-2 01 1 0105-
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> (B) LOWER 		1-64780-090-2 01 1 0105-
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> (A) UPPER 		1-64780-091-2 01 1 0105-
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> (A) UPPER 		1-64780-091-2 01 1 0105-
3 HINGE; DOOR FRT
EXC. OPENABLE ANGLE DOOR NARROW<NGJ> (A) UPPER 		1-64780-088-3 01 1 0105-
3 HINGE; DOOR FRT
EXC. OPENABLE ANGLE DOOR NARROW<NGJ> (A) UPPER 		1-64780-088-3 01 1 0105-
3 HINGE; DOOR FRT
EXC. OPENABLE ANGLE DOOR NARROW<NGJ> (B) LOWER 		1-64780-089-3 01 1 0105-
3 HINGE; DOOR FRT
EXC. OPENABLE ANGLE DOOR NARROW<NGJ> (B) LOWER 		1-64780-089-3 01 1 0105-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0105-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105-
