4-36 — POWER STEERING CONTROL; ENGINE SIDE (#1273) — 40 parça

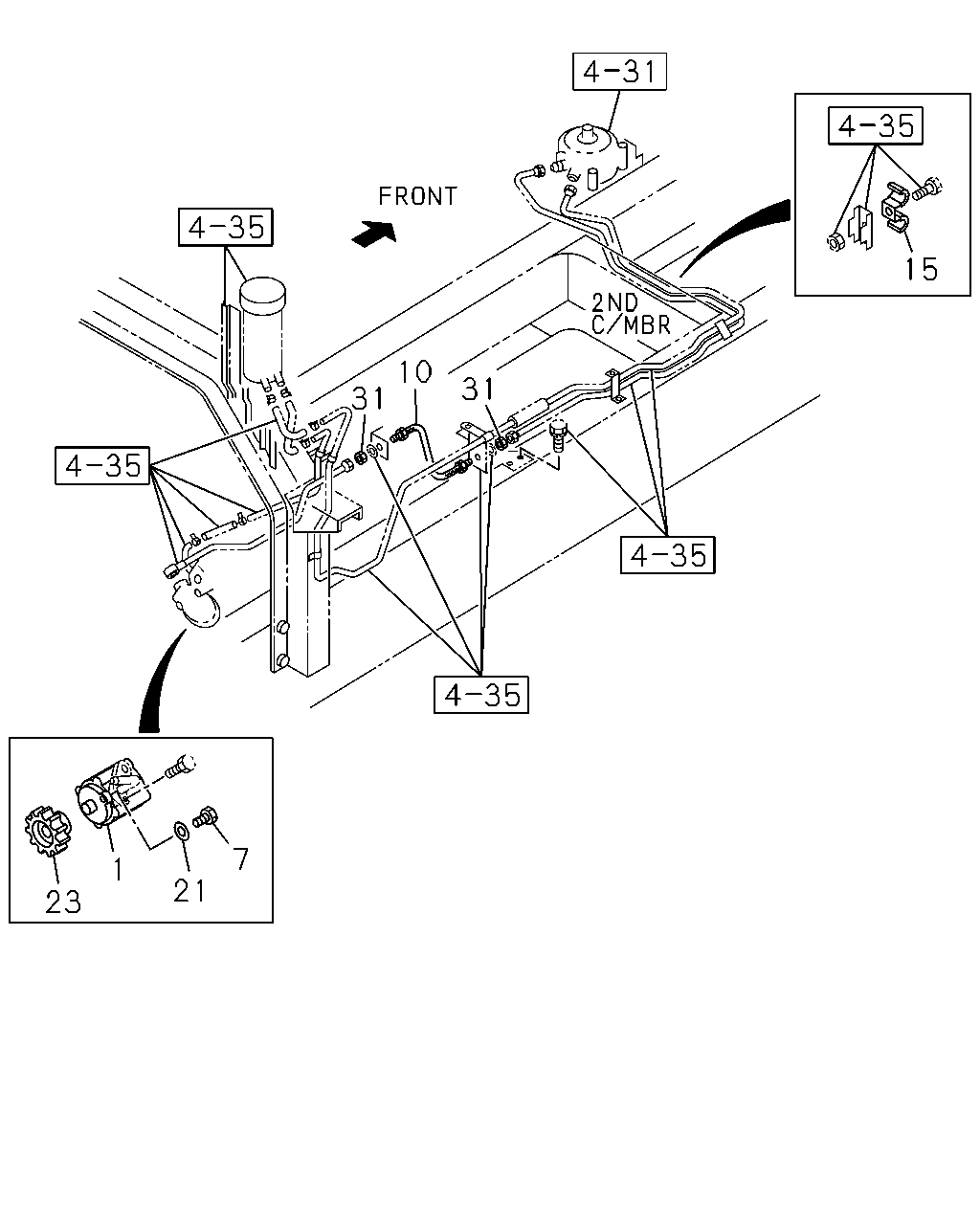

15 10 31 31 7 1 21 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-19500-353-1	01	1	9202-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 STD ENG(46L)	1-19500-433-1	01	1	9202-9202		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 STD ENG(46L)	1-19500-453-0	01	1	9203-		●
7	BOLT; OIL PUMP,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) M12X75	9-01666-275-0	02	1	9202-	●	●
7	BOLT; OIL PUMP,P/S 6HE1 STD ENG(46L) M10X18,M10X28 L=53	1-09302-135-1	01	1	9202-		●
7	BOLT; OIL PUMP,P/S 6HE1 STD ENG(46L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9202-		●
7	BOLT; OIL PUMP,P/S 6HE1 STD ENG(46L) M10X55 FLANGE	8-94399-863-1	01	1	9202-		●
10	HOSE; FLEX,P/S OIL PUMP,INL	0-09536-470-0	01	1	9202-	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	0-09536-470-0	01	1	9202-		●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 STD ENG(46L)	1-09364-713-0	01	1	9202-		●
15	CLIP; OIL PIPE SUCTION 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9202-	●	●
15	CLIP; OIL PIPE SUCTION 6HE1 STD ENG(46L) ID=32	1-09704-085-0	02	1	9202-		●
21	WASHER; PL,P/S OIL PUMP 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=12.5	9-09160-512-0	02	1	9202-	●	●
23	GEAR; OIL PUMP 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-19581-005-4	01	1	9202-	●	●
23	GEAR; OIL PUMP 6HE1 STD ENG(46L) Z=30	8-94396-957-3	01	1	9202-		●
31	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9202-	●
31	NUT; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M20	9-99111-420-0	02	1	9202-		●
31	NUT; FLEX HOSE 6HE1 STD ENG(46L) M20	9-99111-420-0	01	1	9202-		●

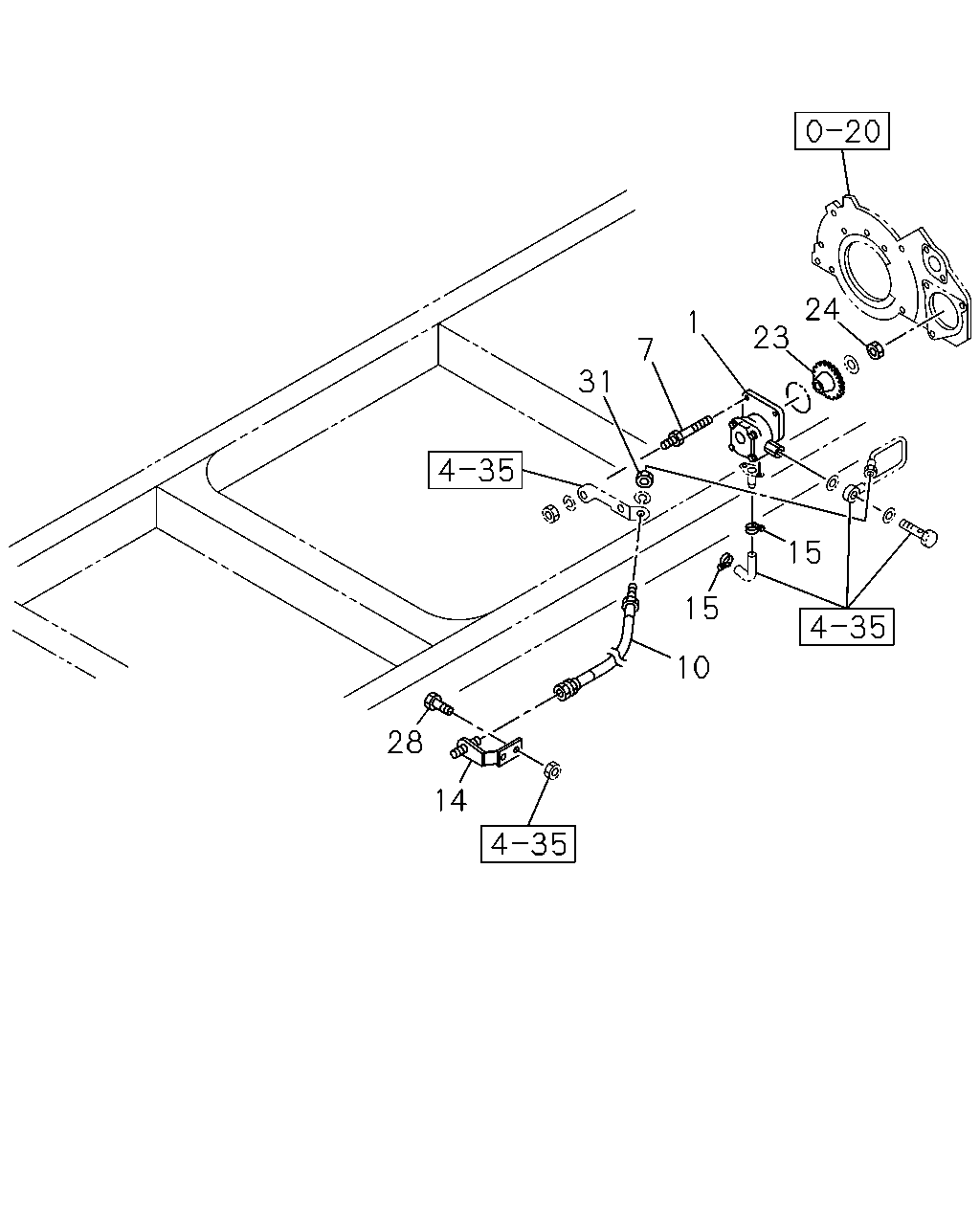

24 1 23 7 31 15 15 10 28 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-19500-353-1	01	1	9202-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 STD ENG(46L)	1-19500-433-1	01	1	9202-9202		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 STD ENG(46L)	1-19500-453-0	01	1	9203-		●
7	BOLT; OIL PUMP,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) M12X75	9-01666-275-0	02	1	9202-	●	●
7	BOLT; OIL PUMP,P/S 6HE1 STD ENG(46L) M10X18,M10X28 L=53	1-09302-135-1	01	1	9202-		●
7	BOLT; OIL PUMP,P/S 6HE1 STD ENG(46L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9202-		●
7	BOLT; OIL PUMP,P/S 6HE1 STD ENG(46L) M10X55 FLANGE	8-94399-863-1	01	1	9202-		●
10	HOSE; FLEX,P/S OIL PUMP,INL	0-09536-470-0	01	1	9202-	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	0-09536-470-0	01	1	9202-		●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 STD ENG(46L)	1-09364-713-0	01	1	9202-		●
14	UNION; FLEX HOSE,P/S 6HE1 STD ENG(46L)	1-47470-274-2	01	1	9202-		●
15	CLIP; OIL PIPE SUCTION 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9202-	●	●
15	CLIP; OIL PIPE SUCTION 6HE1 STD ENG(46L) ID=32	1-09704-085-0	02	1	9202-		●
23	GEAR; OIL PUMP 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-19581-005-4	01	1	9202-	●	●
23	GEAR; OIL PUMP 6HE1 STD ENG(46L) Z=30	8-94396-957-3	01	1	9202-		●
24	NUT; GEAR,P/S PUMP 6HE1 STD ENG(46L) M14	9-99110-514-0	01	1	9202-9308		●
24	NUT; GEAR,P/S PUMP 6HE1 STD ENG(46L) M14 FLANGE	0-91150-114-0	01	1	9309-		●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 STD ENG(46L) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204		●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 STD ENG(46L) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●
31	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9202-	●
31	NUT; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M20	9-99111-420-0	02	1	9202-		●
31	NUT; FLEX HOSE 6HE1 STD ENG(46L) M20	9-99111-420-0	01	1	9202-		●
