◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#12722) — 112 parça

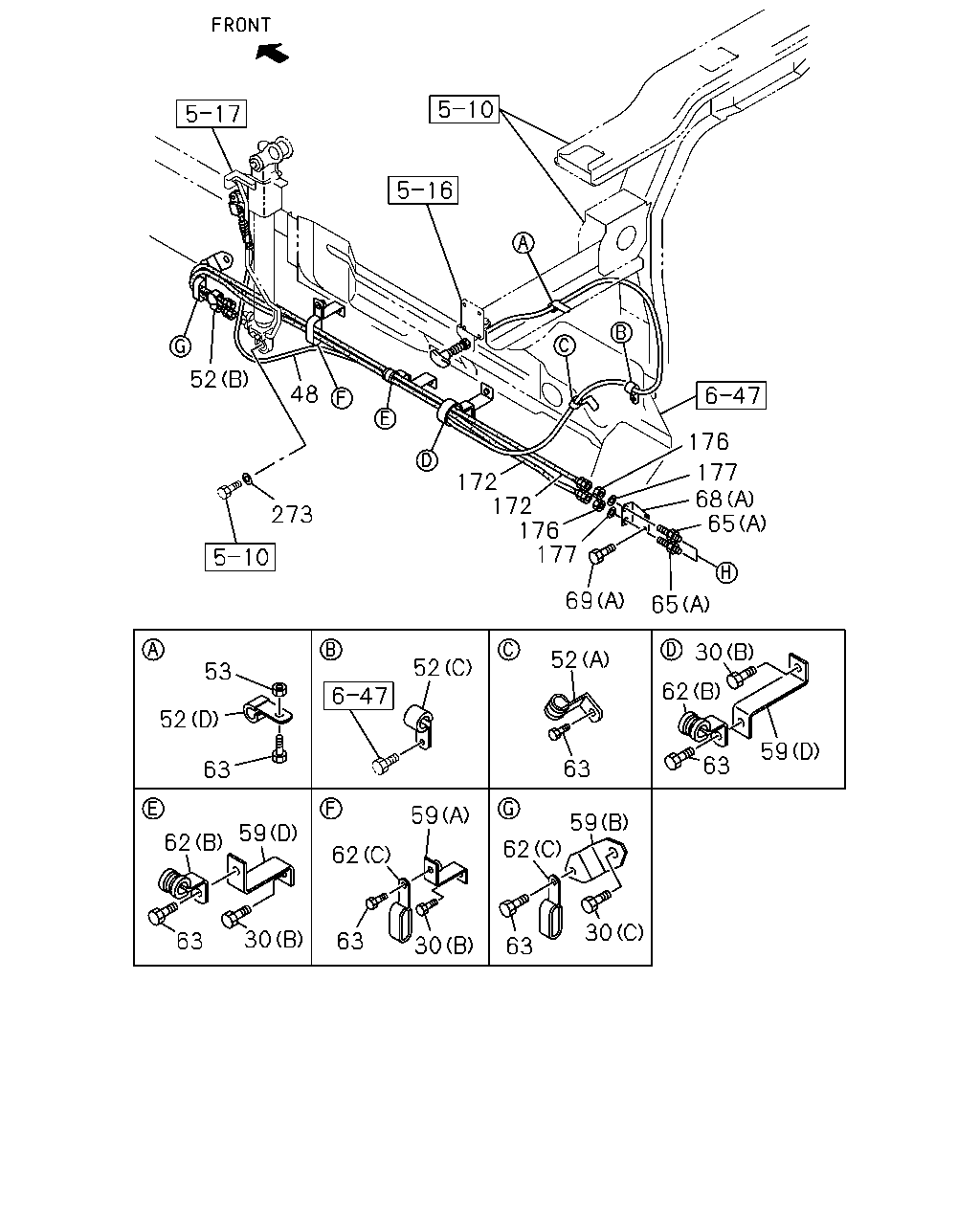

çizim 23520
52 48 176 177 68 65 172 172 176 177 273 65 69 30 52 52 53 62 59 52 63 63 63 59 59 62 59 62 62 30 30 63 63 30 63
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
30 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0105-
30 BOLT; BRKT FIX
(C) M12X25 FLANGE 		0-28681-225-0 01 1 0105-
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (D) M10X20 FLANGE 		0-28681-020-0 02 1 0105-
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0105-
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0105-
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0105-
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 0105-
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0105-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0105-
59 BRACKET; CLIP
(B) 		1-47477-631-1 01 1 0105-
59 BRACKET; CLIP
(D) L=90 		1-82699-856-0 02 1 0105-
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (E) 		1-53458-915-0 02 1 0105-
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0105-
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0105-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (D) L=140 		5-09707-031-0 03 1 0105-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0105-
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0105-
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 0105-
65 UNION; OIL PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0105-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		9-09225-206-1 01 1 0105-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		9-09228-606-1 01 1 0105-
68 BRACKET; UNION
(A) 		1-47478-383-0 01 1 0105-
68 BRACKET; UNION
MANUAL CAB TILT<SHK> (B) 		1-53458-935-0 01 1 0105-
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0105-
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28681-030-0 02 1 0105-
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 0105-
176 NUT; UNION
MANUAL CAB TILT<SHK> M12 		9-09840-280-0 02 1 0105-
176 NUT; UNION
M12 		9-09840-280-0 02 1 0105-
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0105-
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 0105-

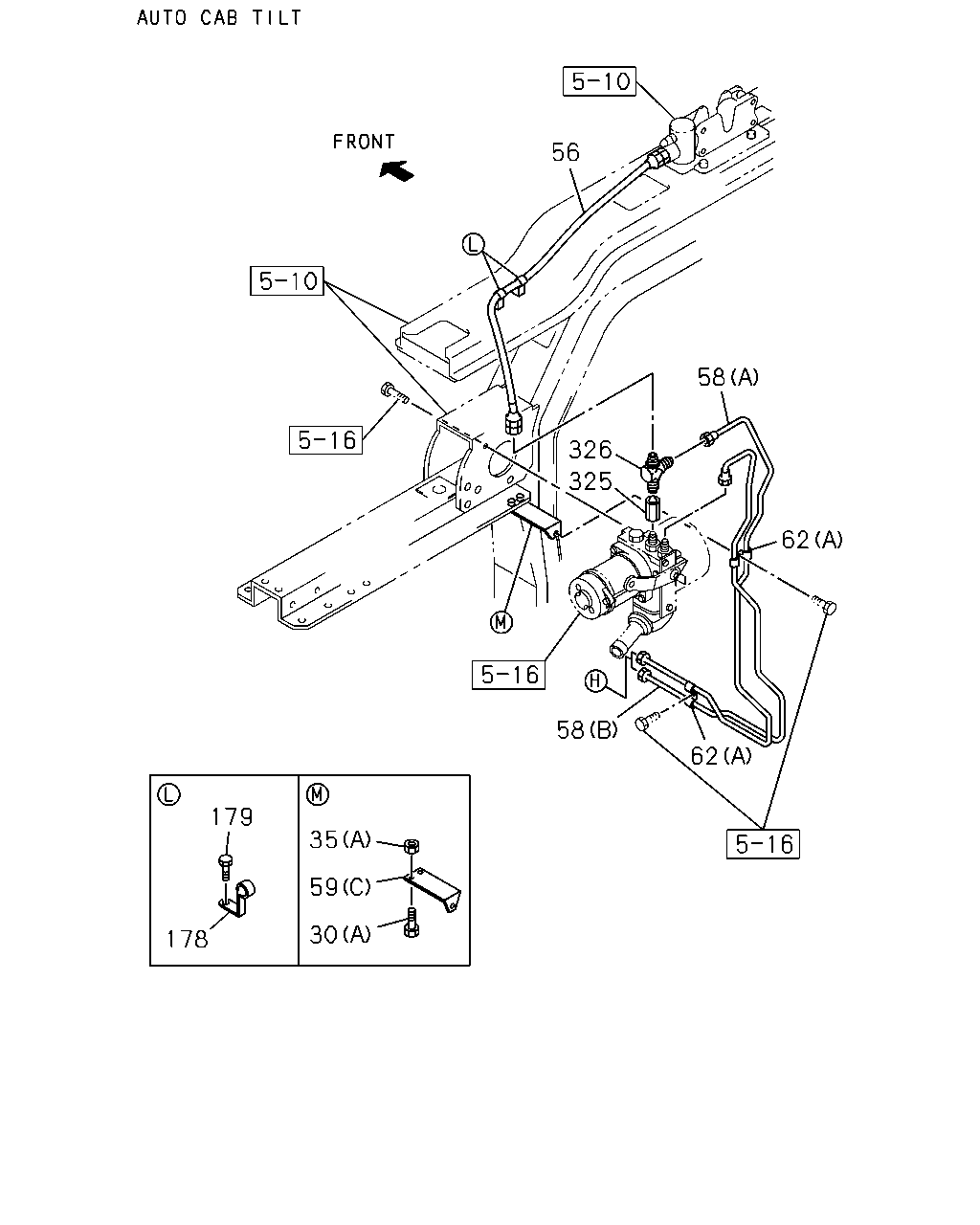

çizim 23522
56 58 326 325 62 58 62 179 35 59 30 178
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
30 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0105-
30 BOLT; BRKT FIX
(C) M12X25 FLANGE 		0-28681-225-0 01 1 0105-
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (D) M10X20 FLANGE 		0-28681-020-0 02 1 0105-
35 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91150-210-0 02 1 0105-
56 HOSE; FLEX,OIL PIPE
L=650 		1-09365-053-0 01 1 0105-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) 		1-49163-336-0 01 1 0105-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) 		1-49163-342-0 01 1 0105-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (A) 		1-49163-288-0 01 1 0105-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (B) 		1-49163-289-0 01 1 0105-
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0105-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0105-
59 BRACKET; CLIP
(B) 		1-47477-631-1 01 1 0105-
59 BRACKET; CLIP
(D) L=90 		1-82699-856-0 02 1 0105-
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (E) 		1-53458-915-0 02 1 0105-
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0105-
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0105-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (D) L=140 		5-09707-031-0 03 1 0105-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0105-
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0105-
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 0105-
178 CLIP; FLEX HOSE
L=140 		5-09707-031-1 02 1 0106-
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 0105-
325 ADAPTER; PUMP
AUTO CAB TILT<WV2> M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0105-
326 UNION; PUMP
AUTO CAB TILT<WV2> M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0105-

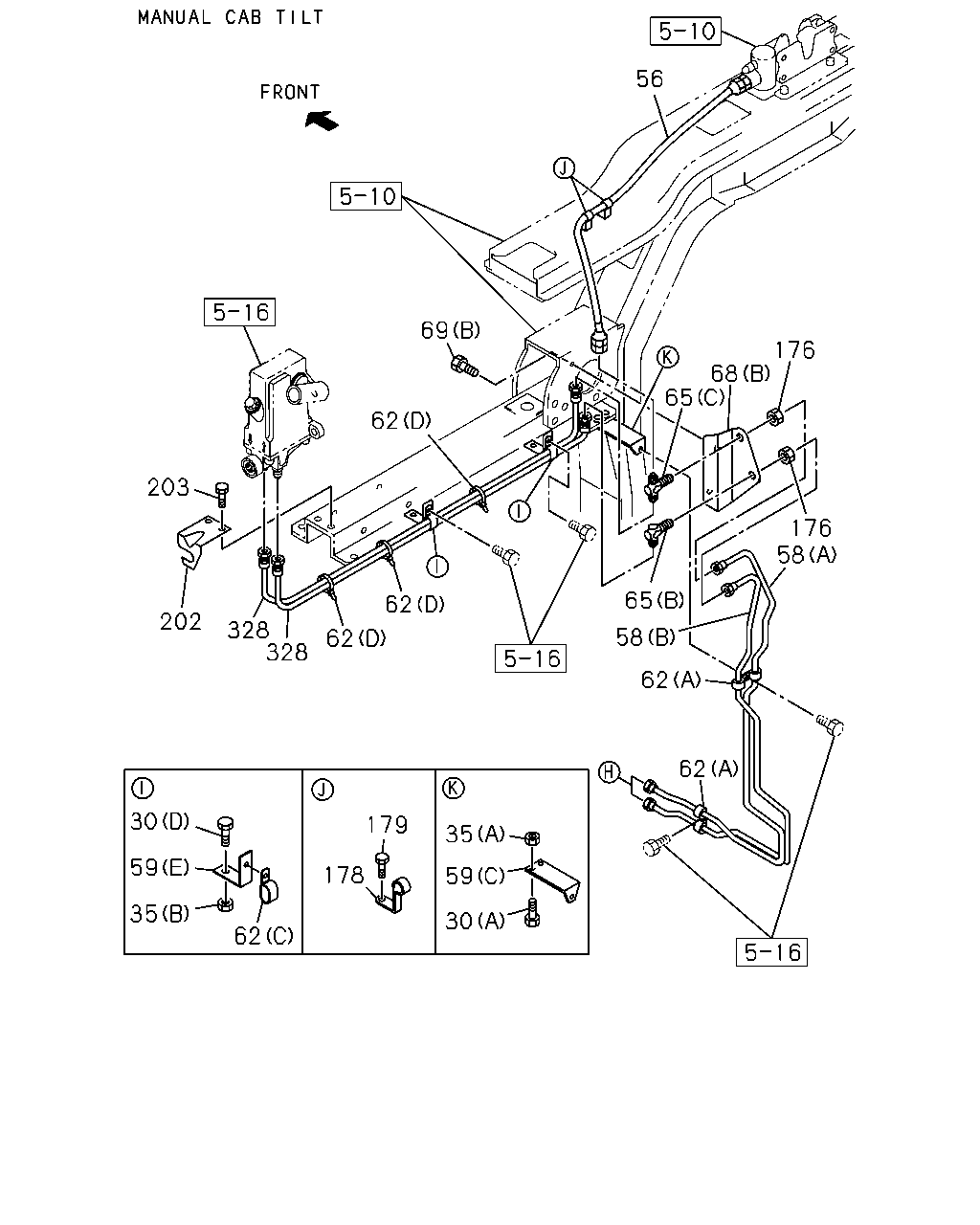

çizim 77769
56 69 176 68 65 62 203 176 58 65 62 62 202 328 328 58 62 62 30 179 35 59 30 59 178 35 62
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
30 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0105-
30 BOLT; BRKT FIX
(C) M12X25 FLANGE 		0-28681-225-0 01 1 0105-
30 BOLT; BRKT FIX
MANUAL CAB TILT<SHK> (D) M10X20 FLANGE 		0-28681-020-0 02 1 0105-
35 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-
35 NUT; BRKT
MANUAL CAB TILT<SHK> (B) M10 FLANGE 		0-91150-210-0 02 1 0105-
56 HOSE; FLEX,OIL PIPE
L=650 		1-09365-053-0 01 1 0105-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) 		1-49163-336-0 01 1 0105-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) 		1-49163-342-0 01 1 0105-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (A) 		1-49163-288-0 01 1 0105-
58 PIPE; OIL,POWER UNIT
MANUAL CAB TILT<SHK> (B) 		1-49163-289-0 01 1 0105-
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0105-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 0105-
59 BRACKET; CLIP
(B) 		1-47477-631-1 01 1 0105-
59 BRACKET; CLIP
(D) L=90 		1-82699-856-0 02 1 0105-
59 BRACKET; CLIP
MANUAL CAB TILT<SHK> (E) 		1-53458-915-0 02 1 0105-
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0105-
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 0105-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (D) L=140 		5-09707-031-0 03 1 0105-
62 CLIP; OIL PIPE
MANUAL CAB TILT<SHK> (C) ID=9X2 L=16 		9-09534-825-0 02 1 0105-
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 0105-
65 UNION; OIL PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0105-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (B) M12 ELBOW 		9-09225-206-1 01 1 0105-
65 UNION; OIL PIPE
MANUAL CAB TILT<SHK> (C) M12 3WAY 		9-09228-606-1 01 1 0105-
68 BRACKET; UNION
(A) 		1-47478-383-0 01 1 0105-
68 BRACKET; UNION
MANUAL CAB TILT<SHK> (B) 		1-53458-935-0 01 1 0105-
69 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0105-
69 BOLT; BRKT
MANUAL CAB TILT<SHK> (B) M10X30 FLANGE 		0-28681-030-0 02 1 0105-
176 NUT; UNION
MANUAL CAB TILT<SHK> M12 		9-09840-280-0 02 1 0105-
176 NUT; UNION
M12 		9-09840-280-0 02 1 0105-
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 0105-
178 CLIP; FLEX HOSE
L=140 		5-09707-031-1 02 1 0106-
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 0105-
202 BRACKET; CABLE END
MANUAL CAB TILT<SHK> 		1-53458-911-0 01 1 0105-
203 BOLT; BRKT,CABLE END
MANUAL CAB TILT<SHK> M8X20 FLANGE 		0-28680-820-0 02 1 0105-
328 HOSE; OIL
MANUAL CAB TILT<SHK> 		1-09365-112-0 02 1 0105-

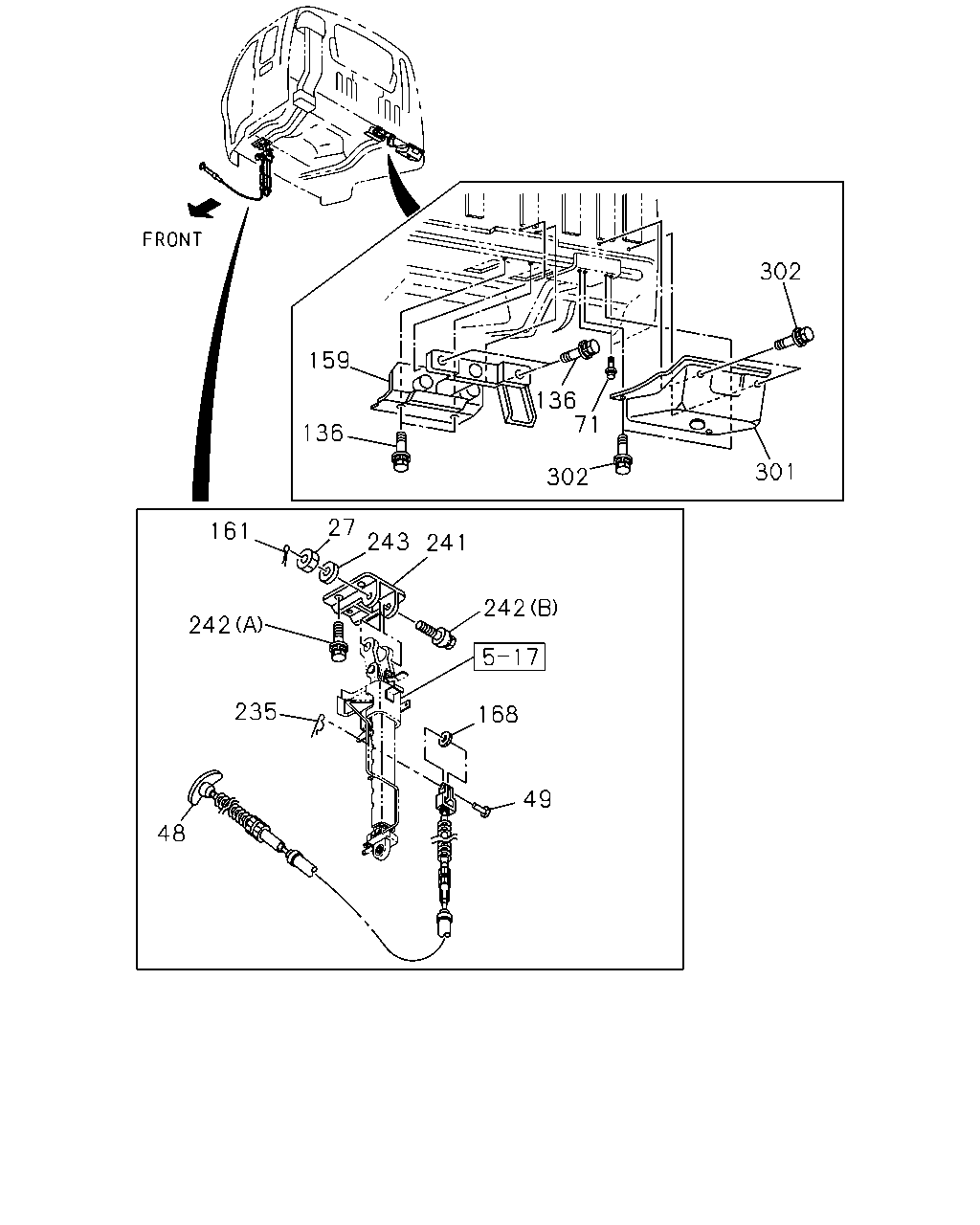

çizim 79857
302 159 136 71 136 301 302 27 161 243 241 242 242 235 168 49 48
BalonParca AdiParca NoAdetTipApplied Date
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 0105-
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0105-
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 0105-
71 BOLT
M10X25 W/LK&PL WASHER 		8-94279-220-0 02 1 0105-0204
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0205-
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0105-
159 PIN 1-79717-627-1 01 1 0105-
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 0105-
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 0105-
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 0105-
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-338-1 01 1 0105-
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 		1-09980-546-0 05 1 0105-
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 0105-
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 0105-
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 0105-
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		8-94279-220-0 08 1 0105-0204
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 0205-
