Sayfa 4-35 - Isuzu EPC

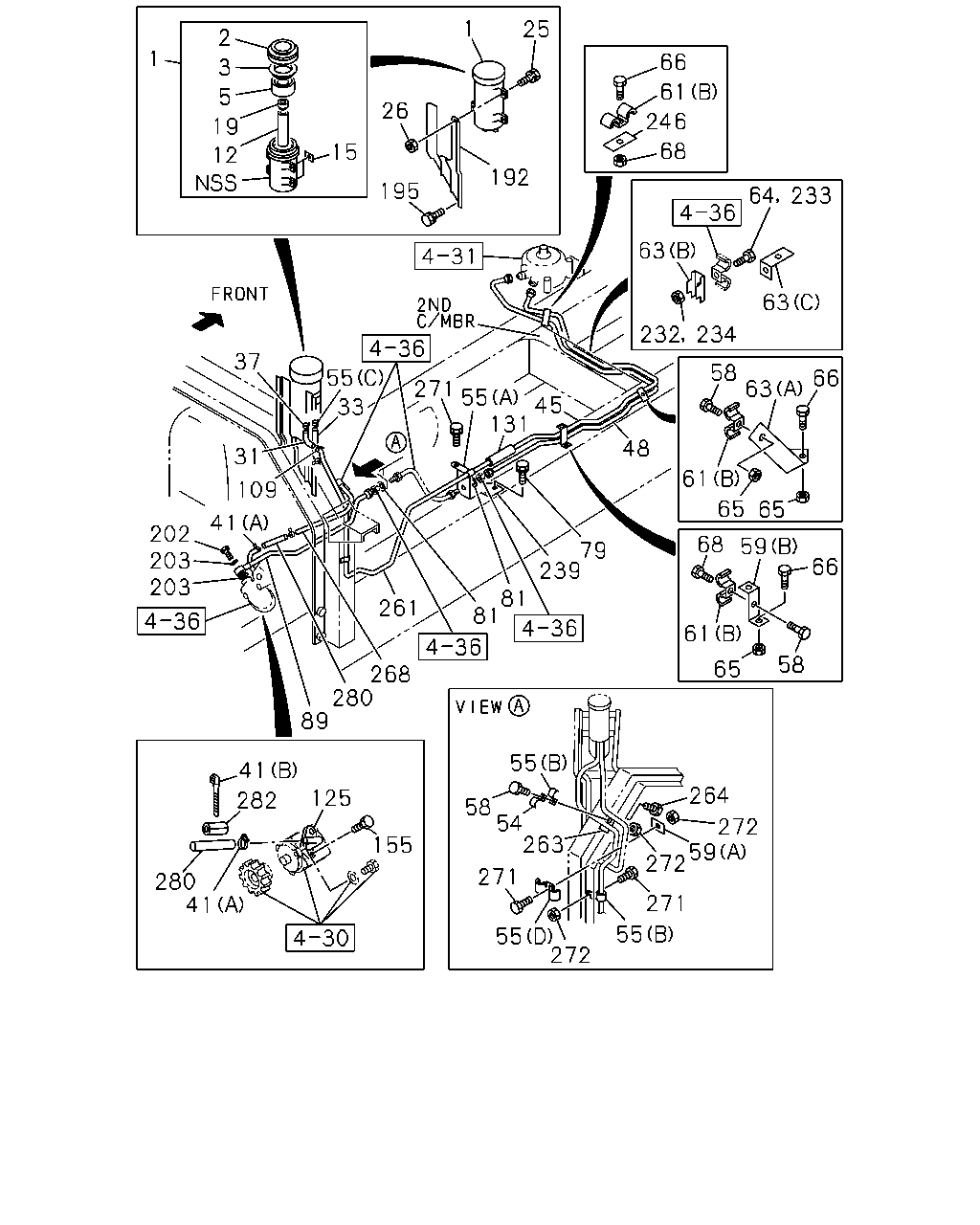

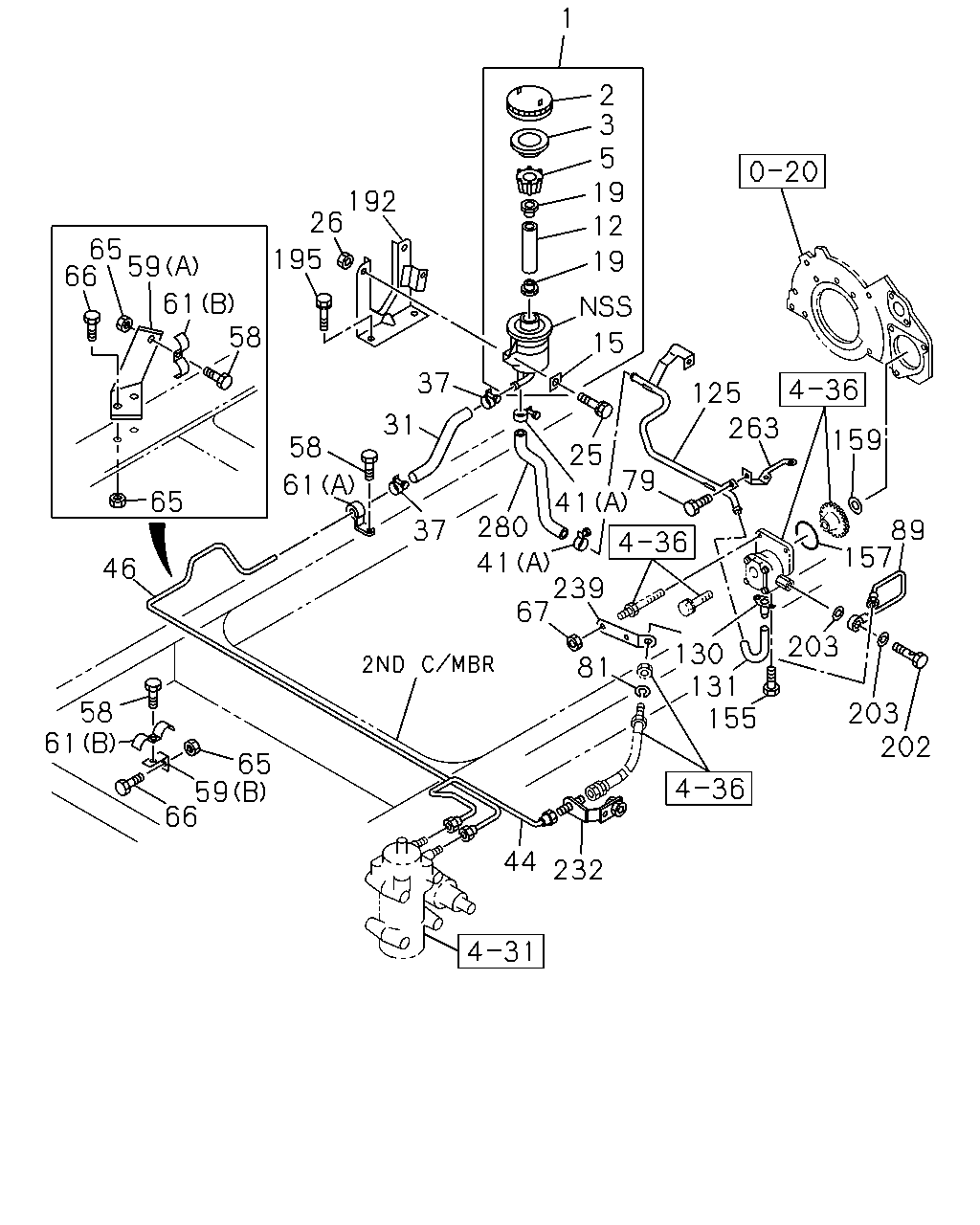

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#1272) — 351 parça

1 25 2 1 66 3 61 5 26 246 19 68 15 12 192 195 64 233 63 63 232 234 37 58 63 55 66 271 55 45 131 33 48 109 31 61 65 65 41 202 203 203 68 59 79 239 66 81 81 261 61 58 65 268 280 89 55 41 264 125 282 58 54 263 272 59 272 155 271 280 41 55 272 271 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9202-9312	●
1	TANK ASM; OIL,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21210-152-6	01	1	9202-9312		●
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9401-	●
1	TANK ASM; OIL,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21210-152-6	01	1	9401-		●
1	TANK ASM; OIL,P/S 6SA1TC ENG(28L)	1-21210-152-6	01	1	9401-		●
1	TANK ASM; OIL,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21210-205-0	01	1	9202-9312		●
1	TANK ASM; OIL,P/S 6SA1TC ENG(28L),6HE1 STD ENG(46L)	1-21210-205-0	01	1	9202-9312		●
1	TANK ASM; OIL,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21210-205-0	01	1	9401-		●
1	TANK ASM; OIL,P/S 6HE1 STD ENG(46L)	1-21210-205-0	01	1	9401-		●
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	9202-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9202-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9202-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9202-9312	●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21235-004-1	01	1	9202-9312		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9401-	●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21235-004-1	01	1	9401-		●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1TC ENG(28L)	1-21235-004-1	01	1	9401-		●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21235-011-0	01	1	9202-9312		●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1TC ENG(28L),6HE1 STD ENG(46L)	1-21235-011-0	01	1	9202-9312		●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21235-011-0	01	1	9401-		●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 STD ENG(46L)	1-21235-011-0	01	1	9401-		●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9202-9312	●
15	PLATE; FILTER,OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21249-007-1	04	1	9202-9312		●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9401-	●
15	PLATE; FILTER,OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21249-007-1	04	1	9401-		●
15	PLATE; FILTER,OIL TANK 6SA1TC ENG(28L)	1-21249-007-1	04	1	9401-		●
15	PLATE; FILTER,OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21249-007-1	02	1	9202-9312		●
15	PLATE; FILTER,OIL TANK 6SA1TC ENG(28L),6HE1 STD ENG(46L)	1-21249-007-1	02	1	9202-9312		●
15	PLATE; FILTER,OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21249-007-1	02	1	9401-		●
15	PLATE; FILTER,OIL TANK 6HE1 STD ENG(46L)	1-21249-007-1	02	1	9401-		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9202-	●	●
25	BOLT; OIL TANK BRKT M8X18 FLANGE	0-28080-818-0	04	1	9202-9205	●
25	BOLT; OIL TANK BRKT 6SA1 STD ENG(06L) M8X18 FLANGE	0-28080-818-0	04	1	9202-9205		●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9206-	●
25	BOLT; OIL TANK BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	04	1	9206-		●
25	BOLT; OIL TANK BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204		●
25	BOLT; OIL TANK BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9202-	●
26	NUT; OIL TANK TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	04	1	9202-		●
26	NUT; OIL TANK TO BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-		●
31	HOSE; P/S OIL TANK,INL	1-21112-549-1	01	1	9202-9312	●
31	HOSE; P/S OIL TANK,INL 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21112-549-1	01	1	9202-9312		●
31	HOSE; P/S OIL TANK,INL	1-21112-549-1	01	1	9401-	●
31	HOSE; P/S OIL TANK,INL 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21112-549-1	01	1	9401-		●
31	HOSE; P/S OIL TANK,INL 6SA1TC ENG(28L)	1-21112-549-1	01	1	9401-		●
31	HOSE; P/S OIL TANK,INL 6HE1 STD ENG(46L)	1-21113-590-0	01	1	9202-		●
31	HOSE; P/S OIL TANK,INL 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-205-0	01	1	9202-9312		●
31	HOSE; P/S OIL TANK,INL 6SA1TC ENG(28L)	1-21114-205-0	01	1	9202-9312		●
31	HOSE; P/S OIL TANK,INL 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-205-0	01	1	9401-		●
33	HOSE; RUBBER,POWER STRG	1-21112-612-1	01	1	9203-9312	●
33	HOSE; RUBBER,POWER STRG 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21112-612-1	01	1	9203-9312		●
33	HOSE; RUBBER,POWER STRG	1-21112-612-1	01	1	9401-	●
33	HOSE; RUBBER,POWER STRG 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21112-612-1	01	1	9401-		●
33	HOSE; RUBBER,POWER STRG 6SA1TC ENG(28L)	1-21112-612-1	01	1	9401-		●
33	HOSE; RUBBER,POWER STRG 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-204-0	01	1	9202-9312		●
33	HOSE; RUBBER,POWER STRG 6SA1TC ENG(28L)	1-21114-204-0	01	1	9202-9312		●
33	HOSE; RUBBER,POWER STRG 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-204-0	01	1	9401-		●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9202-	●	●
41	CLIP; HOSE,P/S (B) L=140	5-09707-031-0	01	1	9202-	●
41	CLIP; HOSE,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=140	5-09707-031-0	01	1	9202-		●
41	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	9202-	●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21114-022-0	01	1	9202-9203	●
45	PIPE; OIL,P/S UNIT TO UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-022-0	01	1	9202-9203		●
45	PIPE; OIL,P/S UNIT TO UNION	1-21114-302-0	01	1	9204-9308	●
45	PIPE; OIL,P/S UNIT TO UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-302-0	01	1	9204-9308		●
45	PIPE; OIL,P/S UNIT TO UNION	1-21114-987-0	01	1	9309-	●
45	PIPE; OIL,P/S UNIT TO UNION 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-987-0	01	1	9309-		●
45	PIPE; OIL,P/S UNIT TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-020-0	01	1	9202-9203		●
45	PIPE; OIL,P/S UNIT TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-301-0	01	1	9204-9205		●
45	PIPE; OIL,P/S UNIT TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-398-0	01	1	9206-9211		●
45	PIPE; OIL,P/S UNIT TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-669-0	01	1	9212-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21114-198-0	01	1	9202-9203	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-198-0	01	1	9202-9203		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21114-299-0	01	1	9204-9212	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-299-0	01	1	9204-9212		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21114-750-0	01	1	9301-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-750-0	01	1	9301-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-197-0	01	1	9202-9203		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-298-0	01	1	9204-9205		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-397-0	01	1	9206-9212		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-751-0	01	1	9301-		●
54	CLIP; OIL PIPE ID=19 H=25 L=25	9-09917-035-0	01	1	9202-9202	●
54	CLIP; OIL PIPE 6SA1 STD ENG(06L) ID=19 H=25 L=25	9-09917-035-0	01	1	9202-9202		●
54	CLIP; OIL PIPE ID=19 H=25 L=25	9-09917-035-0	01	1	9203-9203	●
54	CLIP; OIL PIPE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=19 H=25 L=25	9-09917-035-0	01	1	9203-9203		●
55	CLIP; P/S RUBBER HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-	●
55	CLIP; P/S RUBBER HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-		●
55	CLIP; P/S RUBBER HOSE (D) ID=19 & 16 L=21.5 & 21.5	1-09700-979-0	02	1	9202-	●
55	CLIP; P/S RUBBER HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (D) ID=19 & 16 L=21.5 & 21.5	1-09700-979-0	02	1	9202-		●
55	CLIP; P/S RUBBER HOSE (C) ID=32	1-09704-085-0	02	1	9202-	●
55	CLIP; P/S RUBBER HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) ID=32	1-09704-085-0	02	1	9202-		●
55	CLIP; P/S RUBBER HOSE (A) ID=16 L=50	9-09525-586-0	01	1	9202-	●
55	CLIP; P/S RUBBER HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=50	9-09525-586-0	01	1	9202-		●
58	BOLT; CLIP 6SA1 STD ENG(06L) M8X20 FLANGE	0-28010-820-0	03	1	9202-9204	●	●
58	BOLT; CLIP 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	03	1	9205-9209	●	●
58	BOLT; CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	02	1	9210-	●	●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	04	1	9205-9406		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	02	1	9407-		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
59	BRACKET; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B)	1-21119-134-0	01	1	9202-	●	●
59	BRACKET; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=50	1-47475-299-2	01	1	9202-	●	●
59	BRACKET; CLIP,OIL PIPE 6HE1 STD ENG(46L) (A)	1-21119-091-0	01	1	9202-		●
59	BRACKET; CLIP,OIL PIPE 6HE1 STD ENG(46L) (B) L=60	1-47475-455-0	01	1	9202-		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9202-9209	●
61	CLIP; OIL PIPE 6SA1 STD ENG(06L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9202-9209		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9202-	●	●
61	CLIP; OIL PIPE 6HE1 STD ENG(46L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-		●
63	BRACKET; CLIP,P/S 6SA1 STD ENG(06L) (B)	1-47475-427-1	01	1	9202-9203	●	●
63	BRACKET; CLIP,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) L=60	1-47475-455-0	01	1	9204-	●	●
63	BRACKET; CLIP,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-21119-091-0	01	1	9202-	●	●
64	BOLT; CLIP BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	01	1	9204-	●	●
65	NUT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9202-	●	●
65	NUT; BRKT 6HE1 STD ENG(46L) M10 FLANGE	5-09440-006-0	02	1	9202-		●
65	NUT; BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	05	1	9202-		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9205-	●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	03	1	9205-		●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204		●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	04	1	9205-9406		●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	02	1	9407-		●
68	NUT; CLIP,OIL PIPE 6SA1 STD ENG(06L) M8	9-09110-408-0	03	1	9202-9209	●	●
68	NUT; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9210-	●	●
79	BOLT; BRKT 6SA1 STD ENG(06L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
79	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
79	BOLT; BRKT 6HE1 STD ENG(46L) M8X12 FLANGE	0-28080-812-0	02	1	9202-		●
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9202-	●
81	WASHER; LK,FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=20.2	9-09150-520-0	02	1	9202-		●
81	WASHER; LK,FLEX HOSE 6HE1 STD ENG(46L) ID=20.2	9-09150-520-0	01	1	9202-		●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6SA1 STD ENG(06L)	1-21112-546-0	01	1	9202-9212	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE	1-21114-594-0	01	1	9301-	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-594-0	01	1	9301-		●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6HE1 STD ENG(46L)	1-21113-506-0	01	1	9202-9212		●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6HE1 STD ENG(46L)	1-21114-561-0	01	1	9301-		●
109	CLIP; RUBBER HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=26	1-09704-082-0	02	1	9202-	●	●
125	CONNECTOR; P/S PUMP 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21122-019-2	01	1	9202-	●	●
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94394-446-0	01	1	9202-9307		●
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94394-614-0	01	1	9308-		●
131	HOSE; RUBBER,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L)	0-09814-120-0	01	1	9202-	●	●
131	HOSE; RUBBER,P/S 6HE1 STD ENG(46L)	8-94396-331-1	01	1	9202-		●
155	BOLT; CONNECTOR 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9202-	●	●
155	BOLT; CONNECTOR 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	02	1	9202-		●
192	BRACKET; P/S OIL TANK	1-21219-080-2	01	1	9202-9312	●
192	BRACKET; P/S OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21219-080-2	01	1	9202-9312		●
192	BRACKET; P/S OIL TANK	1-21219-080-2	01	1	9401-	●
192	BRACKET; P/S OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21219-080-2	01	1	9401-		●
192	BRACKET; P/S OIL TANK 6SA1TC ENG(28L)	1-21219-080-2	01	1	9401-		●
192	BRACKET; P/S OIL TANK 6HE1 STD ENG(46L)	1-21119-120-1	01	1	9202-		●
192	BRACKET; P/S OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21219-109-0	01	1	9202-9312		●
192	BRACKET; P/S OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21219-109-0	01	1	9401-		●
195	BOLT; BRKT 6SA1 STD ENG(06L) M10X30 W/LK WASHER	0-50041-030-0	03	1	9202-9211	●	●
195	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	03	1	9212-	●
195	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X25 W/LK WASHER	0-50041-025-0	03	1	9212-		●
195	BOLT; BRKT 6HE1 STD ENG(46L) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9407		●
195	BOLT; BRKT 6HE1 STD ENG(46L) M10X35 W/LK WASHER	0-50041-035-0	02	1	9408-		●
202	BOLT; EYE,OIL PIPE M18X36	1-09675-059-0	01	1	9202-9310	●	●
202	BOLT; EYE,OIL PIPE M18X36	1-09675-205-0	01	1	9311-	●	●
203	GASKET; EYE BOLT ID=18	9-09571-418-0	02	1	9202-	●	●
232	NUT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	01	1	9204-	●	●
232	NUT; BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-		●
233	BOLT; PIPE CLIP,P/S 6SA1 STD ENG(06L) M8X45	0-28010-845-0	01	1	9202-9203	●	●
233	BOLT; PIPE CLIP,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X45 FLANGE	0-28080-845-0	01	1	9205-	●	●
233	BOLT; PIPE CLIP,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X16 FLANGE	0-28080-816-0	01	1	9204-	●	●
234	NUT; PIPE CLIP,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	01	1	9202-	●	●
239	BRACKET; FLEX HOSE	1-21119-071-2	01	1	9202-	●
239	BRACKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21119-071-2	01	1	9202-		●
239	BRACKET; FLEX HOSE 6HE1 STD ENG(46L)	1-21119-131-0	01	1	9203-		●
246	PLATE; PIPE CLIP L=50	1-47475-299-2	01	1	9202-9209	●
246	PLATE; PIPE CLIP 6SA1 STD ENG(06L) L=50	1-47475-299-2	01	1	9202-9209		●
261	PIPE; OIL,UNION TO HOSE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21113-850-0	01	1	9202-9203	●	●
261	PIPE; OIL,UNION TO HOSE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-292-0	01	1	9204-9209	●	●
261	PIPE; OIL,UNION TO HOSE 6SA1TC ENG(28L) CAB SUSPENSION SEMI FLOATING<SDK>	1-21114-292-0	01	1	9210-		●
261	PIPE; OIL,UNION TO HOSE	1-21114-421-0	01	1	9210-	●
261	PIPE; OIL,UNION TO HOSE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-421-0	01	1	9210-		●
261	PIPE; OIL,UNION TO HOSE 6SA1TC ENG(28L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-21114-421-0	01	1	9210-		●
261	PIPE; OIL,UNION TO HOSE 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-207-0	01	1	9202-		●
263	BRACKET; P/S PIPE	1-47475-599-0	01	1	9202-	●
263	BRACKET; P/S PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-47475-599-0	01	1	9202-		●
263	BRACKET; P/S PIPE 6HE1 STD ENG(46L)	8-94393-981-0	01	1	9202-		●
264	BOLT; PIPE BRKT 6SA1 STD ENG(06L) M8X18	0-28010-818-0	02	1	9202-9204	●	●
264	BOLT; PIPE BRKT 6SA1 STD ENG(06L) M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28080-820-0	02	1	9208-	●
264	BOLT; PIPE BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	02	1	9208-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1 STD ENG(06L)	1-21113-699-1	01	1	9202-9202	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21113-699-1	01	1	9203-9312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21113-699-1	01	1	9203-9312		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21113-699-1	01	1	9401-9403	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21113-699-1	01	1	9401-9403		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1TC ENG(28L)	1-21113-699-1	01	1	9401-9403		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21113-399-0	01	1	9404-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21113-399-0	01	1	9404-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1TC ENG(28L)	1-21113-399-0	01	1	9404-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-206-1	01	1	9203-9211		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-206-1	01	1	9212-9312		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1TC ENG(28L)	1-21114-206-1	01	1	9212-9312		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-206-1	01	1	9401-		●
271	BOLT; P/S OIL PIPE FIX M8X20 FLANGE	0-28080-820-0	04	1	9205-	●
271	BOLT; P/S OIL PIPE FIX 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	04	1	9205-		●
271	BOLT; P/S OIL PIPE FIX 6SA1 STD ENG(06L) M8X20 FLANGE	0-28010-820-0	04	1	9202-9204	●	●
272	NUT; P/S OIL PIPE FIX M8	9-09110-408-0	03	1	9202-	●
272	NUT; P/S OIL PIPE FIX 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	03	1	9202-		●
280	HOSE; P/S OIL PUMP,INL	1-21112-613-0	01	1	9202-9403	●
280	HOSE; P/S OIL PUMP,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21112-613-0	01	1	9202-9403		●
280	HOSE; P/S OIL PUMP,INL	1-21114-908-0	01	1	9404-	●
280	HOSE; P/S OIL PUMP,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-908-0	01	1	9404-		●
280	HOSE; P/S OIL PUMP,INL 6HE1 STD ENG(46L)	1-21114-048-1	01	1	9202-		●
282	SLEEVE; RUBBER,PIPE ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-	●
282	SLEEVE; RUBBER,PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●

1 2 3 5 19 12 192 26 65 59 66 195 19 61 58 15 37 125 263 31 159 58 25 79 61 65 41 280 89 157 37 41 239 67 46 203 81 130 131 155 58 61 203 202 65 59 66 44 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9202-9312	●
1	TANK ASM; OIL,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21210-152-6	01	1	9202-9312		●
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9401-	●
1	TANK ASM; OIL,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21210-152-6	01	1	9401-		●
1	TANK ASM; OIL,P/S 6SA1TC ENG(28L)	1-21210-152-6	01	1	9401-		●
1	TANK ASM; OIL,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21210-205-0	01	1	9202-9312		●
1	TANK ASM; OIL,P/S 6SA1TC ENG(28L),6HE1 STD ENG(46L)	1-21210-205-0	01	1	9202-9312		●
1	TANK ASM; OIL,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21210-205-0	01	1	9401-		●
1	TANK ASM; OIL,P/S 6HE1 STD ENG(46L)	1-21210-205-0	01	1	9401-		●
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	9202-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9202-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9202-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9202-9312	●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21235-004-1	01	1	9202-9312		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9401-	●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21235-004-1	01	1	9401-		●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1TC ENG(28L)	1-21235-004-1	01	1	9401-		●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21235-011-0	01	1	9202-9312		●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1TC ENG(28L),6HE1 STD ENG(46L)	1-21235-011-0	01	1	9202-9312		●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21235-011-0	01	1	9401-		●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 STD ENG(46L)	1-21235-011-0	01	1	9401-		●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9202-9312	●
15	PLATE; FILTER,OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21249-007-1	04	1	9202-9312		●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9401-	●
15	PLATE; FILTER,OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21249-007-1	04	1	9401-		●
15	PLATE; FILTER,OIL TANK 6SA1TC ENG(28L)	1-21249-007-1	04	1	9401-		●
15	PLATE; FILTER,OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21249-007-1	02	1	9202-9312		●
15	PLATE; FILTER,OIL TANK 6SA1TC ENG(28L),6HE1 STD ENG(46L)	1-21249-007-1	02	1	9202-9312		●
15	PLATE; FILTER,OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21249-007-1	02	1	9401-		●
15	PLATE; FILTER,OIL TANK 6HE1 STD ENG(46L)	1-21249-007-1	02	1	9401-		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9202-	●	●
25	BOLT; OIL TANK BRKT M8X18 FLANGE	0-28080-818-0	04	1	9202-9205	●
25	BOLT; OIL TANK BRKT 6SA1 STD ENG(06L) M8X18 FLANGE	0-28080-818-0	04	1	9202-9205		●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9206-	●
25	BOLT; OIL TANK BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	04	1	9206-		●
25	BOLT; OIL TANK BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204		●
25	BOLT; OIL TANK BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9202-	●
26	NUT; OIL TANK TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	04	1	9202-		●
26	NUT; OIL TANK TO BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-		●
31	HOSE; P/S OIL TANK,INL	1-21112-549-1	01	1	9202-9312	●
31	HOSE; P/S OIL TANK,INL 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21112-549-1	01	1	9202-9312		●
31	HOSE; P/S OIL TANK,INL	1-21112-549-1	01	1	9401-	●
31	HOSE; P/S OIL TANK,INL 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21112-549-1	01	1	9401-		●
31	HOSE; P/S OIL TANK,INL 6SA1TC ENG(28L)	1-21112-549-1	01	1	9401-		●
31	HOSE; P/S OIL TANK,INL 6HE1 STD ENG(46L)	1-21113-590-0	01	1	9202-		●
31	HOSE; P/S OIL TANK,INL 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-205-0	01	1	9202-9312		●
31	HOSE; P/S OIL TANK,INL 6SA1TC ENG(28L)	1-21114-205-0	01	1	9202-9312		●
31	HOSE; P/S OIL TANK,INL 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21114-205-0	01	1	9401-		●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9202-	●	●
41	CLIP; HOSE,P/S (B) L=140	5-09707-031-0	01	1	9202-	●
41	CLIP; HOSE,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=140	5-09707-031-0	01	1	9202-		●
41	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	9202-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 STD ENG(46L)	1-21114-050-0	01	1	9202-9205		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 STD ENG(46L)	1-21114-394-0	01	1	9206-9212		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 STD ENG(46L)	1-21114-756-0	01	1	9301-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 STD ENG(46L)	1-21114-199-0	01	1	9202-9203		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 STD ENG(46L)	1-21114-300-0	01	1	9204-		●
58	BOLT; CLIP 6SA1 STD ENG(06L) M8X20 FLANGE	0-28010-820-0	03	1	9202-9204	●	●
58	BOLT; CLIP 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	03	1	9205-9209	●	●
58	BOLT; CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	02	1	9210-	●	●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	04	1	9205-9406		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	02	1	9407-		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
59	BRACKET; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B)	1-21119-134-0	01	1	9202-	●	●
59	BRACKET; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=50	1-47475-299-2	01	1	9202-	●	●
59	BRACKET; CLIP,OIL PIPE 6HE1 STD ENG(46L) (A)	1-21119-091-0	01	1	9202-		●
59	BRACKET; CLIP,OIL PIPE 6HE1 STD ENG(46L) (B) L=60	1-47475-455-0	01	1	9202-		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9202-9209	●
61	CLIP; OIL PIPE 6SA1 STD ENG(06L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9202-9209		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9202-	●	●
61	CLIP; OIL PIPE 6HE1 STD ENG(46L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-		●
65	NUT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9202-	●	●
65	NUT; BRKT 6HE1 STD ENG(46L) M10 FLANGE	5-09440-006-0	02	1	9202-		●
65	NUT; BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	05	1	9202-		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9205-	●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	03	1	9205-		●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204		●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	04	1	9205-9406		●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	02	1	9407-		●
67	NUT; BRKT 6HE1 STD ENG(46L) M10	9-09110-510-0	01	1	9202-		●
79	BOLT; BRKT 6SA1 STD ENG(06L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
79	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
79	BOLT; BRKT 6HE1 STD ENG(46L) M8X12 FLANGE	0-28080-812-0	02	1	9202-		●
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9202-	●
81	WASHER; LK,FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=20.2	9-09150-520-0	02	1	9202-		●
81	WASHER; LK,FLEX HOSE 6HE1 STD ENG(46L) ID=20.2	9-09150-520-0	01	1	9202-		●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6SA1 STD ENG(06L)	1-21112-546-0	01	1	9202-9212	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE	1-21114-594-0	01	1	9301-	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-594-0	01	1	9301-		●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6HE1 STD ENG(46L)	1-21113-506-0	01	1	9202-9212		●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6HE1 STD ENG(46L)	1-21114-561-0	01	1	9301-		●
125	CONNECTOR; P/S PUMP 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21122-019-2	01	1	9202-	●	●
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94394-446-0	01	1	9202-9307		●
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94394-614-0	01	1	9308-		●
130	ADAPTER; P/S PUMP 6HE1 STD ENG(46L)	8-94396-340-1	01	1	9202-		●
131	HOSE; RUBBER,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L)	0-09814-120-0	01	1	9202-	●	●
131	HOSE; RUBBER,P/S 6HE1 STD ENG(46L)	8-94396-331-1	01	1	9202-		●
155	BOLT; CONNECTOR 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9202-	●	●
155	BOLT; CONNECTOR 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	02	1	9202-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 STD ENG(46L)	8-94396-678-0	01	1	9202-		●
159	WASHER; PL,ADAPTER 6HE1 STD ENG(46L)	1-09503-099-1	01	1	9202-9308		●
192	BRACKET; P/S OIL TANK	1-21219-080-2	01	1	9202-9312	●
192	BRACKET; P/S OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21219-080-2	01	1	9202-9312		●
192	BRACKET; P/S OIL TANK	1-21219-080-2	01	1	9401-	●
192	BRACKET; P/S OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21219-080-2	01	1	9401-		●
192	BRACKET; P/S OIL TANK 6SA1TC ENG(28L)	1-21219-080-2	01	1	9401-		●
192	BRACKET; P/S OIL TANK 6HE1 STD ENG(46L)	1-21119-120-1	01	1	9202-		●
192	BRACKET; P/S OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21219-109-0	01	1	9202-9312		●
192	BRACKET; P/S OIL TANK 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-21219-109-0	01	1	9401-		●
195	BOLT; BRKT 6SA1 STD ENG(06L) M10X30 W/LK WASHER	0-50041-030-0	03	1	9202-9211	●	●
195	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	03	1	9212-	●
195	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X25 W/LK WASHER	0-50041-025-0	03	1	9212-		●
195	BOLT; BRKT 6HE1 STD ENG(46L) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9407		●
195	BOLT; BRKT 6HE1 STD ENG(46L) M10X35 W/LK WASHER	0-50041-035-0	02	1	9408-		●
202	BOLT; EYE,OIL PIPE M18X36	1-09675-059-0	01	1	9202-9310	●	●
202	BOLT; EYE,OIL PIPE M18X36	1-09675-205-0	01	1	9311-	●	●
203	GASKET; EYE BOLT ID=18	9-09571-418-0	02	1	9202-	●	●
232	NUT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	01	1	9204-	●	●
232	NUT; BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-		●
239	BRACKET; FLEX HOSE	1-21119-071-2	01	1	9202-	●
239	BRACKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21119-071-2	01	1	9202-		●
239	BRACKET; FLEX HOSE 6HE1 STD ENG(46L)	1-21119-131-0	01	1	9203-		●
263	BRACKET; P/S PIPE	1-47475-599-0	01	1	9202-	●
263	BRACKET; P/S PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-47475-599-0	01	1	9202-		●
263	BRACKET; P/S PIPE 6HE1 STD ENG(46L)	8-94393-981-0	01	1	9202-		●
280	HOSE; P/S OIL PUMP,INL	1-21112-613-0	01	1	9202-9403	●
280	HOSE; P/S OIL PUMP,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21112-613-0	01	1	9202-9403		●
280	HOSE; P/S OIL PUMP,INL	1-21114-908-0	01	1	9404-	●
280	HOSE; P/S OIL PUMP,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-908-0	01	1	9404-		●
280	HOSE; P/S OIL PUMP,INL 6HE1 STD ENG(46L)	1-21114-048-1	01	1	9202-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
