Sayfa 4-25 - Isuzu EPC

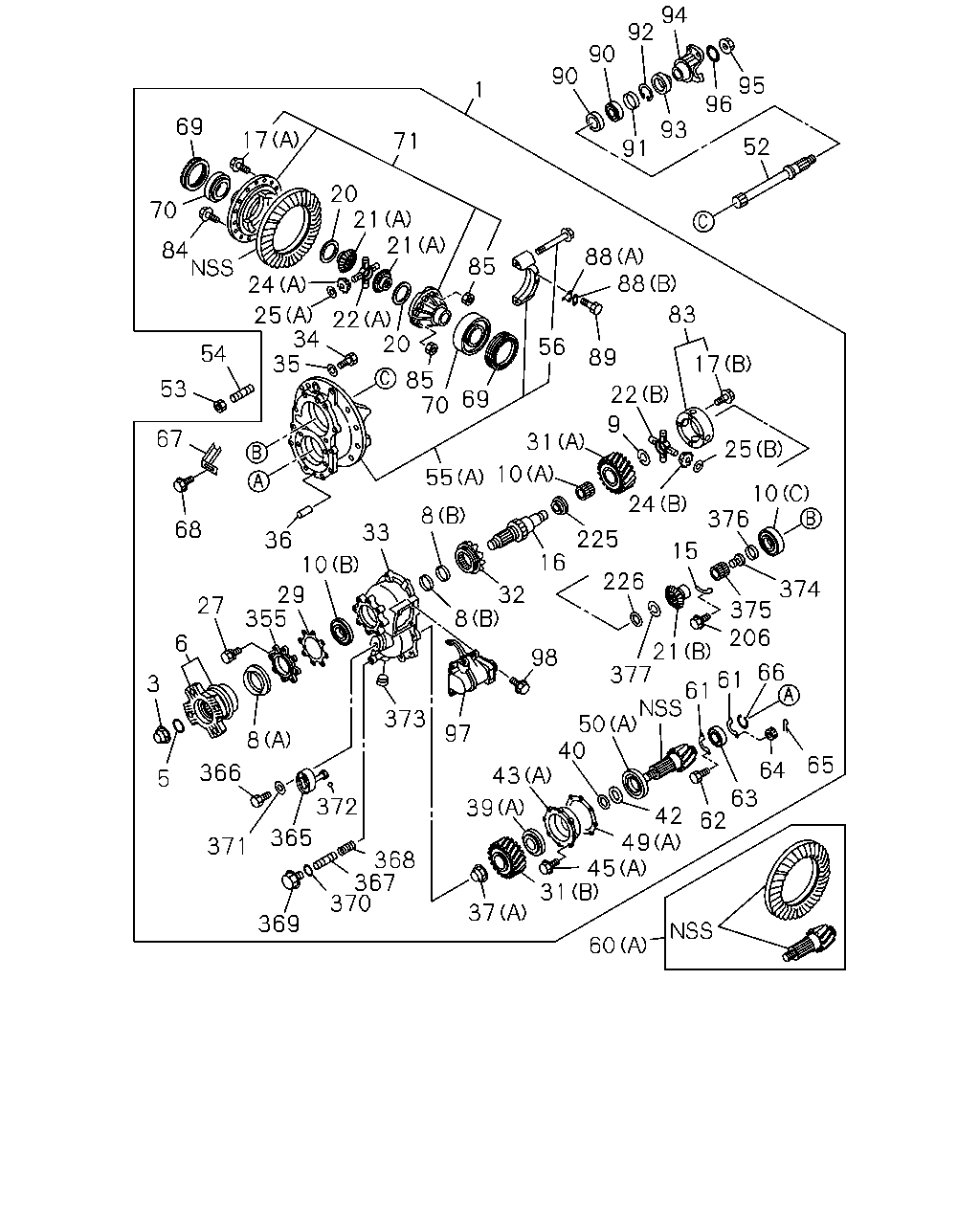

4-25 — REAR FINAL DRIVE (#12707) — 377 parça

94 92 90 90 95 96 1 69 93 17 71 52 91 20 21 21 70 84 88 88 85 24 83 25 34 35 22 20 56 54 89 17 85 70 53 22 69 9 67 31 25 10 55 10 376 24 8 68 33 225 36 15 16 10 226 374 375 206 32 8 29 355 27 6 21 377 61 98 66 3 61 373 50 40 97 8 65 64 63 62 366 43 5 372 39 42 49 45 31 365 371 368 367 370 37 369 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR REARWARD 45/7	1-41001-391-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR FORWARD 45/7	1-41002-663-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR REARWARD 43/7	1-41001-392-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR FORWARD 43/7	1-41002-441-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR REARWARD 39/7	1-41001-393-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR FORWARD 39/7	1-41002-443-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR REARWARD 41/8	1-41001-394-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR FORWARD 41/8	1-41002-761-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41002-110-0	01	1	0105-					●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	0105-	●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-343-0	01	1	0105-	●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	0105-	●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	0105-	●	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	0105-	●	●	●	●	●
10	BEARING; INPUT SHAFT (A) KOYO	1-09811-346-0	01	1	0105-	●	●	●	●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	0105-	●	●	●	●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	0105-	●	●	●	●	●
10	BEARING; INPUT SHAFT (C) KOYO	1-09812-182-0	01	1	0105-	●	●	●	●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	0105-	●	●	●	●	●
10	BEARING; INPUT SHAFT (B) KOYO	1-09812-198-0	01	1	0105-	●	●	●	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	0105-	●	●	●	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0105-	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-086-0	02	1	0105-	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-086-0	02	1	0105-	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	0105-	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (A)	1-41521-037-2	01	1	0105-	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (A)	1-41521-037-2	01	1	0105-	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (B)	1-41521-049-2	01	1	0105-	●	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-025-0	04	1	0105-	●	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-025-0	04	1	0105-	●	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=16	1-41551-031-0	04	1	0105-	●	●	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	0105-	●	●	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	0105-	●	●	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	0105-	●	●	●	●	●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50051-235-0	08	1	0105-	●	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	0105-	●	●	●	●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	0105-	●	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	0105-	●	●	●	●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	0105-	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-030-0	01	1	0105-	●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	0105-	●	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	0105-	●	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	0105-	●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	10	1	0105-	●	●	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	9-09150-814-0	10	1	0105-	●	●	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	0105-	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0105-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION (A) KOYO	1-09812-074-1	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION (B) KOYO	1-09812-076-1	01	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	0105-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	0105-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	0105-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	0105-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	0105-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	0105-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	0105-	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	0105-	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	0105-	●	●	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	0105-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	0105-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION (B) KOYO	1-09812-074-1	01	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION (A) KOYO	1-09812-076-1	01	1	0105-	●	●	●	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	0105-	●	●	●	●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	01	1	0105-	●	●	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	01	1	0105-	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	0105-	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	0105-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 45/7	1-41210-474-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (B) 45/7	1-41210-602-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-475-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-603-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-476-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-604-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR (A) 41/8	1-41210-477-0	01	1	0105-				●
60	GEAR SET; FINAL DRIVE,RR (B) 41/8	1-41210-605-0	01	1	0105-				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	0105-					●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-607-0	01	1	0105-					●
61	RETAINER; PILOT BRG,PINION	1-41227-012-0	02	1	0105-	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION	1-41227-012-0	02	1	0105-	●	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	01	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	01	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	0105-	●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	0105-	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-	●	●	●	●	●
83	CAGE ASM; DIFF	1-41510-224-0	01	1	0105-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-	●	●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	0105-	●	●	●	●	●
90	BEARING; OUTPUT SHAFT KOYO	1-09812-069-0	02	1	0105-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	0105-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	0105-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	0105-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	0105-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	0105-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	0105-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	0105-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	0105-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	0105-	●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	0105-	●	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	0105-	●	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	0105-	●	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	0105-	●	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	0105-	●	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	0105-	●	●	●	●	●

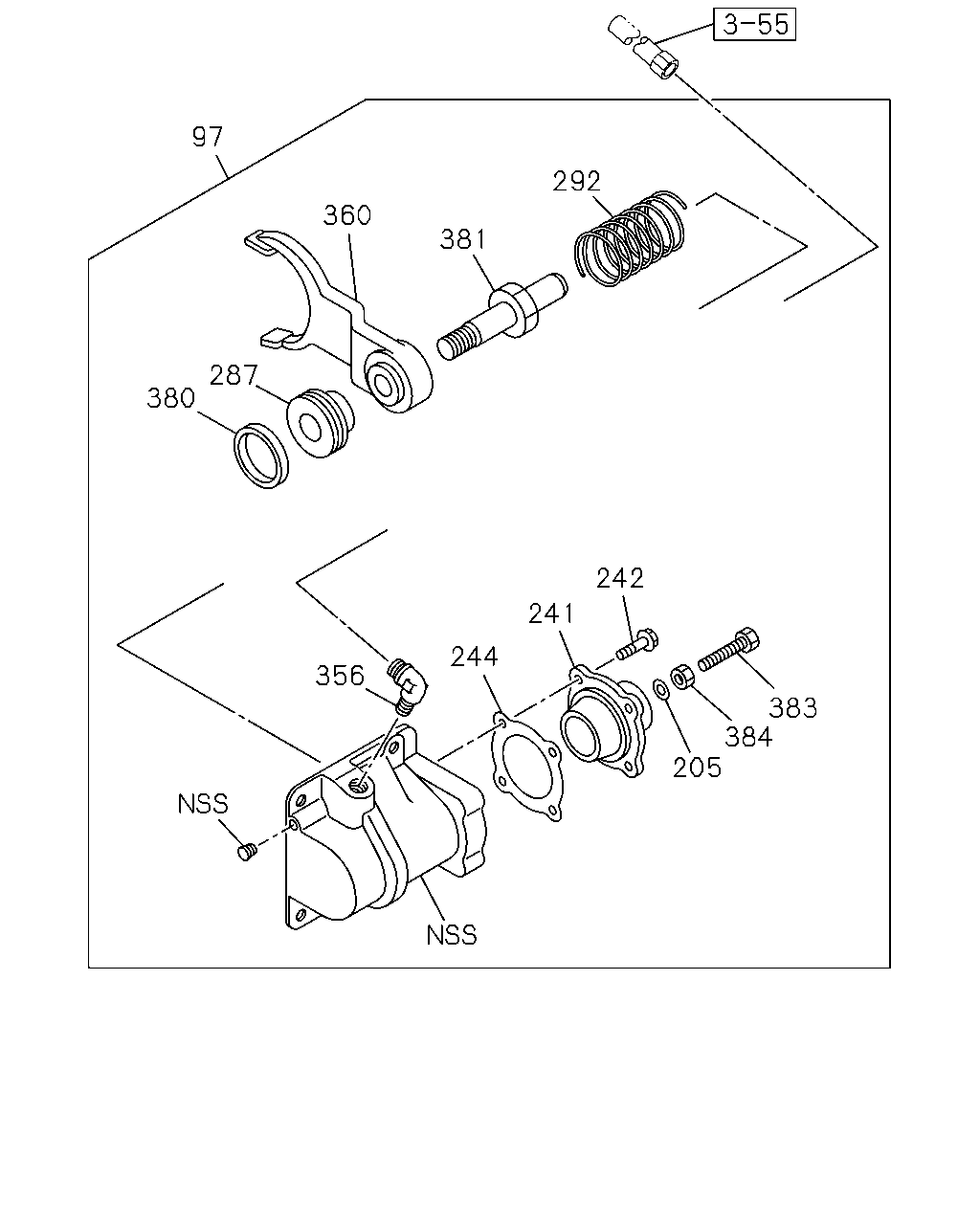

97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	0105-	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28181-050-0	01	1	0105-	●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28781-025-0	03	1	0105-	●	●	●	●	●
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=5.9	1-41552-024-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=6.0	1-41552-025-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=6.1	1-41552-026-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=6.2	1-41552-027-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=6.3	1-41552-028-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=6.4	1-41552-029-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=6.5	1-41552-030-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=6.6	1-41552-031-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=6.7	1-41552-032-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=6.8	1-41552-033-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=6.9	1-41552-034-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=7.0	1-41552-035-2	AR	1	0105-	●	●	●	●	●
225	WASHER; THRUST T=7.1	1-41552-036-2	AR	1	0105-	●	●	●	●	●
226	WASHER; THRUST	1-41562-267-0	01	1	0105-	●	●	●	●	●
355	RETAINER; BRG	1-41227-016-0	01	1	0105-	●	●	●	●	●
365	PUMP ASM; OIL	1-41381-008-1	01	1	0105-	●	●	●	●	●
366	BOLT; PUMP M8X40	0-10805-840-0	04	1	0105-	●	●	●	●	●
367	STRAINER; OIL PUMP	1-41383-003-0	01	1	0105-	●	●	●	●	●
368	SPRING; STRAINER	1-09580-504-0	01	1	0105-	●	●	●	●	●
369	PLUG; STRAINER M24X17 FLANGE	1-09604-023-0	01	1	0105-	●	●	●	●	●
370	GASKET; STRAINER ID=26.8	1-09623-058-0	01	1	0105-	●	●	●	●	●
371	WASHER; LK,PUMP ID=8.2	9-09150-808-0	04	1	0105-	●	●	●	●	●
372	BALL; CASE	9-00097-517-0	01	1	0105-	●	●	●	●	●
373	PLUG; CASE PT1/4	1-09605-019-0	01	1	0105-	●	●	●	●	●
374	PLUG; INPUT SHAFT	1-09609-020-1	01	1	0105-	●	●	●	●	●
375	BEARING; SIDE GEAR KOYO	1-09811-348-0	01	1	0105-	●	●	●	●	●
375	BEARING; SIDE GEAR NSK	1-09811-362-0	01	1	0105-	●	●	●	●	●
376	SPACER; BRG,SIDE GEAR	1-41349-150-0	01	1	0105-	●	●	●	●	●
377	RING; SNAP,BRG,SIDE GEAR	1-09587-091-0	01	1	0105-	●	●	●	●	●

69 1 70 85 71 20 21 22 85 24 56 25 17 21 20 88 89 88 70 84 17 69 55 66 61 61 65 64 63 41 40 39 100 126 62 50 49 43 48 45 4 37 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR REARWARD 45/7	1-41001-391-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR FORWARD 45/7	1-41002-663-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR REARWARD 43/7	1-41001-392-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR FORWARD 43/7	1-41002-441-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR REARWARD 39/7	1-41001-393-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR FORWARD 39/7	1-41002-443-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR REARWARD 41/8	1-41001-394-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR FORWARD 41/8	1-41002-761-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR FORWARD 39/8	1-41002-110-0	01	1	0105-					●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0105-	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-086-0	02	1	0105-	●	●	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-086-0	02	1	0105-	●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	0105-	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (A)	1-41521-037-2	01	1	0105-	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (A)	1-41521-037-2	01	1	0105-	●	●	●	●	●
22	PIN; CROSS,DIFF PINION (B)	1-41521-049-2	01	1	0105-	●	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-025-0	04	1	0105-	●	●	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-025-0	04	1	0105-	●	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=16	1-41551-031-0	04	1	0105-	●	●	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	0105-	●	●	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	0105-	●	●	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	0105-	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0105-	●	●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION (A) KOYO	1-09812-074-1	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION (B) KOYO	1-09812-076-1	01	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0105-	●	●	●	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	0105-	●	●	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	0105-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	0105-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	0105-	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION (B) KOYO	1-09812-074-1	01	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION (A) KOYO	1-09812-076-1	01	1	0105-	●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	0105-	●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	0105-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 45/7	1-41210-474-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (B) 45/7	1-41210-602-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-475-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-603-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-476-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-604-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR (A) 41/8	1-41210-477-0	01	1	0105-				●
60	GEAR SET; FINAL DRIVE,RR (B) 41/8	1-41210-605-0	01	1	0105-				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	0105-					●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-607-0	01	1	0105-					●
61	RETAINER; PILOT BRG,PINION	1-41227-012-0	02	1	0105-	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION	1-41227-012-0	02	1	0105-	●	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	01	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	01	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	0105-	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-	●	●	●	●	●
100	SEAL; OIL,FINAL PINION	1-09625-322-0	01	1	0105-	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-336-0	01	1	0105-	●	●	●	●	●

97 292 360 381 287 380 242 241 244 356 383 384 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	0105-	●	●	●	●	●
205	WASHER; PL ID=10.5 OD=18	9-09160-510-0	01	1	0105-	●	●	●	●	●
241	COVER; SHIFT HSG	1-48266-012-1	01	1	0105-	●	●	●	●	●
242	BOLT; COVER M8X20	0-20800-820-0	04	1	0105-	●	●	●	●	●
244	GASKET; COVER	1-48269-062-0	01	1	0105-	●	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	0105-	●	●	●	●	●
292	SPRING; PISTON	1-48265-007-0	01	1	0105-	●	●	●	●	●
356	NIPPLE; SHIFT UNIT M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●	●	●	●
360	FORK; SHIFT	1-48269-066-0	01	1	0105-	●	●	●	●	●
380	GASKET; PISTON	1-48269-064-0	01	1	0105-	●	●	●	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	0105-	●	●	●	●	●
383	BOLT; SET,SHIFT UNIT M10X45	0-20801-045-0	01	1	0105-	●	●	●	●	●
384	NUT; LK,SHIFT UNIT M10	9-09111-410-0	01	1	0105-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
