◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#12706) — 82 parça

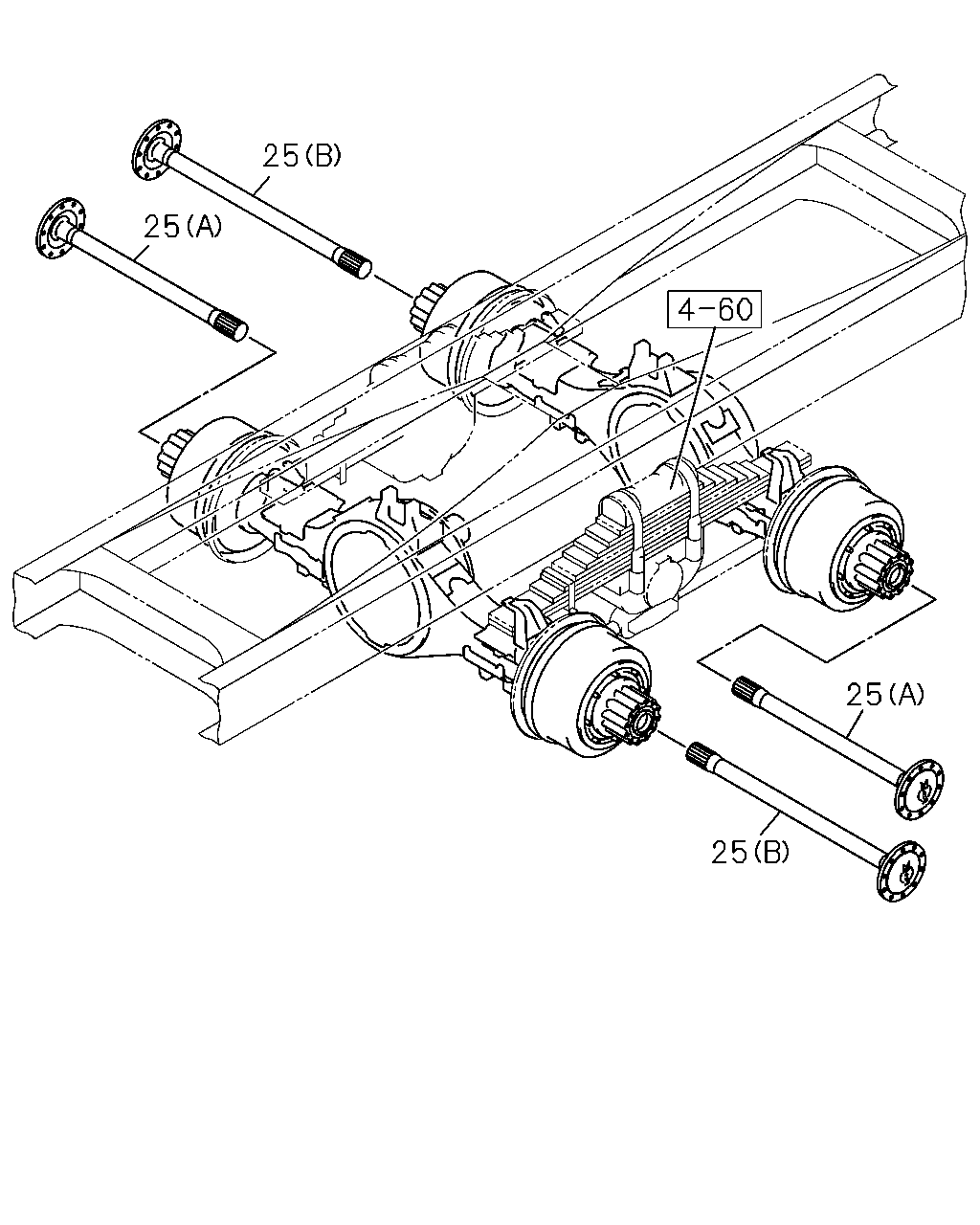

çizim 21072
25 25 25 25
BalonParca AdiParca NoAdetTipApplied Date
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-

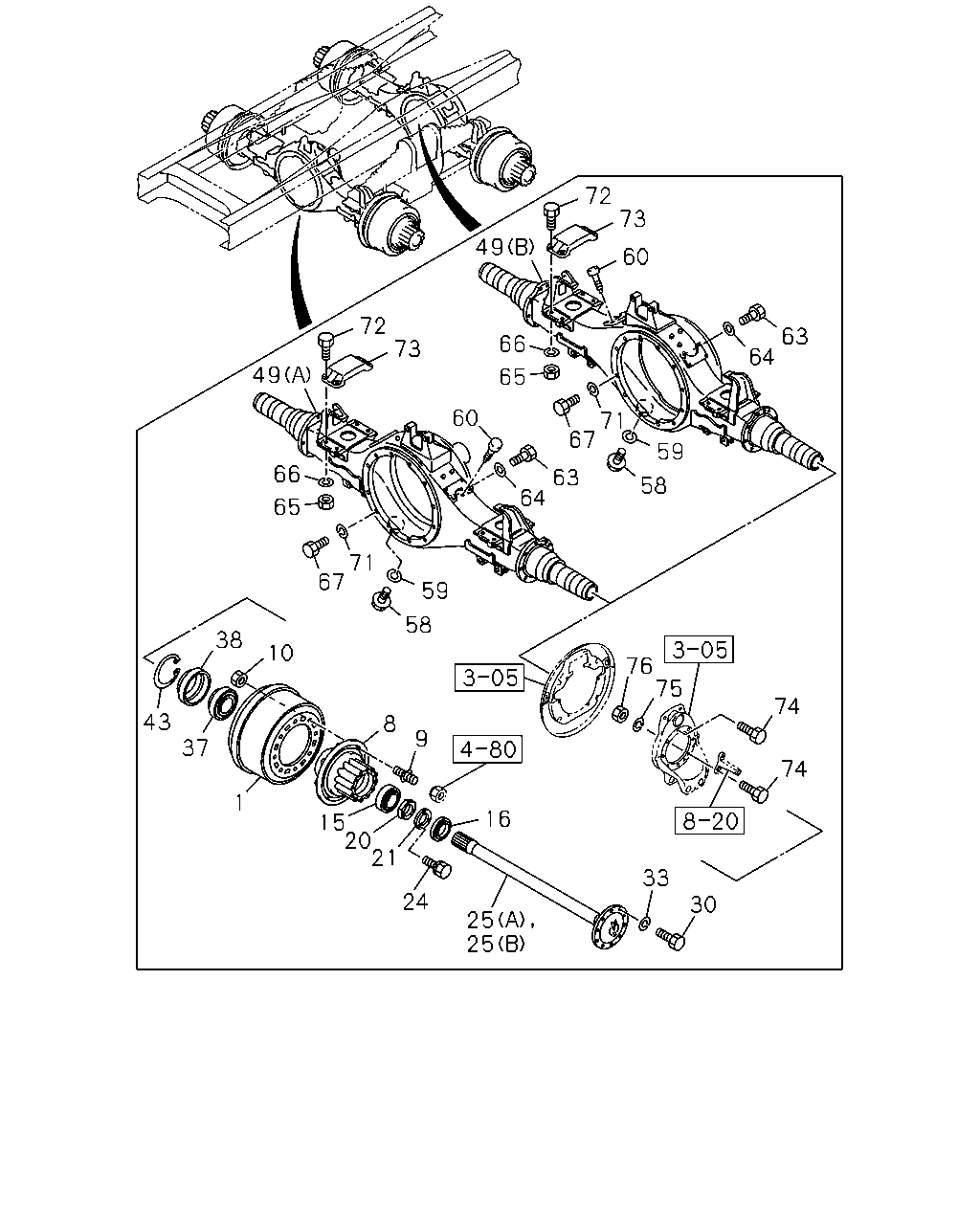

çizim 22772
72 73 49 60 72 73 63 64 66 49 65 71 67 60 59 66 63 64 58 65 71 67 59 58 38 10 76 75 74 43 8 9 37 74 1 16 15 20 21 33 24 30 25 25
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-220-4 02 1 0105-
1 DRUM; BRK,RR 1-42315-220-4 02 1 0105-
8 HUB; RR AXLE 1-42311-085-0 02 1 0105-
8 HUB; RR AXLE 1-42311-085-0 02 1 0105-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-027-0 20 1 0105-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-027-0 20 1 0105-
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0105-
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0105-
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0105-
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0105-
15 BEARING; HUB OUTER,RR AXLE
KOYO 		1-09812-232-0 02 1 0105-
15 BEARING; HUB OUTER,RR AXLE
KOYO 		1-09812-232-0 02 1 0105-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0105-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0105-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0105-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0105-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0105-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0105-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0105-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0105-
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0105-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0105-
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0105-
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0105-
37 BEARING; HUB INNER,RR AXLE
KOYO 		1-09812-233-0 02 1 0105-
37 BEARING; HUB INNER,RR AXLE
KOYO 		1-09812-233-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0105-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0105-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0105-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (A) 		1-42160-934-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (B) 		1-42160-979-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> (A) 		1-42160-935-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> (B) 		1-42160-978-1 01 1 0105-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0105-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0105-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0105-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0105-
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0105-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0105-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0105-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0105-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0105-
65 NUT
M14 		9-99110-514-0 08 1 0105-
65 NUT
M14 		9-99110-514-0 08 1 0105-
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0105-
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0105-
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0105-
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0105-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0105-0206
67 BOLT; FINAL DRIVE SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) M16X40 		9-92061-640-0 07 1 0105-0206
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/8 17.5"(W4B) REAR AXLE RT260<C2B> M16X40 		9-92061-640-0 08 1 0207-
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) REAR AXLE RT260<C2B> EXC. DISC WHEEL AL<SDM> M16X40 		9-92061-640-0 08 1 0207-
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/8 17.5"(W4A) REAR AXLE RT210<C2A>,REAR AXLE RT260<C2B> M16X40 		9-92061-640-0 08 1 0207-
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) REAR AXLE RT210<C2A> M16X40 		9-92061-640-0 08 1 0207-
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) REAR AXLE RT260<C2B> DISC WHEEL AL<SDM> M16X40 		9-92061-640-0 08 1 0105-0206
67 BOLT; FINAL DRIVE SETTING
REAR AXLE RT260<C2B> EXC. DISC WHEEL AL<SDM> M16X40 		9-92061-640-0 08 1 0105-0206
67 BOLT; FINAL DRIVE SETTING
REAR AXLE RT210<C2A> M16X40 		9-92061-640-0 08 1 0105-0206
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) REAR AXLE RT260<C2B> DISC WHEEL AL<SDM> M16X40 		9-92061-640-0 07 1 0207-
67 BOLT; FINAL DRIVE SETTING
REAR AXLE RT210<C2A>,REAR AXLE RT260<C2B> EXC. DISC WHEEL AL<SDM> M16X40 		9-92061-640-0 07 1 0207-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0105-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0105-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0105-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0105-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0105-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0105-
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0105-
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0105-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0105-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0105-
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0105-
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0105-
