◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#12703) — 54 parça

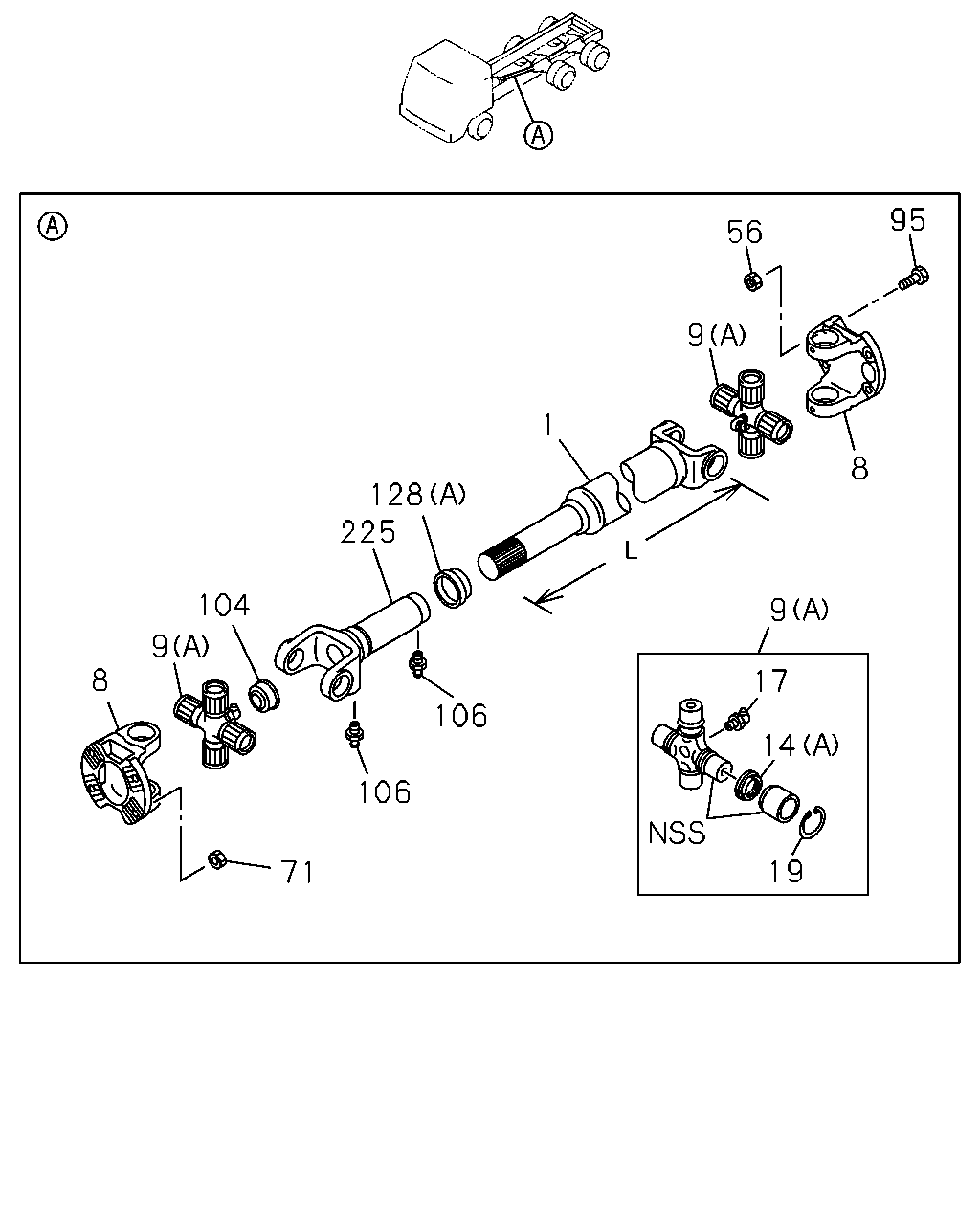

çizim 80858
95 56 9 1 8 128 225 104 9 9 8 17 106 14 106 19 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P115 PROP SHAFT<C5X> MJA6 M/T<X9S> L=1040 		1-37124-711-1 01 1 0105-
1 SHAFT; PROP
P90 PROP SHAFT<C5T> L=944 		1-37124-614-0 01 1 0105-
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L=900 		1-37124-770-1 01 1 0105-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-077-1 02 1 0105-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-079-1 02 1 0105-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-110-0 02 1 0105-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-112-0 02 1 0105-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0105-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105-
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105-
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-131-0 AR 1 0105-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 		9-09031-110-0 AR 1 0105-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> T=2.2 		1-09587-103-1 AR 1 0105-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> T=2.17 		1-09587-107-0 AR 1 0105-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 		1-09587-102-1 AR 1 0105-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105-
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0105-
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> 		1-09600-049-0 01 1 0105-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0105-
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> 		1-09600-067-0 01 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0105-
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0105-
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 0105-
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=339 		1-37241-140-0 01 1 0105-
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=330 		1-37241-124-0 01 1 0105-

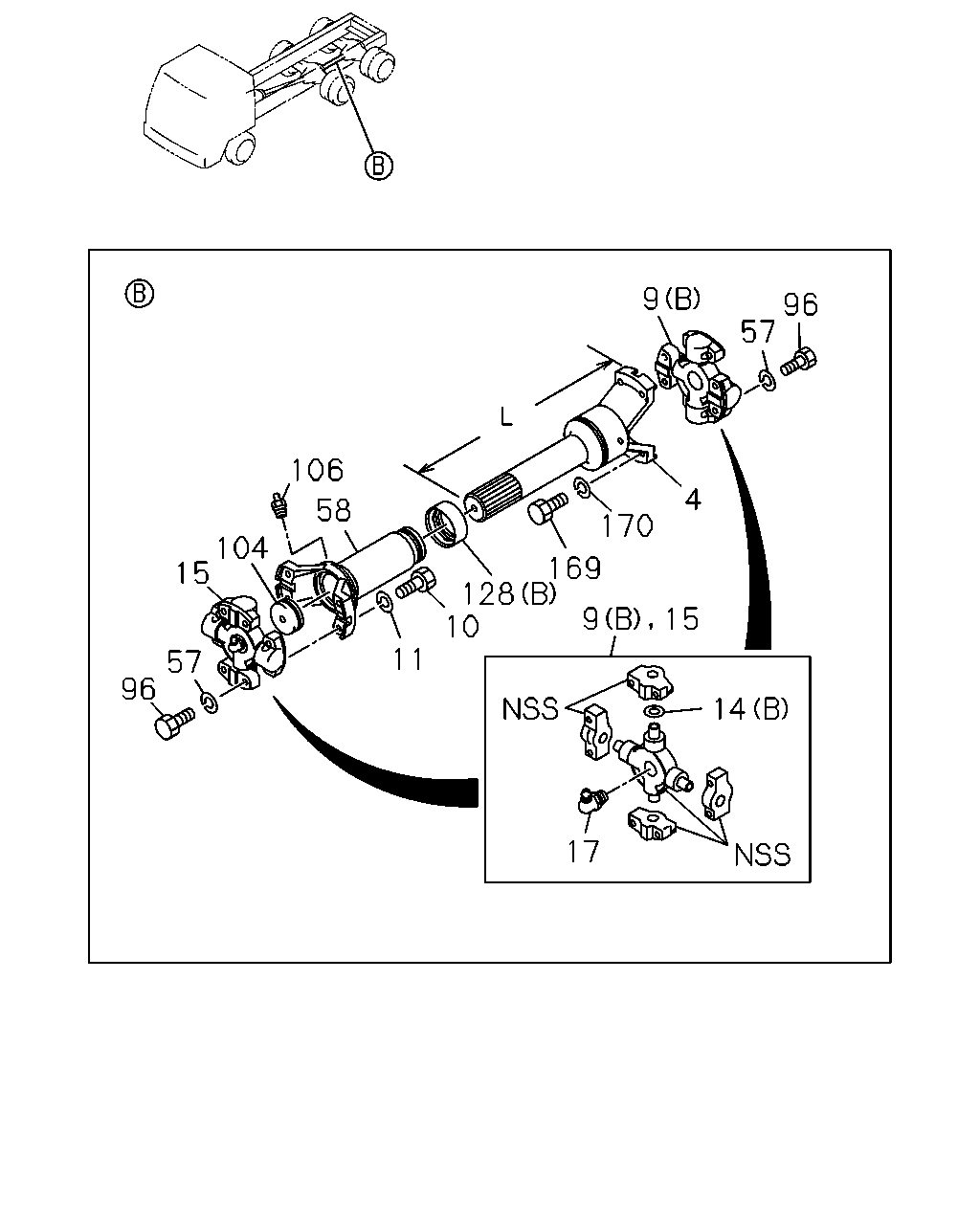

çizim 80894
9 96 57 106 58 4 170 169 128 10 104 15 9 15 11 57 96 14 17
BalonParca AdiParca NoAdetTipApplied Date
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0105-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-110-0 02 1 0105-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-112-0 02 1 0105-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0105-
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0105-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0105-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105-
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105-
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-131-0 AR 1 0105-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0105-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 		9-09031-110-0 AR 1 0105-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0105-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0105-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0105-
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> 		1-09600-049-0 01 1 0105-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0105-
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> 		1-09600-067-0 01 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0105-
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0105-
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 0105-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0105-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0105-
