Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10876 - EXZ RHD FUEL TANK 200L+200L
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#12701) — 30 parça
◀

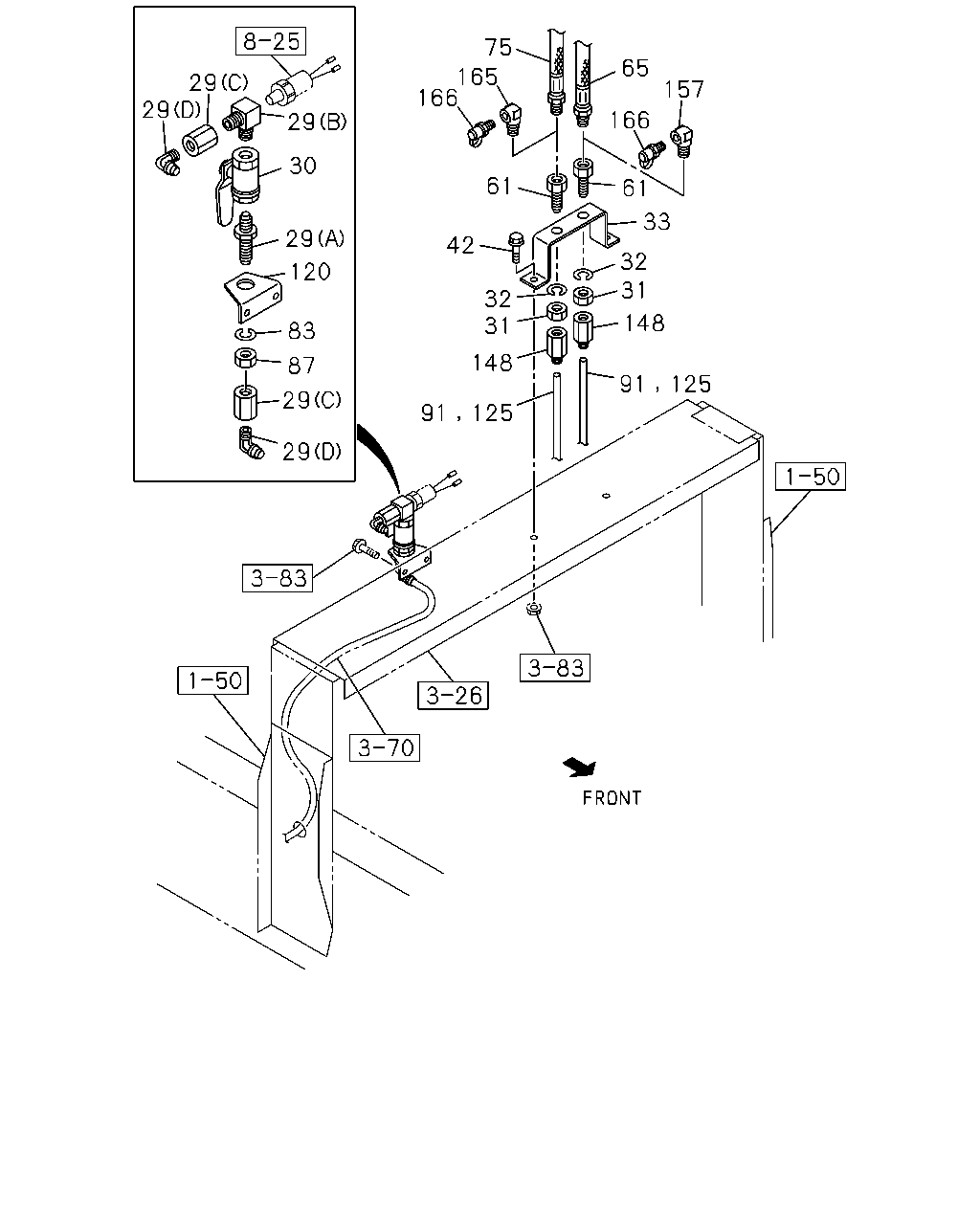

[380A] FRAME SIDE (22 parça)
[380A] CAB SIDE (8 parça)
▶
75
65
165
166
29
29
157
166
29
30
61
61
33
29
42
32
31
120
32
31
148
83
148
125
87
91
125
29
91
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CONNECTOR; COCK
(A) M22 & PT1/2 STRAIGHT
1-09650-220-1
01
1
0105-
29
CONNECTOR; COCK
(B)
1-09656-332-1
01
1
0105-
29
CONNECTOR; COCK
(C)
1-09660-884-0
02
1
0105-
29
CONNECTOR; COCK
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0105-
30
COCK; AIR HOSE
BLUE
1-09680-092-0
01
1
0105-
31
NUT; UNION
M16
9-99111-416-0
02
1
0105-
32
WASHER; LK,UNION
ID=16.2
9-09150-516-0
02
1
0105-
33
BRACKET
1-47475-388-0
01
1
0105-
42
BOLT; BRKT
M10X30 FLANGE
0-28681-030-0
02
1
0105-
61
UNION; NYLON TUBE
1-09650-222-1
02
1
0105-
65
HOSE; AIR
EXC. JUMPER HOSE & CABLE DELETE<SJK> L=5636
1-09363-163-1
01
1
0105-
75
HOSE; FLEX,TRAILER EMERGENCY
EXC. JUMPER HOSE & CABLE DELETE<SJK> L=5640
1-09363-164-1
01
1
0105-
83
WASHER; LK,CONNECTOR
ID=22.5
9-09150-522-0
01
1
0105-
87
NUT
M22
9-09111-422-0
01
1
0105-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0105-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0105-
120
BRACKET; COCK
1-48499-001-1
01
1
0105-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
AR
1
0105-
148
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0105-
157
ADAPTER
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 & NPTF1/2 2WAY
1-09660-695-0
01
1
0105-
165
CONNECTOR; ELBOW
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 & NPTF1/2 2WAY
1-09660-695-0
01
1
0105-
166
CONNECTOR; TEST
JUMPER HOSE & CABLE DELETE<SJK>
1-47459-013-0
02
1
0105-

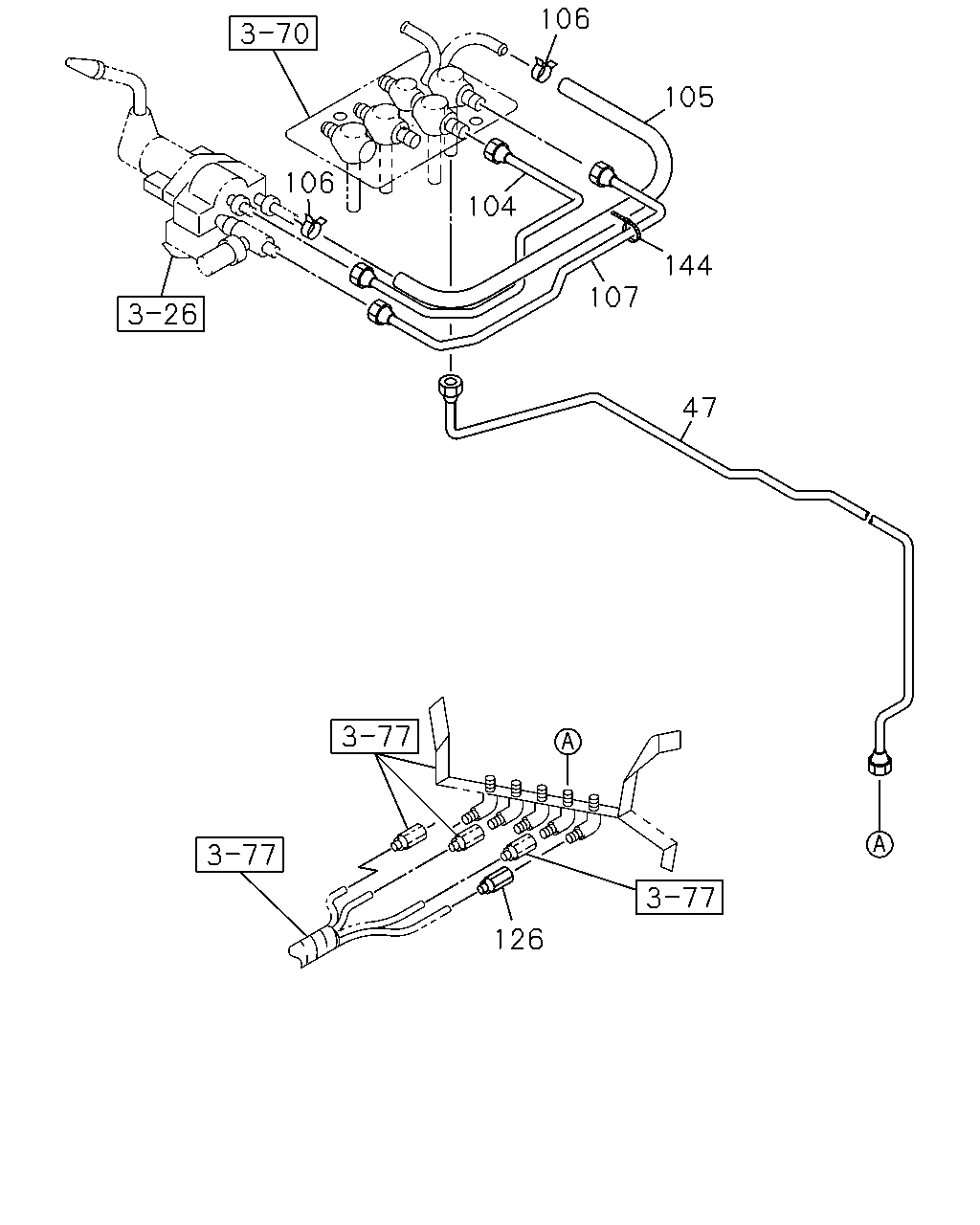

106
105
104
144
107
47
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
L=1936
1-49121-473-0
01
1
0105-0206
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-159-0
01
1
0207-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
0105-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0105-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
0207-
126
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0105-0206
126
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0105-0206
144
CLIP; BAND
L=140
5-09707-031-1
01
1
0112-
