3-78 — FIXING PARTS; AIR PIPING (#12700) — 163 parça

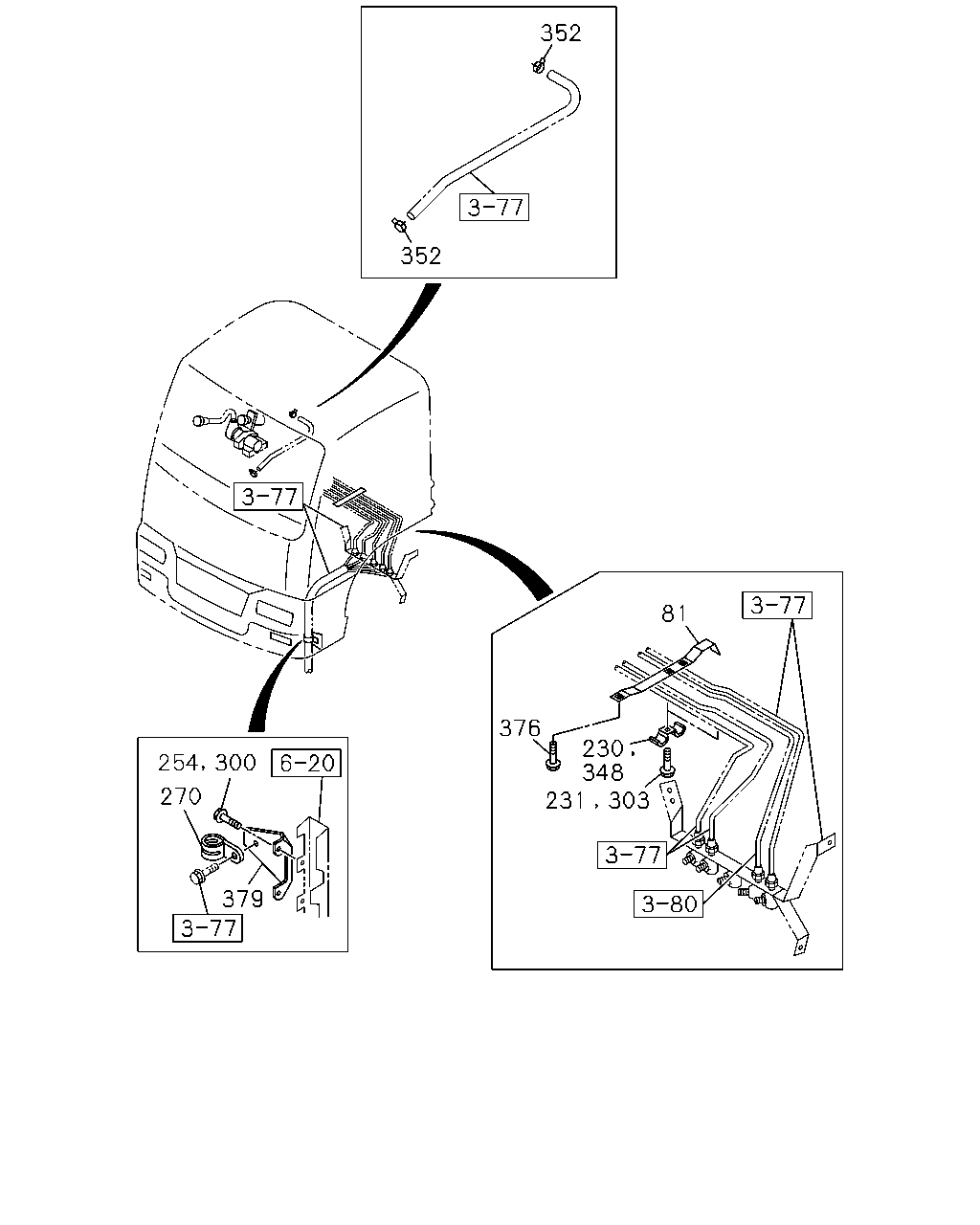

çizim 24261
352 352 81 376 30 348 231 303 270 254 300 379
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP 1-47477-483-0 01 1 0105-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0105-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
254 BOLT; PIPE CLIP
M8X20 W/LK&PL WASHER 		8-94279-208-0 05 1 0105-0204
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 05 1 0205-0205
254 BOLT; PIPE CLIP
M8X20 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-0204
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0205-0205
270 CLIP; NYLON TUBE
ID=28 L=32 		1-09701-107-1 02 1 0105-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0206-
300 BOLT; TUBE CLIP
M8X20 W/LK&PL WASHER 		8-94279-208-0 03 1 0206-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0105-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0105-0206
352 CLIP; EXH HOSE
TRAILER BRAKE HAND CONTROL<NLG> ID=14 		8-94238-572-0 02 1 0207-
376 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 0105-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
376 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X30 FLANGE 		0-28680-830-0 01 1 0105-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0105-

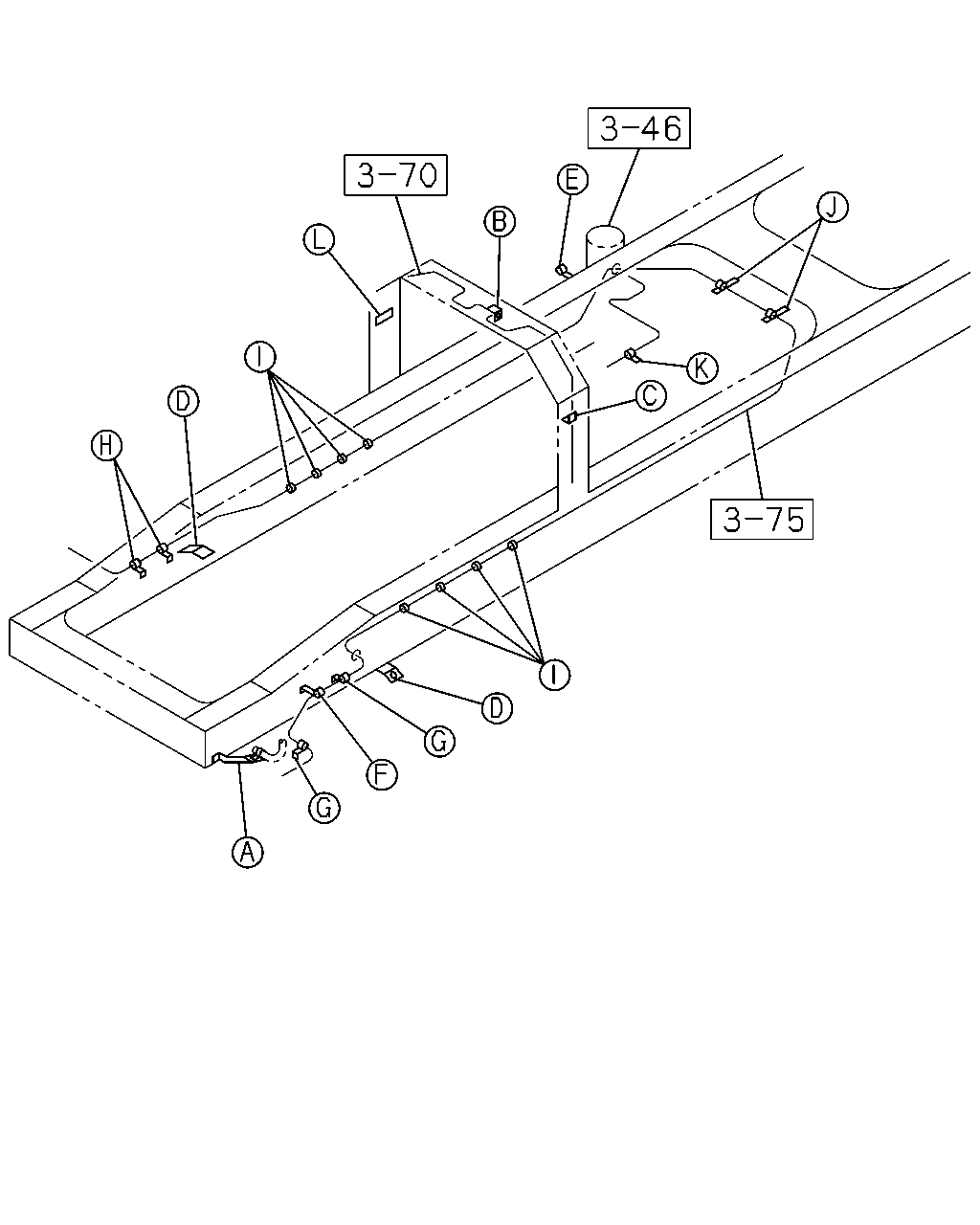

çizim 24262
BalonParca AdiParca NoAdetTipApplied Date
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0105-

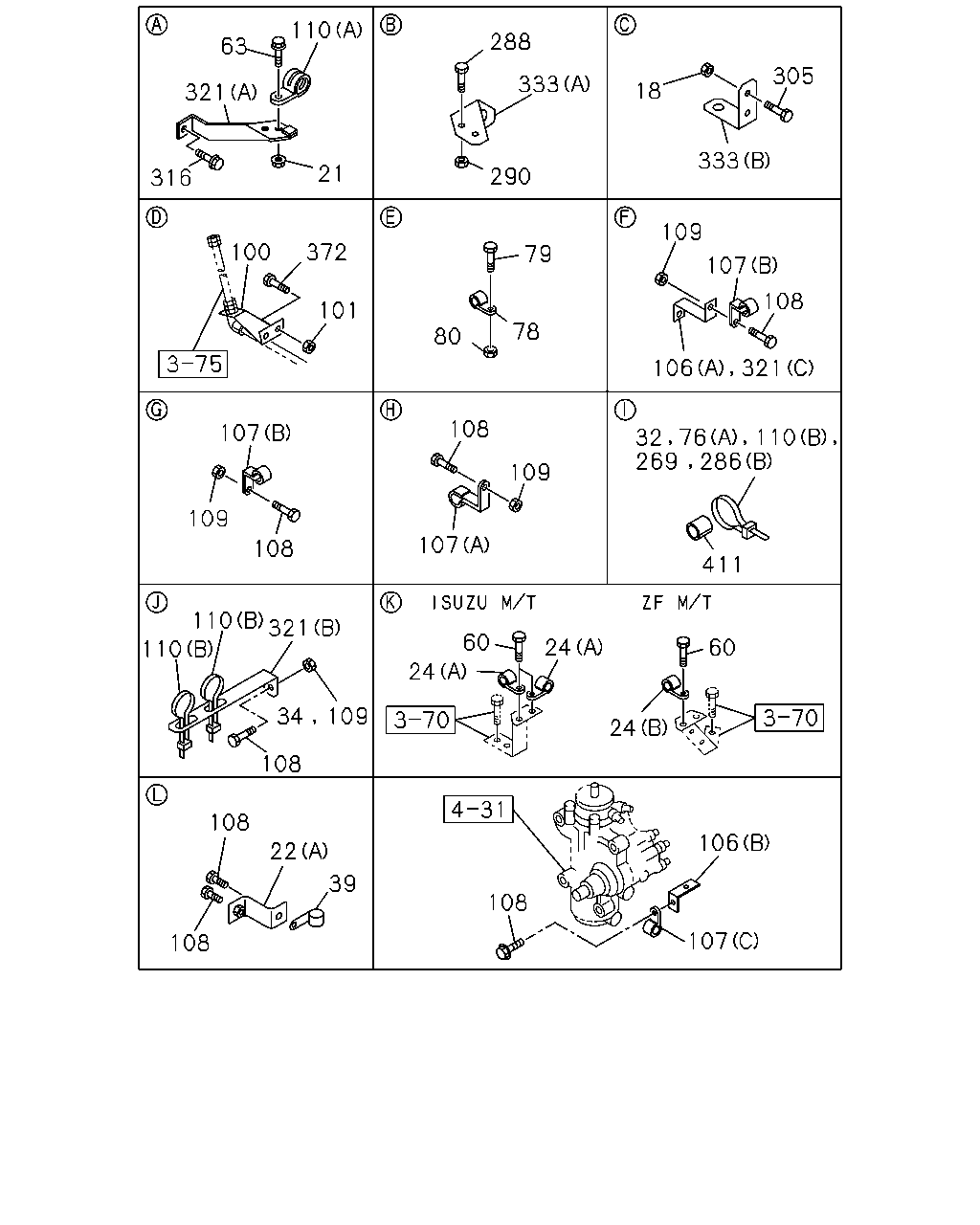

çizim 24263
110 288 63 305 333 18 321 333 21 290 316 109 100 372 79 107 108 101 78 80 106 108 110 109 109 107 108 411 110 321 60 24 60 110 24 34 109 24 108 108 106 22 39 108 107 108 107 321 76 286 269 32
BalonParca AdiParca NoAdetTipApplied Date
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-
22 BRACKET; CLIP
(B) 		1-47477-514-3 02 1 0105-
22 BRACKET; CLIP
EXC. ISUZU M/T<X9A> (C) L=100 		1-47477-645-2 01 1 0105-0106
22 BRACKET; CLIP
(C) L=100 		1-47477-645-2 01 1 0107-
22 BRACKET; CLIP
ZF M/T<X9E> (A) 		1-47477-088-1 01 1 0105-0106
22 BRACKET; CLIP
(A) 		1-47477-088-1 01 1 0107-
22 BRACKET; CLIP
EXC. ZF M/T<X9E> (A) 		1-47475-689-0 01 1 0105-0106
24 CLIP; PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V) (A) ID=16 L=20 		9-09525-535-0 02 1 0105-
24 CLIP; PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=16 L=28 		9-09525-556-0 01 1 0105-
32 CLIP; BAND,RUBBER SLEEVE
EXC. AIR DRYER<PS7> L=250 		1-09707-126-0 01 1 0204-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-
39 CLIP; AIR PIPE
L=250 		1-09707-126-0 02 1 0105-
60 BOLT; CLIP FIX
MJA7U M/T(X6G),MJA6A M/T(X6V) M8X25 FLANGE 		0-28680-825-0 02 1 0105-
60 BOLT; CLIP FIX
TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE 		0-28680-820-0 01 1 0105-
63 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 09 1 0105-
76 CLIP; NYLON TUBE
(B) L=350 		8-94152-256-1 01 1 0105-
76 CLIP; NYLON TUBE
(C) ID=6 & 8.3 		8-94167-742-0 02 1 0105-
76 CLIP; NYLON TUBE
AIR DRYER<PS7> (A) L=250 		1-09707-126-0 02 1 0105-
78 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=16 L=28 		9-09525-556-0 01 1 0105-
79 BOLT; PIPE CLIP
EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 01 1 0105-
80 NUT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0105-
100 BRACKET; PIPE CLIP 1-47477-770-0 01 1 0105-
100 BRACKET; PIPE CLIP 1-47477-365-0 01 1 0105-
101 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-
106 BRACKET; TUBE CLIP
(A) 		1-47477-694-0 01 1 0105-
106 BRACKET; TUBE CLIP
(B) L=85 		1-47476-758-0 01 1 0108-
107 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
107 CLIP; NYLON TUBE
ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5 		1-09701-027-0 03 1 0105-0107
107 CLIP; NYLON TUBE
ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0108-
107 CLIP; NYLON TUBE
ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 L=35 		5-09700-293-1 01 1 0108-
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33 		1-09701-047-0 03 1 0105-0107
107 CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33 		1-09701-047-0 03 1 0105-0107
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33 		1-09701-047-0 02 1 0108-
107 CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33 		1-09701-047-0 02 1 0108-
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (C) ID=35 L=35 		1-09700-895-0 01 1 0108-
107 CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (C) ID=35 L=35 		1-09700-895-0 01 1 0108-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 05 1 0105-0107
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 04 1 0108-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0105-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 0108-
108 BOLT; TUBE CLIP
EXC. ISUZU M/T<X9A> M8X30 FLANGE 		0-28680-830-0 01 1 0105-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 05 1 0105-
109 NUT; TUBE CLIP
EXC. ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0105-
110 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 0105-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 09 1 0105-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 15 1 0105-0204
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 17 1 0205-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 19 1 0105-0105
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 02 1 0106-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 17 1 0106-0110
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 19 1 0111-
110 CLIP; BAND,NYLON TUBE
(C) L=140 		5-09707-031-1 01 1 0204-
110 CLIP; BAND,NYLON TUBE
ZF M/T<X9E> (B) L=250 		1-09707-126-0 01 1 0105-0204
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 01 1 0105-0204
110 CLIP; BAND,NYLON TUBE
ZF M/T<X9E> (B) L=250 		1-09707-126-0 01 1 0205-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0105-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 14 1 0105-
286 CLIP; NYLON TUBE
ISUZU M/T<X9A> (A) L=250 		5-09707-030-1 01 1 0105-0109
286 CLIP; NYLON TUBE
ISUZU M/T<X9A> (A) L=250 		1-09707-126-0 01 1 0110-
286 CLIP; NYLON TUBE
ZF M/T<X9E> (B) L=250 		1-09707-126-0 05 1 0105-
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 0105-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0105-
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-
316 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-
316 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0105-
321 BRACKET; CLIP
(B) L=150 		1-47477-629-2 01 1 0105-0106
321 BRACKET; CLIP
(C) 		1-47477-088-1 01 1 0107-
321 BRACKET; CLIP
(A) 		1-47477-810-0 01 1 0105-
321 BRACKET; CLIP
EXC. AIR DRYER<PS7> (B) L=100 		1-47477-645-2 01 1 0105-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-337-1 01 1 0105-
333 BRACKET; BRK AIR PIPE
(A) 		1-47477-818-0 01 1 0105-
333 BRACKET; BRK AIR PIPE
(C) 		1-79997-360-6 01 1 0105-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0105-
411 SLEEVE; RUBBER
AIR DRYER<PS7> ID=29 OD=39 L=40 		1-09337-013-0 01 1 0110-
411 SLEEVE; RUBBER
EXC. AIR DRYER<PS7> ID=15 OD=19 L=50 		1-09337-014-0 01 1 0204-
çizim 78080
20 76 296 293 22 292 22 279 297 110 286
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0105-
22 BRACKET; CLIP
(B) 		1-47477-514-3 02 1 0105-
22 BRACKET; CLIP
EXC. ISUZU M/T<X9A> (C) L=100 		1-47477-645-2 01 1 0105-0106
22 BRACKET; CLIP
(C) L=100 		1-47477-645-2 01 1 0107-
22 BRACKET; CLIP
ZF M/T<X9E> (A) 		1-47477-088-1 01 1 0105-0106
22 BRACKET; CLIP
(A) 		1-47477-088-1 01 1 0107-
22 BRACKET; CLIP
EXC. ZF M/T<X9E> (A) 		1-47475-689-0 01 1 0105-0106
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 09 1 0105-
76 CLIP; NYLON TUBE
(B) L=350 		8-94152-256-1 01 1 0105-
76 CLIP; NYLON TUBE
(C) ID=6 & 8.3 		8-94167-742-0 02 1 0105-
76 CLIP; NYLON TUBE
AIR DRYER<PS7> (A) L=250 		1-09707-126-0 02 1 0105-
110 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 0105-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 09 1 0105-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 15 1 0105-0204
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 17 1 0205-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 19 1 0105-0105
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 02 1 0106-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 17 1 0106-0110
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 19 1 0111-
110 CLIP; BAND,NYLON TUBE
(C) L=140 		5-09707-031-1 01 1 0204-
110 CLIP; BAND,NYLON TUBE
ZF M/T<X9E> (B) L=250 		1-09707-126-0 01 1 0105-0204
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 01 1 0105-0204
110 CLIP; BAND,NYLON TUBE
ZF M/T<X9E> (B) L=250 		1-09707-126-0 01 1 0205-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0105-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0108-
279 NUT; BRKT
MJA7U M/T(X6G),MJA6A M/T(X6V) M10 FLANGE 		0-91150-210-0 02 1 0105-
286 CLIP; NYLON TUBE
ISUZU M/T<X9A> (A) L=250 		5-09707-030-1 01 1 0105-0109
286 CLIP; NYLON TUBE
ISUZU M/T<X9A> (A) L=250 		1-09707-126-0 01 1 0110-
286 CLIP; NYLON TUBE
ZF M/T<X9E> (B) L=250 		1-09707-126-0 05 1 0105-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0105-
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-
296 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 0105-
297 NUT; BRKT
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0105-
297 NUT; BRKT
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 0105-
çizim 78159
376 367 322 375 357
BalonParca AdiParca NoAdetTipApplied Date
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0105-
322 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 0105-
322 BRACKET; CLIP
(A) 		1-79996-360-0 01 1 0105-
357 BOLT; CLIP FIX
M8X16 FLANGE 		0-28080-816-0 01 1 0105-
367 BRACKET ASM 1-42119-080-0 01 1 0105-
375 CLIP; AIR PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 0105-
376 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 0105-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
376 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X30 FLANGE 		0-28680-830-0 01 1 0105-

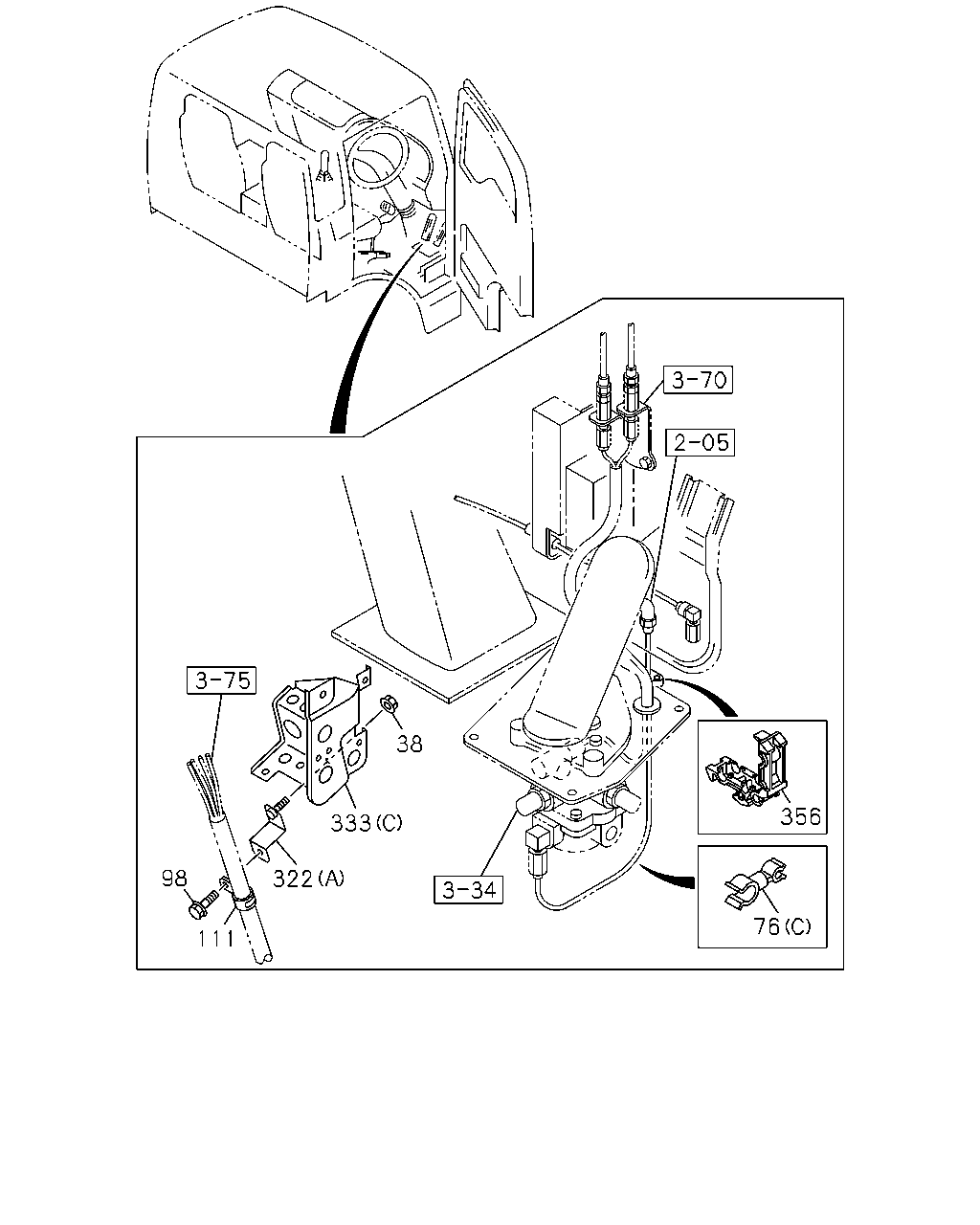

çizim 80063
38 356 333 98 322 76 111
BalonParca AdiParca NoAdetTipApplied Date
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 09 1 0105-
76 CLIP; NYLON TUBE
(B) L=350 		8-94152-256-1 01 1 0105-
76 CLIP; NYLON TUBE
(C) ID=6 & 8.3 		8-94167-742-0 02 1 0105-
76 CLIP; NYLON TUBE
AIR DRYER<PS7> (A) L=250 		1-09707-126-0 02 1 0105-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-
111 CLIP; AIR PIPE
ID=35 L=33 		1-09700-945-0 01 1 0105-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0105-
322 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 0105-
322 BRACKET; CLIP
(A) 		1-79996-360-0 01 1 0105-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-337-1 01 1 0105-
333 BRACKET; BRK AIR PIPE
(A) 		1-47477-818-0 01 1 0105-
333 BRACKET; BRK AIR PIPE
(C) 		1-79997-360-6 01 1 0105-
356 CLIP; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK 		8-94222-876-0 01 1 0105-
356 CLIP; AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK 		8-94222-876-0 01 1 0105-

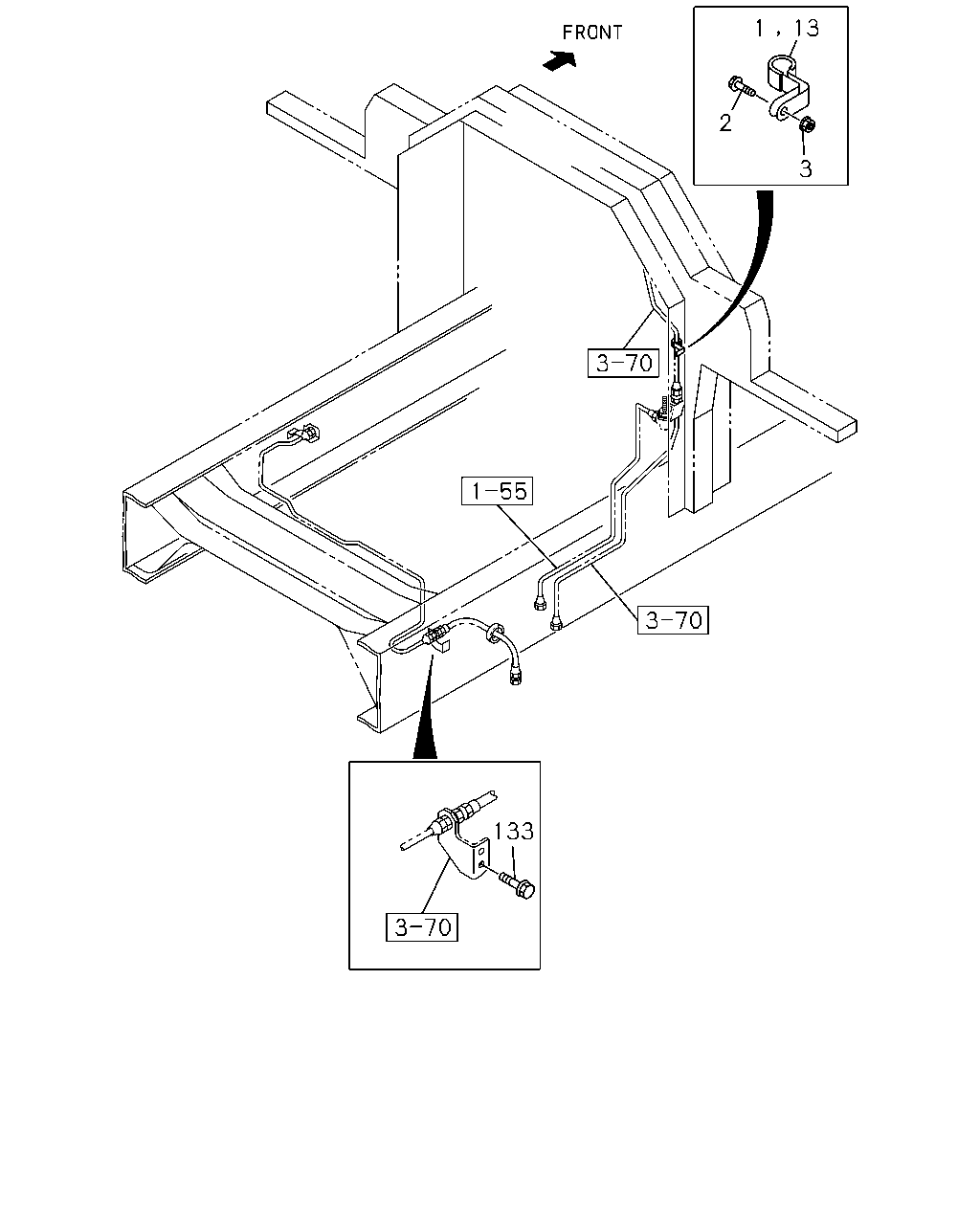

çizim 80727
13 1 2 3 133
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-
13 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0105-
133 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 01 1 0108-
133 BOLT; BRKT
ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 02 1 0105-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
