◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#12699) — 97 parça

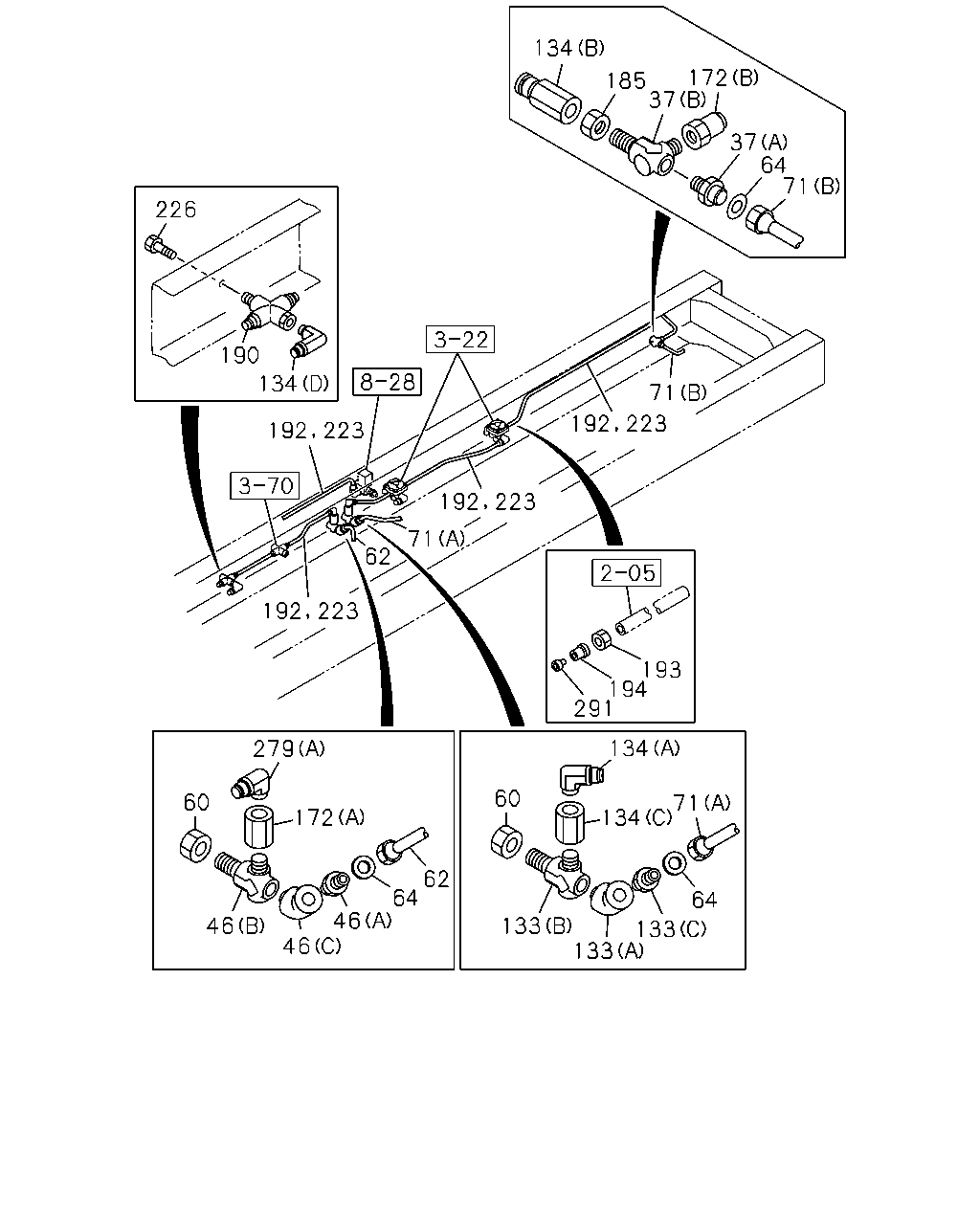

çizim 24259
134 185 172 37 37 64 71 226 190 134 71 71 62 193 194 291 134 279 60 60 71 134 172 62 64 64 46 46 46 133 133 133 192 192 223 192 223 192 223
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
37 UNION; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
37 UNION; AIR PIPE
(B) 		1-09650-251-1 01 1 0105-
37 UNION; AIR PIPE
(B) 		1-09650-251-1 01 1 0105-
46 NIPPLE; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
46 NIPPLE; AIR PIPE
(B) 		1-09650-251-1 01 1 0105-
46 NIPPLE; AIR PIPE
(C) 		1-09664-209-0 01 1 0105-
60 NUT; NIPPLE,AIR PIPE
M20 		9-99111-420-0 02 1 0105-
60 NUT; NIPPLE,AIR PIPE
M20 		9-99111-420-0 02 1 0105-
62 HOSE; FLEX,FWD RR
L=630 		0-07909-630-0 01 1 0105-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 04 1 0105-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 04 1 0105-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 02 1 0105-
71 HOSE; FLEX,RWD RR
(B) L=630 		0-07909-630-0 01 1 0105-
133 UNION; NIPPLE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
133 UNION; NIPPLE
(B) 		1-09650-251-1 01 1 0105-
133 UNION; NIPPLE
(C) 		1-09664-209-0 01 1 0105-
134 CONNECTOR
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0105-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
172 ADAPTER; UNION
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
172 ADAPTER; UNION
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0105-
185 NUT; NIPPLE
EXC. BRAKE REGULATION HONG KONG<TCZ> M20 		9-99111-420-0 01 1 0105-0105
185 NUT; NIPPLE
M20 		9-99111-420-0 01 1 0106-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
193 NUT; SLEEVE
ZF M/T<X9E> M18 		1-09660-213-0 01 1 0105-0105
194 SLEEVE; TUBE
ZF M/T<X9E> ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0105-0105
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-
226 BOLT; UNION
M8X20 W/LK&PL WASHER 		8-94279-208-0 04 1 0105-
279 UNION; AIR PIPE
(C) M14X35 		1-09650-272-2 01 1 0105-
279 UNION; AIR PIPE
(B) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0105-
279 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
291 INSERT
ZF M/T<X9E> ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0105-0105

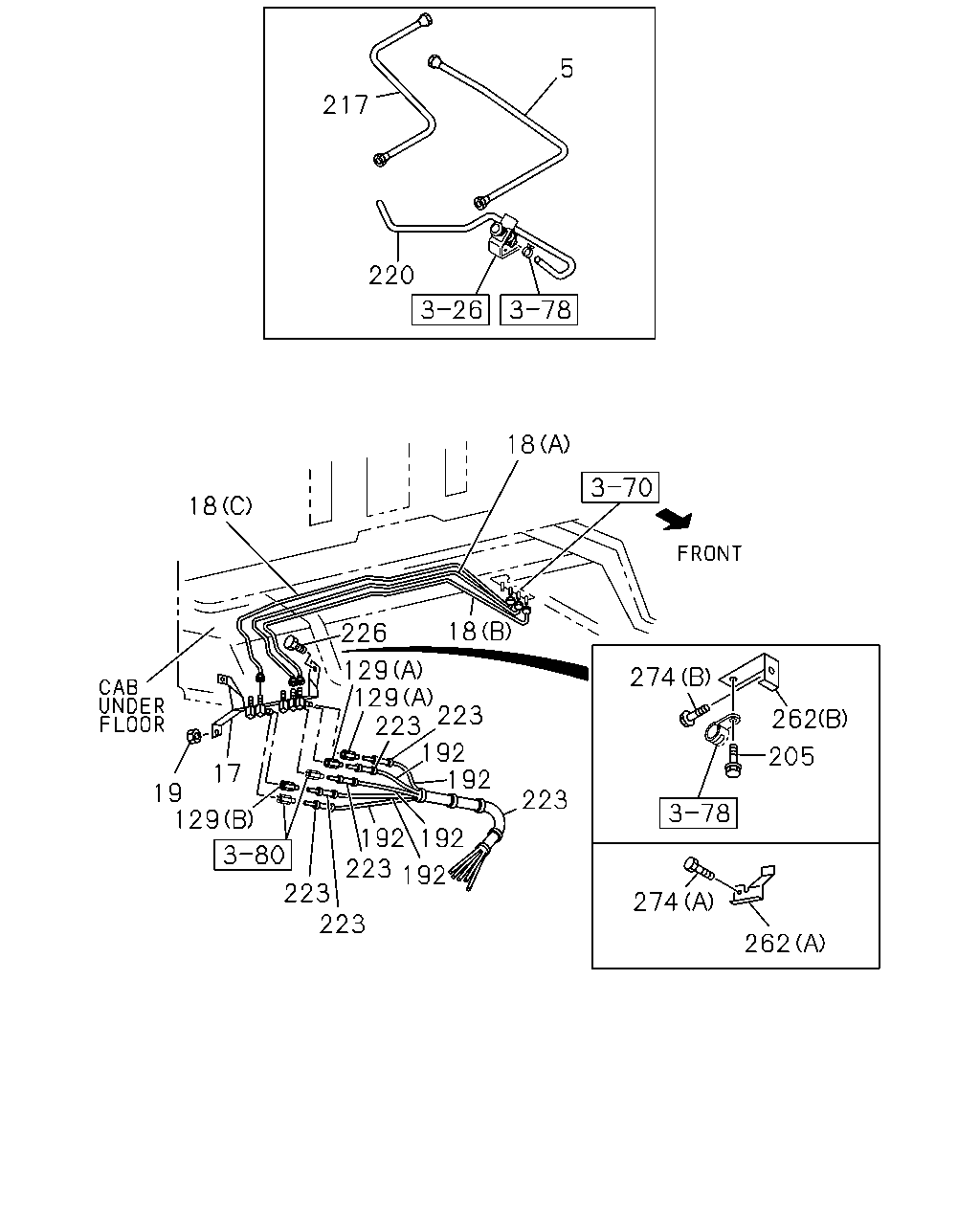

çizim 79815
5 217 220 18 18 226 18 129 129 223 223 192 192 274 262 205 17 19 129 223 192 223 192 192 223 223 274 262
BalonParca AdiParca NoAdetTipApplied Date
5 PIPE; AIR,UNION TO PARKING VLV 1-47495-161-0 01 1 0105-
17 UNION; AIR PIPE 1-47470-455-2 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(C) L=1982 		1-49121-055-1 01 1 0207-
18 PIPE; AIR,UNION TO UNION
(A) L=1800 		1-49121-052-0 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(B) L=1942 		1-49121-057-0 01 1 0105-
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 0105-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0207-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0105-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49114-456-0 01 1 0105-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0105
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-
226 BOLT; UNION
M8X20 W/LK&PL WASHER 		8-94279-208-0 04 1 0105-
262 BRACKET
(B) 		1-79996-143-0 01 1 0105-
262 BRACKET
(A) 		1-79996-144-0 01 1 0105-
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0105-
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-

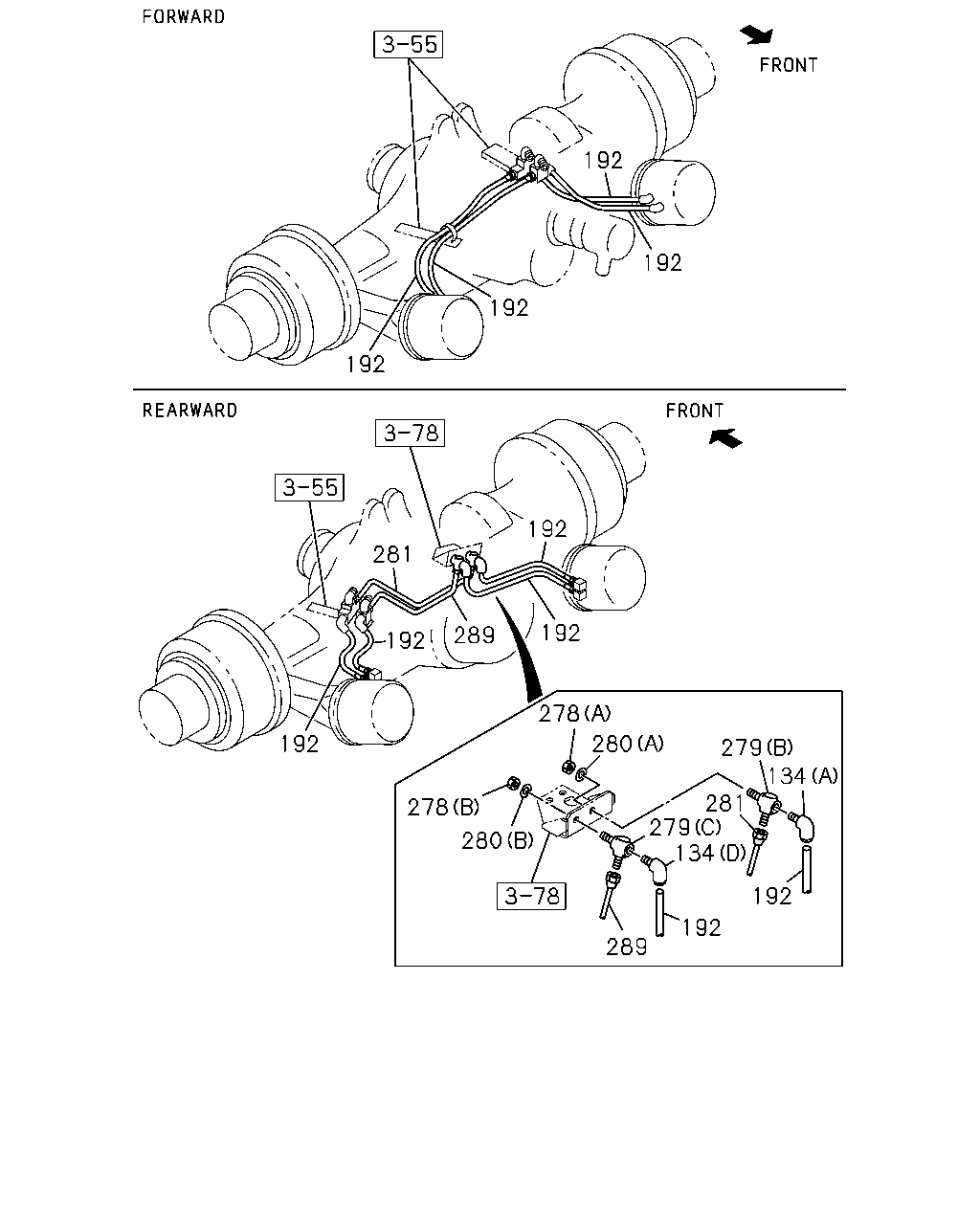

çizim 79856
192 192 192 192 281 192 289 192 278 280 192 279 134 278 280 281 279 134 192 192 289 192
BalonParca AdiParca NoAdetTipApplied Date
134 CONNECTOR
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0105-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
278 NUT; UNION
(A) M16 		9-99111-416-0 01 1 0105-
278 NUT; UNION
(B) M20 		9-99111-420-0 01 1 0105-
279 UNION; AIR PIPE
(C) M14X35 		1-09650-272-2 01 1 0105-
279 UNION; AIR PIPE
(B) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0105-
279 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
280 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0105-
280 WASHER; LK
(B) ID=20.2 		9-09150-520-0 01 1 0105-
281 PIPE; AIR,EMERGENCY 1-49117-109-0 01 1 0105-
289 PIPE; AIR,MODULATOR TO RELAY VLV 1-49117-108-0 01 1 0105-
