Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#12697) — 361 parça

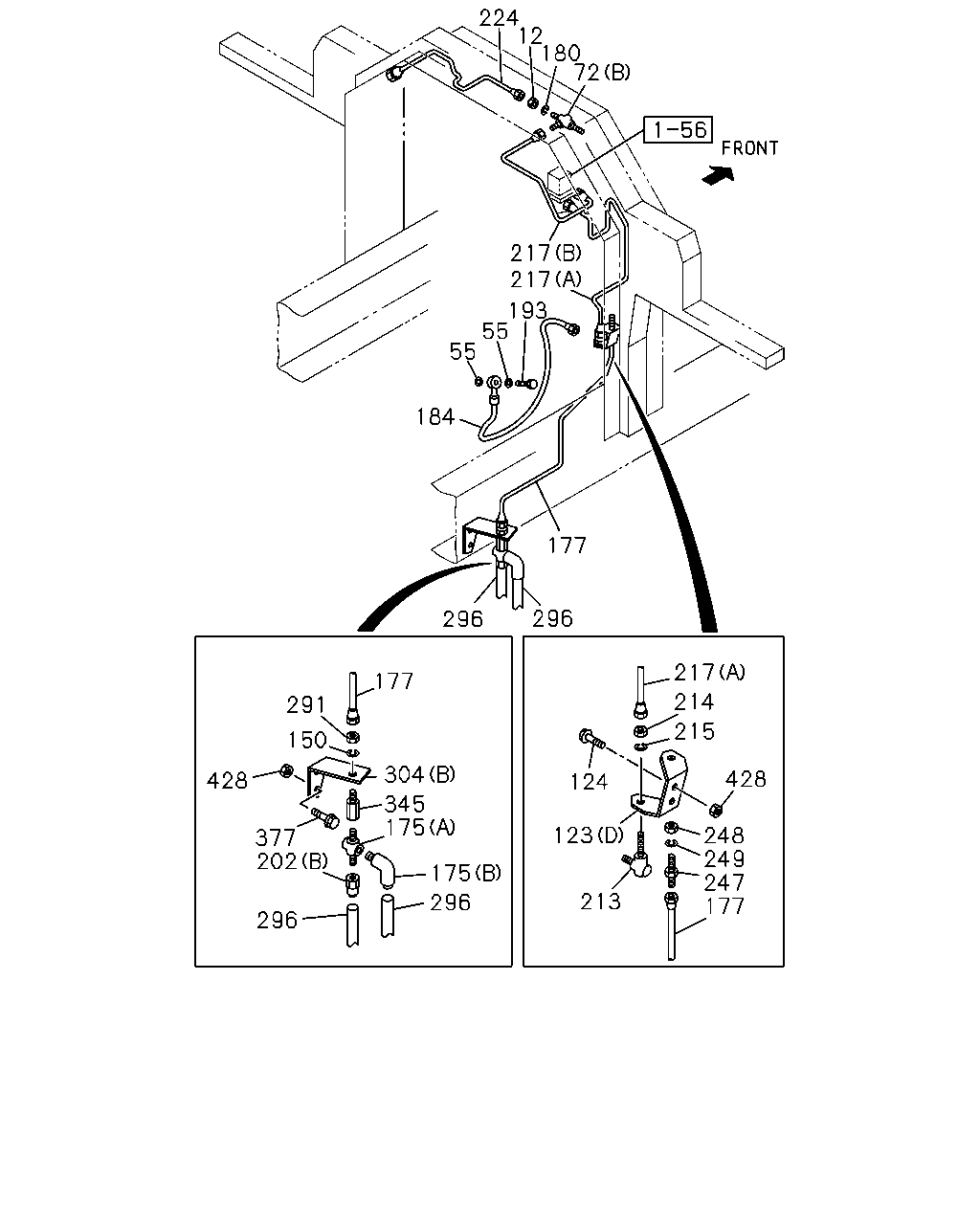

224 12 180 72 217 217 193 55 55 184 177 296 296 217 214 215 177 291 150 124 304 345 175 428 428 248 249 247 177 123 377 202 175 296 213 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-
55	GASKET; AIR PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION MJA7 M/T<X9Q>,MJA6 M/T<X9S> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-47477-588-0	01	1	0105-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
124	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
175	CONNECTOR; AIR PIPE (A)	1-09650-070-3	01	1	0105-
175	CONNECTOR; AIR PIPE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0105-
177	PIPE; AIR,UNION TO UNION L=548	1-49122-243-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
184	HOSE; FLEX,AIR GOV L=370	0-07532-370-1	01	1	0105-
193	BOLT; EYE,FLEX HOSE,GOV LINE M14X27 FLANGE	1-09675-086-0	01	1	0105-
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
202	ADAPTER ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
202	ADAPTER ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0105-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0105-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	0105-
217	PIPE; VAC,UNION TO MAG VLV (A) L=620	1-49121-778-0	01	1	0105-
217	PIPE; VAC,UNION TO MAG VLV (B) L=552	1-49121-876-0	01	1	0105-
224	PIPE; AIR,UNION TO FLEX HOSE L=494 SERVICED BY L=500	1-47428-807-0	01	1	0105-
247	UNION; AIR PIPE M12	1-09654-087-1	01	1	0105-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0105-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	0105-
291	NUT; UNION M12	9-09840-280-0	01	1	0105-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0202
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-
345	UNION; AIR PIPE	1-09654-280-1	01	1	0105-
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0105-
377	BOLT; BRKT FIX TRANSMISSION-ZF 16S151 OD(Y2N) M12X16	0-28181-216-0	01	1	0105-
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-

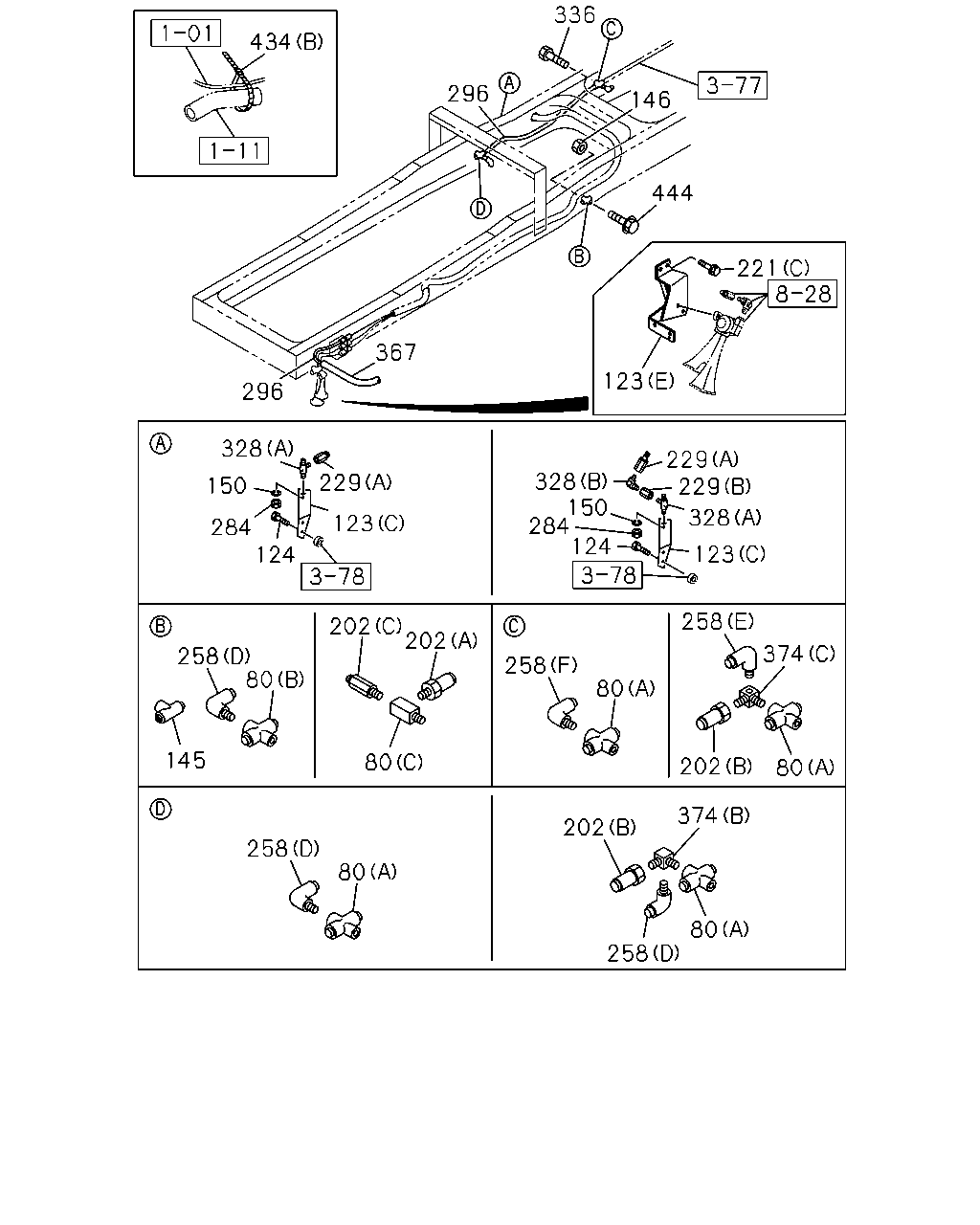

336 434 296 146 444 221 367 123 296 328 229 229 328 150 284 124 229 150 328 123 284 124 123 258 202 202 374 258 80 258 80 145 80 202 80 374 202 258 80 80 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0105-
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0105-
80	UNION; 3 WAY ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M12 2WAY	1-09654-059-2	01	1	0105-
80	UNION; 3 WAY ZF M/T<X9E> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-0105
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION MJA7 M/T<X9Q>,MJA6 M/T<X9S> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-47477-588-0	01	1	0105-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
124	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-
145	UNION; NYLON TUBE ZF M/T<X9E>	1-09661-133-0	01	1	0106-
146	NUT; UNION ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 FLANGE	0-91150-212-0	01	1	0105-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
202	ADAPTER (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
202	ADAPTER ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
202	ADAPTER ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
229	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (E) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
284	NUT; UNION M12	9-99111-412-0	01	1	0105-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0202
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-
328	UNION; AIR PIPE (A) M12 2WAY	1-09654-059-2	01	1	0105-
328	UNION; AIR PIPE (C)	1-47470-442-0	01	1	0105-
328	UNION; AIR PIPE EXC. AIR DRYER<PS7> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
336	BOLT; PIPE UNION M8X20 FLANGE	0-28080-820-0	01	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0202
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0203-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
374	CONNECTOR ISUZU M/T<X9A> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-
434	CLIP (A) ID=17	8-94449-734-1	01	1	0105-
434	CLIP (B) L=300	1-09707-001-1	01	1	0111-
444	BOLT; UNION ZF M/T<X9E> M8X25 FLANGE	0-28080-825-0	01	1	0105-
444	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	0105-

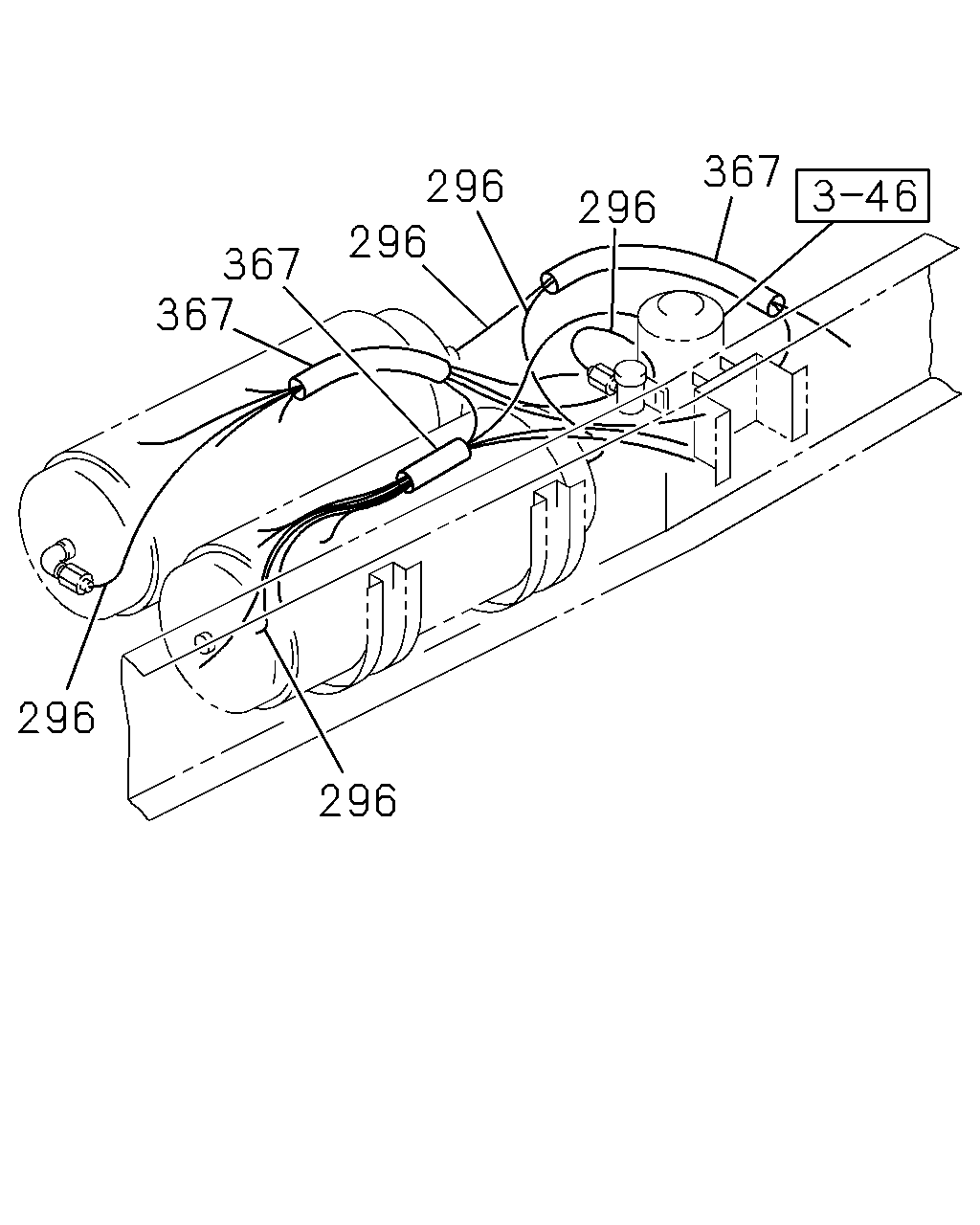

367 296 296 296 367 367 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0202
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0202
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0203-

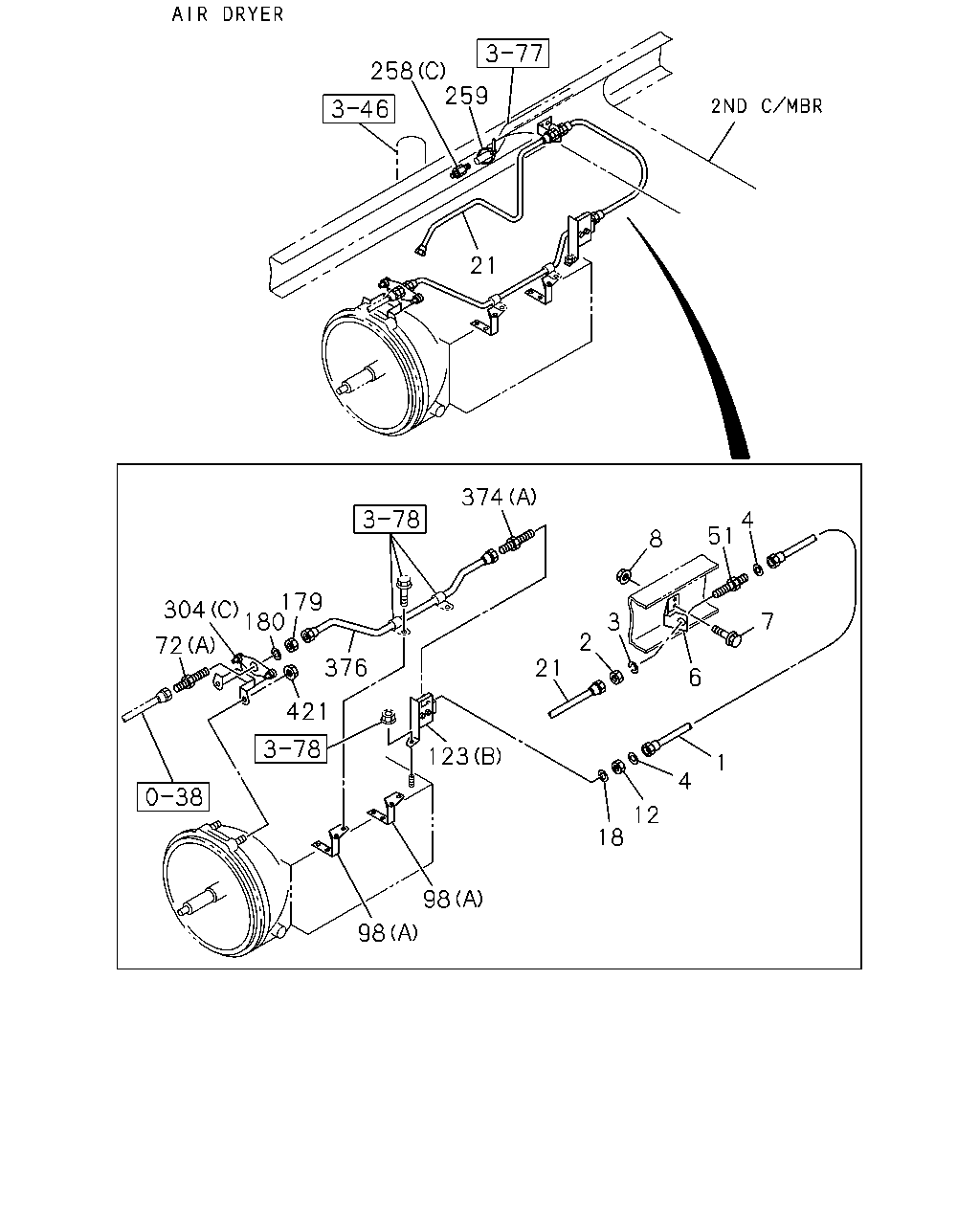

21 376 18 12 421 304 4 51 179 8 7 3 2 21 180 6 123 72 374 1 4 377 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=530	0-07846-530-1	01	1	0105-
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M20	9-99111-420-0	01	1	0105-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	03	1	0105-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-232-0	01	1	0105-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0105-
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
18	WASHER; LK,UNION TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-141-0	01	1	0105-
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-
98	BRACKET; AIR PIPE MJA7U M/T(X6G),MJA6A M/T(X6V) (A)	1-47477-840-0	02	1	0105-
98	BRACKET; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-902-0	01	1	0105-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION MJA7 M/T<X9Q>,MJA6 M/T<X9S> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-47477-588-0	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
374	CONNECTOR ISUZU M/T<X9A> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-
376	PIPE; AIR,FLEX HOSE MJA7 M/T<X9Q>,MJA6 M/T<X9S> L=639	1-49112-566-0	01	1	0105-
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) L=552	1-49117-764-0	01	1	0105-
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0105-
377	BOLT; BRKT FIX TRANSMISSION-ZF 16S151 OD(Y2N) M12X16	0-28181-216-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-

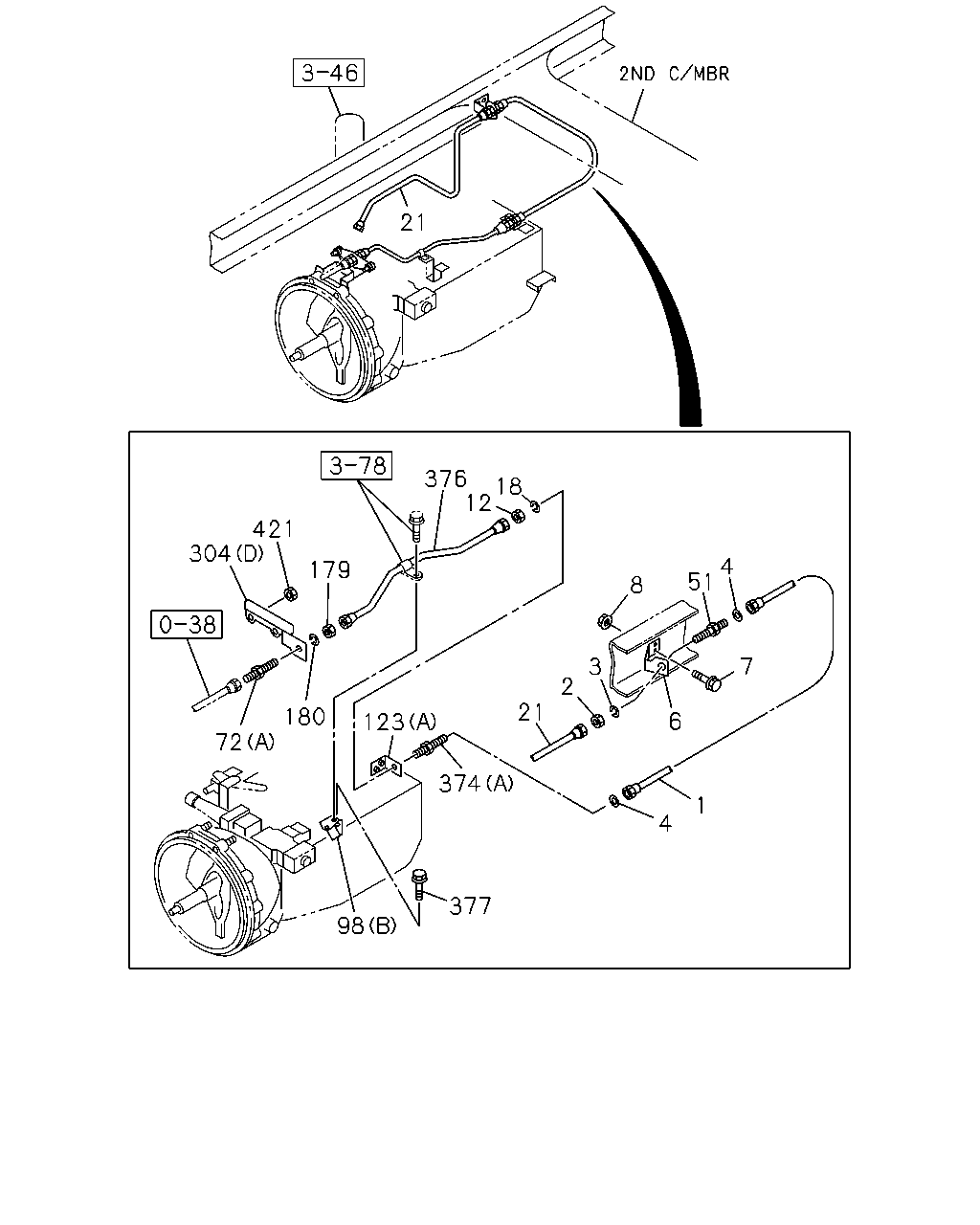

258 259 21 374 4 51 8 179 304 180 3 7 2 72 376 21 6 421 123 1 4 12 18 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=530	0-07846-530-1	01	1	0105-
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M20	9-99111-420-0	01	1	0105-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	03	1	0105-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-232-0	01	1	0105-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0105-
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
18	WASHER; LK,UNION TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-141-0	01	1	0105-
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-
98	BRACKET; AIR PIPE MJA7U M/T(X6G),MJA6A M/T(X6V) (A)	1-47477-840-0	02	1	0105-
98	BRACKET; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-902-0	01	1	0105-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION MJA7 M/T<X9Q>,MJA6 M/T<X9S> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-47477-588-0	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (E) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> L=175	1-09707-178-0	01	1	0109-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
374	CONNECTOR ISUZU M/T<X9A> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-
376	PIPE; AIR,FLEX HOSE MJA7 M/T<X9Q>,MJA6 M/T<X9S> L=639	1-49112-566-0	01	1	0105-
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) L=552	1-49117-764-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-

337 221 329 296 304 328 343 296 258 296 148 231 286 435 434 233 367 232 335 273 258 321 323 120 322 326 372

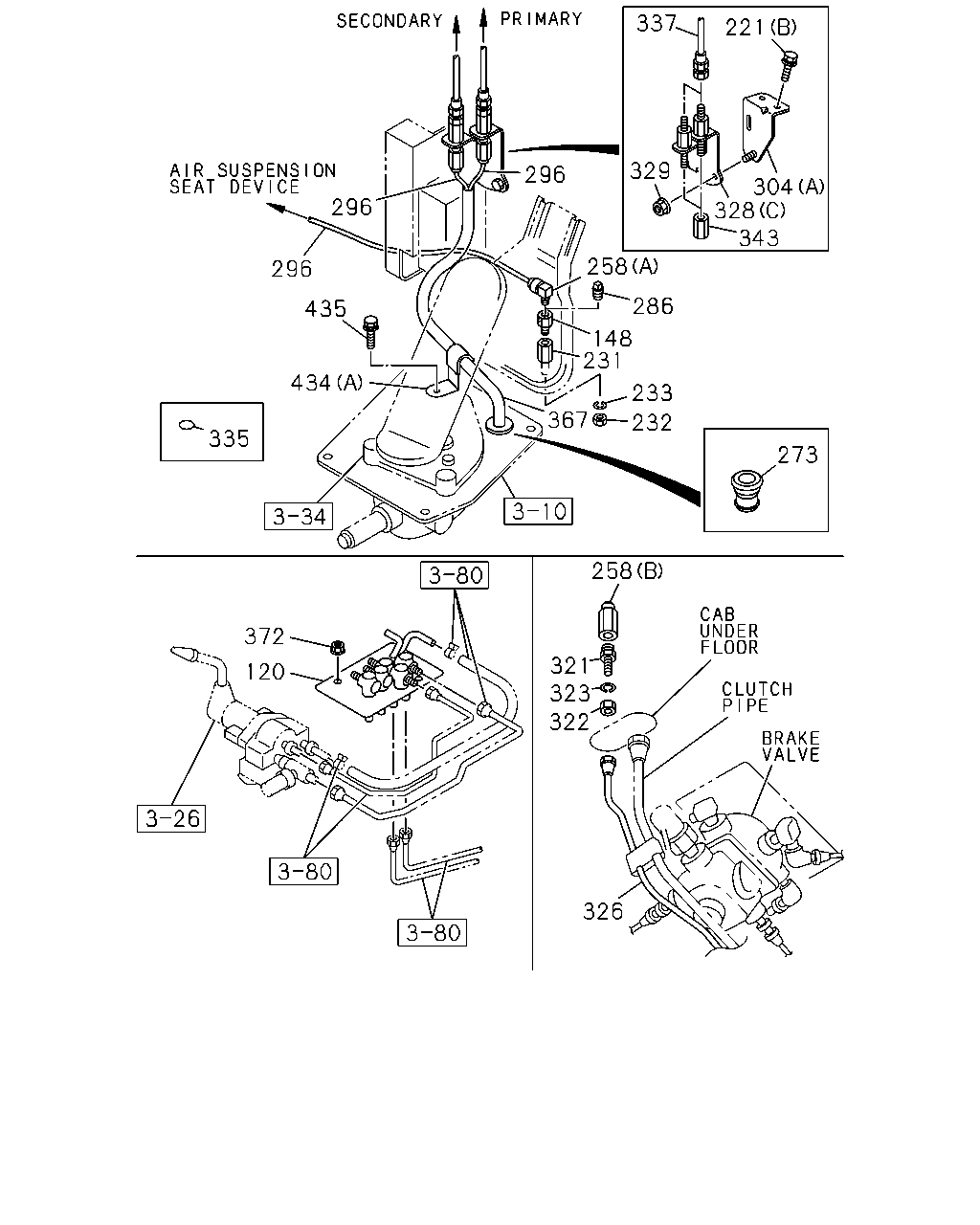

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE	1-47470-405-1	01	1	0112-
148	CONNECTOR; UNION TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0105-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-713-2	01	1	0105-
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-713-2	01	1	0105-
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0105-
232	NUT; UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0105-
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-
233	WASHER; LK,UNION,AIR PIPE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (E) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
273	GROMMET	1-09332-135-0	01	1	0105-
286	PLUG; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0105-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0202
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0203-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-
321	JOINT; FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0105-
321	JOINT; FLEX HOSE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0105-
322	NUT; JOINT,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0105-
322	NUT; JOINT,FLEX HOSE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0105-
323	WASHER; LK,JOINT TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-
323	WASHER; LK,JOINT DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-
326	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0105-
326	PIPE; AIR,FLEX HOSE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=529	1-47494-216-3	01	1	0105-
328	UNION; AIR PIPE (A) M12 2WAY	1-09654-059-2	01	1	0105-
328	UNION; AIR PIPE (C)	1-47470-442-0	01	1	0105-
328	UNION; AIR PIPE EXC. AIR DRYER<PS7> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
329	NUT; UNION,AIR PIPE M6 FLANGE	0-91150-106-0	01	1	0105-
335	SEAL; UNION ISUZU M/T<X9A> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0105-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=520	0-07210-520-0	02	1	0105-
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0202
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0203-
372	NUT M8 FLANGE	0-91150-108-0	02	1	0105-
434	CLIP (A) ID=17	8-94449-734-1	01	1	0105-
434	CLIP (B) L=300	1-09707-001-1	01	1	0111-
435	BOLT; CLIP M8X20 W/LK&PL WASHER	8-94279-208-0	01	1	0105-

163 221 35 33 17 33 16 8 376 18 12 421 304 237 7 25 27 26 179 6 180 123 72 1 4 374 377 98

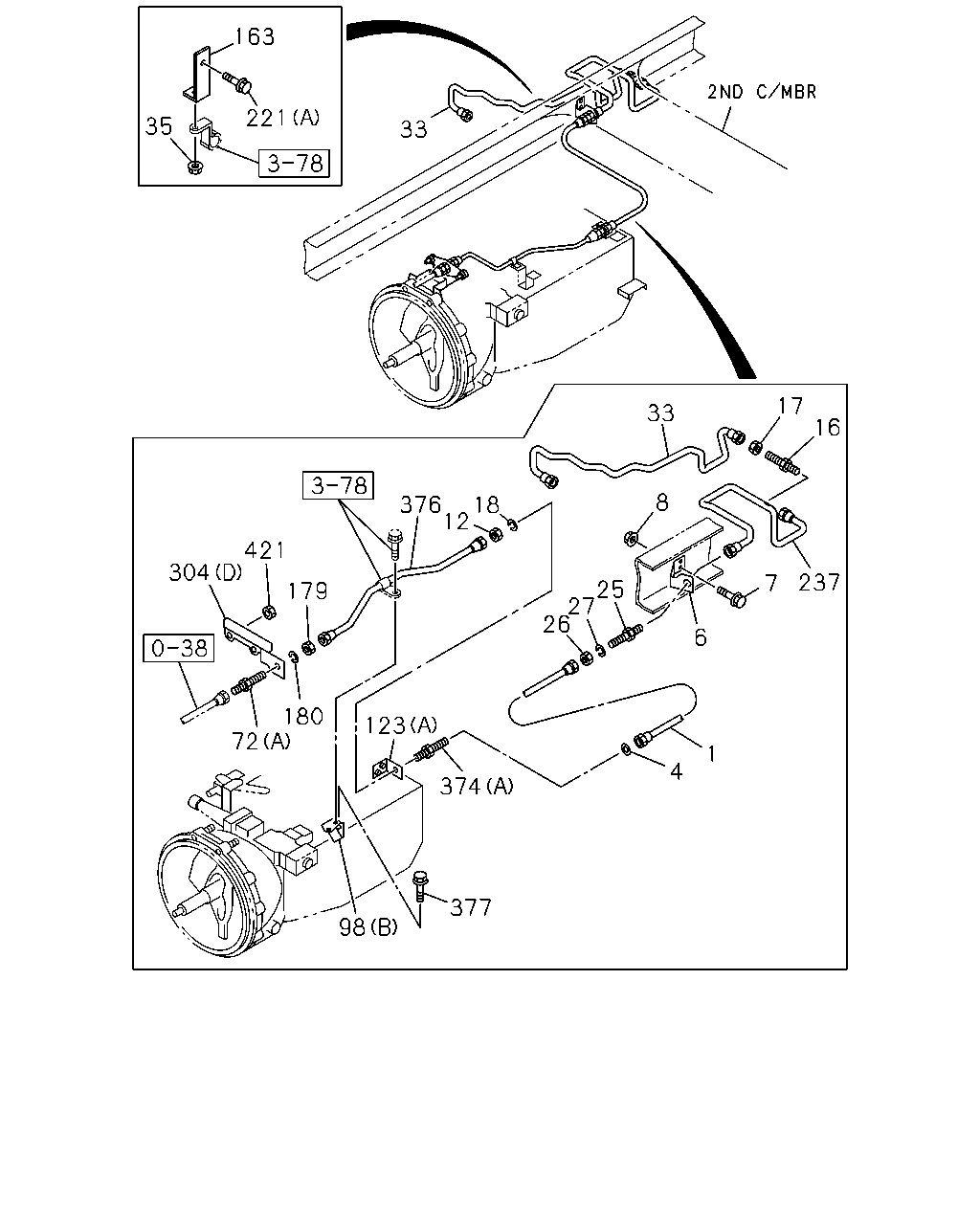

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=530	0-07846-530-1	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	03	1	0105-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-232-0	01	1	0105-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0105-
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	0105-
17	NUT; UNION EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	0105-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
18	WASHER; LK,UNION TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	0105-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	0105-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0105-
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49122-443-0	01	1	0105-0203
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49123-434-0	01	1	0204-
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-
98	BRACKET; AIR PIPE MJA7U M/T(X6G),MJA6A M/T(X6V) (A)	1-47477-840-0	02	1	0105-
98	BRACKET; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-902-0	01	1	0105-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION MJA7 M/T<X9Q>,MJA6 M/T<X9S> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-47477-588-0	01	1	0105-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=55	1-47475-304-0	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. AIR DRYER<PS7> L=495	1-49117-170-0	01	1	0105-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
374	CONNECTOR ISUZU M/T<X9A> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-
376	PIPE; AIR,FLEX HOSE MJA7 M/T<X9Q>,MJA6 M/T<X9S> L=639	1-49112-566-0	01	1	0105-
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) L=552	1-49117-764-0	01	1	0105-
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0105-
377	BOLT; BRKT FIX TRANSMISSION-ZF 16S151 OD(Y2N) M12X16	0-28181-216-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-

163 259 221 33 35 258 17 33 16 8 374 237 7 25 27 26 179 304 180 6 72 376 421 1 123 4 12 18 98 98

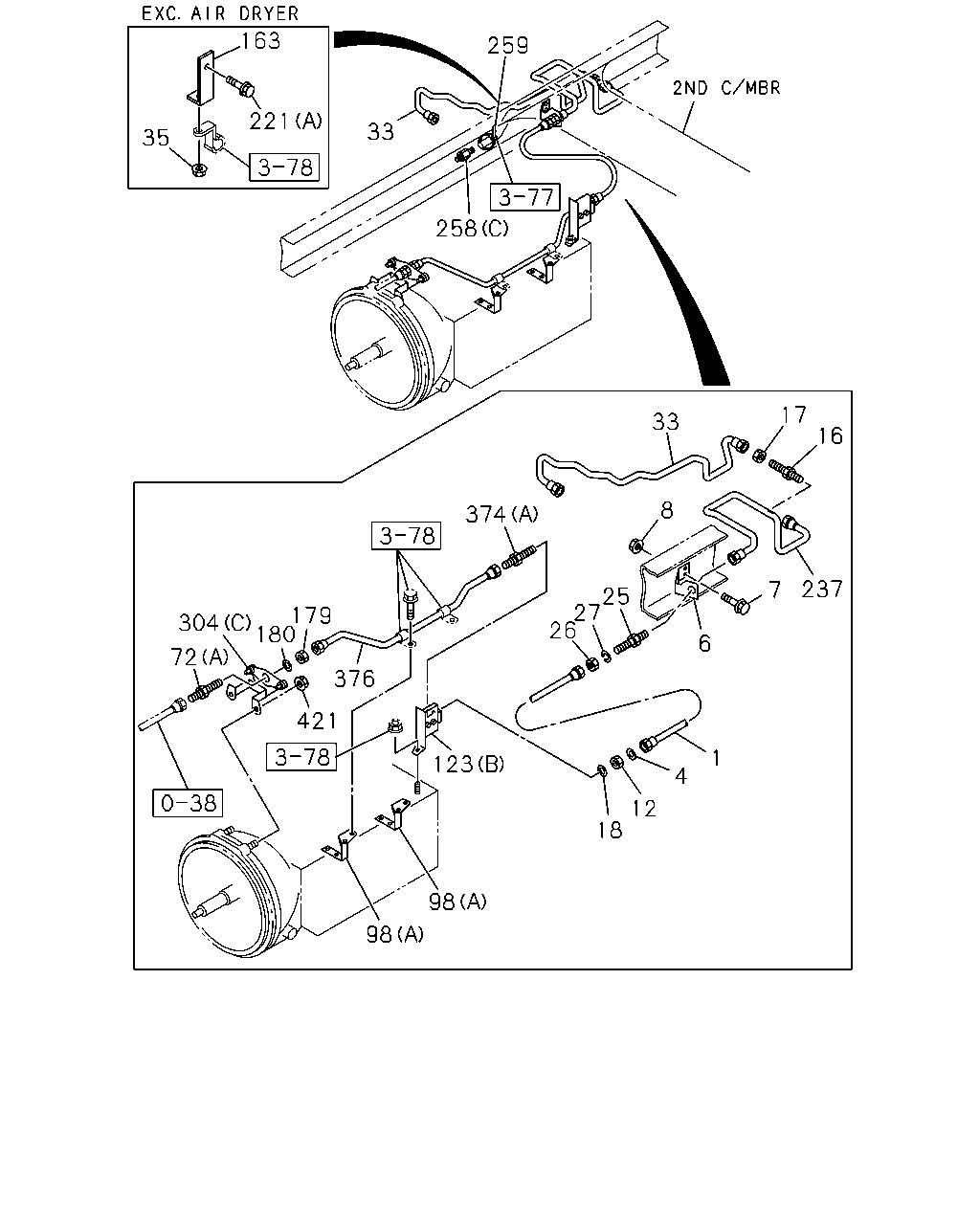

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=530	0-07846-530-1	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	03	1	0105-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-232-0	01	1	0105-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0105-
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
12	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	0105-
17	NUT; UNION EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	0105-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
18	WASHER; LK,UNION TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	0105-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	0105-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0105-
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49122-443-0	01	1	0105-0203
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49123-434-0	01	1	0204-
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-
98	BRACKET; AIR PIPE MJA7U M/T(X6G),MJA6A M/T(X6V) (A)	1-47477-840-0	02	1	0105-
98	BRACKET; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-902-0	01	1	0105-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-741-2	01	1	0111-
123	BRACKET; UNION MJA7 M/T<X9Q>,MJA6 M/T<X9S> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-47477-588-0	01	1	0105-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=55	1-47475-304-0	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. AIR DRYER<PS7> L=495	1-49117-170-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (E) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> L=175	1-09707-178-0	01	1	0109-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION (A)	1-71117-211-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0106-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
374	CONNECTOR ISUZU M/T<X9A> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-
376	PIPE; AIR,FLEX HOSE MJA7 M/T<X9Q>,MJA6 M/T<X9S> L=639	1-49112-566-0	01	1	0105-
376	PIPE; AIR,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) L=552	1-49117-764-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
