2-82B — POWER TAKE OFF; TRANSMISSION REAR (#12681) — 43 parça

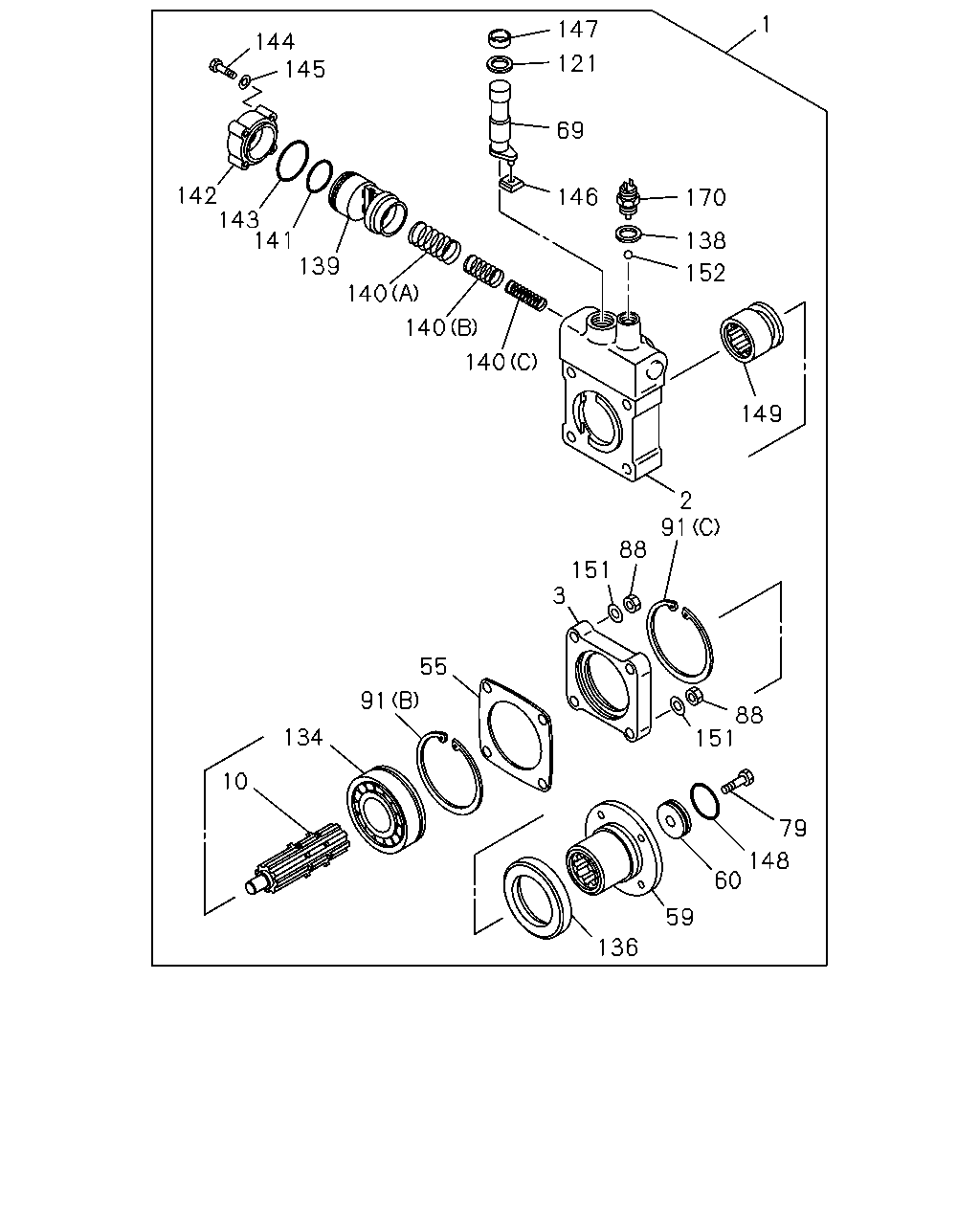

çizim 22182
1 147 121 144 145 69 142 143 141 139 140 140 140 146 170 138 152 149 2 91 88 151 3 55 91 88 151 134 10 79 148 60 59 136
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS RR
PTO ZF TRANS RR(BDM) 		1-38000-377-0 01 1 0105-
2 CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38111-076-0 01 1 0105-
3 COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38159-002-0 01 1 0105-
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38221-047-0 01 1 0105-
55 GASKET; BRG COVER,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 0105-
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR(BDM) 		1-38519-012-0 01 1 0105-
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR(BDM) 		1-38519-013-0 01 1 0105-
69 LEVER; PTO CONT,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38361-032-0 01 1 0105-
79 BOLT
PTO ZF TRANS RR(BDM) 		1-38519-019-0 01 1 0105-
88 NUT; COVER
PTO ZF TRANS RR(BDM) 		1-38119-027-0 04 1 0105-
91 RING; SNAP
PTO ZF TRANS RR(BDM) (A) 		1-38219-010-0 01 1 0105-
91 RING; SNAP
PTO ZF TRANS RR(BDM) (B) 		1-38219-016-0 01 1 0105-
91 RING; SNAP
PTO ZF TRANS RR(BDM) (C) 		1-38219-017-0 01 1 0105-
121 RING; SNAP,SHIFT LEVER
PTO ZF TRANS RR(BDM) 		1-38369-004-0 01 1 0105-
134 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) 		1-38219-015-0 01 1 0105-
136 SEAL; SHAFT
PTO ZF TRANS RR(BDM) 		1-38519-010-0 01 1 0105-
138 GASKET; SW
PTO ZF TRANS RR(BDM) 		1-33119-249-0 01 1 0105-
139 PISTON; RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-016-0 01 1 0105-
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) (C) 		1-38129-013-0 01 1 0105-
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) (B) 		1-38129-014-0 01 1 0105-
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) (A) 		1-38129-015-0 01 1 0105-
141 GASKET; PISTON,RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-023-0 01 1 0105-
142 CYLINDER; RR PTO
PTO ZF TRANS RR(BDM) 		1-38159-003-0 01 1 0105-
143 GASKET; CYL
PTO ZF TRANS RR(BDM) 		1-38129-018-0 01 1 0105-
144 BOLT; CYL
PTO ZF TRANS RR(BDM) 		1-38519-020-0 04 1 0105-
145 WASHER; LK,CYL
PTO ZF TRANS RR(BDM) 		1-38129-025-0 04 1 0105-
146 PAD; CONT LEVER
PTO ZF TRANS RR(BDM) 		1-38369-009-0 01 1 0105-
147 CUP; SEALING
PTO ZF TRANS RR(BDM) 		1-38369-006-0 01 1 0105-
148 GASKET; YOKE
PTO ZF TRANS RR(BDM) 		1-38519-014-0 01 1 0105-
149 SLEEVE; SLIDING
PTO ZF TRANS RR(BDM) 		1-38229-008-0 01 1 0105-
151 WASHER; PL,COVER
PTO ZF TRANS RR(BDM) 		1-38119-028-0 04 1 0105-
152 BALL; SW
PTO ZF TRANS RR(BDM) 		1-38119-032-0 01 1 0105-
170 PLUG; SWITCH HOLE,PTO
PTO ZF TRANS RR(BDM) 		1-33119-253-0 01 1 0105-

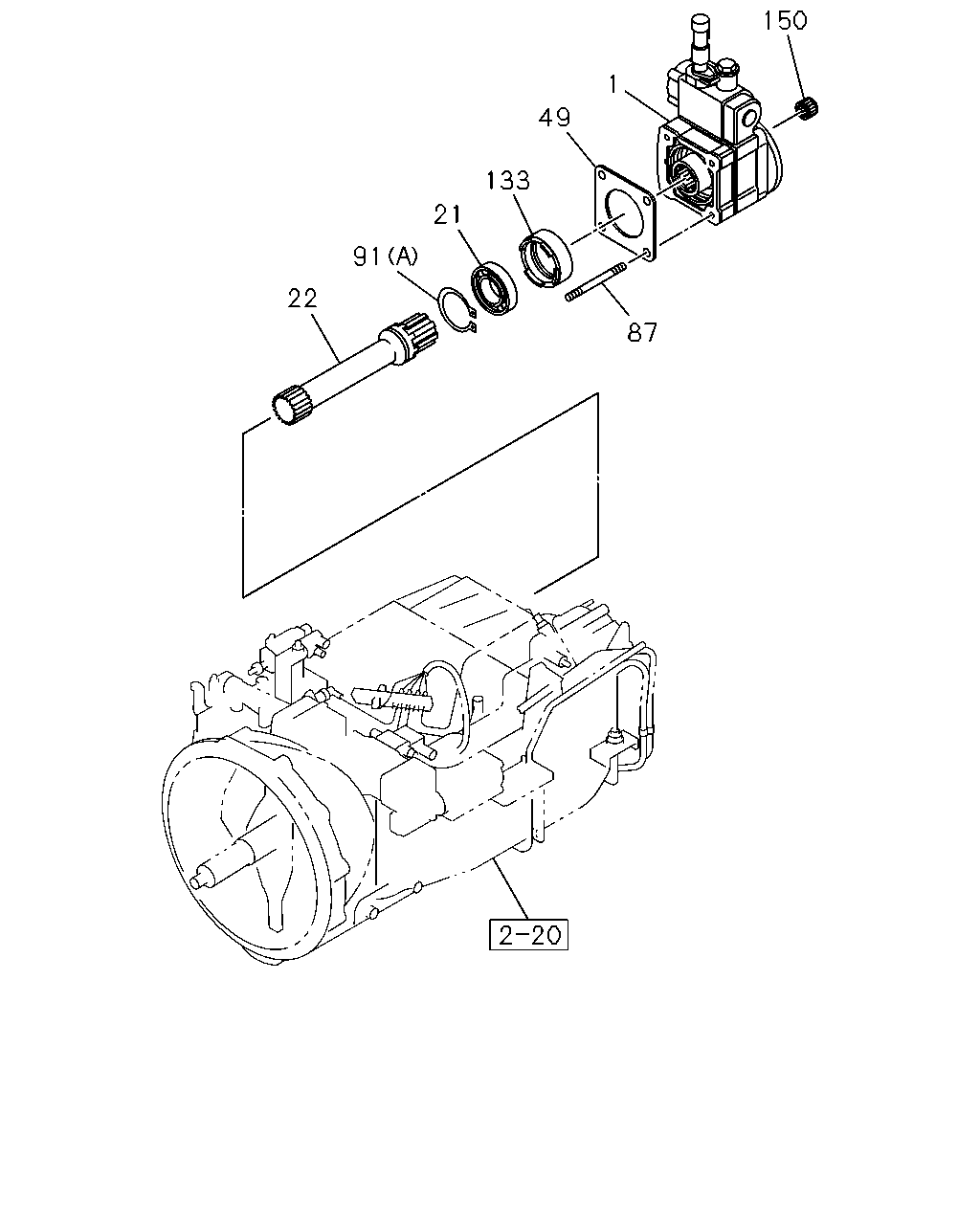

çizim 81066
150 1 49 133 21 91 22 87
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS RR
PTO ZF TRANS RR(BDM) 		1-38000-377-0 01 1 0105-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38219-033-0 01 1 0105-
22 SHAFT; MAIN DRIVE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-33381-011-0 01 1 0105-
49 GASKET; PTO GEAR CASE TO TRANS
PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 0105-
87 STUD; GEAR CASE
PTO ZF TRANS RR(BDM) 		1-33119-413-0 04 1 0105-
91 RING; SNAP
PTO ZF TRANS RR(BDM) (A) 		1-38219-010-0 01 1 0105-
91 RING; SNAP
PTO ZF TRANS RR(BDM) (B) 		1-38219-016-0 01 1 0105-
91 RING; SNAP
PTO ZF TRANS RR(BDM) (C) 		1-38219-017-0 01 1 0105-
133 BUSHING; SHAFT
PTO ZF TRANS RR(BDM) 		1-38219-011-0 01 1 0105-
150 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) 		1-38249-018-0 01 1 0105-
