Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#1268) — 224 parça

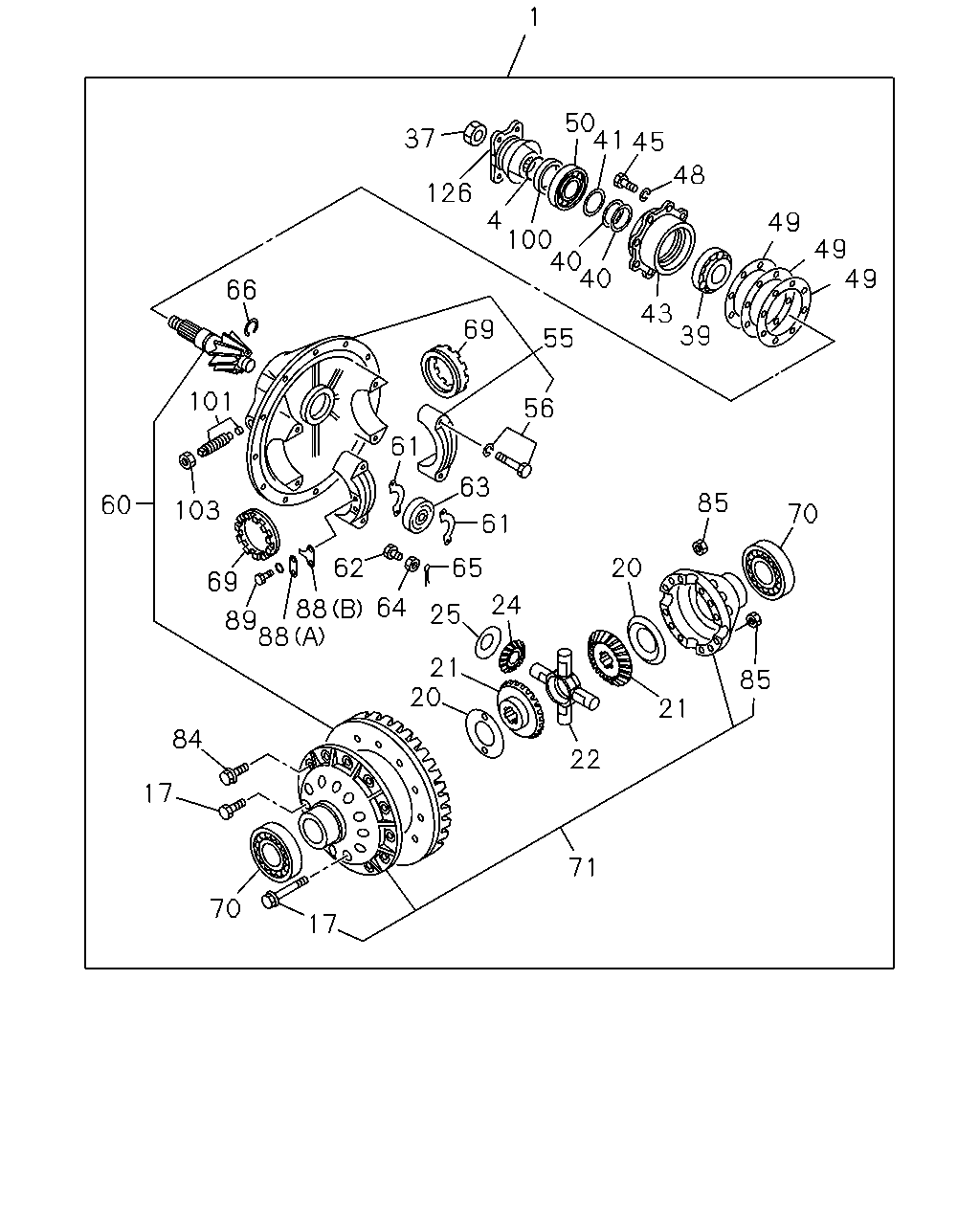

1 50 41 37 45 48 126 4 100 40 40 49 49 49 66 43 39 69 55 101 56 61 63 85 60 103 70 61 20 62 65 69 24 64 88 89 88 25 21 20 85 21 84 22 17 71 70 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	DRIVE ASM; FINAL,RR 39/7	1-41000-378-0	01	1	9202-	●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-202-0	01	1	9202-		●
1	DRIVE ASM; FINAL,RR 39/8	1-87061-408-0	01	1	9202-			●
1	DRIVE ASM; FINAL,RR 37/7	1-87061-631-0	01	1	9202-				●
1	DRIVE ASM; FINAL,RR 39/7	1-87061-405-0	01	1	9202-					●
1	DRIVE ASM; FINAL,RR 35/6	1-87061-633-0	01	1	9202-						●
1	DRIVE ASM; FINAL,RR 39/9	1-41001-021-0	01	1	9306-							●
1	DRIVE ASM; FINAL,RR 37/8	1-87061-756-0	01	1	9407-								●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9202-	●	●					●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9202-	●	●					●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9202-	●	●					●
17	BOLT; DIFF CAGE SETTING	1-87061-366-0	12	1	9202-			●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR	1-87061-400-0	02	1	9202-			●	●	●	●		●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	9202-	●	●					●
21	GEAR; SIDE,DIFF	1-87061-325-0	02	1	9202-			●	●	●	●		●
22	PIN; CROSS,DIFF PINION	1-41521-002-0	01	1	9202-	●	●					●
22	PIN; CROSS,DIFF PINION	1-87061-367-0	01	1	9202-			●	●	●	●		●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	9202-	●	●					●
24	GEAR; PINION,DIFF	1-87061-316-0	04	1	9202-			●	●	●	●		●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	9202-	●	●					●
25	WASHER; THRUST,PINION	1-87061-317-0	04	1	9202-			●	●	●	●		●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9202-	●	●					●
37	NUT; DRIVING PINION	1-87061-363-0	01	1	9202-			●	●	●	●		●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9202-	●	●					●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9202-	●	●					●
39	BEARING; FINAL PINION KOYO	9-00093-206-1	01	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9202-	●	●					●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=0.667"	1-87061-338-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.668"	1-87061-339-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.669"	1-87061-340-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.670"	1-87061-341-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.671"	1-87061-342-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.672"	1-87061-343-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.673"	1-87061-344-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.674"	1-87061-345-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.675"	1-87061-346-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.676"	1-87061-347-0	01	1	9202-			●	●	●	●		●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9202-	●	●					●
43	CAGE; FINAL PINION	1-87061-365-0	01	1	9202-			●	●	●	●		●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9202-	●	●					●
45	BOLT; FINAL PINION CAGE	1-87061-355-0	06	1	9202-			●	●	●	●		●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9202-	●	●					●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9202-	●	●					●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9202-	●	●					●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9202-	●	●					●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9202-	●	●					●
49	SHIM; FINAL PINION CAGE T=0.003"	1-87061-320-0	AR	1	9202-			●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.005"	1-87061-321-0	AR	1	9202-			●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.010"	1-87061-322-0	AR	1	9202-			●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.020"	1-87061-323-0	AR	1	9202-			●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.030"	1-87061-324-0	AR	1	9202-			●	●	●	●		●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9202-	●	●					●
50	BEARING; FINAL PINION KOYO	1-09812-070-0	01	1	9202-	●	●					●
55	CARRIER; DIFF	1-41110-070-0	01	1	9202-	●	●					●
55	CARRIER; DIFF	1-87061-330-0	01	1	9202-			●	●	●	●		●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9202-	●	●					●
56	BOLT; BRG CAP	1-87061-757-0	04	1	9202-			●	●	●	●		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-373-2	01	1	9202-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-378-2	01	1	9202-		●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-87061-409-0	01	1	9202-			●
60	GEAR SET; FINAL DRIVE,RR 37/7	1-87061-632-0	01	1	9202-				●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-87061-331-0	01	1	9202-					●
60	GEAR SET; FINAL DRIVE,RR 35/6	1-87061-634-0	01	1	9202-						●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-380-2	01	1	9306-							●
60	GEAR SET; FINAL DRIVE,RR 37/8	1-87061-755-0	01	1	9407-								●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9202-	●	●					●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9202-	●	●					●
63	BEARING; PINION PILOT KOYO	1-09810-007-0	01	1	9202-9509	●	●					●
63	BEARING; PINION PILOT KOYO	1-09810-229-1	01	1	9510-	●	●					●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9202-9509	●	●					●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9510-	●	●					●
63	BEARING; PINION PILOT	1-87061-333-0	01	1	9202-			●	●	●	●		●
64	NUT; RET M8	9-09117-408-0	02	1	9202-	●	●					●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9202-	●	●					●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9202-	●	●					●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	9202-	●	●					●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	9202-	●	●					●
69	NUT; ADJ,DIFF CAGE	1-87061-354-0	01	1	9202-			●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-87061-358-0	01	1	9202-			●	●	●	●		●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9202-	●	●					●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9202-	●	●					●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9202-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-87061-329-0	01	1	9202-			●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-035-0	01	1	9306-							●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9202-	●	●					●
84	BOLT; FINAL DRIVE GEAR	1-87061-337-0	16	1	9202-			●	●	●	●		●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9202-	●	●					●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	9202-	●	●					●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9202-	●	●					●
89	BOLT; LK PLATE M8X16	9-02040-816-0	04	1	9202-9204	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9205-	●	●					●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9202-	●	●					●
100	SEAL; OIL,FINAL PINION	1-87061-319-0	01	1	9202-			●	●	●	●		●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9202-	●	●					●
101	BOLT; ADJ,DRIVEN GEAR THRUST	1-87061-334-0	01	1	9202-			●	●	●	●		●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9202-	●	●					●
103	NUT; ADJ BOLT	1-87061-359-0	01	1	9202-			●	●	●	●		●
126	COUPLING; DRIVING PINION	1-37245-023-3	01	1	9202-	●	●					●
126	COUPLING; DRIVING PINION	1-87061-349-0	01	1	9202-			●	●	●	●		●

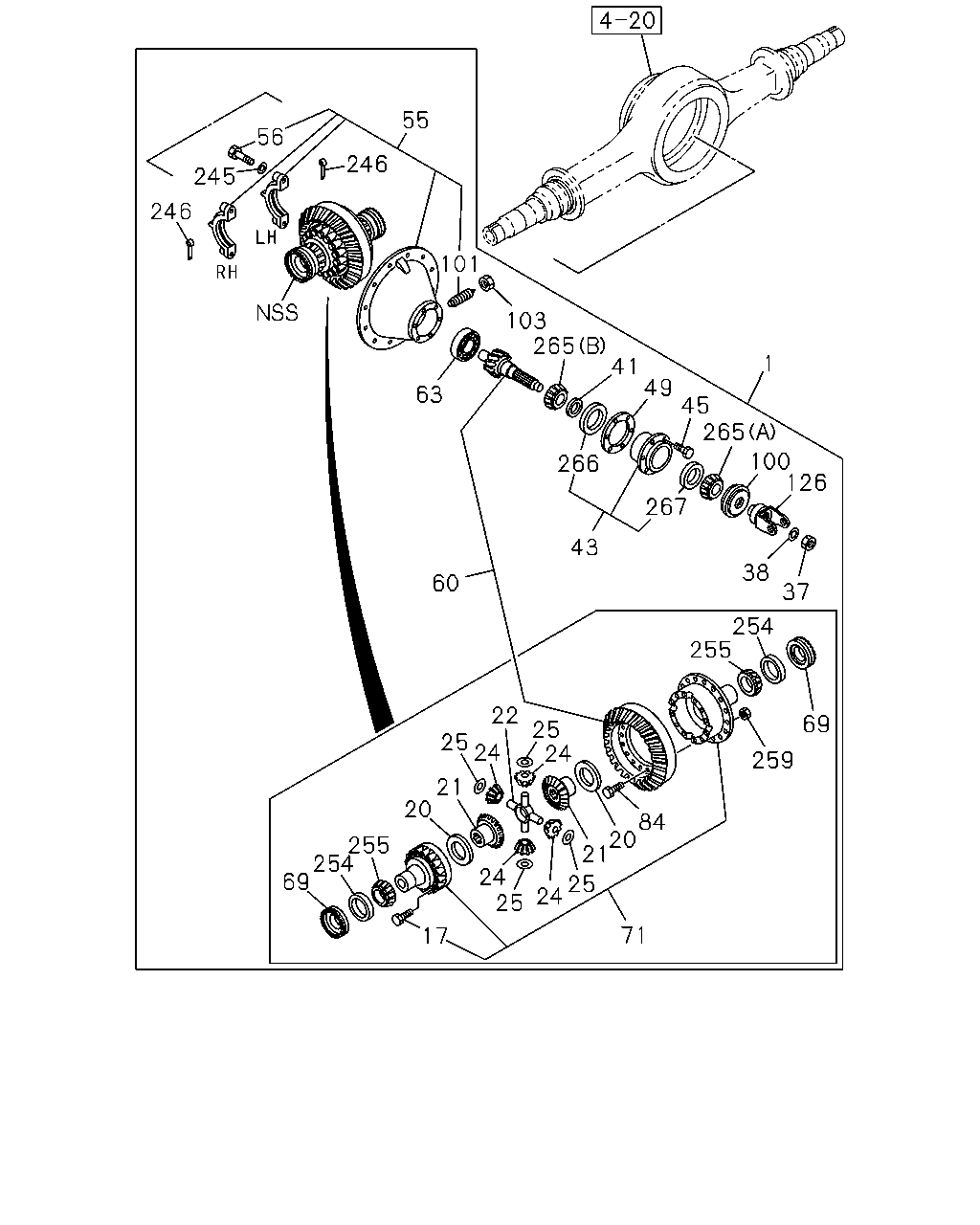

55 56 246 245 246 101 103 265 41 49 45 265 1 63 266 100 126 267 43 38 60 37 254 255 22 69 25 24 25 24 259 21 20 84 20 21 255 254 69 24 25 25 24 71 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	DRIVE ASM; FINAL,RR 39/7	1-41000-378-0	01	1	9202-	●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-202-0	01	1	9202-		●
1	DRIVE ASM; FINAL,RR 39/8	1-87061-408-0	01	1	9202-			●
1	DRIVE ASM; FINAL,RR 37/7	1-87061-631-0	01	1	9202-				●
1	DRIVE ASM; FINAL,RR 39/7	1-87061-405-0	01	1	9202-					●
1	DRIVE ASM; FINAL,RR 35/6	1-87061-633-0	01	1	9202-						●
1	DRIVE ASM; FINAL,RR 39/9	1-41001-021-0	01	1	9306-							●
1	DRIVE ASM; FINAL,RR 37/8	1-87061-756-0	01	1	9407-								●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9202-	●	●					●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9202-	●	●					●
17	BOLT; DIFF CAGE SETTING	1-87061-366-0	12	1	9202-			●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	AR	1	9202-	●	●					●
20	WASHER; THRUST,SIDE GEAR	1-87061-400-0	02	1	9202-			●	●	●	●		●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	9202-	●	●					●
21	GEAR; SIDE,DIFF	1-87061-325-0	02	1	9202-			●	●	●	●		●
22	PIN; CROSS,DIFF PINION	1-41521-002-0	01	1	9202-	●	●					●
22	PIN; CROSS,DIFF PINION	1-87061-367-0	01	1	9202-			●	●	●	●		●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	9202-	●	●					●
24	GEAR; PINION,DIFF	1-87061-316-0	04	1	9202-			●	●	●	●		●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	9202-	●	●					●
25	WASHER; THRUST,PINION	1-87061-317-0	04	1	9202-			●	●	●	●		●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9202-	●	●					●
37	NUT; DRIVING PINION	1-87061-363-0	01	1	9202-			●	●	●	●		●
38	WASHER; PL,DRIVING PINION	1-87061-364-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9202-	●	●					●
41	SPACER; FINAL DRIVE PINION BRG T=0.667"	1-87061-338-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.668"	1-87061-339-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.669"	1-87061-340-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.670"	1-87061-341-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.671"	1-87061-342-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.672"	1-87061-343-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.673"	1-87061-344-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.674"	1-87061-345-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.675"	1-87061-346-0	01	1	9202-			●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=0.676"	1-87061-347-0	01	1	9202-			●	●	●	●		●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9202-	●	●					●
43	CAGE; FINAL PINION	1-87061-365-0	01	1	9202-			●	●	●	●		●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9202-	●	●					●
45	BOLT; FINAL PINION CAGE	1-87061-355-0	06	1	9202-			●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9202-	●	●					●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9202-	●	●					●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9202-	●	●					●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9202-	●	●					●
49	SHIM; FINAL PINION CAGE T=0.003"	1-87061-320-0	AR	1	9202-			●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.005"	1-87061-321-0	AR	1	9202-			●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.010"	1-87061-322-0	AR	1	9202-			●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.020"	1-87061-323-0	AR	1	9202-			●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.030"	1-87061-324-0	AR	1	9202-			●	●	●	●		●
55	CARRIER; DIFF	1-41110-070-0	01	1	9202-	●	●					●
55	CARRIER; DIFF	1-87061-330-0	01	1	9202-			●	●	●	●		●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9202-	●	●					●
56	BOLT; BRG CAP	1-87061-757-0	04	1	9202-			●	●	●	●		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-373-2	01	1	9202-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-378-2	01	1	9202-		●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-87061-409-0	01	1	9202-			●
60	GEAR SET; FINAL DRIVE,RR 37/7	1-87061-632-0	01	1	9202-				●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-87061-331-0	01	1	9202-					●
60	GEAR SET; FINAL DRIVE,RR 35/6	1-87061-634-0	01	1	9202-						●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-380-2	01	1	9306-							●
60	GEAR SET; FINAL DRIVE,RR 37/8	1-87061-755-0	01	1	9407-								●
63	BEARING; PINION PILOT KOYO	1-09810-007-0	01	1	9202-9509	●	●					●
63	BEARING; PINION PILOT KOYO	1-09810-229-1	01	1	9510-	●	●					●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9202-9509	●	●					●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9510-	●	●					●
63	BEARING; PINION PILOT	1-87061-333-0	01	1	9202-			●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	9202-	●	●					●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	9202-	●	●					●
69	NUT; ADJ,DIFF CAGE	1-87061-354-0	01	1	9202-			●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-87061-358-0	01	1	9202-			●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9202-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-87061-329-0	01	1	9202-			●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-035-0	01	1	9306-							●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9202-	●	●					●
84	BOLT; FINAL DRIVE GEAR	1-87061-337-0	16	1	9202-			●	●	●	●		●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9202-	●	●					●
100	SEAL; OIL,FINAL PINION	1-87061-319-0	01	1	9202-			●	●	●	●		●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9202-	●	●					●
101	BOLT; ADJ,DRIVEN GEAR THRUST	1-87061-334-0	01	1	9202-			●	●	●	●		●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9202-	●	●					●
103	NUT; ADJ BOLT	1-87061-359-0	01	1	9202-			●	●	●	●		●
126	COUPLING; DRIVING PINION	1-37245-023-3	01	1	9202-	●	●					●
126	COUPLING; DRIVING PINION	1-87061-349-0	01	1	9202-			●	●	●	●		●
245	WASHER; PL,BRG CAP	1-87061-758-0	04	1	9202-			●	●	●	●		●
246	PIN; COTTER,LOCK PLATE	1-87061-332-0	02	1	9202-			●	●	●	●		●
254	CUP; DIFF BRG	1-87061-371-0	01	1	9202-			●	●	●	●		●
254	CUP; DIFF BRG	1-87060-592-0	01	1	9202-			●	●	●	●		●
255	CONE; DIFF BRG	1-87061-372-0	01	1	9202-			●	●	●	●		●
255	CONE; DIFF BRG	1-87060-594-0	01	1	9202-			●	●	●	●		●
259	NUT	1-87061-335-0	16	1	9202-			●	●	●	●		●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-87061-353-0	01	1	9202-			●	●	●	●		●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-87061-362-0	01	1	9202-			●	●	●	●		●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-87061-361-0	01	1	9202-			●	●	●	●		●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-87060-974-0	01	1	9202-			●	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
