4-65B — REAR LEAF SPRING (#126792) — 18 parça

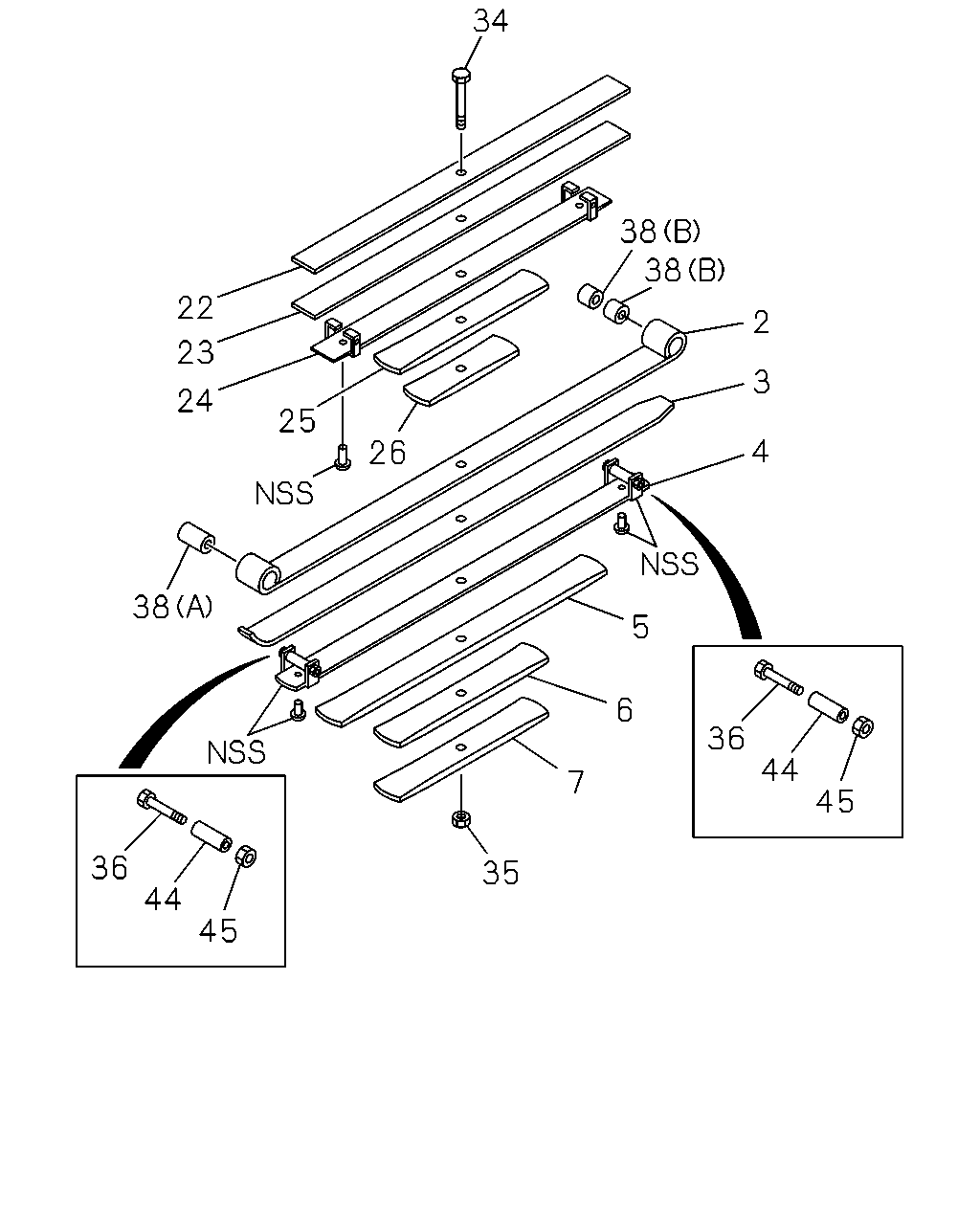

çizim 380027
34 38 38 2 3 4 36 44 45 6 5 7 35 45 44 36 24 23 22 38 25 26
BalonParca AdiParca NoAdetTipApplied Date
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-435-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-437-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-439-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-440-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-441-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-442-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-444-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-446-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-447-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-448-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-449-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=120 ASM PART: A = 8-97693-009-0, 97693009 		5-87220-451-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-452-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-459-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A) ASM PART: A = 8-97693-009-0, 97693009 		5-87220-455-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B) ASM PART: A = 8-97693-009-0, 97693009 		5-87220-457-0 02 1 -
44 07.506 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-461-0 02 1 -
45 07.529 NUT; CLIP,LEAF SPR,RR MAIN
ASM PART: A = 8-97693-009-0, 97693009 		5-87220-460-0 02 1 -
