4-55B — FRONT LEAF SPRING (#126790) — 19 parça

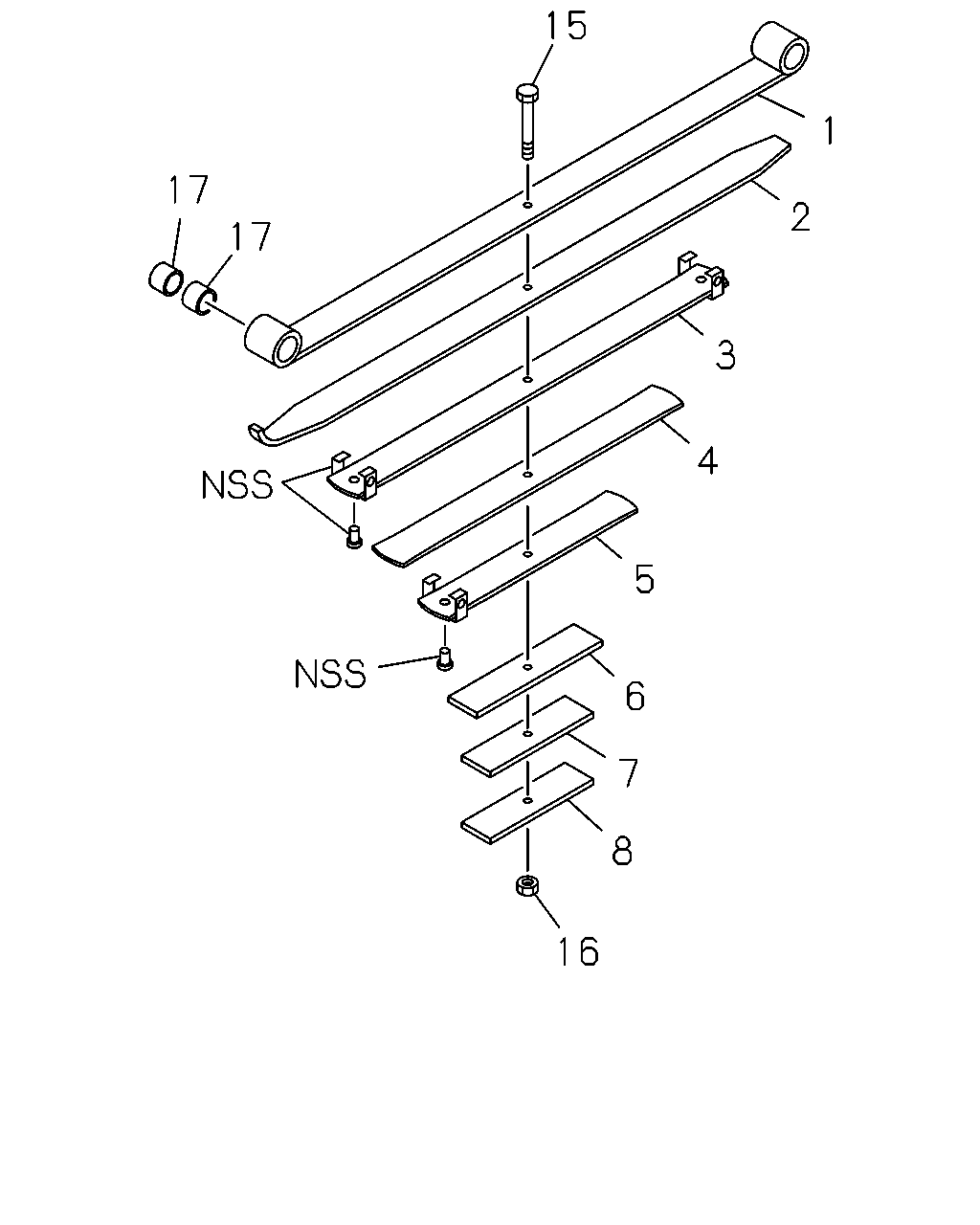

çizim 379938
15 1 2 3 4 5 6 7 8 16 17 17
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97693-004-0, 97693004 		5-87220-394-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97693-006-0, 97693006 		5-87220-396-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97693-004-0, 97693004 		5-87220-398-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97693-006-0, 97693006 		5-87220-400-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97693-004-0, 97693004 		5-87220-402-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97693-006-0, 97693006 		5-87220-404-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-97693-004-0, 97693004 		5-87220-406-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-97693-006-0, 97693006 		5-87220-408-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-97693-004-0, 97693004 		5-87220-410-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-97693-006-0, 97693006 		5-87220-412-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-97693-004-0, 97693004 		5-87220-414-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-97693-006-0, 97693006 		5-87220-416-0 01 1 -
7 07.415 SPRING; LEAF,NO 7,FRT
ASM PART: A = 8-97693-004-0, 97693004 		5-87220-418-0 01 1 -
7 07.415 SPRING; LEAF,NO 7,FRT
ASM PART: B = 8-97693-006-0, 97693006 		5-87220-419-0 01 1 -
8 07.415 SPRING; LEAF,NO 8,FRT
ASM PART: A = 8-97693-004-0, 97693004 		5-87220-420-0 01 1 -
8 07.415 SPRING; LEAF,NO 8,FRT
ASM PART: B = 8-97693-006-0, 97693006 		5-87220-421-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=80 ASM PART: A = 8-97693-004-0, 97693004, B = 8-97693-006-0, 97693006 		5-87220-422-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: A = 8-97693-004-0, 97693004, B = 8-97693-006-0, 97693006 		5-87220-426-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
ASM PART: A = 8-97693-004-0, 97693004, B = 8-97693-006-0, 97693006 		5-87220-430-0 04 1 -
