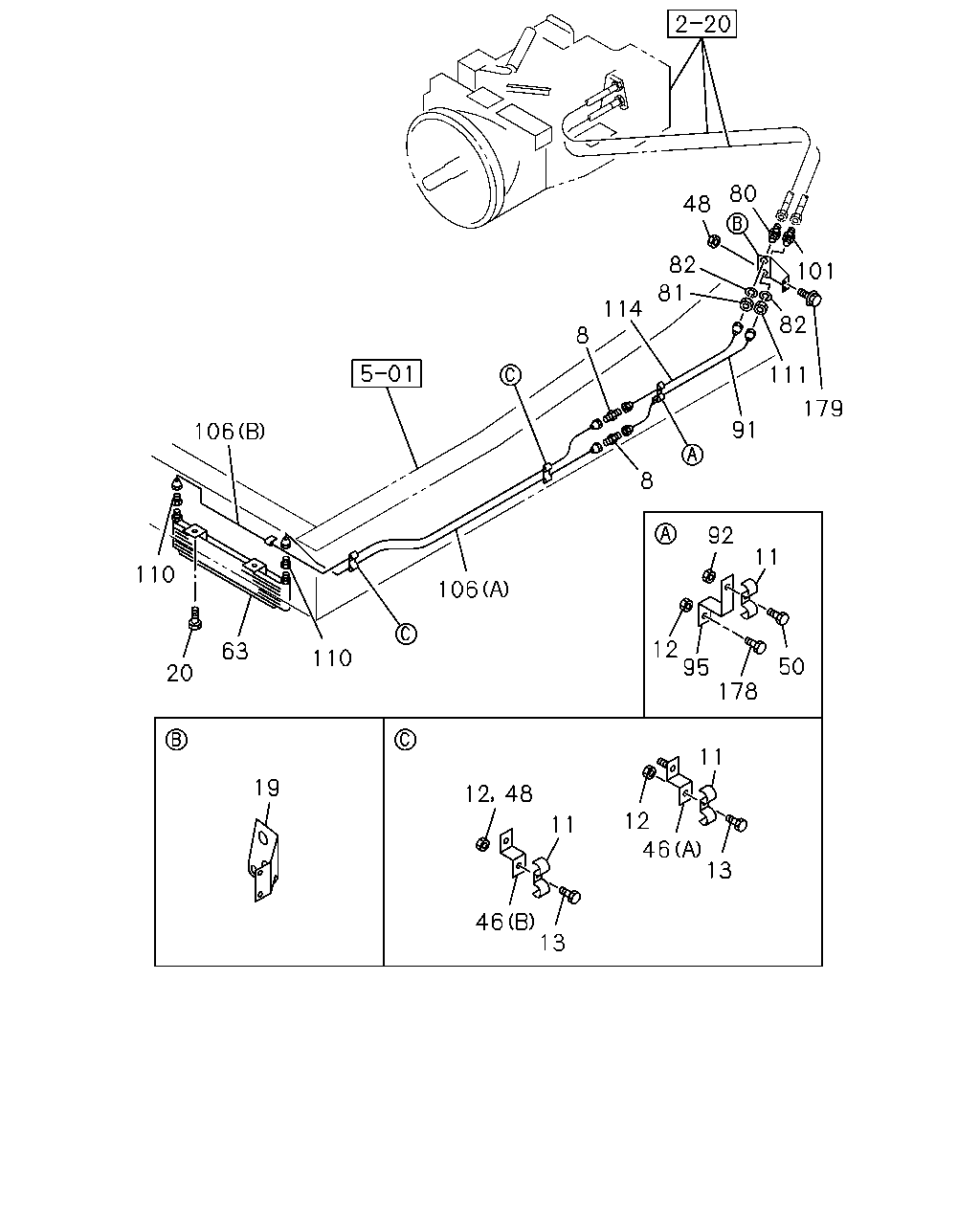

2-53B — TRANSMISSION OIL COOLER SYSTEM
(#12679) — 36 parça
80
48
101
82
82
81
114
8
111
179
91
106
8
110
92
11
106
12
95
178
63
110
50
20
11
19
12
46
13
11
46
13
12
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
UNION
M22
9-09233-015-1
01
1
0105-
8
UNION
M22
9-09233-015-1
01
1
0105-
11
CLIP; PIPE
ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
03
1
0105-
11
CLIP; PIPE
ID=16 L=20
9-09525-535-0
01
1
0105-
12
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0105-
12
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0105-
13
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0105-
19
BRACKET; FLEX HOSE
1-47478-648-0
01
1
0105-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28081-020-0
02
1
0105-
46
BRACKET; OIL PIPE
(B)
1-47475-881-0
01
1
0105-0110
46
BRACKET; OIL PIPE
(B)
1-47477-669-1
01
1
0111-
46
BRACKET; OIL PIPE
(A)
1-47477-235-0
01
1
0105-
48
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0105-
50
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
03
1
0105-0110
50
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
02
1
0111-
50
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0105-0110
63
COOLER; OIL
1-21700-290-0
01
1
0105-
80
UNION; FLEX HOSE
M22 & M30 STRAIGHT
1-09664-237-0
01
1
0105-
81
NUT; UNION
M22
9-09111-422-0
01
1
0105-
82
WASHER; LK,UNION
ID=22.5
9-09150-522-0
02
1
0105-
91
PIPE; OIL,FLEX HOSE TO UNION
1-49164-672-0
01
1
0105-0110
91
PIPE; OIL,FLEX HOSE TO UNION
1-49166-438-0
01
1
0111-
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0105-
95
BRACKET; CLIP
1-47475-881-0
01
1
0105-0110
95
BRACKET; CLIP
1-47477-669-1
01
1
0111-
101
UNION; FLEX HOSE
M22 & M30 STRAIGHT
1-09664-237-0
01
1
0105-
106
PIPE ASM; OIL,COOLER TO UNION
(B)
1-47429-504-0
01
1
0105-0110
106
PIPE ASM; OIL,COOLER TO UNION
(B)
1-49166-439-0
01
1
0111-
106
PIPE ASM; OIL,COOLER TO UNION
(A)
1-49164-613-0
01
1
0105-0110
106
PIPE ASM; OIL,COOLER TO UNION
(A)
1-49166-440-0
01
1
0111-
110
UNION; OIL PIPE
1-09654-398-0
02
1
0105-
111
NUT; UNION
M22
9-09111-422-0
01
1
0105-
114
PIPE; OIL,UNION TO FLEX HOSE
L=1324
1-49164-673-0
01
1
0105-0110
114
PIPE; OIL,UNION TO FLEX HOSE
1-49166-441-0
01
1
0111-
178
BOLT; BRKT,CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0105-
179
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0105-
