◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55A - FRONT LEAF SPRING ▶
4-55A — FRONT LEAF SPRING (#126789) — 15 parça

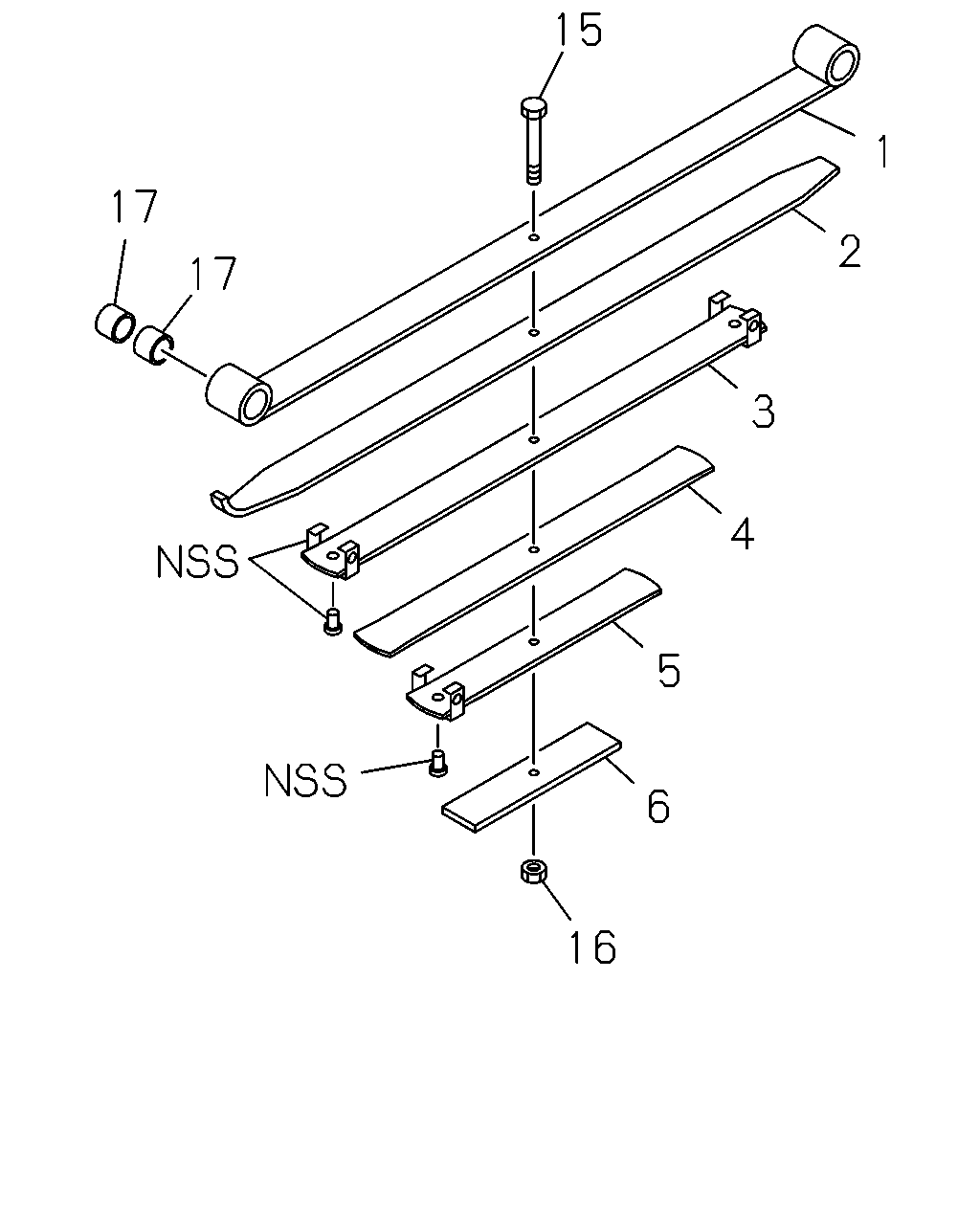

çizim 124696
15 1 2 3 4 5 6 16 17 17
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97693-005-0, 97693005 		5-87220-395-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97693-007-0, 97693007 		5-87220-397-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97693-005-0, 97693005 		5-87220-399-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97693-007-0, 97693007 		5-87220-401-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97693-005-0, 97693005 		5-87220-403-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97693-007-0, 97693007 		5-87220-405-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-97693-005-0, 97693005 		5-87220-407-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-97693-007-0, 97693007 		5-87220-409-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-97693-005-0, 97693005 		5-87220-411-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-97693-007-0, 97693007 		5-87220-413-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-97693-005-0, 97693005 		5-87220-415-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-97693-007-0, 97693007 		5-87220-417-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=65 ASM PART: A = 8-97693-005-0, 97693005, B = 8-97693-007-0, 97693007 		5-87220-423-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: A = 8-97693-005-0, 97693005, B = 8-97693-007-0, 97693007 		5-87220-426-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
ASM PART: A = 8-97693-005-0, 97693005, B = 8-97693-007-0, 97693007 		5-87220-430-0 04 1 -
