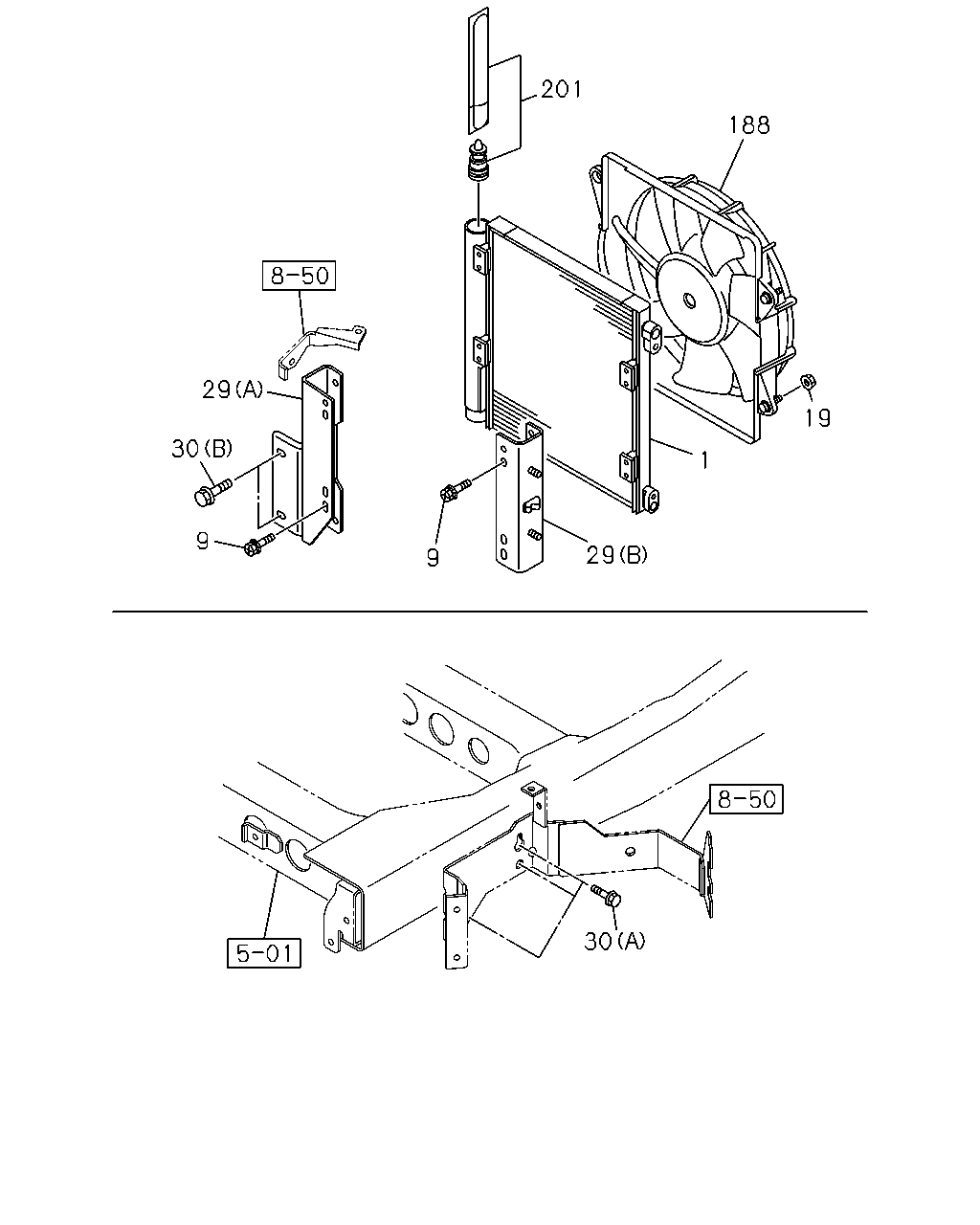

8-75 — CONDENSER (#126785) — 37 parça

30 29 9 9 30 29 201 188 19 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.190 CONDENSER; A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98133-042-1	01	1	1309-1310	●	●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98133-042-1	01	1	1311-1408	●	●
1	09.190 CONDENSER; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98133-042-1	01	1	1311-1408			●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98133-042-1	01	1	1409-	●	●	●
9	09.190 BOLT; BRKT 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) M6X14	8-98041-899-0	08	1	1309-1310	●	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	8-98041-899-0	08	1	1311-1408	●	●
9	09.190 BOLT; BRKT 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M6X14	8-98041-899-0	08	1	1311-1408			●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	8-98041-899-0	08	1	1409-	●	●	●
19	09.190 NUT; BRKT 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	1309-1310	●	●
19	09.190 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	1311-1408	●	●
19	09.190 NUT; BRKT 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	1311-1408			●
19	09.190 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	1409-	●	●	●
29	09.190 BRACKET; SIDE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98133-044-0	01	1	1309-1310	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98133-044-0	01	1	1311-1408	●	●
29	09.190 BRACKET; SIDE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98133-044-0	01	1	1311-1408			●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98133-044-0	01	1	1409-	●	●	●
29	09.190 BRACKET; SIDE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98164-999-0	01	1	1309-1310	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98164-999-0	01	1	1311-1408	●	●
29	09.190 BRACKET; SIDE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98164-999-0	01	1	1311-1408			●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98164-999-0	01	1	1409-	●	●	●
30	09.190 BOLT; CONDENSER,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1311-1408	●	●
30	09.190 BOLT; CONDENSER,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1311-1408			●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1409-	●	●	●
30	09.190 BOLT; CONDENSER,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 00.029 (A) M10X30 FLANGE	0-28651-030-0	03	1	1309-1310	●	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 00.029 (A) M10X30 FLANGE	0-28651-030-0	03	1	1311-1408	●	●
30	09.190 BOLT; CONDENSER,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.029 (A) M10X30 FLANGE	0-28651-030-0	03	1	1311-1408			●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 00.029 (A) M10X30 FLANGE	0-28651-030-0	03	1	1409-	●	●	●
188	09.215 BLOWER ASM; SHROUD 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98133-043-0	01	1	1309-1310	●	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98133-043-0	01	1	1311-1408	●	●
188	09.215 BLOWER ASM; SHROUD 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98133-043-0	01	1	1311-1408			●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98133-043-0	01	1	1409-	●	●	●
201	09.195 DRYER ASM; CONDENSER 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	1-83535-097-0	01	1	1309-1310	●	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	1-83535-097-0	01	1	1311-1408	●	●
201	09.195 DRYER ASM; CONDENSER 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	1-83535-097-0	01	1	1311-1408			●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	1-83535-097-0	01	1	1409-1409	●	●	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98282-482-0	01	1	1410-	●	●	●
