◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51497 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#126781) — 162 parça

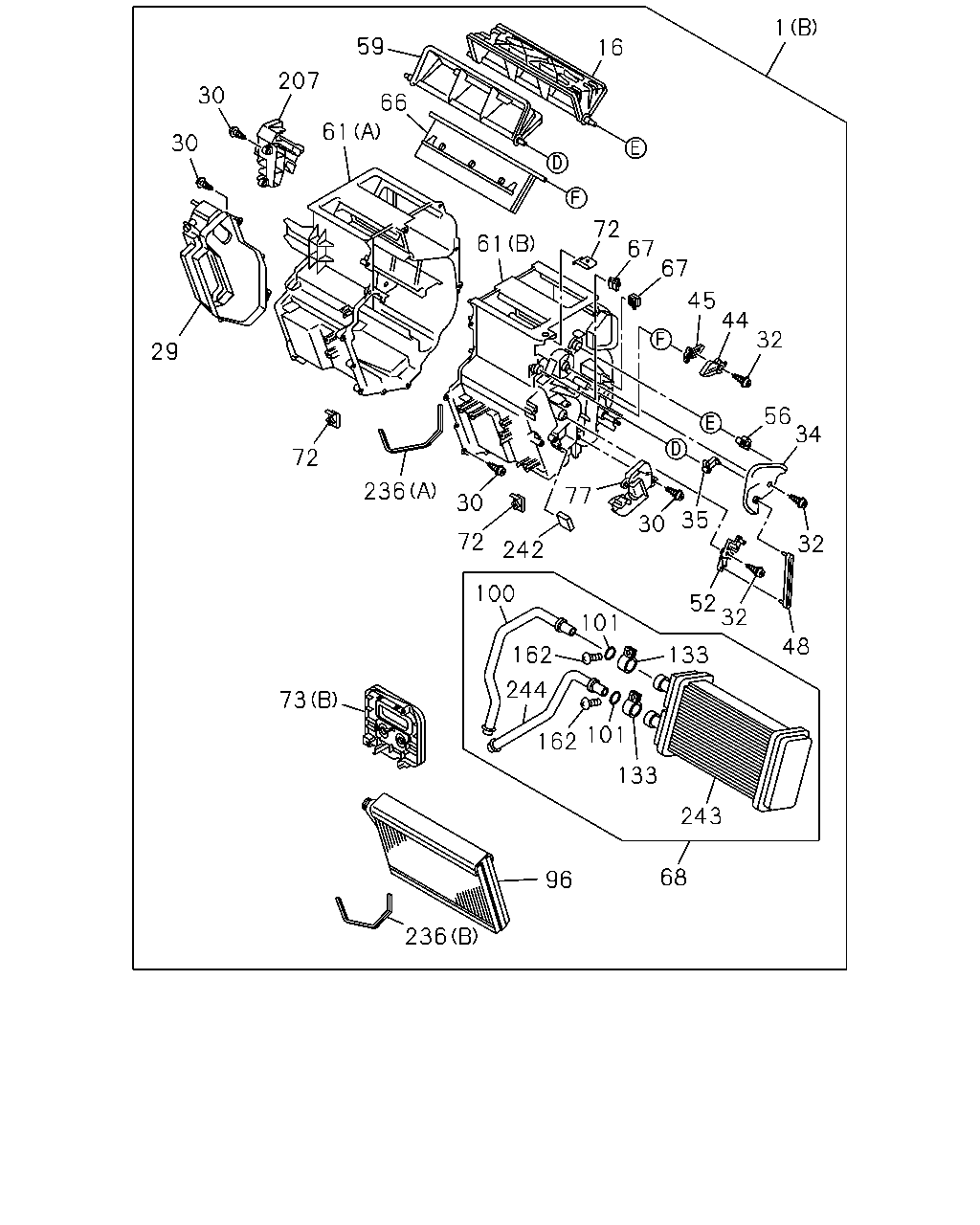

çizim 374257
67 72 1 16 59 207 61 66 61 72 29 236 73 236 96 162 244 100 242 72 77 35 52 32 48 32 34 56 32 44 45 67 133 101 101 133 243 68 162 30 30 30 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (B) 		8-98062-756-1 01 1 1309-1310 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (B) 		8-98062-756-1 01 1 1311- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1309-1310 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1311- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1309-1310 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1311- ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1309-1310 ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1311- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1309-1310 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1311- ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1309-1310 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1311- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1309-1310 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1311- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1309-1310 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1311- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1309-1310 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1311- ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1309-1310 ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1311- ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1309-1310 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1311- ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1309-1310 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1311- ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1309-1310 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1311- ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1309-1310 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1311- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1309-1310 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1311- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1309-1310 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1311- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1309-1310 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1311- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1309-1310 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1311- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1309-1310 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1311- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1309-1310 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1311- ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1309-1310 ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1311- ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98072-542-0 01 1 1309-1310 ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98072-542-0 01 1 1311- ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98074-118-0 01 1 1309-1310 ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98074-118-0 01 1 1311- ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1309-1310 ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1311- ● ● ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1309-1310 ● ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1311- ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1309-1310 ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1311- ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1309-1310 ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1311- ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1309-1310 ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1311- ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1309-1310 ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1311- ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1309-1310 ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1311- ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1309-1310 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1311- ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1309-1310 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1311- ● ● ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1309-1310 ● ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1311- ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1309-1310 ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1311- ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1309-1310 ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1311- ● ● ●

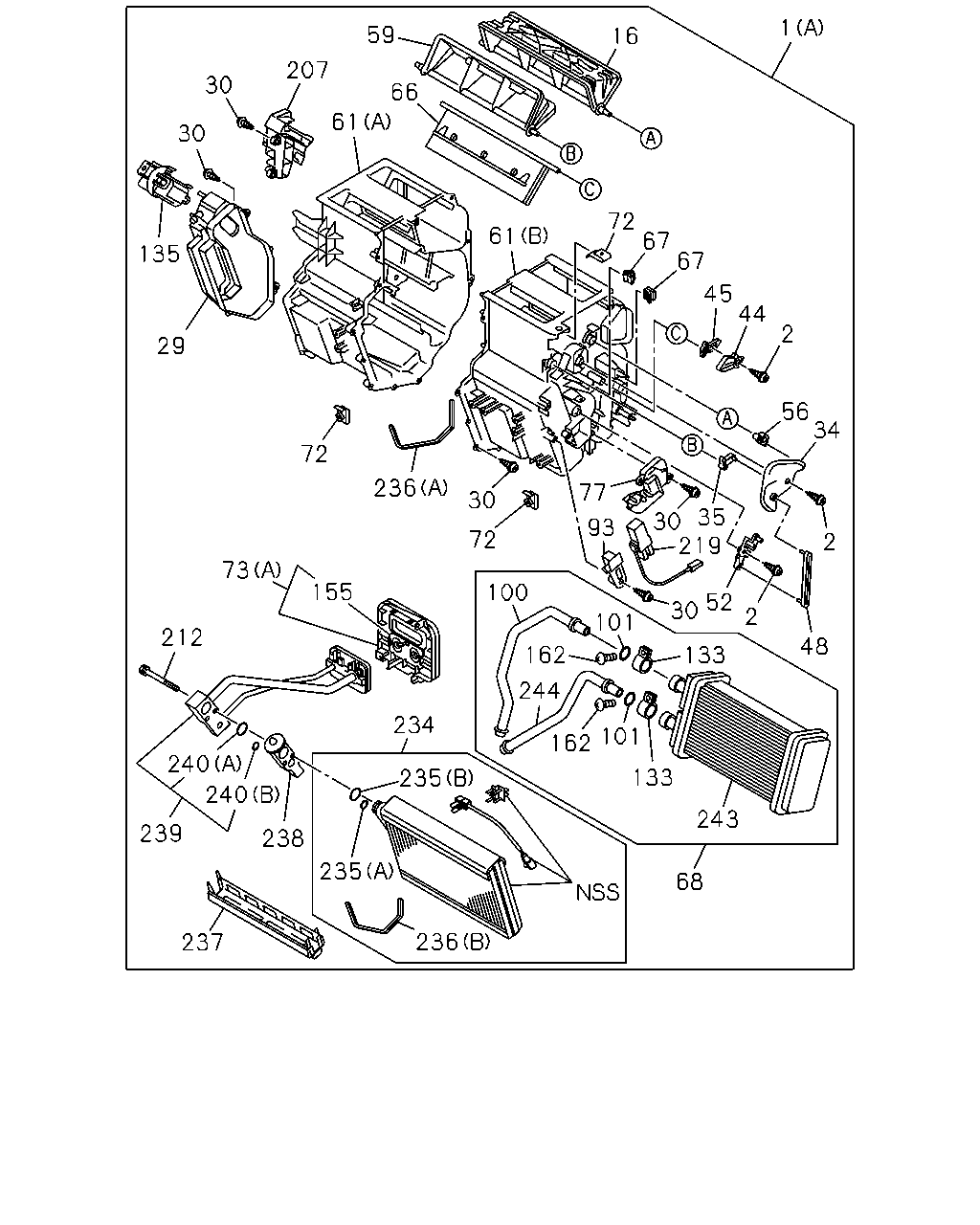

çizim 374424
34 2 2 44 45 67 67 72 1 16 59 66 61 207 30 30 135 29 72 73 212 155 72 236 100 93 30 61 77 219 2 48 52 30 101 162 244 162 133 243 68 101 133 56 234 235 236 235 240 240 239 237 238 30 35
BalonParca AdiParca NoAdetTipApplied Date A B C
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (B) 		8-98062-756-1 01 1 1309-1310 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (B) 		8-98062-756-1 01 1 1311- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1309-1310 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1311- ● ● ●
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 1309-1310 ● ●
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 1311- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1309-1310 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1311- ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1309-1310 ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1311- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1309-1310 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1311- ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1309-1310 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1311- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1309-1310 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1311- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1309-1310 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1311- ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1309-1310 ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1311- ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1309-1310 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1311- ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1309-1310 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1311- ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1309-1310 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1311- ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1309-1310 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1311- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1309-1310 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1311- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1309-1310 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1311- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1309-1310 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1311- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1309-1310 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1311- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1309-1310 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1311- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1309-1310 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1311- ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1309-1310 ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1311- ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98072-542-0 01 1 1309-1310 ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98072-542-0 01 1 1311- ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98074-118-0 01 1 1309-1310 ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98074-118-0 01 1 1311- ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1309-1310 ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1311- ● ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 1309-1310 ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 1311- ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1309-1310 ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1311- ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1309-1310 ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1311- ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1309-1310 ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1311- ● ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-384-0 01 1 1309-1310 ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-384-0 01 1 1311- ● ● ●
155 09.260 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-431-0 01 1 1309-1310 ● ●
155 09.260 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-431-0 01 1 1311- ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1309-1310 ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1311- ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1309-1310 ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1311- ● ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 1309-1310 ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 1311- ● ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1309-1310 ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1311- ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-116-1 01 1 1309-1310 ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-116-1 01 1 1311- ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 1309-1310 ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 1311- ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 1309-1310 ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 1311- ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1309-1310 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1311- ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1309-1310 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1311- ● ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 1309-1310 ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 1311- ● ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 1309-1310 ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 1311- ● ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-115-0 01 1 1309-1310 ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-115-0 01 1 1311- ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 1309-1310 ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 1311- ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 1309-1310 ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 1311- ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1309-1310 ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1311- ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1309-1310 ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1311- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
