Sayfa 8-52 - Isuzu EPC

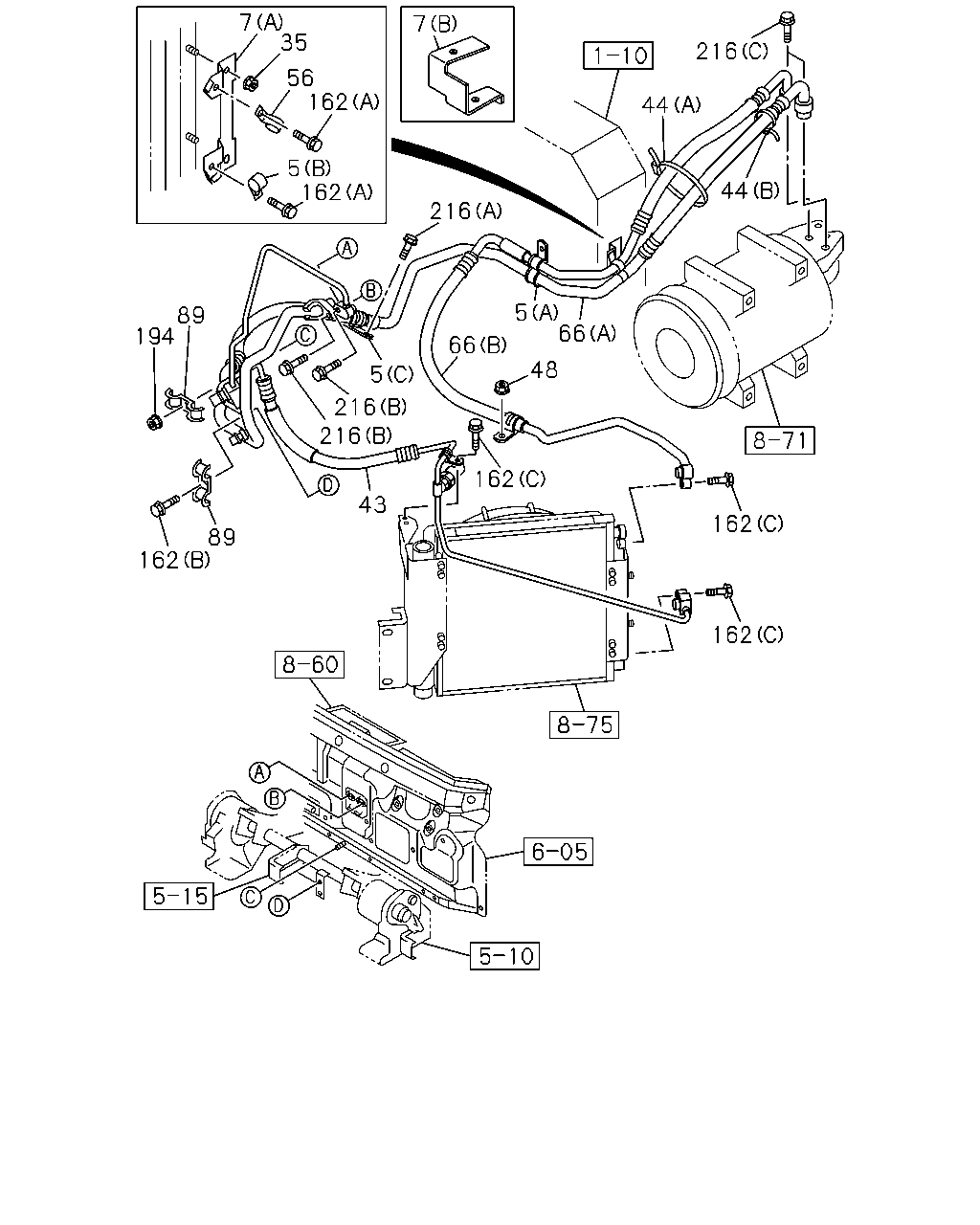

8-52 — PIPING; AIR CONDITIONING (#126780) — 160 parça

43 66 66 148 147 50 202 67 49 67 148 147 67 49 67 49 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98200-091-0	01	1	1409-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98177-563-0	01	1	1309-1310		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98177-563-0	01	1	1311-		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98177-563-0	01	1	1311-	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-98257-461-0	01	1	1312-1408		●	●
49	09.242 CLAMP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98257-461-0	01	1	1312-1408	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-98257-461-0	01	1	1409-	●	●	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98257-462-0	01	1	1312-1408		●	●
49	09.242 CLAMP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98257-462-0	01	1	1312-1408	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98257-462-0	01	1	1409-	●	●	●
49	09.242 CLAMP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	1-83574-249-0	01	1	1309-1310		●	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	1-83574-249-0	01	1	1311-1408		●	●
49	09.242 CLAMP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A)	1-83574-249-0	01	1	1311-1408	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	1-83574-249-0	01	1	1409-	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1309-1310		●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1311-1408		●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1311-1408	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1409-	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98200-088-1	01	1	1409-	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-997-0	01	1	1309-1310		●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-997-0	01	1	1311-1311		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-997-0	01	1	1311-1311	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE	8-98248-640-0	01	1	1312-1408		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE	8-98248-640-0	01	1	1312-1408	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE	8-98248-640-0	01	1	1409-	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98178-841-0	01	1	1309-1310		●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98178-841-0	01	1	1311-1311		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98178-841-0	01	1	1311-1311	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98248-636-0	01	1	1312-		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98248-636-0	01	1	1312-	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1309-1310		●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1311-1408		●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1311-1408	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1409-	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1309-1310		●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1311-1408		●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1311-1408	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1409-	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1309-1310		●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1311-1408		●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1311-1408	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1409-	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	1-83539-331-0	01	1	1309-1310		●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	1-83539-331-0	01	1	1311-1408		●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	1-83539-331-0	01	1	1311-1408	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	1-83539-331-0	01	1	1409-	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97095-911-0	01	1	1309-1310		●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97095-911-0	01	1	1311-1408		●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97095-911-0	01	1	1311-1408	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97095-911-0	01	1	1409-	●	●	●
148	09.262 VALVE; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-909-0	01	1	1309-1310		●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-909-0	01	1	1311-1408		●	●
148	09.262 VALVE; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-909-0	01	1	1311-1408	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-909-0	01	1	1409-	●	●	●
148	09.262 VALVE; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98031-629-0	01	1	1309-1310		●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98031-629-0	01	1	1311-1408		●	●
148	09.262 VALVE; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98031-629-0	01	1	1311-1408	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98031-629-0	01	1	1409-	●	●	●
202	09.275 SWITCH; PRESSURE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1309-1310		●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1311-1408		●	●
202	09.275 SWITCH; PRESSURE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1311-1408	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1409-	●	●	●

7 56 35 162 162 5 7 216 5 44 216 44 162 162 5 216 216 89 194 89 162 43 66 162 48 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	1309-1310		●	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	1311-1311		●	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	1311-1311	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	1309-1310		●	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	1311-1408		●	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	1311-1408	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	1409-	●	●	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	1309-1310		●	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	1311-1408		●	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	1311-1408	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	1409-	●	●	●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98200-052-0	01	1	1409-	●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97388-130-1	01	1	1309-1310		●	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97388-130-1	01	1	1311-1408		●	●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97388-130-1	01	1	1311-1408	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97388-130-1	01	1	1409-	●	●	●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1309-1310		●	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1311-1408		●	●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1311-1408	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1409-	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98200-091-0	01	1	1409-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98177-563-0	01	1	1309-1310		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98177-563-0	01	1	1311-		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98177-563-0	01	1	1311-	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1309-1310		●	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1309-1310		●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1311-1408	●	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1311-1408		●	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1311-1408	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1409-	●	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1409-	●	●	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	1309-1310		●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1408		●	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	1311-1408	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	1409-	●	●	●
48	09.242 NUT; BRKT 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310		●	●
48	09.242 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1408		●	●
48	09.242 NUT; BRKT 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1408	●
48	09.242 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-	●	●	●
56	09.242 CLIP; PIPE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=22 L=40	5-09700-369-0	01	1	1309-1310		●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=22 L=40	5-09700-369-0	01	1	1311-1408		●	●
56	09.242 CLIP; PIPE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=22 L=40	5-09700-369-0	01	1	1311-1408	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=22 L=40	5-09700-369-0	01	1	1409-	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98200-088-1	01	1	1409-	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-997-0	01	1	1309-1310		●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-997-0	01	1	1311-1311		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98159-997-0	01	1	1311-1311	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE	8-98248-640-0	01	1	1312-1408		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE	8-98248-640-0	01	1	1312-1408	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE	8-98248-640-0	01	1	1409-	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98178-841-0	01	1	1309-1310		●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98178-841-0	01	1	1311-1311		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98178-841-0	01	1	1311-1311	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98248-636-0	01	1	1312-		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98248-636-0	01	1	1312-	●
89	09.242 BRACKET; A/C PIPE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1309-1310		●	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1311-1408		●	●
89	09.242 BRACKET; A/C PIPE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1311-1408	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1409-	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1309-1310		●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1311-1408		●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1311-1408	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1409-	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1309-1310		●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1311-1408		●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1311-1408	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1409-	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1309-1310		●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1311-1408		●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1311-1408	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	1409-	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	1309-1310		●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	1311-1408		●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	1311-1408	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	1409-	●	●	●
194	09.242 NUT; HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310		●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1311		●	●
194	09.242 NUT; HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1311	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1312-1408		●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1312-1408		●	●
194	09.242 NUT; HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1312-1408	●
194	09.242 NUT; HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1312-1408	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-	●	●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-	●	●	●
216	09.173 BOLT; HOSE FIX 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1309-1310		●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1311-1408		●	●
216	09.173 BOLT; HOSE FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1311-1408	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1409-	●	●	●
216	09.173 BOLT; HOSE FIX 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1409-	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1309-1310		●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1311-1407	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1408-1408		●	●
216	09.173 BOLT; HOSE FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1408-1408	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1409-	●	●	●
216	09.173 BOLT; HOSE FIX 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310		●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-1408		●	●
216	09.173 BOLT; HOSE FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-1408	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1409-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
