8-50 — AIR CONDITIONING SYSTEM; FRONT (#126779) — 50 parça

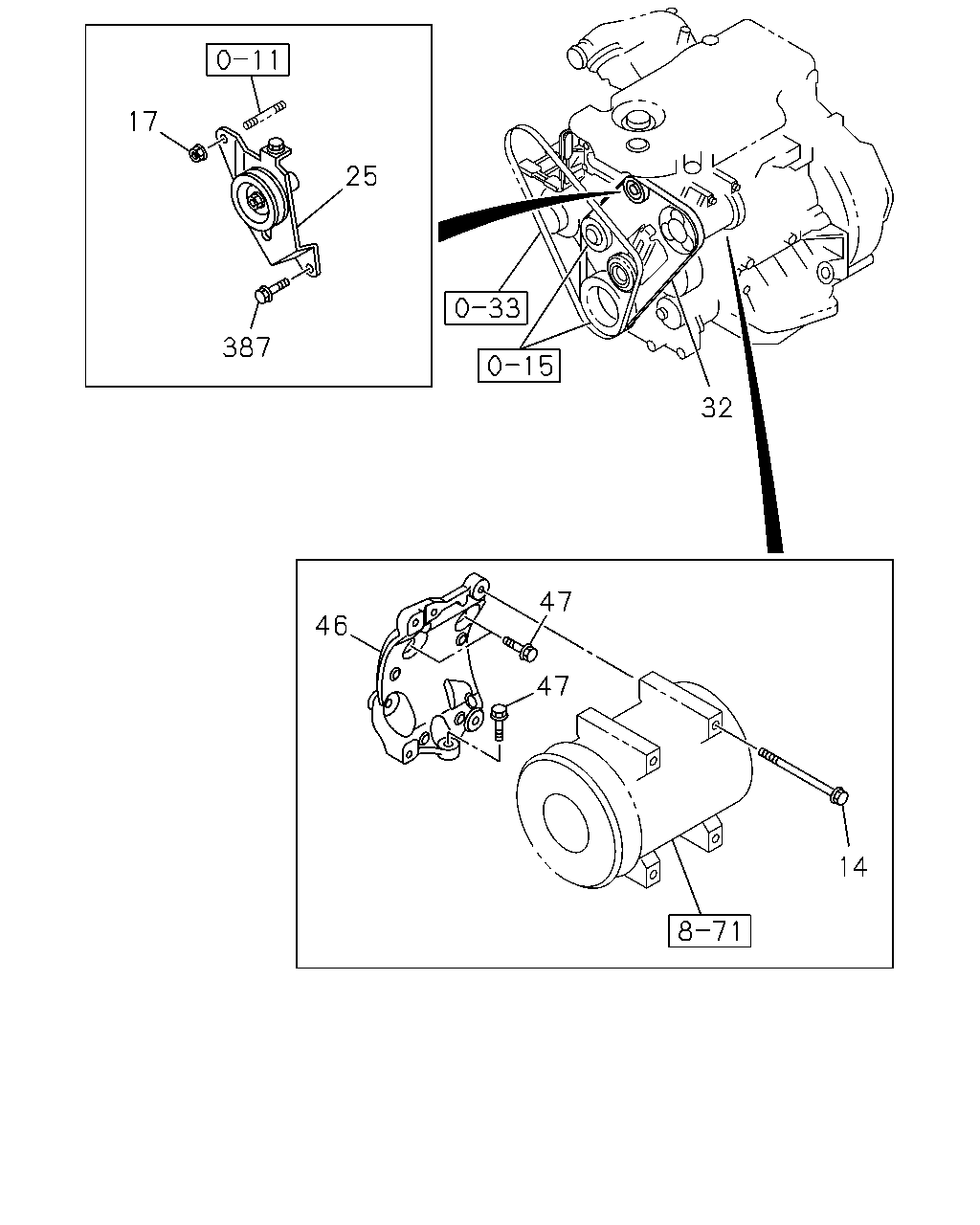

14 47 46 32 387 25 17 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1309-1310	●	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1311-1408	●	●
14	09.171 BOLT; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1311-1408			●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1409-	●	●	●
17	09.171 NUT; CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	1309-1310	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1309-1310	●	●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1311-1408	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1311-1408			●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1409-	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1309-1310	●	●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1311-1408	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1311-1408			●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1409-	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1309-1310	●	●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1311-1408	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1311-1408			●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1409-	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98211-424-1	01	1	1309-1310	●	●
46	09.171 BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98211-424-1	01	1	1311-1408	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98211-424-1	01	1	1311-1408			●
46	09.171 BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98211-424-1	01	1	1409-	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1309-1310	●	●
47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1311-1408	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1311-1408			●
47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1409-	●	●	●
387	09.190 BOLT; TENSIONER FIX 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●	●
387	09.190 BOLT; TENSIONER FIX AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1311-1408	●	●
387	09.190 BOLT; TENSIONER FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1311-1408			●
387	09.190 BOLT; TENSIONER FIX AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1409-1409	●	●	●
387	09.190 BOLT; TENSIONER FIX AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1409-	●	●	●

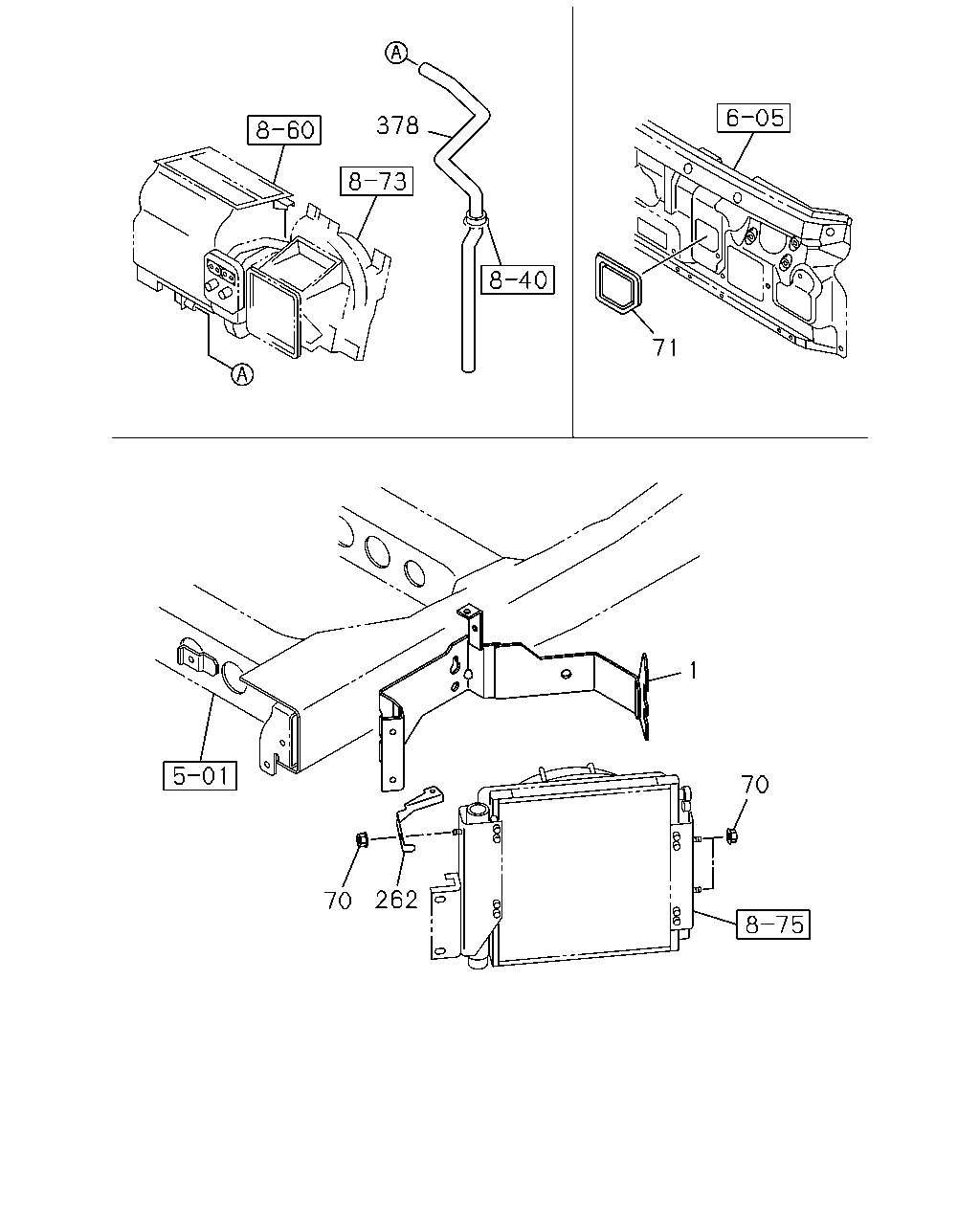

71 378 1 70 262 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.242 BRACKET; A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98146-843-0	01	1	1309-1310	●	●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98146-843-0	01	1	1311-1408	●	●
1	09.242 BRACKET; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98146-843-0	01	1	1311-1408			●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98146-843-0	01	1	1409-	●	●	●
70	09.190 NUT; EVAP,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1408	●	●
70	09.190 NUT; EVAP,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1408			●
70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1409-	●	●	●
70	09.190 NUT; EVAP,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●	●
70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-1408	●	●
70	09.190 NUT; EVAP,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-1408			●
70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	02	1	1409-	●	●	●
71	09.190 COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98017-234-1	01	1	1309-1310	●	●
71	09.190 COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98017-234-1	01	1	1311-	●	●	●
262	09.190 BRACKET; CONDENSER 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98174-735-0	01	1	1309-1310	●	●
262	09.190 BRACKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98174-735-0	01	1	1311-1408	●	●
262	09.190 BRACKET; CONDENSER 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98174-735-0	01	1	1311-1408			●
262	09.190 BRACKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98174-735-0	01	1	1409-	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98001-241-2	01	1	1309-1310	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98001-241-2	01	1	1311-	●	●	●
