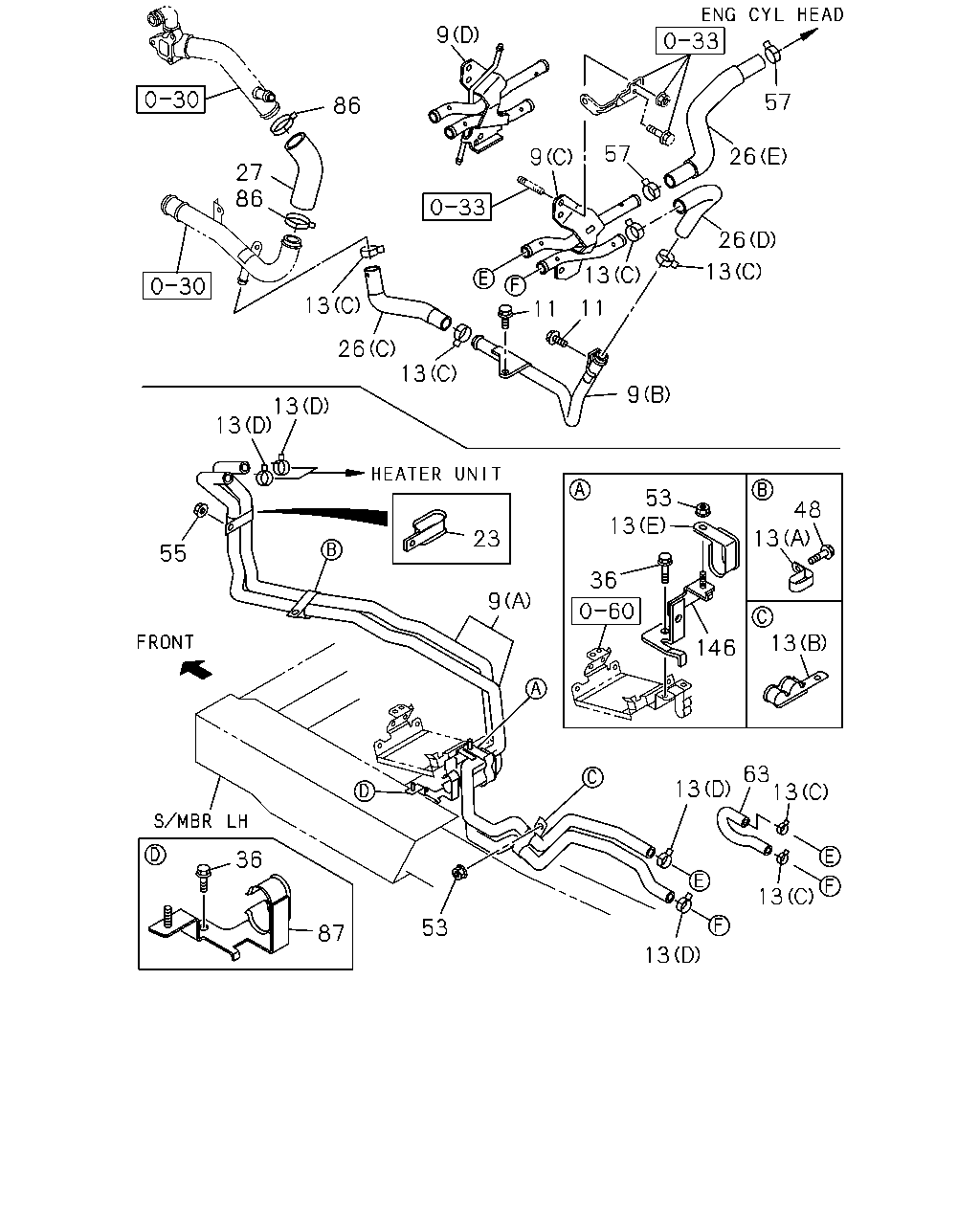

8-45 — HEATER PIPING (#126778) — 125 parça

86 27 86 13 26 13 13 13 55 36 87 53 13 13 13 13 63 146 13 13 48 53 13 36 23 9 9 11 11 13 13 26 26 57 57 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98302-384-0	01	1	1501-	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98074-590-2	01	1	1311-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-0	01	1	1309-1310		●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-0	01	1	1311-1408		●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-0	01	1	1311-1408	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-0	01	1	1409-1412	●	●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-2	01	1	1501-		●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-2	01	1	1501-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-98209-291-2	01	1	1309-1310		●	●
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1311-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98088-944-1	01	1	1309-1408		●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98088-944-1	01	1	1409-	●	●	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1309-1310		●	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1311-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1311-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1311-1408	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1311-1408		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1311-1408	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1409-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1409-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1311-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1311-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1311-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1311-1408		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1311-1408	●
13	08.846 CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1409-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1309-1310		●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1311-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (E)	8-98209-510-1	01	1	1311-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98085-567-2	01	1	1309-1310		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98085-567-2	01	1	1311-1408		●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98085-567-2	01	1	1311-1408	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98085-567-2	01	1	1409-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98085-568-2	01	1	1309-1310		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98085-568-2	01	1	1311-1408		●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98085-568-2	01	1	1311-1408	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98085-568-2	01	1	1409-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98000-101-2	01	1	1309-1310		●	●
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1311-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (D)	8-98114-718-0	01	1	1309-1310		●	●
26	08.846 HOSE; HTR (D)	8-98114-718-0	01	1	1311-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB)	8-98106-016-0	01	1	1309-1310		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI	8-98106-016-0	01	1	1311-	●	●	●
36	08.846 BOLT; BRKT 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1310		●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1408		●	●
36	08.846 BOLT; BRKT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1309-1310		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1311-	●	●	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310		●	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310		●	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-	●	●	●
53	08.845 NUT; HOSE CLIP HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-	●	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310		●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	1311-	●	●	●
63	08.846 HOSE; WATER 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1309-1310		●	●
63	08.846 HOSE; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1311-1408		●	●
63	08.846 HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1311-1408	●
63	08.846 HOSE; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1409-	●	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB)	8-98110-004-0	02	1	1309-1310		●	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1311-	●	●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98129-978-1	01	1	1309-1310		●	●
87	08.846 BRACKET; HTR HOSE CLIP AIR CONDITIONER MANUAL CONT(C60)	8-98129-978-1	01	1	1311-1408		●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98129-978-1	01	1	1311-1408	●
87	08.846 BRACKET; HTR HOSE CLIP AIR CONDITIONER MANUAL CONT(C60)	8-98129-978-1	01	1	1409-	●	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41)	8-98111-419-1	01	1	1309-1310		●	●
146	08.846 BRACKET; HTR HOSE HEATER & DEFROSTER(C41)	8-98111-419-1	01	1	1311-1408		●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41)	8-98111-419-1	01	1	1311-1408	●
146	08.846 BRACKET; HTR HOSE HEATER & DEFROSTER(C41)	8-98111-419-1	01	1	1409-	●	●	●

9 26 13 103 13 13 103 13 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98302-384-0	01	1	1501-	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98074-590-2	01	1	1311-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-0	01	1	1309-1310		●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-0	01	1	1311-1408		●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-0	01	1	1311-1408	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-0	01	1	1409-1412	●	●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-2	01	1	1501-		●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98180-418-2	01	1	1501-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-98209-291-2	01	1	1309-1310		●	●
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1311-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98088-944-1	01	1	1309-1408		●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98088-944-1	01	1	1409-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1311-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1311-1408	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1311-1408		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1311-1408	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1409-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1409-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1311-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1311-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1311-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1309-1310		●	●
13	08.846 CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1311-1408		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1311-1408	●
13	08.846 CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1409-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (E)	8-98209-510-1	01	1	1311-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98085-567-2	01	1	1309-1310		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98085-567-2	01	1	1311-1408		●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98085-567-2	01	1	1311-1408	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98085-567-2	01	1	1409-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98085-568-2	01	1	1309-1310		●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98085-568-2	01	1	1311-1408		●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98085-568-2	01	1	1311-1408	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98085-568-2	01	1	1409-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98000-101-2	01	1	1309-1310		●	●
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1311-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (D)	8-98114-718-0	01	1	1309-1310		●	●
26	08.846 HOSE; HTR (D)	8-98114-718-0	01	1	1311-	●	●	●
103	08.866 CONNECTOR; HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	9-09703-048-0	02	1	1309-1310		●	●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	9-09703-048-0	02	1	1311-1408		●	●
103	08.866 CONNECTOR; HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	9-09703-048-0	02	1	1311-1408	●
103	08.866 CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	9-09703-048-0	02	1	1409-	●	●	●
