Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#126773) — 209 parça

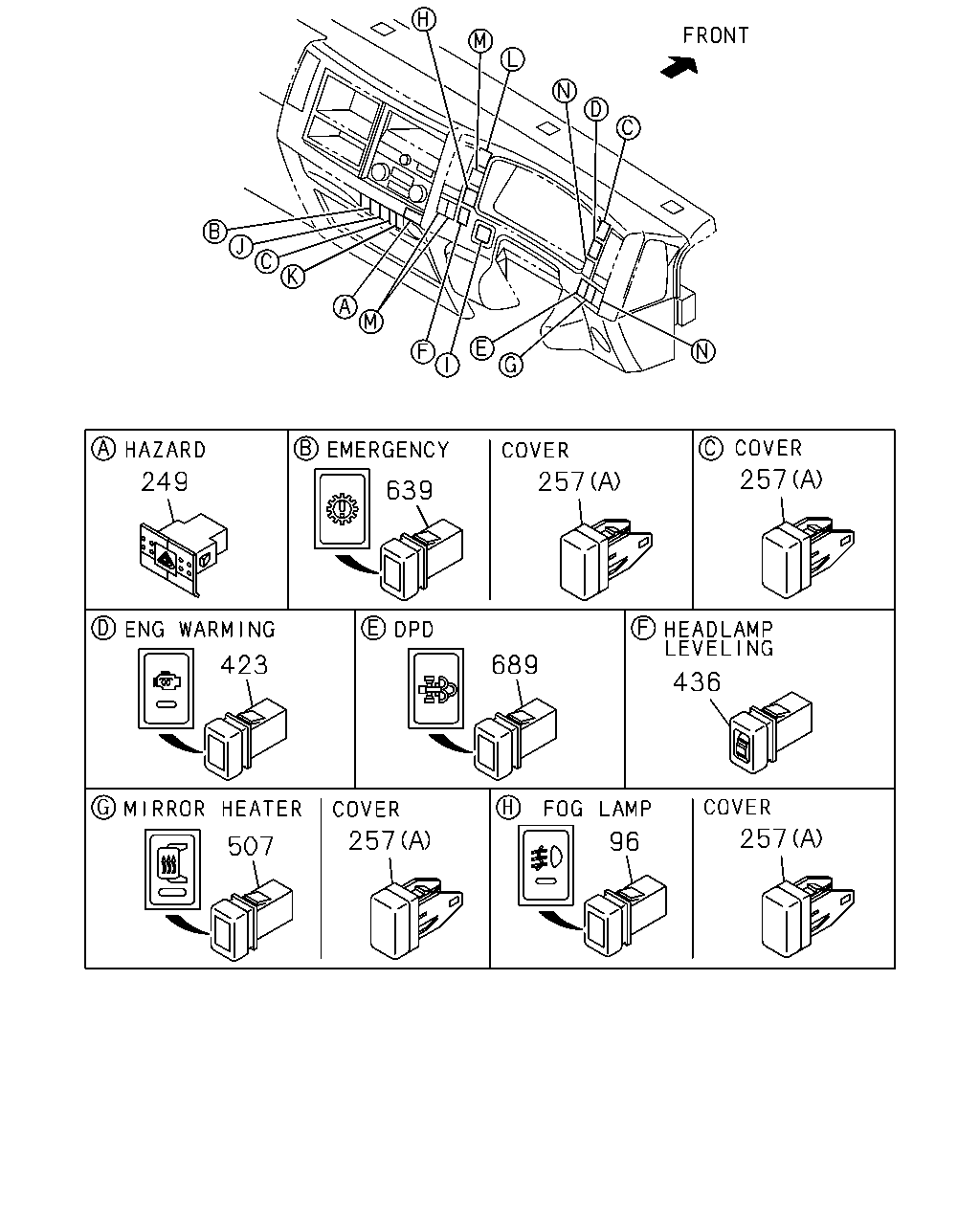

249 639 257 257 436 689 423 507 257 96 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
96	02.485 SWITCH; FOG LAMP	8-97387-031-4	01	1	1309-1310	●	●
96	02.485 SWITCH; FOG LAMP	8-97387-031-4	01	1	1311-	●	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	1309-1310	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	1311-	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	02	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1311-1401			●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	02	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1311-	●	●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	1309-1310	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,SMOOTHER-EX(TYPE2) (8NS) (C)	8-98029-917-0	01	1	1311-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A)	8-98025-954-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1401	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A)	8-98025-954-1	01	1	1311-1401	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1401	●	●	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1402-	●	●	●
423	03.883 SWITCH; ENG WARMING	8-97387-010-2	01	1	1309-1310	●	●
423	03.883 SWITCH; ENG WARMING	8-97387-010-2	01	1	1311-	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97386-981-2	01	1	1309-1310	●	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97386-981-2	01	1	1311-	●	●	●
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> HEATER	8-97386-924-3	01	1	1309-1310	●	●
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> HEATER	8-97386-924-3	01	1	1311-	●	●	●
639	16.263 SWITCH; EMERGENCY SMOOTHER-EX(TYPE2)(8NS)	8-98119-948-0	01	1	1311-1401	●	●
639	16.263 SWITCH; EMERGENCY SMOOTHER-EX(TYPE2)(8NS)	8-98119-948-0	01	1	1402-	●	●	●
689	02.780 SWITCH; DPD	8-97386-921-2	01	1	1309-1310	●	●
689	02.780 SWITCH; DPD CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-97386-921-2	01	1	1311-1408	●	●
689	02.780 SWITCH; DPD	8-97386-921-2	01	1	1311-1408			●
689	02.780 SWITCH; DPD CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-97386-921-2	01	1	1409-	●	●	●

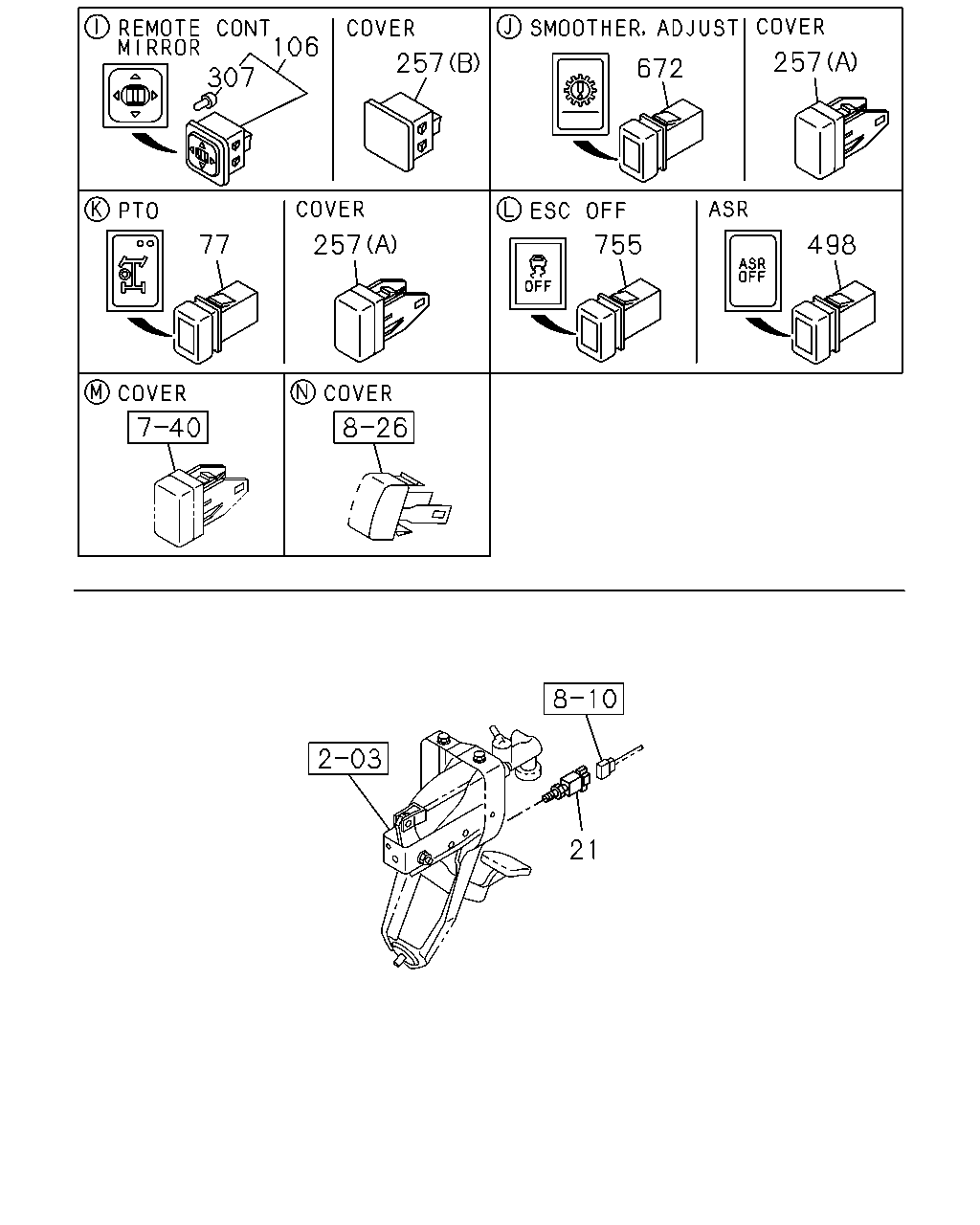

106 307 257 672 257 498 755 257 77 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1309-1310	●	●
21	02.575 SWITCH; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-248-0	01	1	1311-1401	●	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1311-1401			●
21	02.575 SWITCH; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-248-0	01	1	1402-	●	●	●
77	04.439 SWITCH; PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS)	8-97386-964-2	01	1	1311-1401	●	●
77	04.439 SWITCH; PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS)	8-97386-964-2	01	1	1402-	●	●	●
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97173-294-1	01	1	1309-1310	●	●
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97173-294-1	01	1	1311-	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	02	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1311-1401			●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	02	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1311-	●	●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	1309-1310	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,SMOOTHER-EX(TYPE2) (8NS) (C)	8-98029-917-0	01	1	1311-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A)	8-98025-954-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1401	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A)	8-98025-954-1	01	1	1311-1401	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1401	●	●	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1402-	●	●	●
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	1309-1310	●	●
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	1311-	●	●	●
498	03.883 SWITCH; ASR VEHICLE LOW COST PACKAGE VARIANT 1<6NX>	8-98251-095-2	01	1	1404-		●
672	16.263 SWITCH; SMOOTHER,ADJUST SMOOTHER-EX(TYPE2)(8NS)	8-98119-949-1	01	1	1311-1401	●	●
672	16.263 SWITCH; SMOOTHER,ADJUST SMOOTHER-EX(TYPE2)(8NS)	8-98119-949-1	01	1	1402-	●	●	●
755	03.883 SWITCH; ESC OFF	8-98190-384-0	01	1	1309-1310	●	●
755	03.883 SWITCH; ESC OFF	8-98190-384-0	01	1	1311-1403	●	●	●
755	03.883 SWITCH; ESC OFF	8-98190-384-1	01	1	1404-	●		●
755	03.883 SWITCH; ESC OFF EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>	8-98190-384-1	01	1	1404-		●

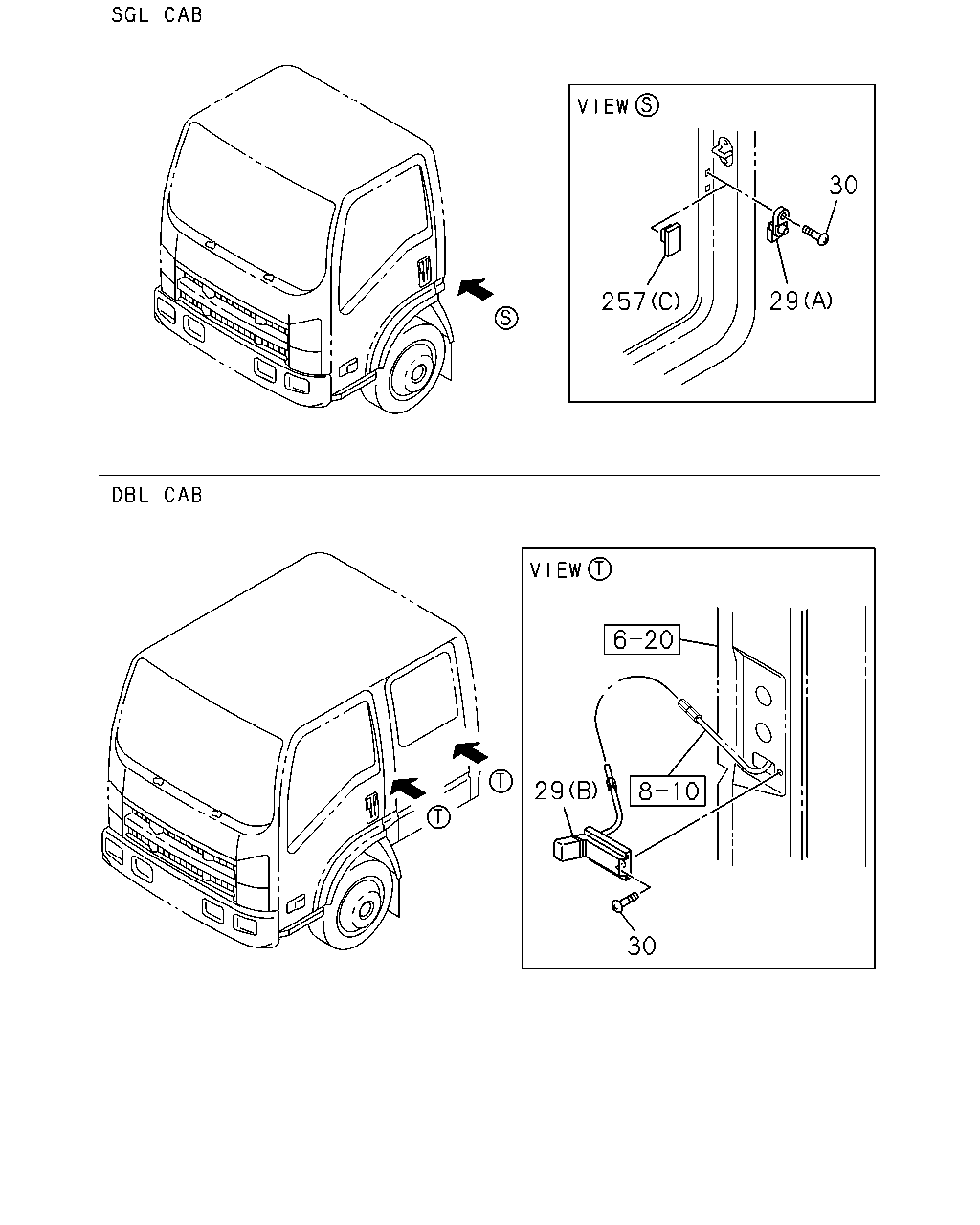

257 29 30 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	01	1	1311-			●
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	01	1	1311-			●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	1311-			●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	1311-			●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	1309-1310	●	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	01	1	1309-1310	●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	01	1	1309-1310	●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	1309-1310		●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	1311-	●	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, SMOOTHER-EX(TYPE2)(8NS) (A) BLACK	8-98022-211-0	01	1	1311-	●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> EXC. SMOOTHER-EX(TYPE2)(8NS) (A) BLACK	8-98022-211-0	01	1	1311-	●
29	16.263 SWITCH; DOOR SMOOTHER-EX(TYPE2)(8NS) (A) BLACK	8-98022-211-0	01	1	1311-	●
30	16.263 SCREW; DOOR SW M5X16	8-94279-341-0	04	1	1311-			●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	1309-1310	●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	1309-1310	●
30	16.263 SCREW; DOOR SW M5X18	8-98047-201-0	02	1	1309-1310		●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, SMOOTHER-EX(TYPE2)(8NS) M5X18	8-98047-201-0	02	1	1311-	●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> EXC. SMOOTHER-EX(TYPE2)(8NS) M5X18	8-98047-201-0	02	1	1311-	●
30	16.263 SCREW; DOOR SW SMOOTHER-EX(TYPE2)(8NS) M5X18	8-98047-201-0	02	1	1311-	●
30	16.263 SCREW; DOOR SW M5X18	8-98047-201-0	02	1	1311-		●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	01	1	1309-1310	●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,SMOOTHER-EX(TYPE2) (8NS) M5X18	8-98047-201-0	01	1	1311-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	02	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1311-1401			●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	02	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1311-	●	●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	1309-1310	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,SMOOTHER-EX(TYPE2) (8NS) (C)	8-98029-917-0	01	1	1311-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A)	8-98025-954-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1309-1310	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1401	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A)	8-98025-954-1	01	1	1311-1401	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1401	●	●	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1311-1401	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,O/SIDE MIRROR HEATED<7SV> (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66) (A)	8-98025-954-1	01	1	1402-	●	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1402-	●	●	●

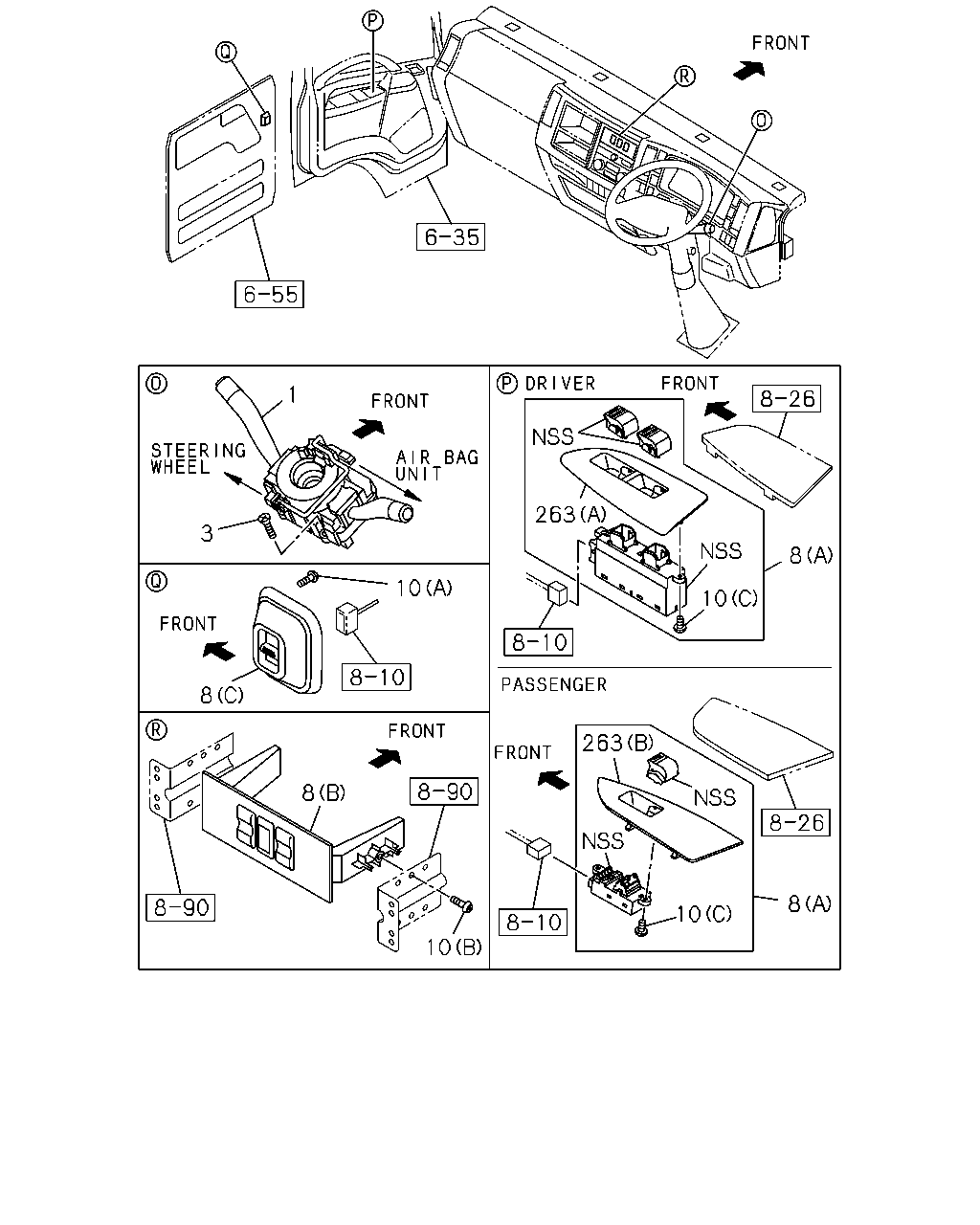

1 3 8 10 8 10 10 8 263 10 8 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.895 SWITCH; COMB EXC. EXHAUST BRAKE<NF8>	8-98219-019-0	01	1	1311-1311	●	●
1	02.895 SWITCH; COMB	8-98219-019-0	01	1	1311-1311			●
1	02.895 SWITCH; COMB EXC. EXHAUST BRAKE<NF8>	8-98243-742-0	01	1	1311-1403	●	●
1	02.895 SWITCH; COMB	8-98243-742-0	01	1	1311-1403			●
1	02.895 SWITCH; COMB EXC. EXHAUST BRAKE<NF8>	8-98243-742-0	01	1	1404-1408	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. EXHAUST BRAKE<NF8>	8-98243-742-0	01	1	1404-1408		●
1	02.895 SWITCH; COMB EXC. EXHAUST BRAKE<NF8>,VEHICLE LOW COSTPACKAGE VARIANT 1<6NX>	8-98243-742-0	01	1	1404-1408		●
1	02.895 SWITCH; COMB	8-98243-742-0	01	1	1404-1408			●
1	02.895 SWITCH; COMB EXC. EXHAUST BRAKE<NF8>	8-98243-742-0	01	1	1409-	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. EXHAUST BRAKE<NF8>	8-98243-742-0	01	1	1409-		●
1	02.895 SWITCH; COMB EXC. EXHAUST BRAKE<NF8>,VEHICLE LOW COSTPACKAGE VARIANT 1<6NX>	8-98243-742-0	01	1	1409-		●
1	02.895 SWITCH; COMB	8-98217-812-0	01	1	1309-1310	●	●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8>	8-98217-812-0	01	1	1311-1311	●	●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8>	8-98243-740-0	01	1	1311-1403	●	●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8>	8-98243-740-0	01	1	1404-1408	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> VEHICLE LOW COST PACKAGE VARIANT 1<6NX>	8-98243-740-0	01	1	1404-1408		●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>	8-98243-740-0	01	1	1404-1408		●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8>	8-98243-740-0	01	1	1409-	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> VEHICLE LOW COST PACKAGE VARIANT 1<6NX>	8-98243-740-0	01	1	1409-		●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>	8-98243-740-0	01	1	1409-		●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1309-1310	●	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1311-1403	●	●	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1404-	●		●
3	02.897 SCREW; COMB SW AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1404-		●
3	02.897 SCREW; COMB SW EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1404-		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-97386-987-2	01	1	1311-			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE	8-97387-035-0	02	1	1311-			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER	8-97387-034-2	01	1	1309-1310	●
8	16.263 SWITCH; POWER WINDOW (A) PASSENGER	8-97387-034-2	01	1	1309-1310		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER	8-97387-034-2	01	1	1311-1509	●
8	16.263 SWITCH; POWER WINDOW (A) PASSENGER	8-97387-034-2	01	1	1311-1509		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER	8-97387-034-2	01	1	1311-1509			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER	8-98316-415-0	01	1	1510-	●
8	16.263 SWITCH; POWER WINDOW (A) PASSENGER	8-98316-415-0	01	1	1510-		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER	8-98316-415-0	01	1	1510-			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER	8-98159-543-0	01	1	1309-1310	●
8	16.263 SWITCH; POWER WINDOW (A) DRIVER	8-98159-543-0	01	1	1309-1310		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER	8-98159-543-0	01	1	1311-1509	●
8	16.263 SWITCH; POWER WINDOW (A) DRIVER	8-98159-543-0	01	1	1311-1509		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER	8-98159-543-0	01	1	1311-1509			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER	8-98298-750-0	01	1	1510-	●
8	16.263 SWITCH; POWER WINDOW (A) DRIVER	8-98298-750-0	01	1	1510-		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER	8-98298-750-0	01	1	1510-			●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING	0-74360-414-0	04	1	1311-			●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1311-			●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	03	1	1309-1310	●
10	03.885 SCREW; POWER WINDOW SW (C)	8-98153-865-0	03	1	1309-1310		●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	03	1	1311-	●
10	03.885 SCREW; POWER WINDOW SW (C)	8-98153-865-0	03	1	1311-		●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98153-865-0	03	1	1311-			●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-836-0	01	1	1309-1310	●
263	16.081 COVER; SW (A)	8-98153-836-0	01	1	1309-1310		●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-836-0	01	1	1311-	●
263	16.081 COVER; SW (A)	8-98153-836-0	01	1	1311-		●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98153-836-0	01	1	1311-			●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-841-0	01	1	1309-1310	●
263	16.081 COVER; SW (B)	8-98153-841-0	01	1	1309-1310		●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-841-0	01	1	1311-	●
263	16.081 COVER; SW (B)	8-98153-841-0	01	1	1311-		●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-98153-841-0	01	1	1311-			●

608 151 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1309-1310	●	●
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1311-	●	●	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1309-1310	●	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1311-	●	●	●
608	02.485 RELAY; SHIFT SMOOTHER-EX(TYPE2)(8NS) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1311-1401	●	●
608	02.485 RELAY; SHIFT SMOOTHER-EX(TYPE2)(8NS) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1402-1402	●	●	●
608	02.485 RELAY; SHIFT SMOOTHER-EX(TYPE2)(8NS) 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●	●

317 610 98 99 12 12 272 272 610 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1309-1310	●
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	1309-1310		●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1311-	●
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	1311-		●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1311-			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1311-			●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1309-1310	●	●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1311-	●	●	●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1309-1310	●	●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1311-	●	●	●
272	02.510 RELAY; DAYTIME LIGHT 08.852 24V 10A PANASONIC	8-97173-035-1	02	1	1309-1310	●	●
272	02.510 RELAY; DAYTIME LIGHT 08.852 24V 10A PANASONIC	8-97173-035-1	02	1	1311-	●	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1309-1310	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1311-	●	●	●
595	02.510 RELAY; IGNITION 24V 12.5A PANASONIC	8-97262-933-0	01	1	1309-1310	●	●
595	02.510 RELAY; IGNITION 24V 12.5A PANASONIC	8-97262-933-0	01	1	1311-	●	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	02	1	1309-1310	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	02	1	1311-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
