Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#126771) — 296 parça

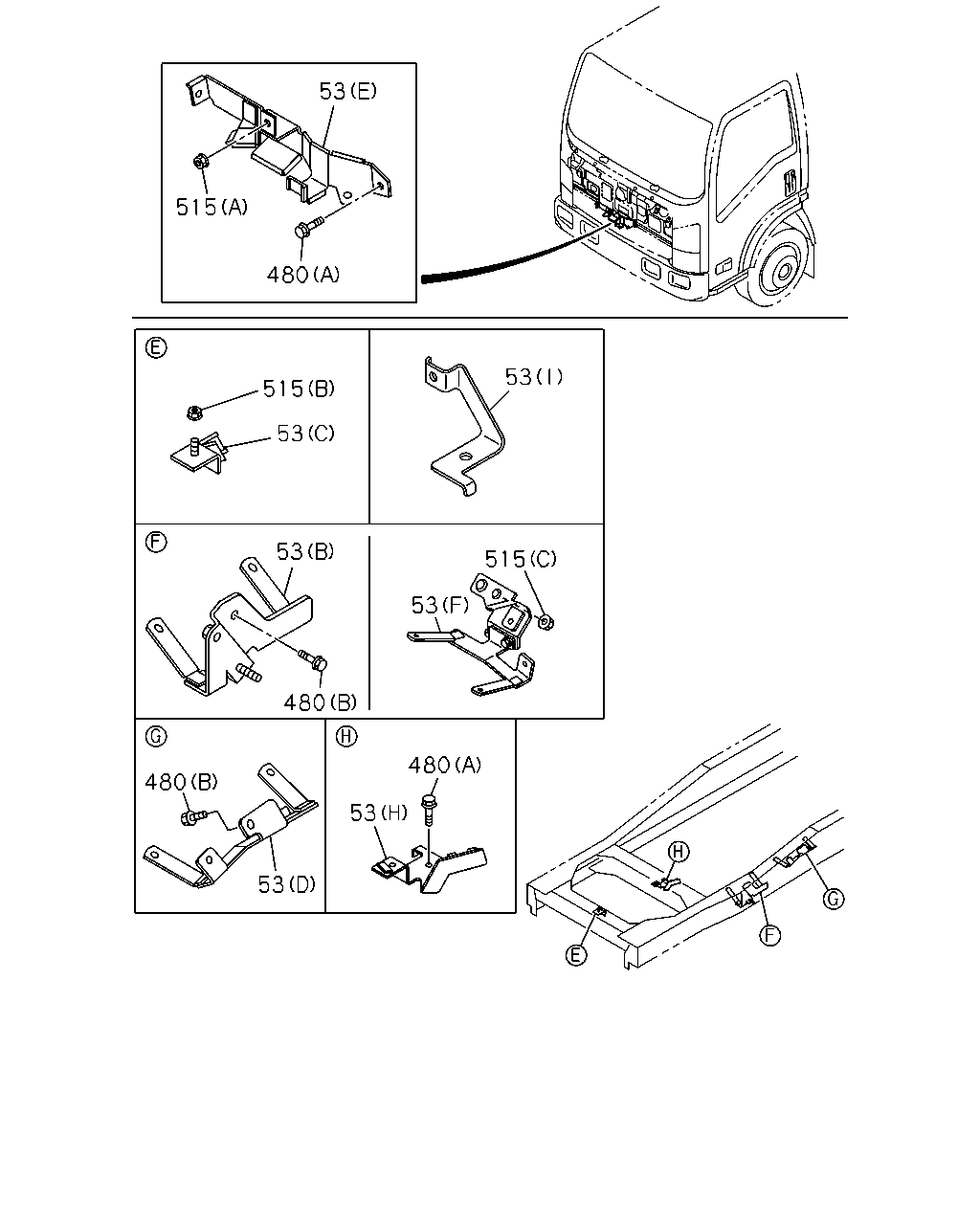

53 480 515 53 515 53 53 53 515 480 480 53 53 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1309-1310	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1311-	●		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1309-1310	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1311-	●		●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (G)	8-98039-277-2	02	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (G)	8-98039-277-2	02	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS (H)	8-98244-750-0	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) (H)	8-98244-750-0	01	1	1311-1408	●	●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) (H)	8-98244-750-0	01	1	1409-	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98105-778-0	01	1	1309-1310	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1309-1310		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98105-778-0	01	1	1311-	●		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1311-		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98107-111-1	01	1	1309-1310	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98107-111-1	01	1	1309-1310		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98107-111-1	01	1	1311-	●		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98107-111-1	01	1	1311-		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98171-457-0	01	1	1309-1310	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (I)	8-98171-457-0	01	1	1309-1310		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98171-457-0	01	1	1311-	●		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (I)	8-98171-457-0	01	1	1311-		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●		●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-			●
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●	●
480	02.483 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●	●
480	02.483 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1309-1310	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1311-	●	●	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1309-1310	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1309-1310		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1311-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1309-1310	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1311-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1309-1310	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1311-	●	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1309-1310	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1309-1310		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1311-	●		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1311-		●

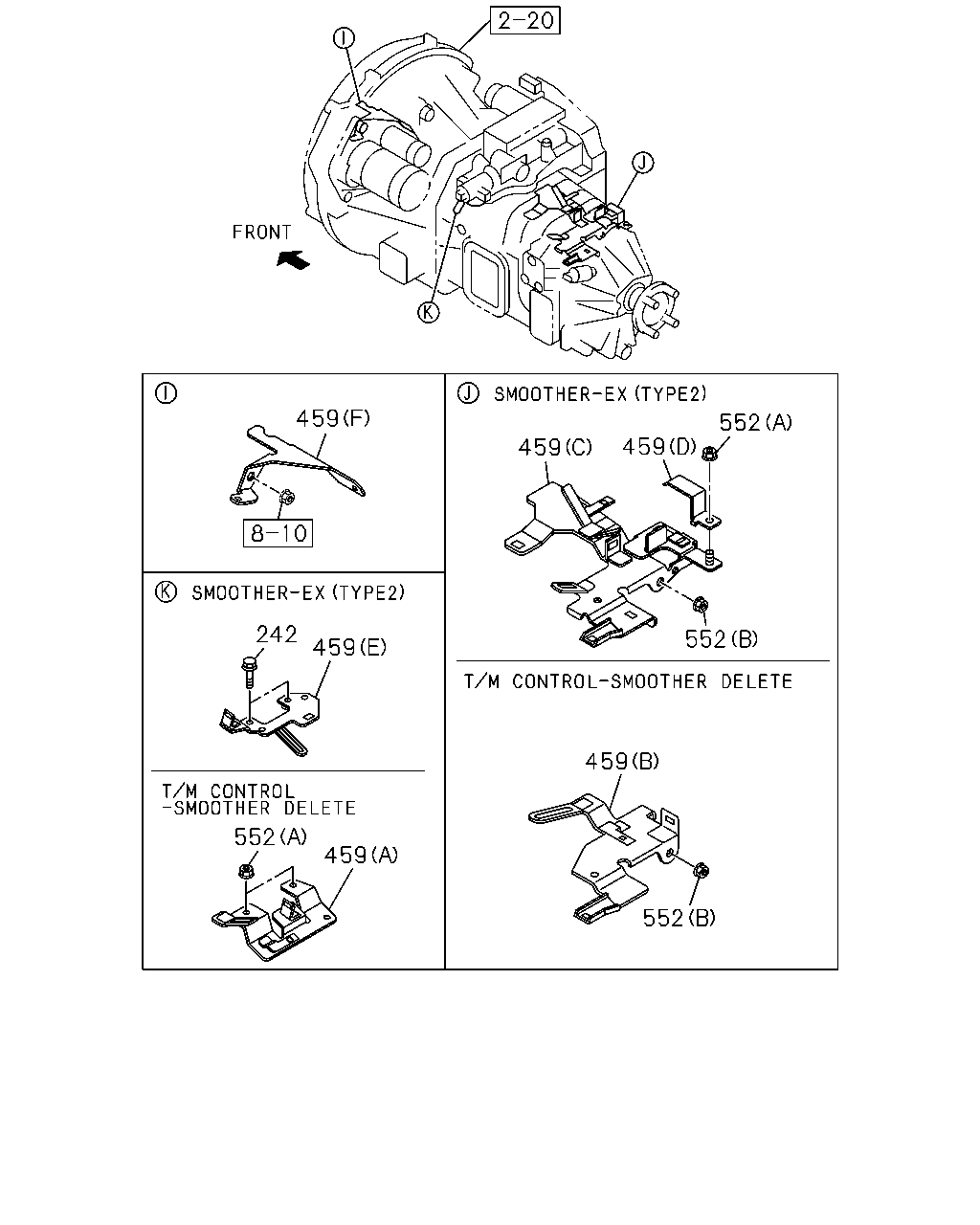

552 459 459 552 459 552 459 552 242 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
242	02.483 BOLT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1311-1401	●	●
242	02.483 BOLT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1402-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (E)	8-98018-899-1	01	1	1311-1401	●	●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (E)	8-98018-899-1	01	1	1402-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (F)	8-98030-988-2	01	1	1311-1401	●	●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (F)	8-98030-988-2	01	1	1402-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1311-1401	●	●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1402-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (D)	8-98044-758-2	01	1	1311-1401	●	●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (D)	8-98044-758-2	01	1	1402-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1309-1310	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98020-227-3	01	1	1311-1401	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1311-1401			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98020-227-3	01	1	1402-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98196-974-0	01	1	1309-1310	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98196-974-0	01	1	1311-1401	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98196-974-0	01	1	1311-1401			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98196-974-0	01	1	1402-	●	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1311-1401	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1402-	●	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1309-1310	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1311-1401	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1311-1401			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1402-	●	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1309-1310	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1311-1401	●	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1311-1401	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1402-	●	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1402-	●	●	●

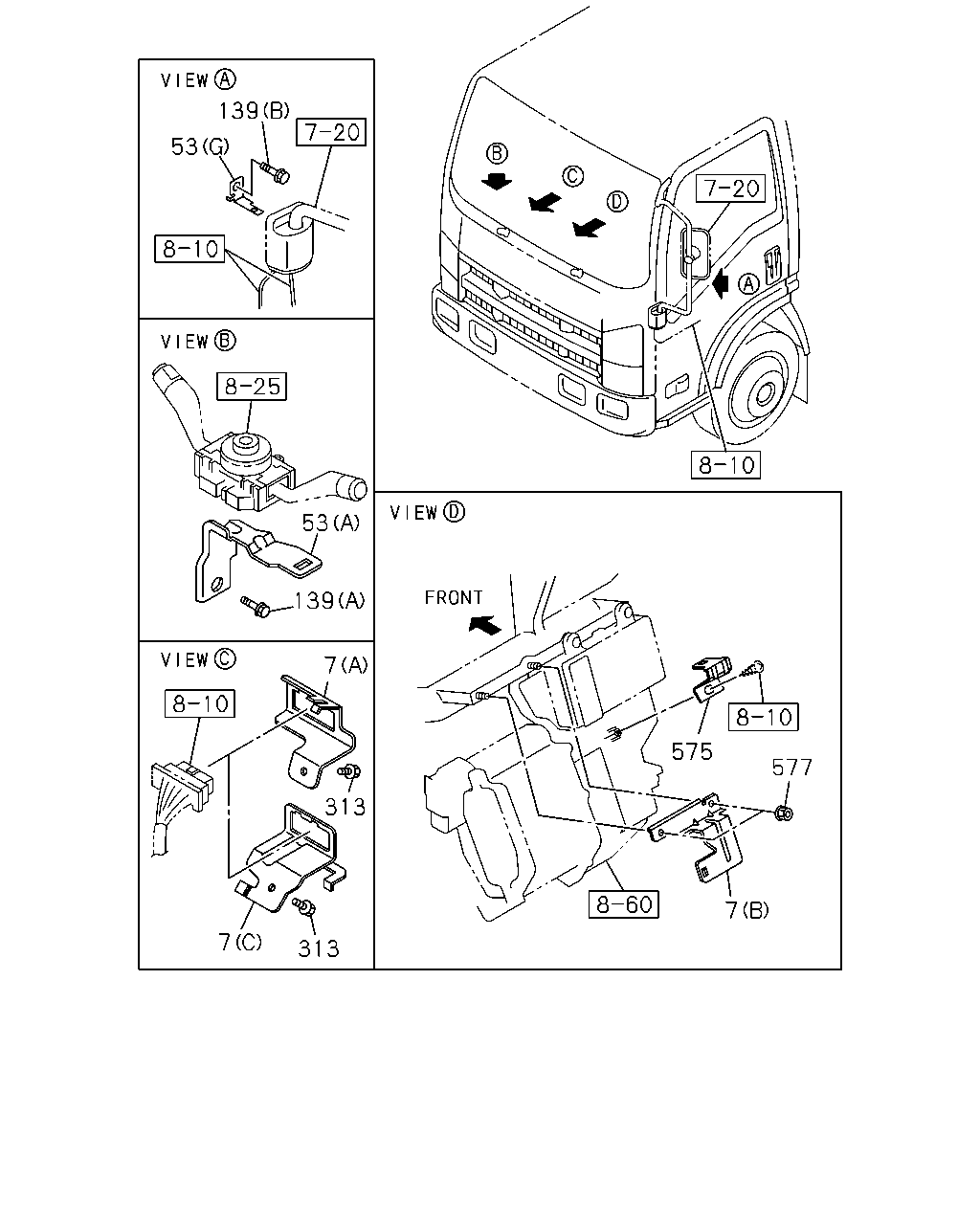

38 313 480 481 139 516 38 139 480 460 480 38 242 529 480 377 377 386 386 24 515 577 219 294 515 524 552 515 519 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-1310	●	●
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	1311-1409	●	●	●
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1311-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1311-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	1309-1310	●	●
38	02.559 BOLT; CLIP,HARNESS 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	1311-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1309-1408	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1409-	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1309-1310	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1311-	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1309-1310	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1311-	●	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-	●	●	●
242	02.483 BOLT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1311-1401	●	●
242	02.483 BOLT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1402-	●	●	●
294	02.559 NUT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408	●	●
294	02.559 NUT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408			●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1309-1310	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1311-	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1309-1310	●	●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1311-	●	●	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1309-1310	●	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1311-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1309-1310	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1311-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1309-1310	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1311-	●	●	●
460	02.559 BOLT; HARNESS PROTECTOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●	●
460	02.559 BOLT; HARNESS PROTECTOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-	●	●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●		●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1311-			●
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1309-1310	●	●
480	02.483 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1311-1408	●	●
480	02.483 BOLT; BRKT EURO6 SPECIFICATION(NT6) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1309-1310	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1311-	●	●	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1309-1310	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1309-1310		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.029 (D) M10X30 FLANGE	0-28651-030-0	01	1	1311-		●
481	13.090 BOLT; CABLE HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1309-1310	●
481	13.090 BOLT; CABLE HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1309-1310		●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1311-1408	●
481	13.090 BOLT; CABLE HARNESS REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1311-1408	●
481	13.090 BOLT; CABLE HARNESS AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1311-1408	●
481	13.090 BOLT; CABLE HARNESS REAR WIDE TREAD(V4T) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1311-1408		●
481	13.090 BOLT; CABLE HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1311-1408			●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1409-	●
481	13.090 BOLT; CABLE HARNESS REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1409-	●
481	13.090 BOLT; CABLE HARNESS AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1409-	●
481	13.090 BOLT; CABLE HARNESS REAR WIDE TREAD(V4T) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1409-		●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1409-			●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1309-1310	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1311-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1309-1310	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1311-	●	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1309-1310	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1309-1310		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1311-	●		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1311-		●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1309-1310	●	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1311-	●	●	●
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-1310	●	●
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	1311-	●	●	●
524	02.559 NUT; HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●
524	02.559 NUT; HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310		●
524	02.559 NUT; HARNESS 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408	●
524	02.559 NUT; HARNESS REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408	●
524	02.559 NUT; HARNESS AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408	●
524	02.559 NUT; HARNESS REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408		●
524	02.559 NUT; HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-1408			●
524	02.559 NUT; HARNESS 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-	●
524	02.559 NUT; HARNESS REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-	●
524	02.559 NUT; HARNESS AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-	●
524	02.559 NUT; HARNESS REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-		●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1409-			●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1309-1310	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1311-	●	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1311-1401	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1402-	●	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1309-1310	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1311-1401	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1311-1401			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1402-	●	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1309-1310	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1311-1401	●	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1311-1401	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1402-	●	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1402-	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1309-1310	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1311-	●	●	●

22 22 16 22 22 16 48 22 48 16 16 16 16 16 48 530 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-94449-165-0	02	1	1311-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	1311-			●
16	02.559 CLIP; HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (E) ID=20	8-94241-972-0	01	1	1309-1310	●	●
16	02.559 CLIP; HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (E) ID=20	8-94241-972-0	01	1	1311-1403	●	●	●
16	02.559 CLIP; HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (E) ID=20	8-94241-972-0	01	1	1311-1403	●	●
16	02.559 CLIP; HARNESS EURO5B+ SPECIFICATION(NT5) (E) ID=20	8-94241-972-0	01	1	1404-1408	●	●	●
16	02.559 CLIP; HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (E) ID=20	8-94241-972-0	01	1	1404-1408	●	●
16	02.559 CLIP; HARNESS EURO5B+ SPECIFICATION(NT5) (E) ID=20	8-94241-972-0	01	1	1409-	●	●	●
16	02.559 CLIP; HARNESS WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (E) ID=20	8-94241-972-0	01	1	1409-	●	●	●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (F) L=250	5-09707-030-1	14	1	1309-1310	●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (F) L=250	5-09707-030-1	14	1	1309-1310		●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (F) L=250	5-09707-030-1	14	1	1311-	●		●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (F) L=250	5-09707-030-1	14	1	1311-		●
16	02.559 CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	1309-1310	●	●
16	02.559 CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	1311-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=40.6	8-97229-357-0	02	1	1311-			●
16	02.559 CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1309-1310	●	●
16	02.559 CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1311-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1309-1310	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1311-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1309-1310	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1311-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1309-1310	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1311-	●	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1309-1310	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1311-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (C) ID=12 & 6.8	8-97125-842-0	01	1	1309-1310	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (C) ID=12 & 6.8	8-97125-842-0	01	1	1311-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	1309-1310	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1311-1408	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	1311-1408			●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1409-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1309-1310	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1311-1311	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1311-1311			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	1309-1310	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) (E) ID=6.8	8-97134-154-0	01	1	1309-1310	●	●
22	02.559 CLIP; ENG HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (E) ID=6.8	8-97134-154-0	01	1	1311-1408	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) (E) ID=6.8	8-97134-154-0	01	1	1311-1408			●
22	02.559 CLIP; ENG HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (E) ID=6.8	8-97134-154-0	01	1	1409-	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	06	1	1311-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1311-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EURO5B+ SPECIFICATION(NT5) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1311-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (C) ID=20	8-94241-972-0	01	1	1311-1408			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (C) ID=20	8-94241-972-0	01	1	1409-			●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	01	1	1309-1310	●	●
48	02.559 CLIP; FRAME HARNESS 03.890 (A) ID=4.8	1-09701-218-0	01	1	1311-1408	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) 03.890 (A) ID=4.8	1-09701-218-0	01	1	1311-1408			●
48	02.559 CLIP; FRAME HARNESS 03.890 (A) ID=4.8	1-09701-218-0	01	1	1409-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	02	1	1309-1408	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) 03.890 (A) ID=4.8	1-09701-218-0	02	1	1409-	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) 01.240 (B) ID=14 L=47	5-09700-319-0	08	1	1309-1310	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	08	1	1311-1403	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) EURO6 SPECIFICATION(NT6) 01.240 (B) ID=14 L=47	5-09700-319-0	08	1	1311-1403		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	08	1	1404-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 01.240 (B) ID=14 L=47	5-09700-319-0	08	1	1404-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1309-1310	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1311-1408	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1311-1408		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1311-1408			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1409-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1409-		●	●
530	02.559 SEAL; HARNESS 09.772	1-15739-008-0	01	1	1309-		●

139 53 53 139 313 7 313 7 575 577 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR SMOOTHER-EX(TYPE2)(8NS) (C)	8-98114-514-0	01	1	1311-1401	●	●
7	02.559 BRACKET; CONNECTOR SMOOTHER-EX(TYPE2)(8NS) (C)	8-98114-514-0	01	1	1402-	●	●	●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	1309-1310	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98043-070-1	01	1	1311-1401	●	●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	1311-1401			●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98043-070-1	01	1	1402-	●	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	1309-1310	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1309-1310	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1311-	●		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1309-1310	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1311-	●		●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (G)	8-98039-277-2	02	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (G)	8-98039-277-2	02	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS (H)	8-98244-750-0	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) (H)	8-98244-750-0	01	1	1311-1408	●	●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) (H)	8-98244-750-0	01	1	1409-	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1309-1310	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1311-	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98105-778-0	01	1	1309-1310	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1309-1310		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98105-778-0	01	1	1311-	●		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1311-		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98107-111-1	01	1	1309-1310	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98107-111-1	01	1	1309-1310		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98107-111-1	01	1	1311-	●		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98107-111-1	01	1	1311-		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98171-457-0	01	1	1309-1310	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (I)	8-98171-457-0	01	1	1309-1310		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98171-457-0	01	1	1311-	●		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (I)	8-98171-457-0	01	1	1311-		●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1309-1310	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1311-	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1309-1310	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1311-	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1309-1310	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1311-	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1309-1310	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1311-	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1309-1310	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1311-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
