Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#12677) — 84 parça

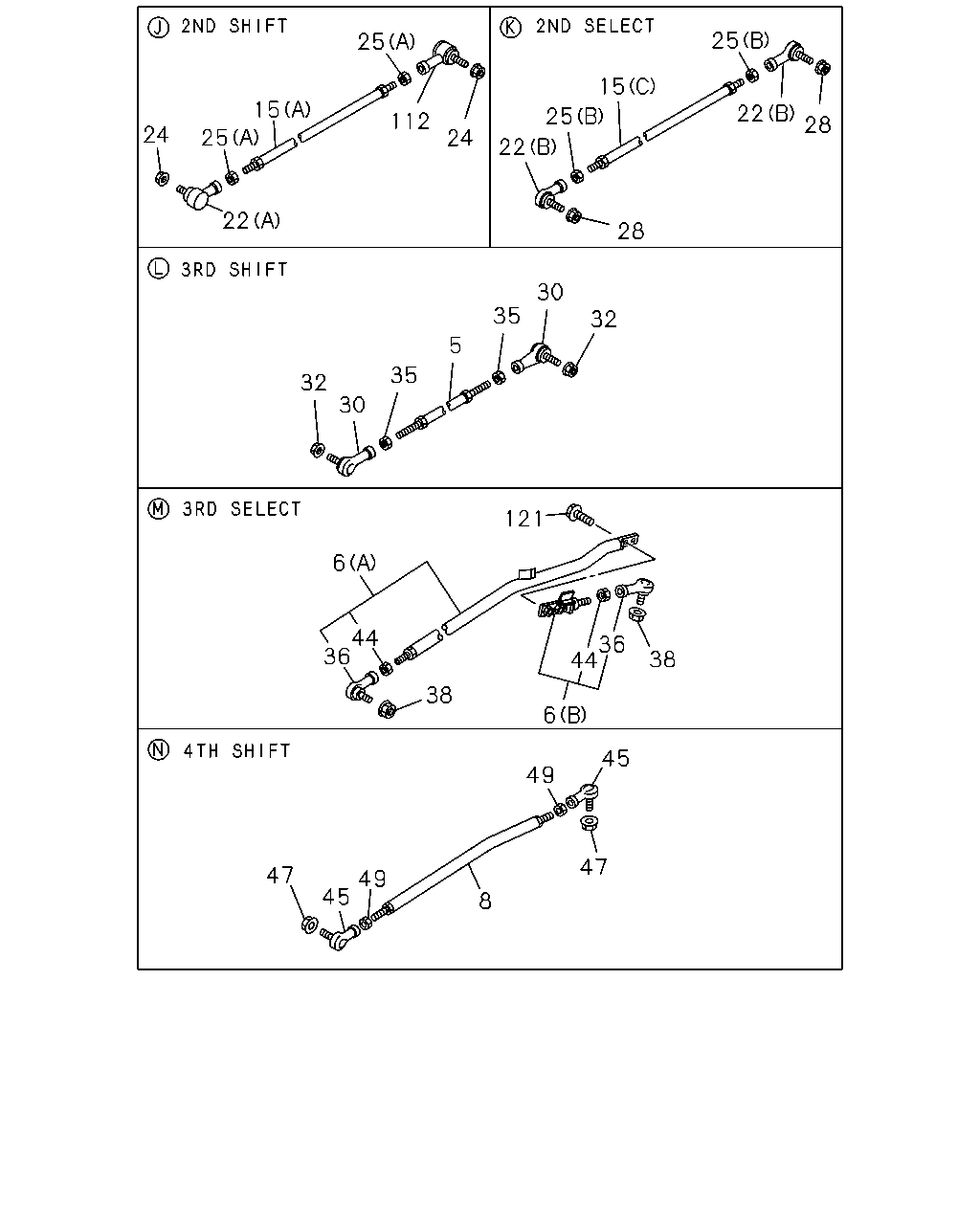

25 25 15 15 22 28 25 112 24 25 24 22 22 28 30 35 32 5 35 32 30 121 6 44 36 36 44 38 38 6 45 49 47 47 49 45 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=855	1-33652-321-0	01	1	0105-
6	ROD; LINK,3RD SELECT ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) L=1396	1-33652-913-1	01	1	0105-
6	ROD; LINK,3RD SELECT MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), ASSISTOR SHIFT CONTROL<WX8> (C) L=1405	1-33652-876-0	01	1	0105-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0105-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (A) L=1220	1-33671-792-1	01	1	0105-
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=360	1-33652-649-1	01	1	0105-
8	ROD; LINK,4TH SHIFT MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), ASSISTOR SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	0105-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=523	1-33652-858-1	01	1	0105-
15	ROD; LINK 1ST SHIFT (C) L=440	1-33652-672-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=490	1-33652-700-0	01	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (B) SELECT	1-09760-108-0	02	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	0105-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0105-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8	9-09111-408-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), ASSISTOR SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	0105-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
121	BOLT; LINK ROD ZF M/T<X9E>	1-09044-103-0	02	1	0105-

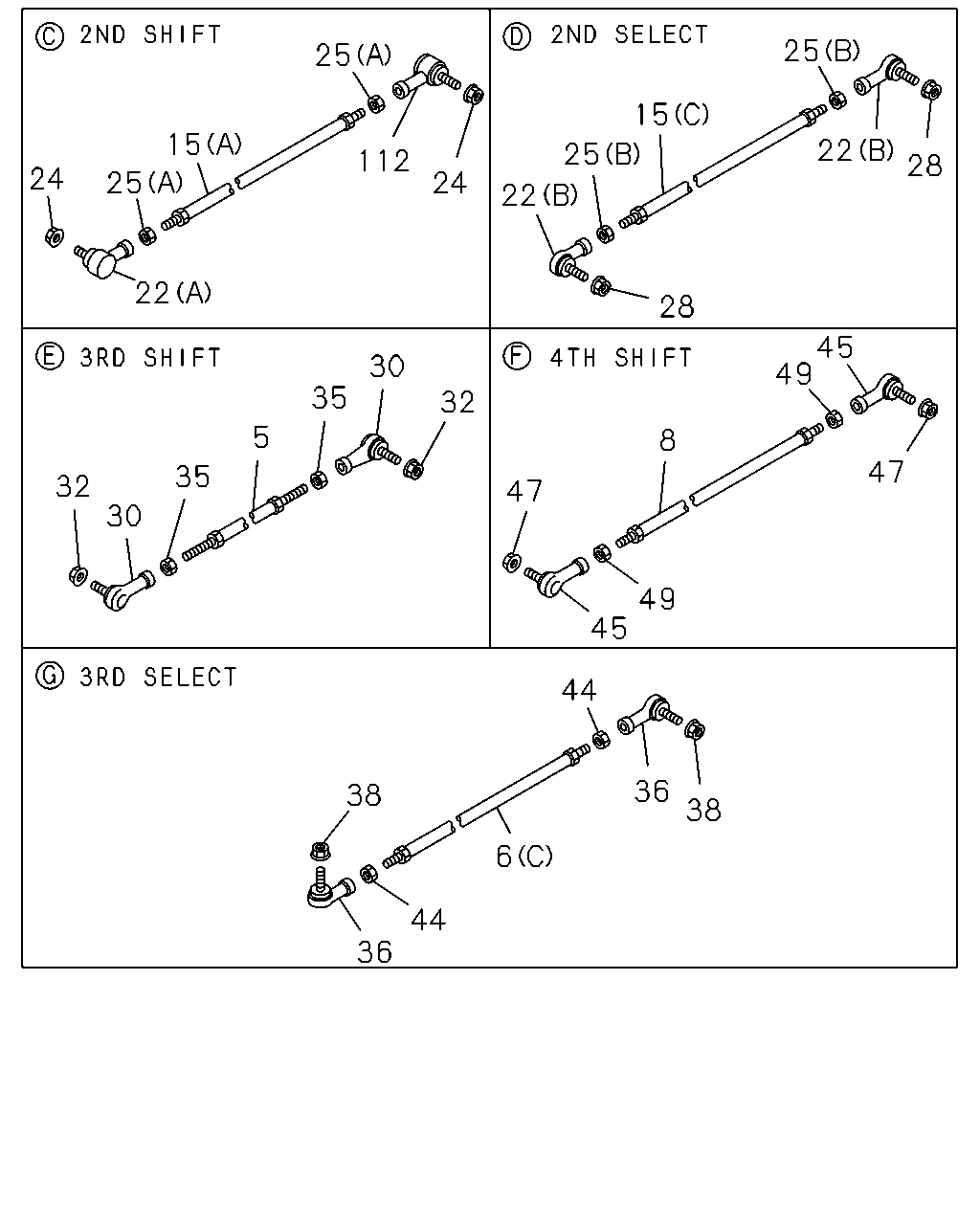

25 25 15 15 22 28 25 112 24 25 24 22 22 28 45 49 30 35 32 5 8 47 35 32 47 30 49 45 44 36 38 38 6 44 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=855	1-33652-321-0	01	1	0105-
6	ROD; LINK,3RD SELECT ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) L=1396	1-33652-913-1	01	1	0105-
6	ROD; LINK,3RD SELECT MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), ASSISTOR SHIFT CONTROL<WX8> (C) L=1405	1-33652-876-0	01	1	0105-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0105-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (A) L=1220	1-33671-792-1	01	1	0105-
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=360	1-33652-649-1	01	1	0105-
8	ROD; LINK,4TH SHIFT MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), ASSISTOR SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	0105-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=523	1-33652-858-1	01	1	0105-
15	ROD; LINK 1ST SHIFT (C) L=440	1-33652-672-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=490	1-33652-700-0	01	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (B) SELECT	1-09760-108-0	02	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	0105-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0105-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8	9-09111-408-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), ASSISTOR SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	0105-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

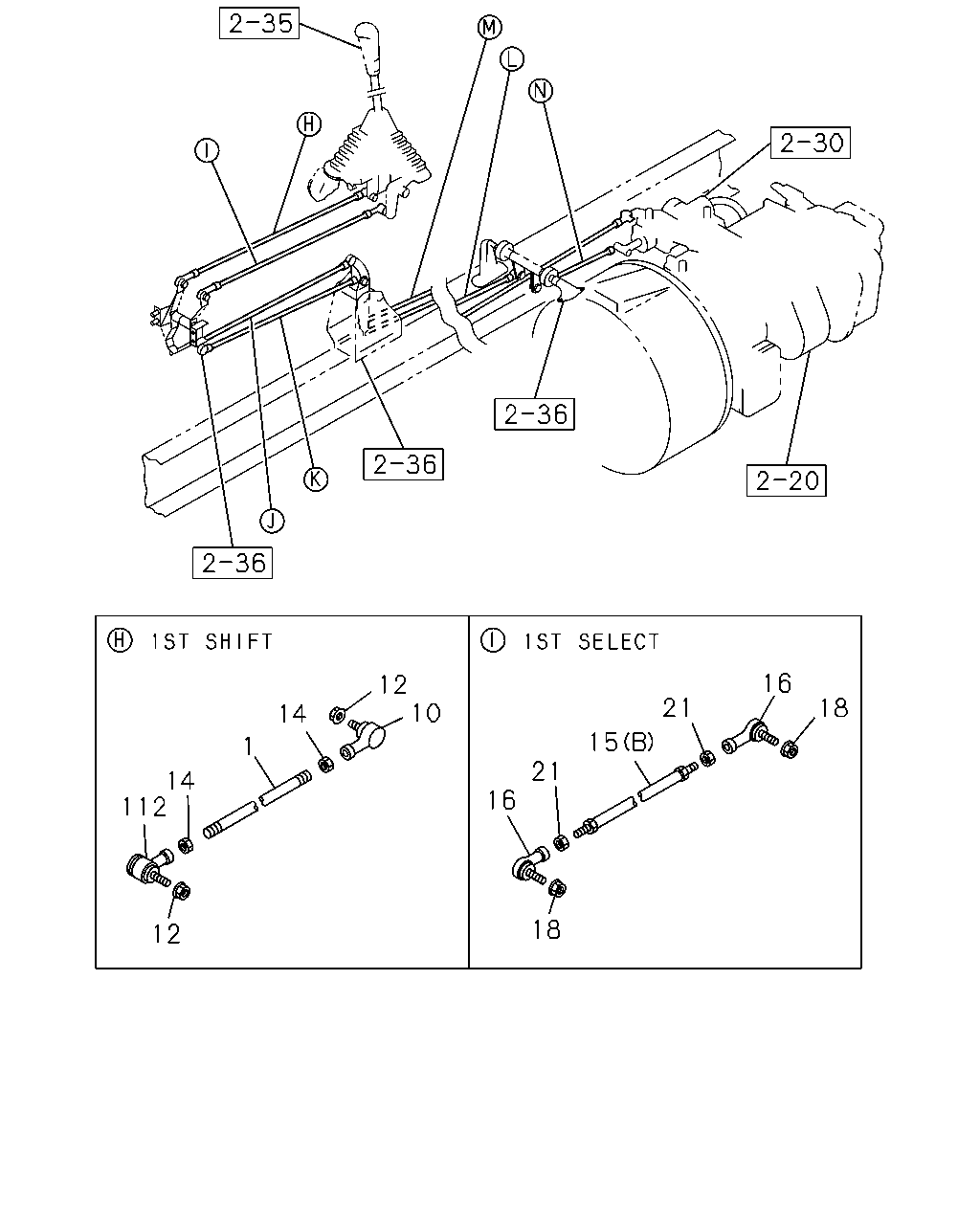

12 16 10 21 18 14 15 1 21 14 16 112 18 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0105-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-
15	ROD; LINK 1ST SHIFT (C) L=440	1-33652-672-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=490	1-33652-700-0	01	1	0105-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0105-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

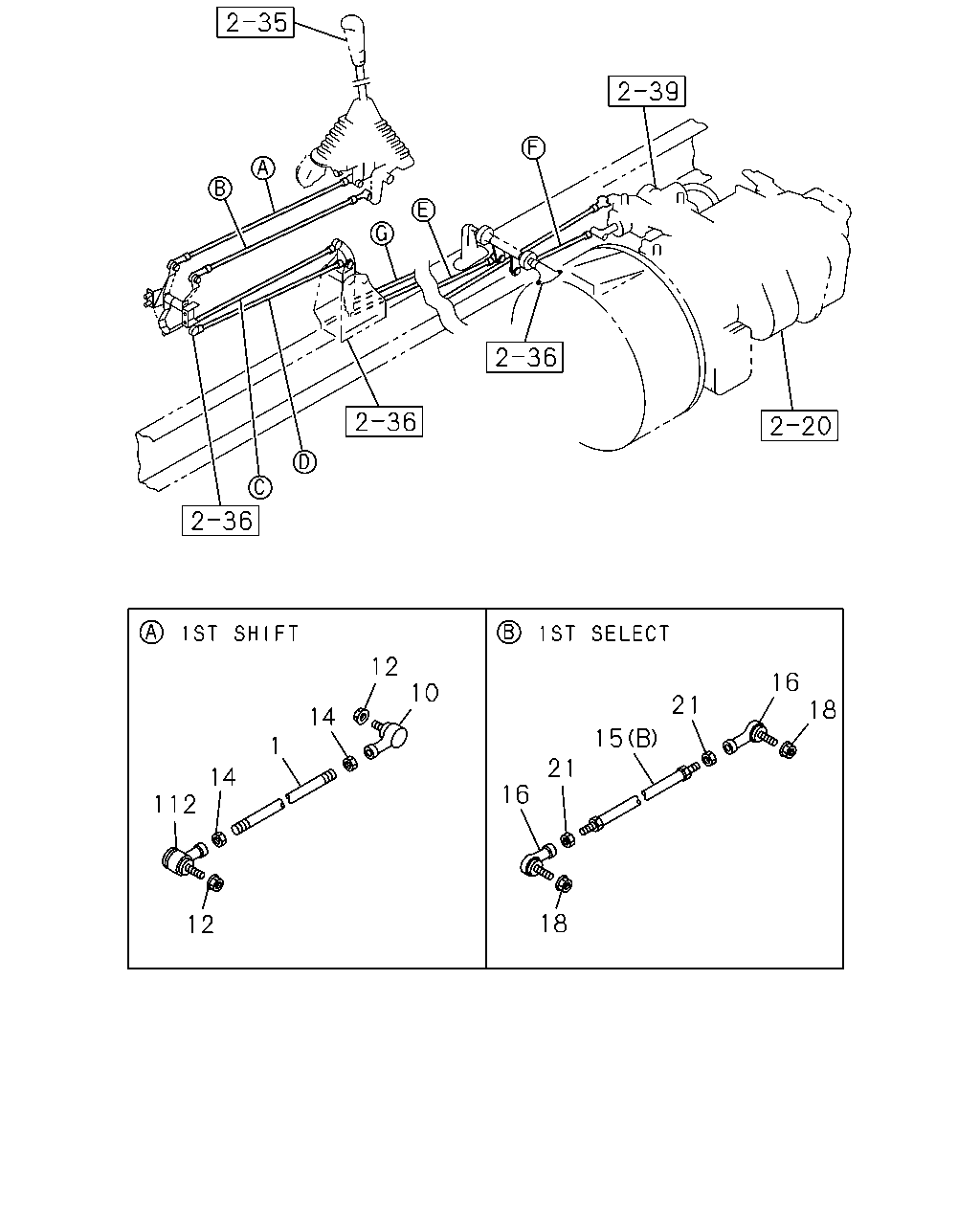

16 12 10 21 18 14 15 1 21 14 112 16 18 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0105-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-
15	ROD; LINK 1ST SHIFT (C) L=440	1-33652-672-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=435	1-33652-696-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=490	1-33652-700-0	01	1	0105-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0105-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

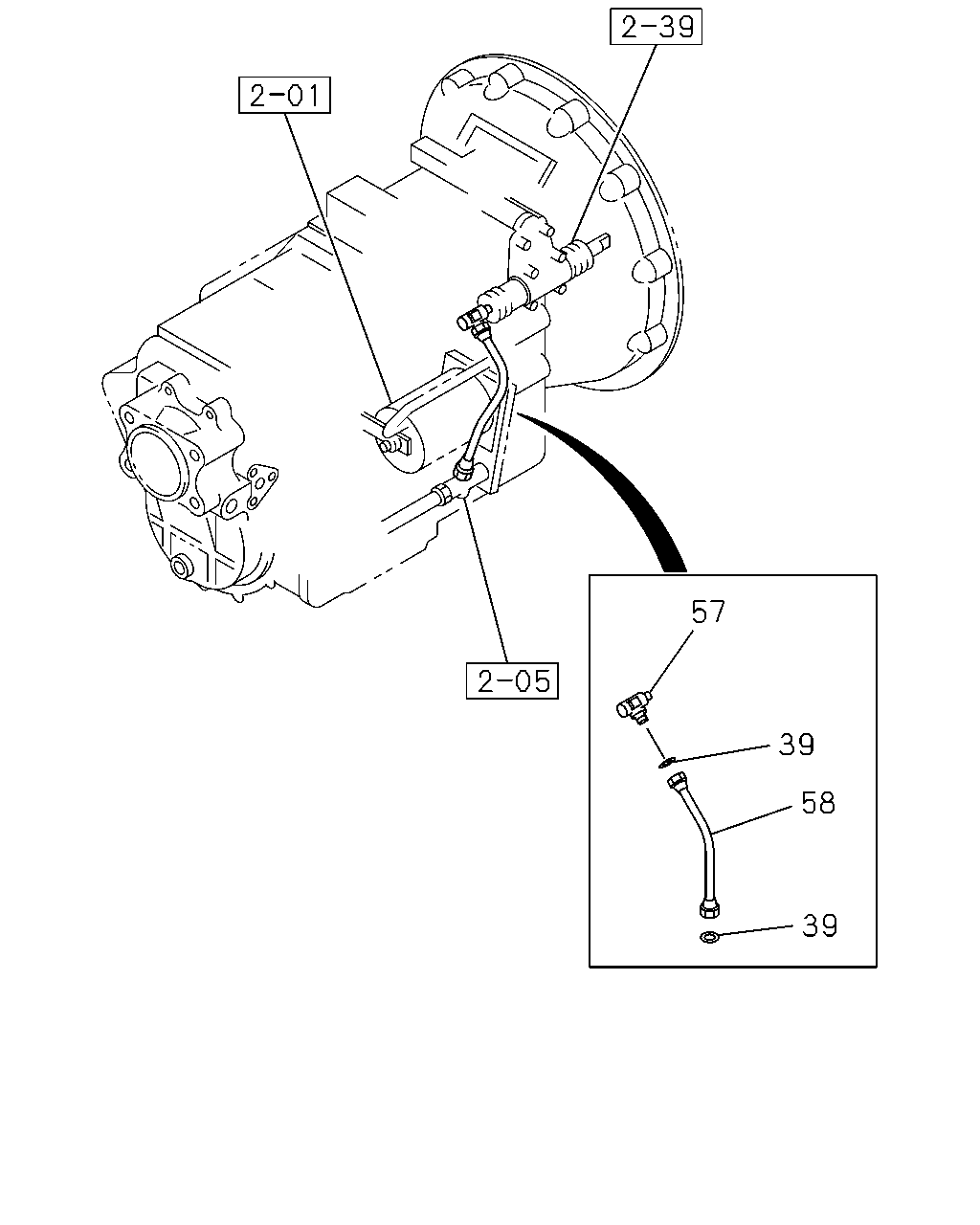

57 39 58 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	02	1	0105-
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> L=360	0-07150-360-0	01	1	0105-
