◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51497 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#126767) — 112 parça

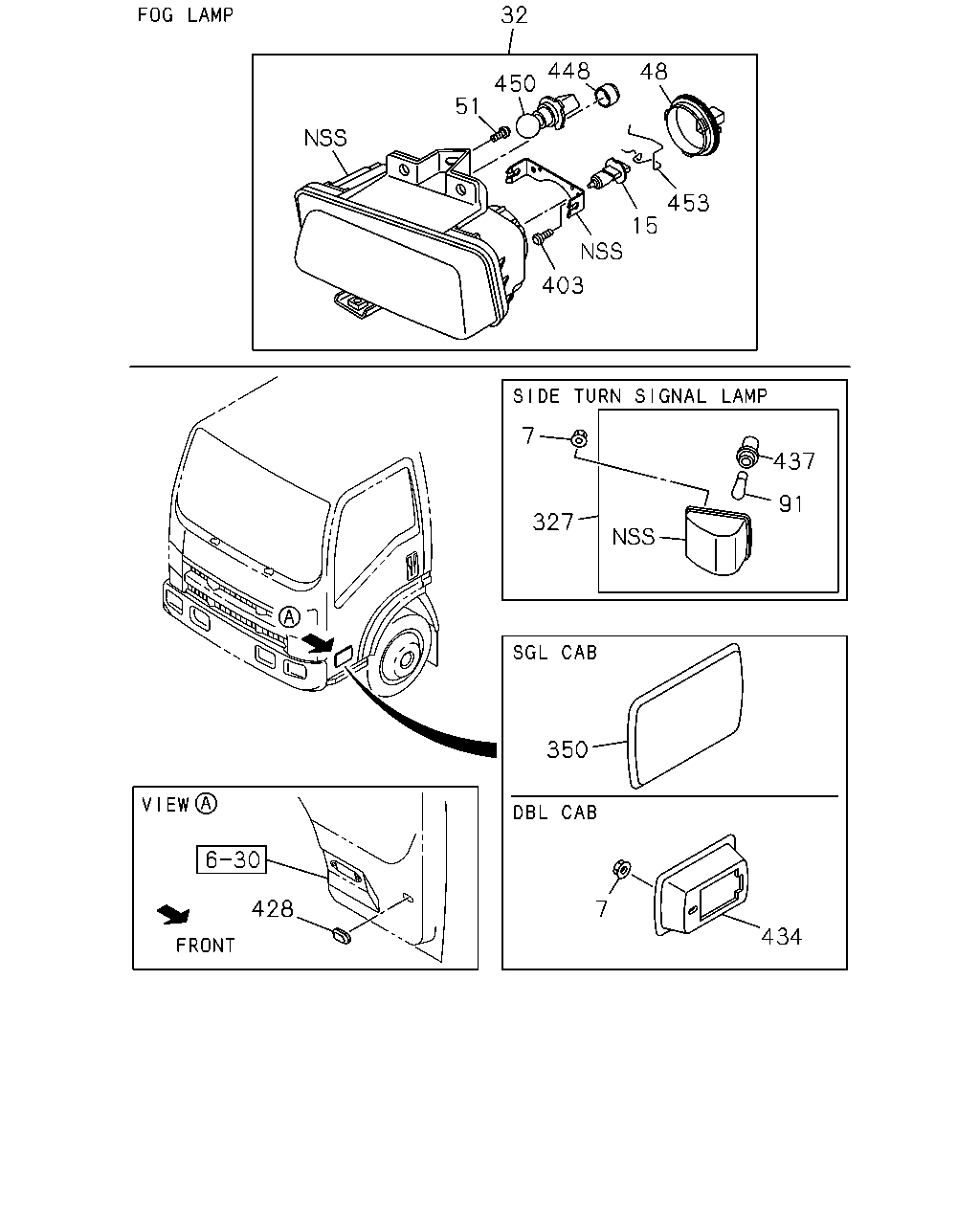

çizim 373278
51 450 32 448 48 453 15 403 437 91 327 7 350 7 434 428
BalonParca AdiParca NoAdetTipApplied Date A B C
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1309-1310 ● ●
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1311- ● ● ●
15 08.991 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 1309-1310 ● ●
15 08.991 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 1311- ● ● ●
32 02.725 LAMP ASM; FOG 8-98218-598-1 01 1 1309-1310 ● ●
32 02.725 LAMP ASM; FOG 8-98218-598-1 01 1 1311- ● ● ●
32 02.725 LAMP ASM; FOG 8-98218-599-1 01 1 1309-1310 ● ●
32 02.725 LAMP ASM; FOG 8-98218-599-1 01 1 1311- ● ● ●
48 02.725 COVER; FOG LAMP 8-98240-559-0 02 1 1309-1310 ● ●
48 02.725 COVER; FOG LAMP 8-98240-559-0 02 1 1311- ● ● ●
51 02.725 SCREW; COVER,FOG LAMP
02.726 		1-82119-086-1 06 1 1309-1310 ● ●
51 02.725 SCREW; COVER,FOG LAMP
02.726 		1-82119-086-1 06 1 1311- ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1309-1310 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1311- ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1309-1310 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1311- ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1309-1310 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1311- ● ● ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 1309- ● ●
403 00.010 SCREW; BRKT,FOG LAMP
02.726 		1-82119-086-1 04 1 1309-1310 ● ●
403 00.010 SCREW; BRKT,FOG LAMP
02.726 		1-82119-086-1 04 1 1311- ● ● ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 1309-1310 ● ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 1311- ● ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-815-0 01 1 1311- ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-816-0 01 1 1311- ●
437 02.596 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1309-1310 ● ●
437 02.596 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1311- ● ● ●
448 02.727 CAP ASM; LAMP 8-97378-874-0 02 1 1309-1310 ● ●
448 02.727 CAP ASM; LAMP 8-97378-874-0 02 1 1311- ● ● ●
450 02.727 BULB; DRL LAMP
12V 13W 		8-98285-107-0 02 1 1309-1310 ● ●
450 02.727 BULB; DRL LAMP
12V 13W 		8-98285-107-0 02 1 1311- ● ● ●
453 02.737 SPRING; SET 8-98075-644-0 02 1 1309-1310 ● ●
453 02.737 SPRING; SET 8-98075-644-0 02 1 1311- ● ● ●

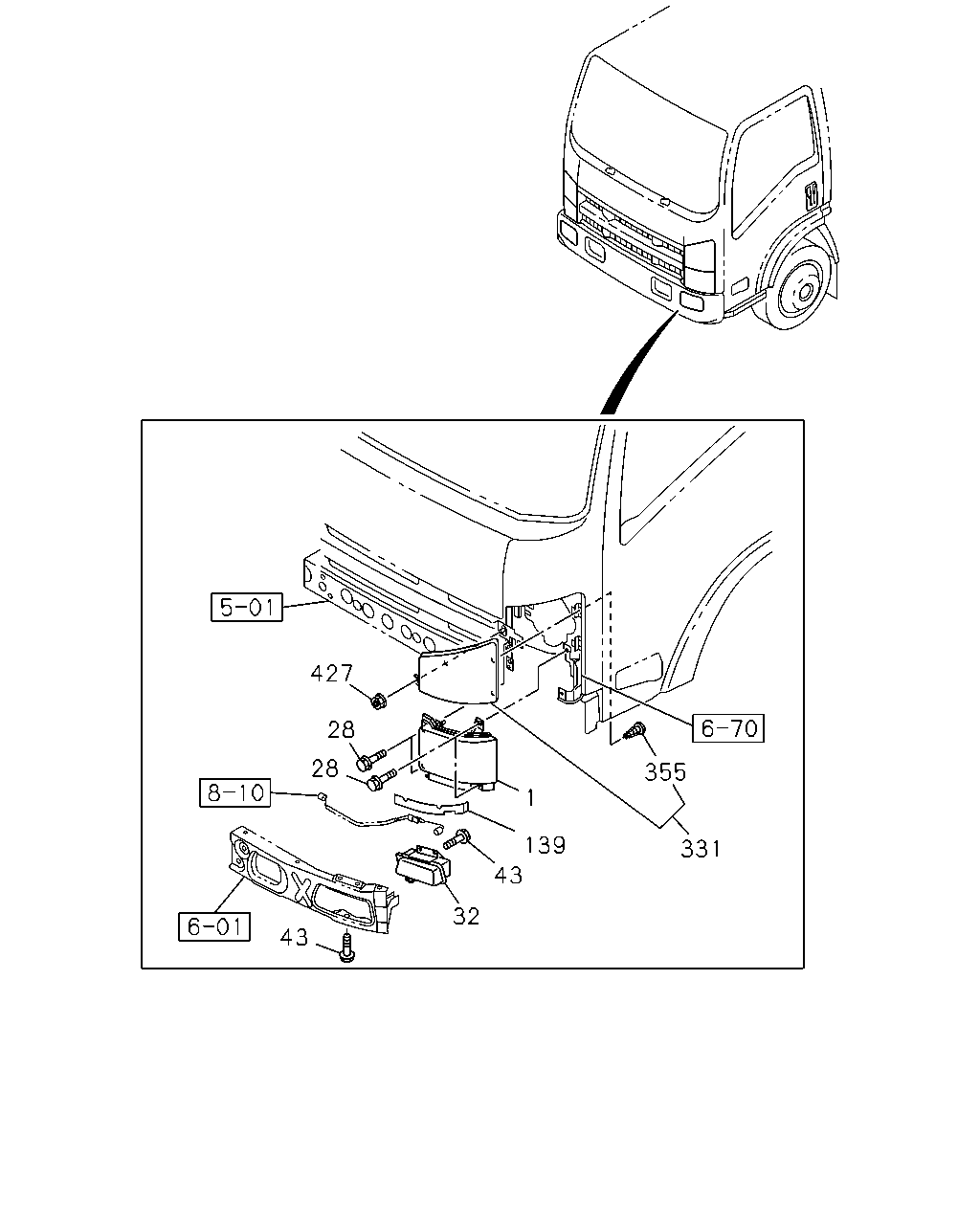

çizim 373427
331 355 1 139 43 32 43 28 28 427
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.725 LAMP ASM; HEAD
ROAD SWEEPER TRUCK(Y23) 		8-98241-323-0 01 1 1312- ● ● ●
1 02.725 LAMP ASM; HEAD
ROAD SWEEPER TRUCK(Y23) 		8-98241-324-0 01 1 1312- ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-319-0 01 1 1309-1310 ● ●
1 02.725 LAMP ASM; HEAD 8-98241-319-0 01 1 1311-1311 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ROAD SWEEPER TRUCK(Y23) 		8-98241-319-0 01 1 1312- ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-320-0 01 1 1309-1310 ● ●
1 02.725 LAMP ASM; HEAD 8-98241-320-0 01 1 1311-1311 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ROAD SWEEPER TRUCK(Y23) 		8-98241-320-0 01 1 1312- ● ● ●
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1309-1310 ● ●
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1311- ● ● ●
32 02.725 LAMP ASM; FOG 8-98218-598-1 01 1 1309-1310 ● ●
32 02.725 LAMP ASM; FOG 8-98218-598-1 01 1 1311- ● ● ●
32 02.725 LAMP ASM; FOG 8-98218-599-1 01 1 1309-1310 ● ●
32 02.725 LAMP ASM; FOG 8-98218-599-1 01 1 1311- ● ● ●
43 02.736 BOLT; FOG LAMP
01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1309-1310 ● ●
43 02.736 BOLT; FOG LAMP
01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1311- ● ● ●
139 02.726 COVER; HEADLAMP
4JJ1-TCS ENG(LFB) 		8-98084-160-0 02 1 1409- ●
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 1309-1310 ● ●
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 1311-1408 ● ● ●
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 1409- ● ●
139 02.726 COVER; HEADLAMP
4JJ1-TCC ENG(RDU) 		8-98034-056-1 02 1 1409- ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1309-1310 ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1311- ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1309-1310 ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1311- ● ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1309-1310 ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1311- ● ● ●
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1309-1310 ● ●
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1311- ● ● ●
çizim 373548
331 357 399 355 432 431 23 4 1 338 339 408 420 20 5 457 382 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.725 LAMP ASM; HEAD
ROAD SWEEPER TRUCK(Y23) 		8-98241-323-0 01 1 1312- ● ● ●
1 02.725 LAMP ASM; HEAD
ROAD SWEEPER TRUCK(Y23) 		8-98241-324-0 01 1 1312- ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-319-0 01 1 1309-1310 ● ●
1 02.725 LAMP ASM; HEAD 8-98241-319-0 01 1 1311-1311 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ROAD SWEEPER TRUCK(Y23) 		8-98241-319-0 01 1 1312- ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-320-0 01 1 1309-1310 ● ●
1 02.725 LAMP ASM; HEAD 8-98241-320-0 01 1 1311-1311 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ROAD SWEEPER TRUCK(Y23) 		8-98241-320-0 01 1 1312- ● ● ●
4 02.727 HEADLAMP UNIT
ROAD SWEEPER TRUCK(Y23) 		8-98226-184-0 01 1 1312- ● ● ●
4 02.727 HEADLAMP UNIT
ROAD SWEEPER TRUCK(Y23) 		8-98226-185-0 01 1 1312- ● ● ●
4 02.727 HEADLAMP UNIT 8-98226-180-0 01 1 1309-1310 ● ●
4 02.727 HEADLAMP UNIT 8-98226-180-0 01 1 1311-1311 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ROAD SWEEPER TRUCK(Y23) 		8-98226-180-0 01 1 1312- ● ● ●
4 02.727 HEADLAMP UNIT 8-98226-181-0 01 1 1309-1310 ● ●
4 02.727 HEADLAMP UNIT 8-98226-181-0 01 1 1311-1311 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ROAD SWEEPER TRUCK(Y23) 		8-98226-181-0 01 1 1312- ● ● ●
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1309-1310 ● ●
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1311- ● ● ●
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1309-1310 ● ●
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1311- ● ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 1309-1310 ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 1311- ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1309-1310 ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1311- ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1309-1310 ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1311- ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1309-1310 ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1311- ● ● ●
338 02.727 LEVELING; HEADLAMP 8-98010-256-0 02 1 1309-1310 ● ●
338 02.727 LEVELING; HEADLAMP 8-98010-256-0 02 1 1311- ● ● ●
339 02.587 GASKET; LEVELING 1-86830-158-0 02 1 1309-1310 ● ●
339 02.587 GASKET; LEVELING 1-86830-158-0 02 1 1311- ● ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1309-1310 ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1311- ● ● ●
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 1309-1310 ● ●
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 1311- ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1309-1310 ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1311- ● ● ●
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1309-1310 ● ●
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1311- ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1309-1310 ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1311- ● ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1309-1310 ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1311- ● ● ●
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 1309-1310 ● ●
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 1311- ● ● ●
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1309-1310 ● ●
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1311- ● ● ●
457 16.450 GRIP; HEADLAMP 8-98241-354-0 02 1 1309-1310 ● ●
457 16.450 GRIP; HEADLAMP 8-98241-354-0 02 1 1311- ● ● ●
