2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#12676) — 71 parça

33 243 35 34 46 71 162 34 33 71 46 34 242 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT,3RD RELAY LEVER (A) M14X45	0-20801-445-0	01	1	0105-
33	BOLT; BRKT,3RD RELAY LEVER (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	0105-
34	SEAT; BALL,RELAY LEVER	1-33659-118-0	04	1	0105-
35	RING; SNAP,RELAY LEVER OD=23.5	9-09180-122-0	01	1	0105-
46	SEAL; DUST,RELAY LEVER	1-33659-172-0	02	1	0105-
71	BRACKET; 3RD RELAY LEVER,FRAME ISUZU M/T<X9A> (B)	1-33657-188-0	01	1	0105-
71	BRACKET; 3RD RELAY LEVER,FRAME ISUZU M/T<X9A> (A)	1-33657-568-0	01	1	0105-
71	BRACKET; 3RD RELAY LEVER,FRAME ZF M/T<X9E> (B)	1-33657-478-0	01	1	0105-
71	BRACKET; 3RD RELAY LEVER,FRAME ZF M/T<X9E> (A)	1-33657-569-0	01	1	0105-
162	LEVER; RELAY ISUZU M/T<X9A>	1-33651-806-0	01	1	0105-
162	LEVER; RELAY ZF M/T<X9E>	1-33651-678-1	01	1	0105-
242	NUT; FLANGE 3RD RELAY LEVER M8 FLANGE	5-09440-005-0	04	1	0105-
243	WASHER; LK,BRKT ID=14.2	9-09150-614-0	01	1	0105-

457 118 88 365 118 457 457 118 88 115 118 457 16 253 254 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	0105-
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	0105-
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	0105-
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	0105-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0105-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0105-
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	0105-
365	LEVER; RELAY,SELECT (B)	1-33651-638-1	01	1	0105-
365	LEVER; RELAY,SELECT (C)	1-33651-649-1	01	1	0105-
365	LEVER; RELAY,SELECT (A)	1-33651-770-1	01	1	0105-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2	1-09630-083-0	01	1	0105-
458	BRACKET; 2ND RELAY LEVER	1-33657-572-2	01	1	0105-

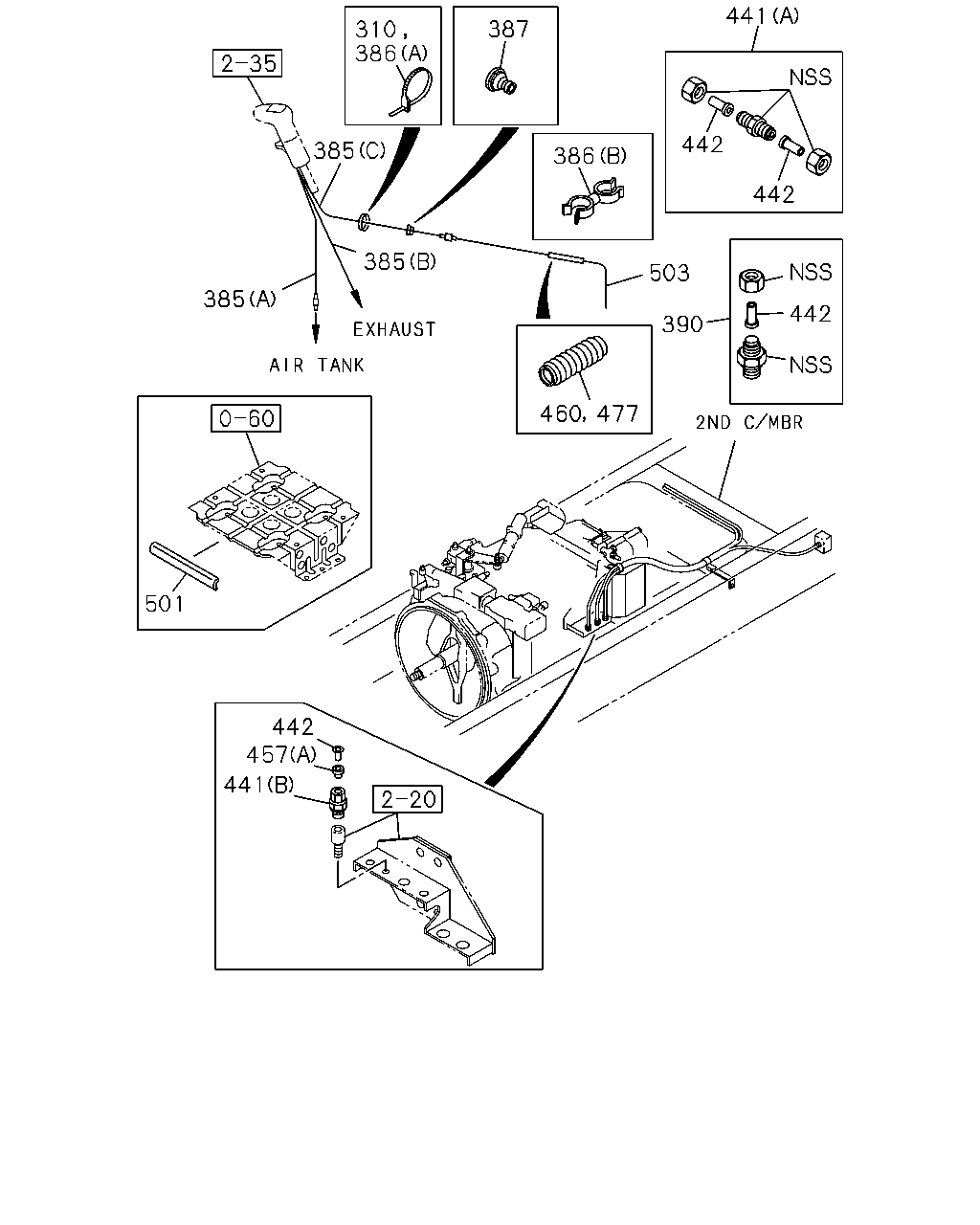

441 387 310 386 385 442 386 442 385 503 385 442 390 460 477 501 442 457 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) BAND AND STOPPER TYPE L=250	1-09707-126-0	16	1	0105-
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) BAND TYPE L=250	5-09707-030-1	02	1	0105-
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) L=140	5-09707-031-1	01	1	0105-0105
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) L=140	5-09707-031-1	02	1	0106-
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) ID=12-16 & 12-16	1-09709-191-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0105-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0105-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=250	5-09707-030-1	02	1	0105-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	01	1	0105-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S151 OD(Y2N) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0105-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0105-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0105-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2	1-09630-083-0	01	1	0105-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) L=250 SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0105-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0105-0105
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	0106-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0105-
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0105-
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	0105-0105
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0106-

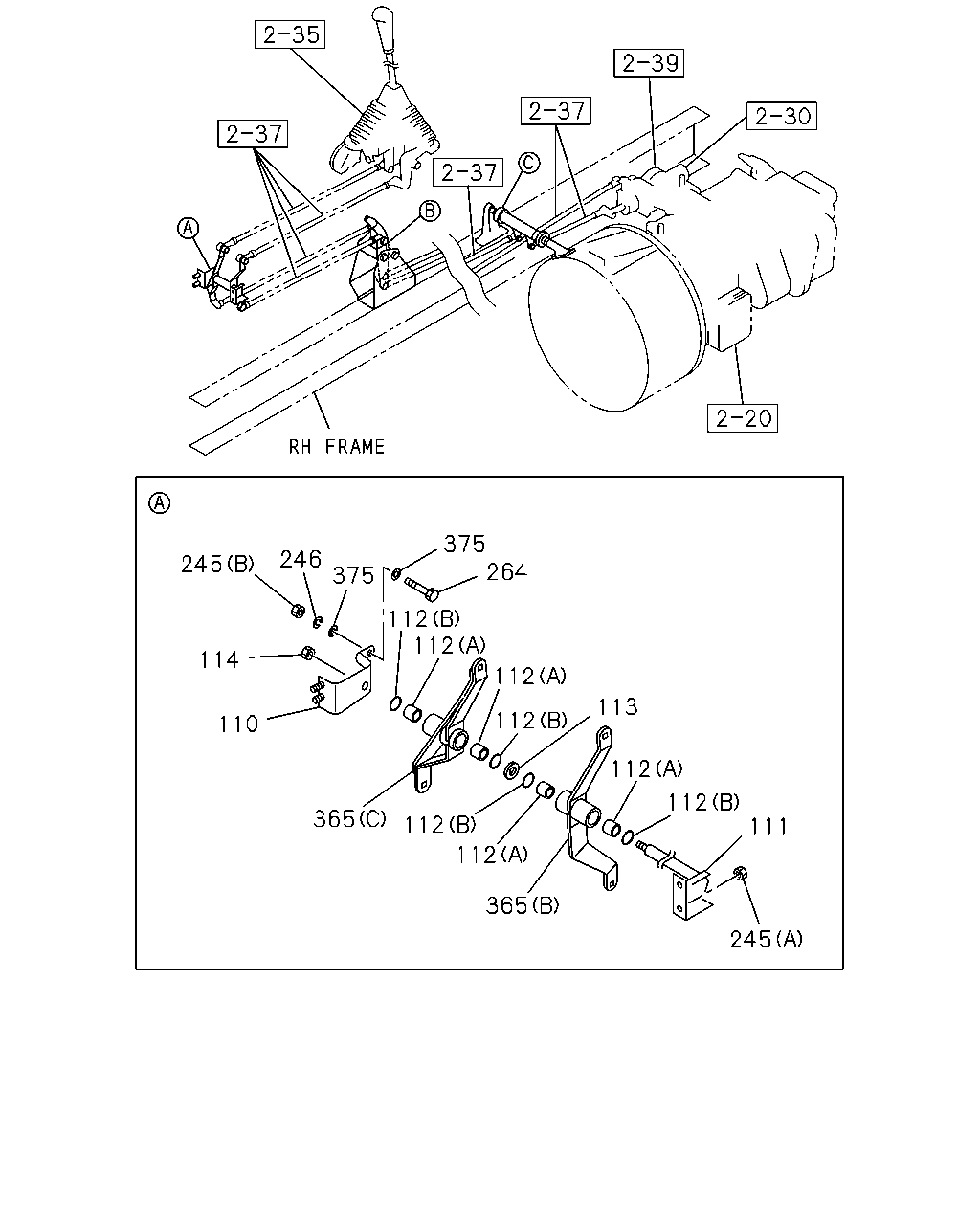

375 264 246 245 375 112 112 114 112 113 112 110 112 112 365 112 111 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	0105-
111	SHAFT; RELAY LEVER,1ST	1-33619-468-1	01	1	0105-
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	0105-
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	0105-
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	0105-
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0105-
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	0105-
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	0105-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	0105-
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	0105-
365	LEVER; RELAY,SELECT (B)	1-33651-638-1	01	1	0105-
365	LEVER; RELAY,SELECT (C)	1-33651-649-1	01	1	0105-
365	LEVER; RELAY,SELECT (A)	1-33651-770-1	01	1	0105-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-
