6-75 — MAT AND CARPET (#126751) — 40 parça

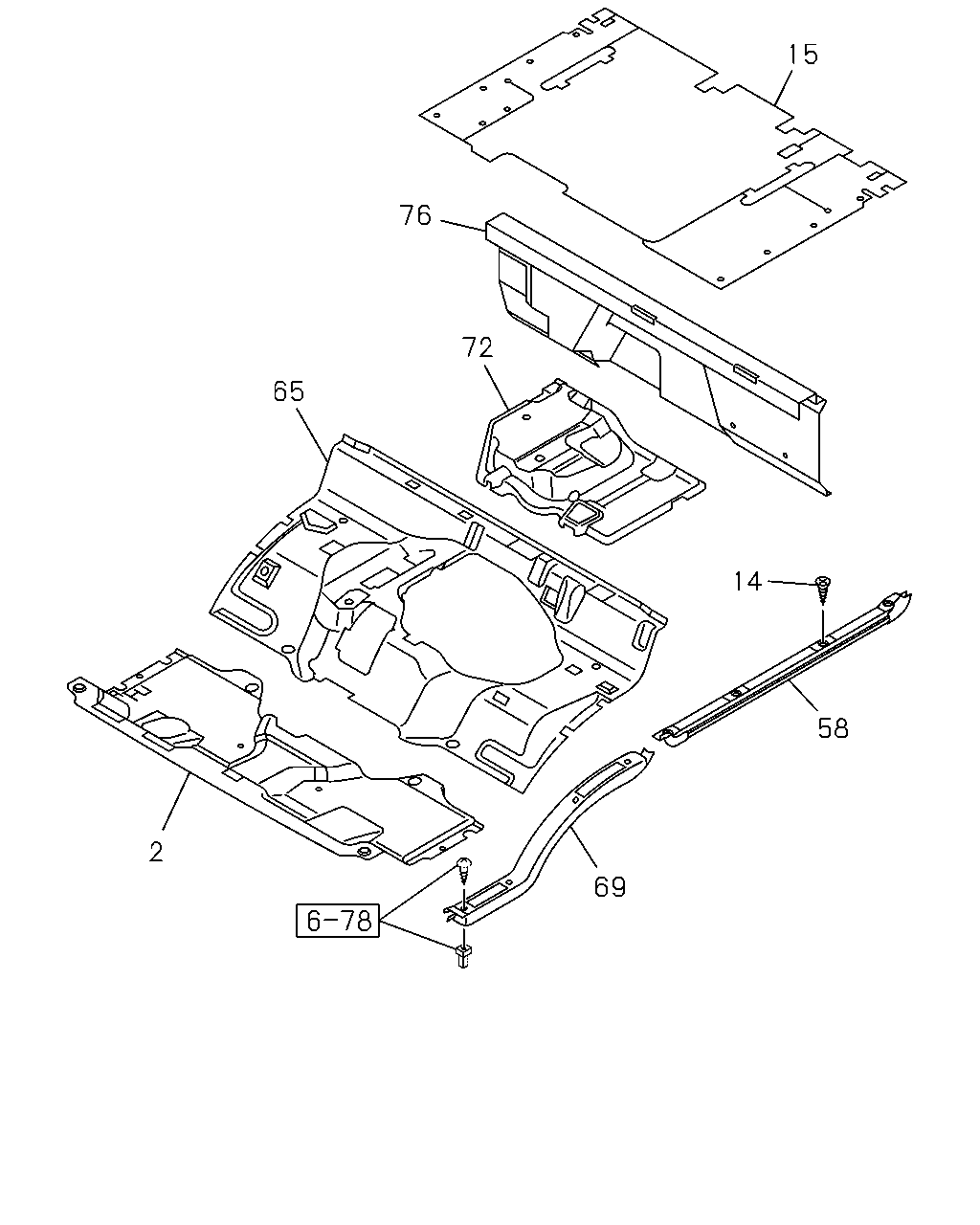

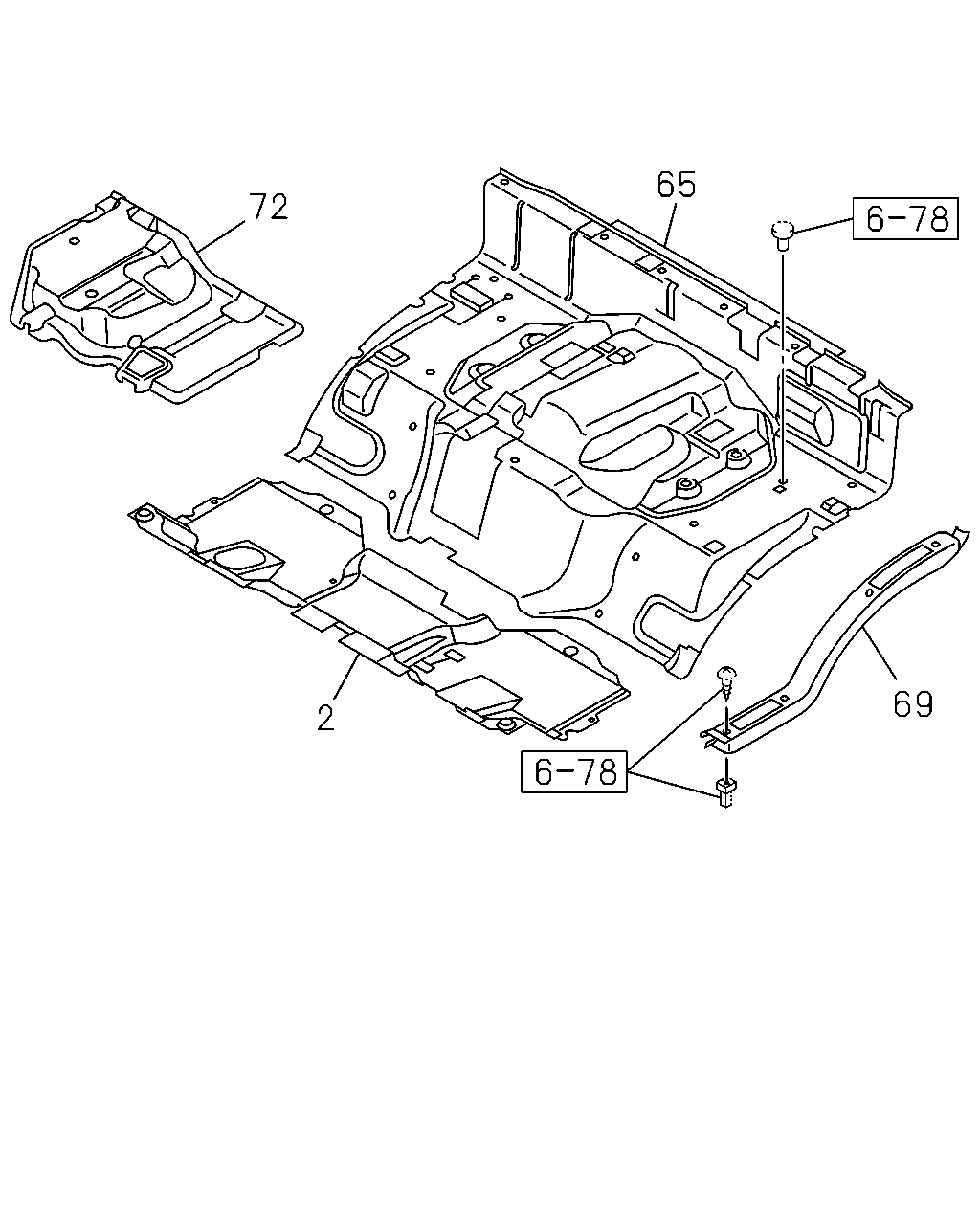

69 65 72 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) GRAY	8-97406-155-6	01	1	1311-1401	●	●
2	16.800 MAT; FLOOR EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) GRAY	8-97406-155-6	01	1	1402-	●	●	●
2	16.800 MAT; FLOOR GRAY	8-97406-154-6	01	1	1309-1310	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97406-154-6	01	1	1311-1401	●	●
2	16.800 MAT; FLOOR GRAY	8-97406-154-6	01	1	1311-1401			●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97406-154-6	01	1	1402-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97406-227-7	01	1	1402-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97423-535-1	01	1	1311-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97423-533-1	01	1	1309-1401	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97423-533-1	01	1	1402-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,INSPECTION ENGINE COVER<8GA> GRAY	8-97423-533-1	01	1	1402-		●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1309-1310	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1311-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1309-1310	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1311-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1309-1310	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1311-	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	1311-			●

15 14 58 69 2 65 72 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) GRAY	8-97406-155-6	01	1	1311-1401	●	●
2	16.800 MAT; FLOOR EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) GRAY	8-97406-155-6	01	1	1402-	●	●	●
2	16.800 MAT; FLOOR GRAY	8-97406-154-6	01	1	1309-1310	●	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97406-154-6	01	1	1311-1401	●	●
2	16.800 MAT; FLOOR GRAY	8-97406-154-6	01	1	1311-1401			●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97406-154-6	01	1	1402-	●	●	●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1311-			●
15	16.800 MAT; FLOOR REAR GRAY	8-97423-532-0	01	1	1311-			●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	1311-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97406-227-7	01	1	1402-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR GRAY	8-97423-535-1	01	1	1311-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97423-533-1	01	1	1309-1401	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97423-533-1	01	1	1402-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,INSPECTION ENGINE COVER<8GA> GRAY	8-97423-533-1	01	1	1402-		●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1309-1310	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1311-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1309-1310	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1311-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1309-1310	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1311-	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	1311-			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97423-538-0	01	1	1311-			●
