◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#12675) — 62 parça

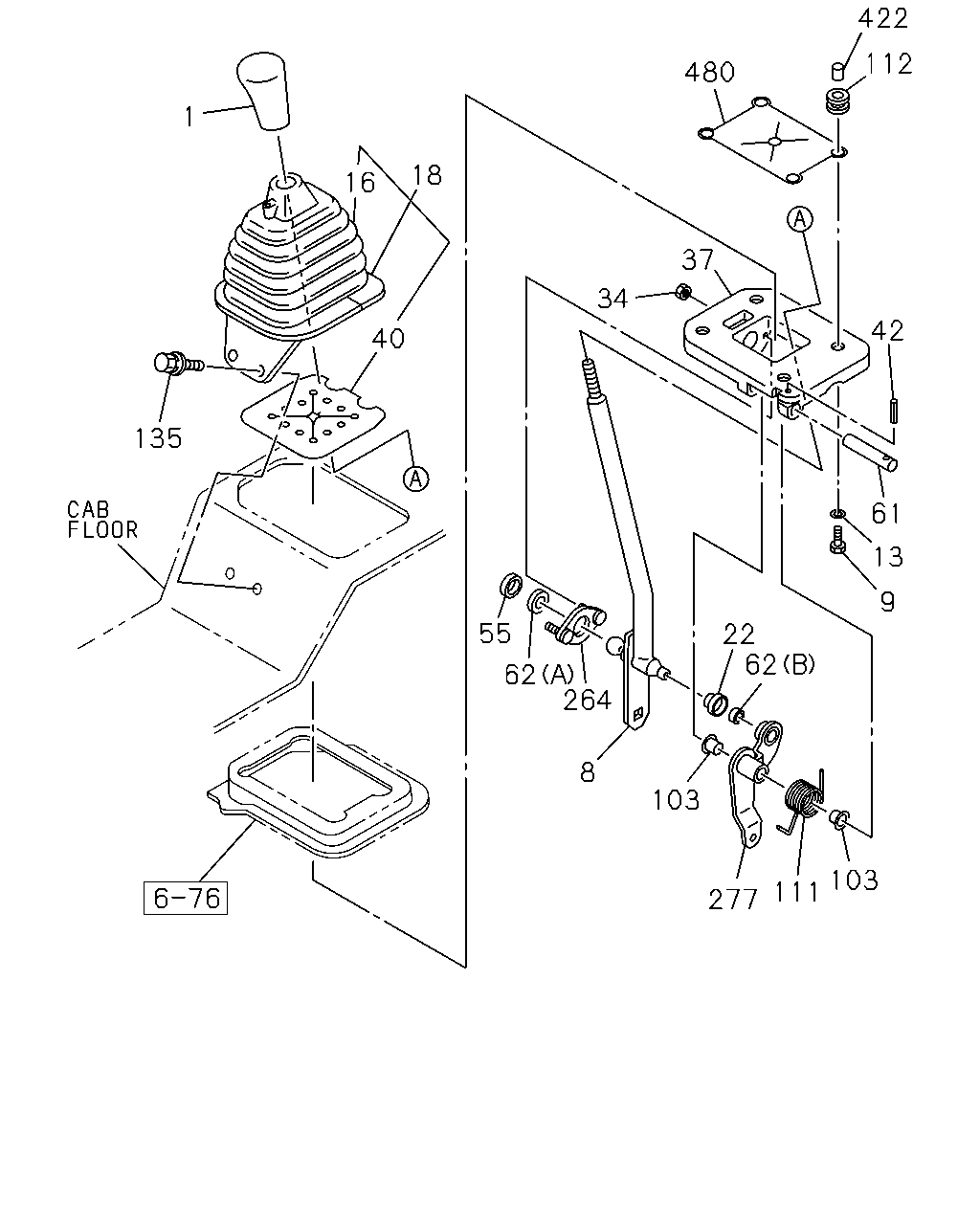

çizim 81389
422 112 480 1 18 16 37 34 42 40 135 61 13 9 55 22 62 62 264 8 103 103 111 277
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJA6 M/T<X9S> 		1-33611-070-1 01 1 0105-
1 KNOB; CHANGE LEVER
MJA7 M/T<X9Q> 		1-33611-092-1 01 1 0105-
1 KNOB; CHANGE LEVER
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-33611-038-0 01 1 0105-
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> 		1-33613-344-0 01 1 0105-
8 LEVER; CHANGE
MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33613-348-0 01 1 0105-
8 LEVER; CHANGE
ZF M/T<X9E> 		1-33613-345-0 01 1 0105-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 0105-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0105-
16 BOOT; CHANGE LEVER
ISUZU M/T<X9A> 		1-79996-368-0 01 1 0105-
16 BOOT; CHANGE LEVER
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-79996-369-0 01 1 0105-
18 BOOT; CHANGE LEVER
ISUZU M/T<X9A> 		1-79996-436-2 01 1 0105-
18 BOOT; CHANGE LEVER
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-79996-401-0 01 1 0105-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0105-
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0105-
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0105-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0105-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0105-
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0105-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0105-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0105-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0105-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0105-
111 SPRING
MJA6 M/T<X9S> 		1-09585-133-1 01 1 0105-
112 RUBBER; CUSHION 8-97091-426-0 04 1 0105-
135 BOLT
M8X20 W/LK&PL WASHER 		8-94279-208-0 04 1 0105-
264 PLATE; COVER 1-33619-469-0 01 1 0105-
277 LEVER; RELAY 1-33651-636-0 01 1 0105-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0105-
480 RUBBER; COVER 1-33619-554-0 01 1 0105-

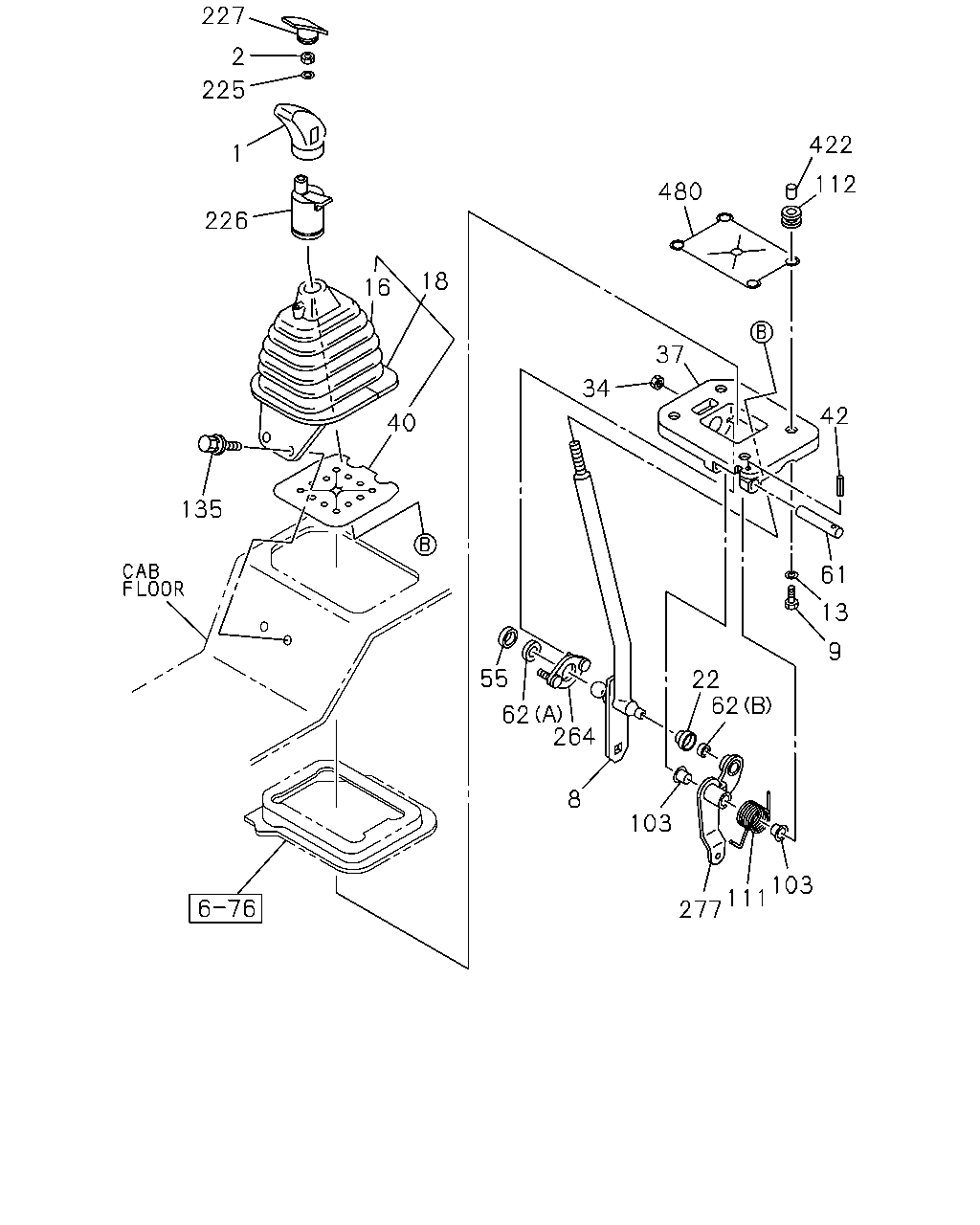

çizim 81428
227 2 225 422 1 112 480 226 18 16 37 34 42 40 135 61 13 9 55 22 62 62 264 8 103 103 111 277
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJA6 M/T<X9S> 		1-33611-070-1 01 1 0105-
1 KNOB; CHANGE LEVER
MJA7 M/T<X9Q> 		1-33611-092-1 01 1 0105-
1 KNOB; CHANGE LEVER
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-33611-038-0 01 1 0105-
2 NUT; KNOB
ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 01 1 0105-
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>,MJA6 M/T<X9S> 		1-33613-344-0 01 1 0105-
8 LEVER; CHANGE
MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33613-348-0 01 1 0105-
8 LEVER; CHANGE
ZF M/T<X9E> 		1-33613-345-0 01 1 0105-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 0105-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0105-
16 BOOT; CHANGE LEVER
ISUZU M/T<X9A> 		1-79996-368-0 01 1 0105-
16 BOOT; CHANGE LEVER
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-79996-369-0 01 1 0105-
18 BOOT; CHANGE LEVER
ISUZU M/T<X9A> 		1-79996-436-2 01 1 0105-
18 BOOT; CHANGE LEVER
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-79996-401-0 01 1 0105-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0105-
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0105-
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0105-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0105-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0105-
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0105-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0105-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0105-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0105-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0105-
111 SPRING
MJA6 M/T<X9S> 		1-09585-133-1 01 1 0105-
112 RUBBER; CUSHION 8-97091-426-0 04 1 0105-
135 BOLT
M8X20 W/LK&PL WASHER 		8-94279-208-0 04 1 0105-
225 WASHER; PL,KNOB
ZF M/T<X9E> ID=10.5 OD=22 		9-09160-610-0 01 1 0105-
226 VALVE; SELECTOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-33710-008-0 01 1 0105-
227 COVER; KNOB
ZF M/T<X9E> 		1-33619-219-0 01 1 0105-
264 PLATE; COVER 1-33619-469-0 01 1 0105-
277 LEVER; RELAY 1-33651-636-0 01 1 0105-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0105-
480 RUBBER; COVER 1-33619-554-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
