Isuzu WW
▶
TRUCKS
▶
NLR
▶
51497 - NLR/NMR RHD EUROPE EURO5B+,6
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#126748) — 34 parça
Tümü
A - NMR5WE
B - NMR5SE
C - NMR5SN
◀

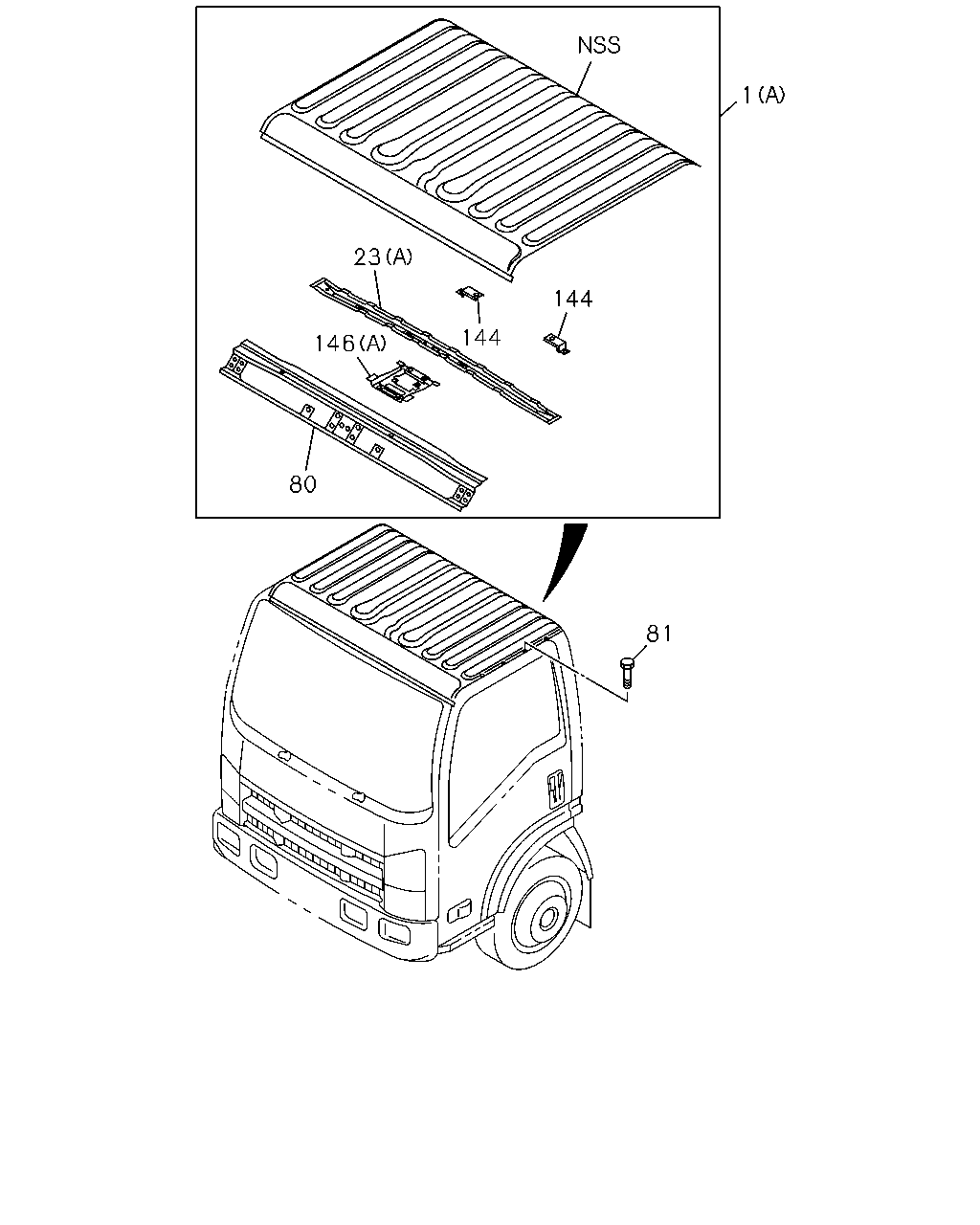

[660A] SGL CAB (16 parça)

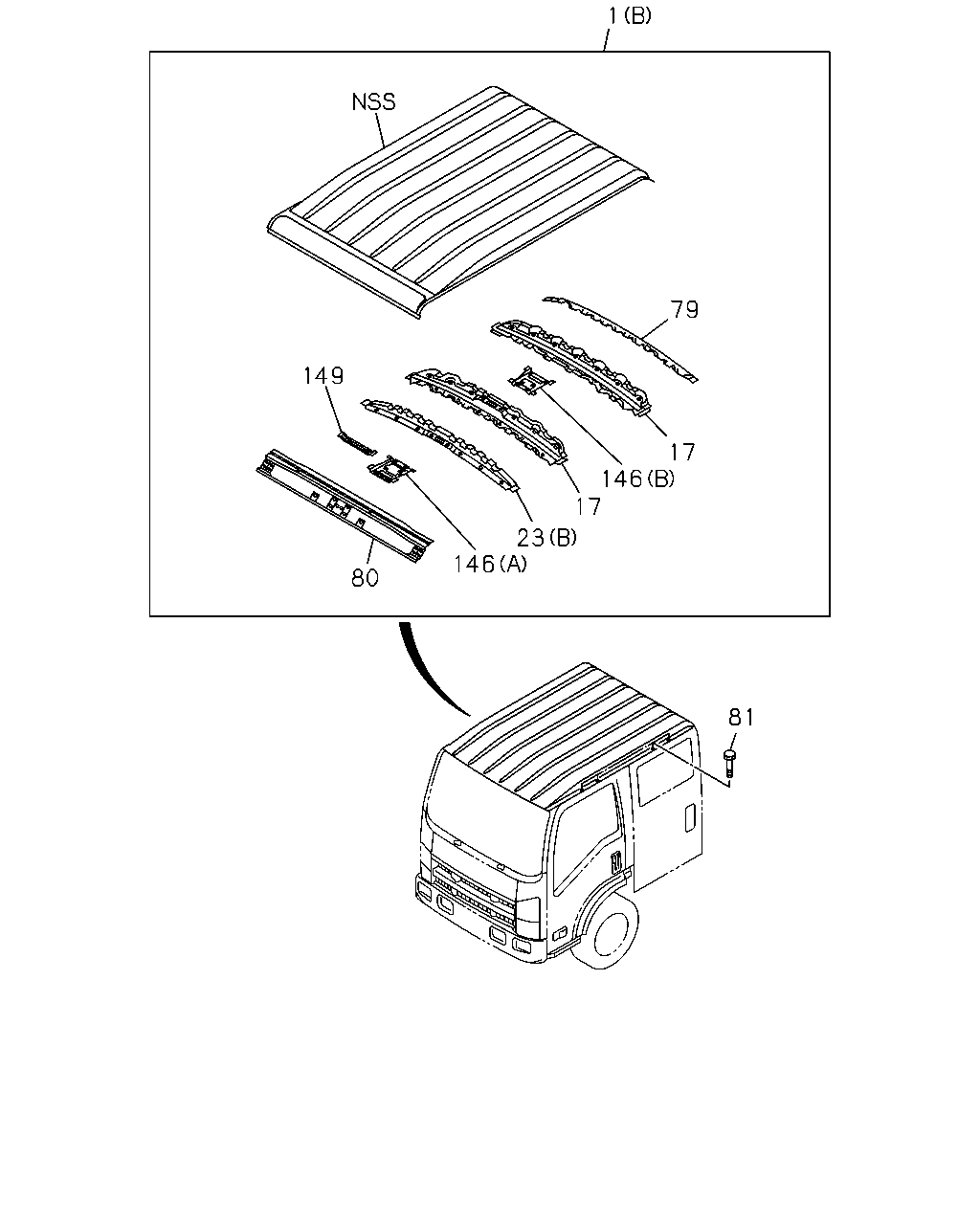

[660A] DBL CAB (18 parça)
▶
80
146
23
144
144
1
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.585 PANEL; ROOF
(B)
8-97587-638-6
01
1
1311-1503
●
1
16.585 PANEL; ROOF
(B)
8-98287-017-0
01
1
1504-
●
1
16.585 PANEL; ROOF
(A)
8-97584-162-6
01
1
1309-1503
●
●
1
16.585 PANEL; ROOF
(A)
8-98287-341-0
01
1
1504-
●
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(B)
8-98009-723-1
01
1
1311-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(A)
8-97584-197-0
01
1
1309-1503
●
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(A)
8-98287-358-0
01
1
1504-
●
●
80
16.585 PANEL; HEADER,ROOF
8-97584-189-4
01
1
1309-1310
●
●
80
16.585 PANEL; HEADER,ROOF
8-97584-189-4
01
1
1311-1503
●
●
●
80
16.585 PANEL; HEADER,ROOF
8-98287-352-0
01
1
1504-
●
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1309-1310
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1311-
●
●
●
144
16.585 BRACKET; ROOF
8-98013-931-1
02
1
1309-
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
(B)
8-98075-827-0
01
1
1311-
●
146
16.570 REINFORCEMENT; ROOM LAMP
(A)
8-98009-289-4
01
1
1309-1310
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
(A)
8-98009-289-4
01
1
1311-
●
●
●
1
79
17
146
17
23
146
80
149
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.585 PANEL; ROOF
(B)
8-97587-638-6
01
1
1311-1503
●
1
16.585 PANEL; ROOF
(B)
8-98287-017-0
01
1
1504-
●
1
16.585 PANEL; ROOF
(A)
8-97584-162-6
01
1
1309-1503
●
●
1
16.585 PANEL; ROOF
(A)
8-98287-341-0
01
1
1504-
●
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
8-97587-639-2
02
1
1311-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(B)
8-98009-723-1
01
1
1311-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(A)
8-97584-197-0
01
1
1309-1503
●
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(A)
8-98287-358-0
01
1
1504-
●
●
79
16.570 REINFORCEMENT; ROOF PANEL,RR
8-98054-646-1
01
1
1311-
●
80
16.585 PANEL; HEADER,ROOF
8-97584-189-4
01
1
1309-1310
●
●
80
16.585 PANEL; HEADER,ROOF
8-97584-189-4
01
1
1311-1503
●
●
●
80
16.585 PANEL; HEADER,ROOF
8-98287-352-0
01
1
1504-
●
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1309-1310
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1311-
●
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
(B)
8-98075-827-0
01
1
1311-
●
146
16.570 REINFORCEMENT; ROOM LAMP
(A)
8-98009-289-4
01
1
1309-1310
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
(A)
8-98009-289-4
01
1
1311-
●
●
●
149
16.585 SUPPORT; REINFORCEMENT
8-98009-110-0
01
1
1311-
●
