◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51497 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#126741) — 262 parça

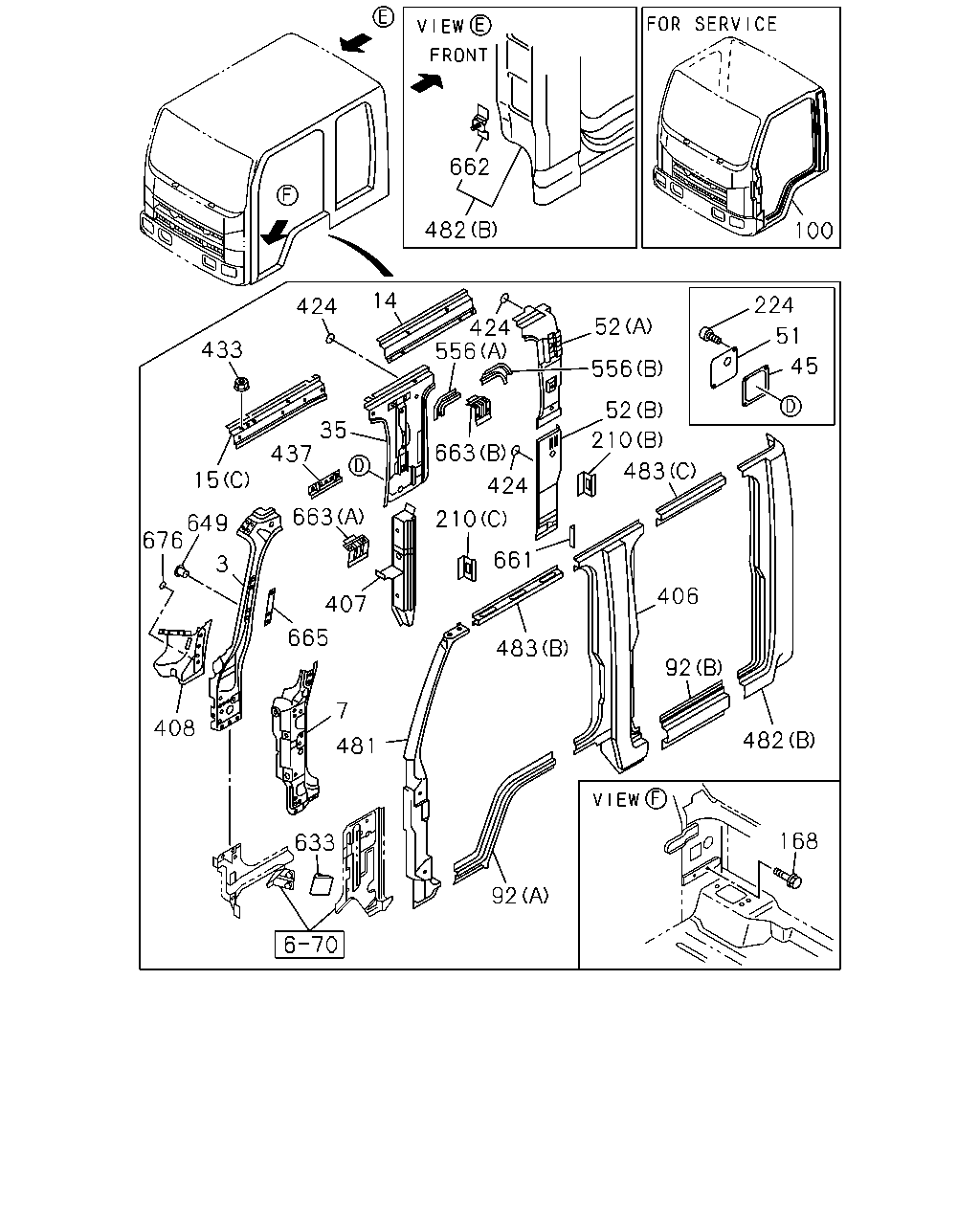

çizim 373506
662 482 100 224 45 52 52 556 210 483 406 92 482 168 92 483 661 210 424 663 556 424 14 424 433 35 437 663 407 665 7 481 633 3 408 676 649 15 51
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1309-1310 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1311- ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1309-1310 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1311- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1309-1310 ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1311- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1309-1310 ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1311- ● ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1311- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1311- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1311- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1311- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1309- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-97583-703-4 01 1 1311- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98013-489-4 01 1 1311- ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 1311- ●
51 16.570 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1311- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-707-4 01 1 1311- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-708-4 01 1 1311- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-779-2 01 1 1311- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-780-2 01 1 1311- ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1311- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1309-1310 ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1311- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1309-1310 ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1311- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1311-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-542-2 01 1 1311-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-542-2 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1309- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-542-2 01 1 1309- ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1309-1310 ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1311- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1309- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1309- ● ●
224 16.570 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1311- ●
406 16.570 PILLAR; CENTER 8-98069-086-0 01 1 1311- ●
406 16.570 PILLAR; CENTER 8-98097-233-0 01 1 1311- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1311- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1311- ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1309-1310 ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1311- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1309-1310 ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1311- ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 16 1 1311- ●
424 16.570 SEAL; CLOSING
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 16 1 1311- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1311- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1311- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1309- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1309-1310 ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1311- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1309-1310 ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1311- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1309-1310 ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1311- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1309-1310 ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1311- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1311- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1311- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1309- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-920-0 01 1 1309- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1309- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1309- ● ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1311- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1311- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1311- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1311- ●
633 16.592 SEALER
4JJ1-TCS ENG(LFB) 16.165 		8-97852-601-2 02 1 1509- ●
633 16.592 SEALER
16.165 		8-97852-601-2 02 1 1409-1410 ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1309-1310 ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1311- ● ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1311- ●
661 16.570 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1311- ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1311- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1309- ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1311- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1311- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1309-1310 ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1311- ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1309-1310 ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1311- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1311- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1311- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1309- ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1309-1310 ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1311- ● ● ●

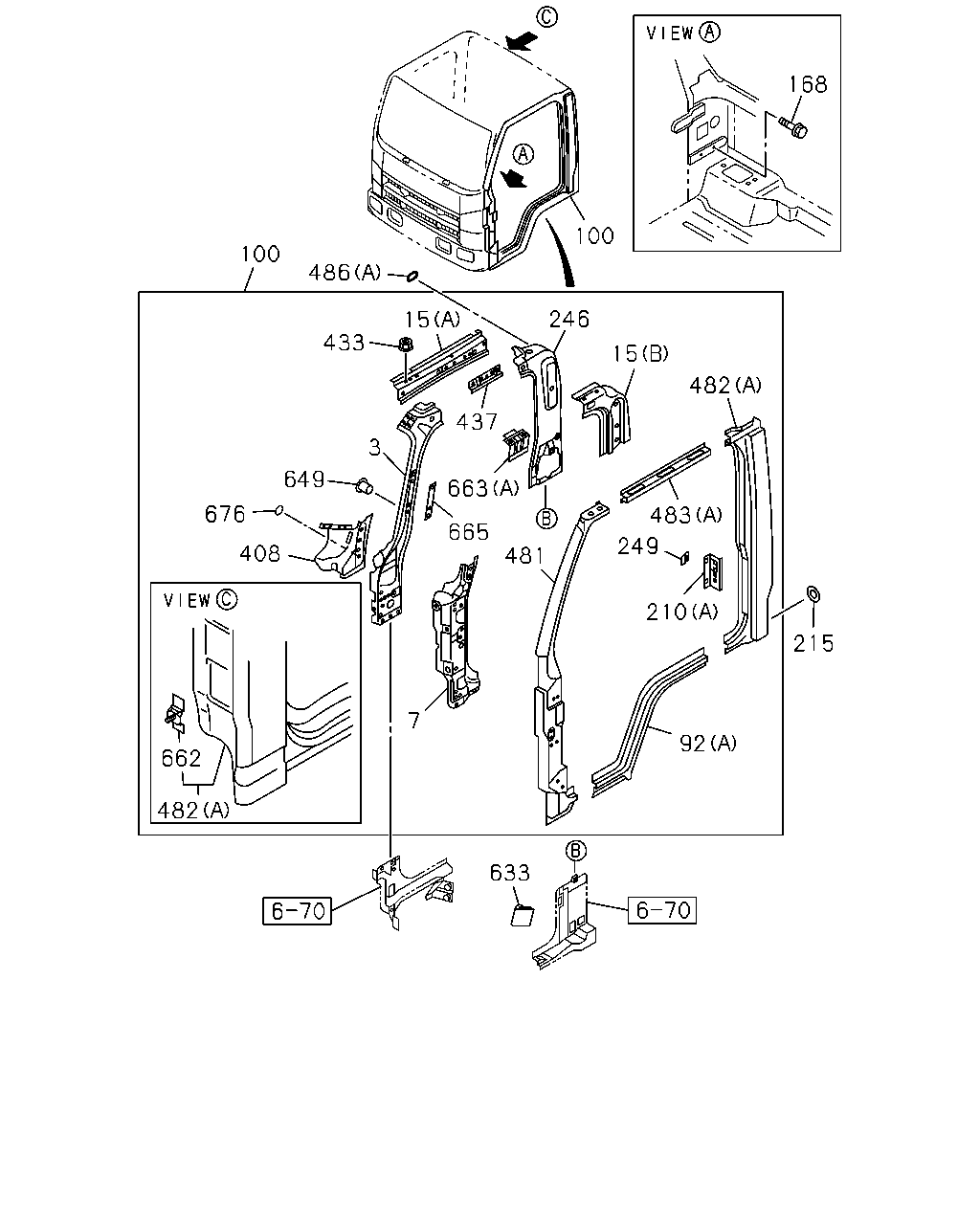

çizim 374103
168 100 100 486 433 15 246 437 15 482 483 249 210 215 92 481 665 663 3 649 676 408 662 482 7 633
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1309-1310 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1311- ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1309-1310 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1311- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1309-1310 ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1311- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1309-1310 ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1311- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1311- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1311- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1309- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1309- ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1311- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1309-1310 ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1311- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1309-1310 ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1311- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1311-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-542-2 01 1 1311-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-542-2 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1309- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-542-2 01 1 1309- ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1309-1310 ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1311- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1311- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1309- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1309- ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1309- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1309- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1309- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 02 1 1309- ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1309-1310 ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1311- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1309-1310 ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1311- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1311- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1311- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1309- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1309-1310 ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1311- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1309-1310 ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1311- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1309-1310 ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1311- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1309-1310 ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1311- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1311- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1311- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1309- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-920-0 01 1 1309- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1311- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1309- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1309- ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1311- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1309- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1309- ● ●
633 16.592 SEALER
4JJ1-TCS ENG(LFB) 16.165 		8-97852-601-2 02 1 1509- ●
633 16.592 SEALER
16.165 		8-97852-601-2 02 1 1409-1410 ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1309-1310 ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1311- ● ● ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1311- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1309- ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1311- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1311- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1309-1310 ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1311- ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1309-1310 ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1311- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1311- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1311- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1309- ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1309-1310 ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1311- ● ● ●

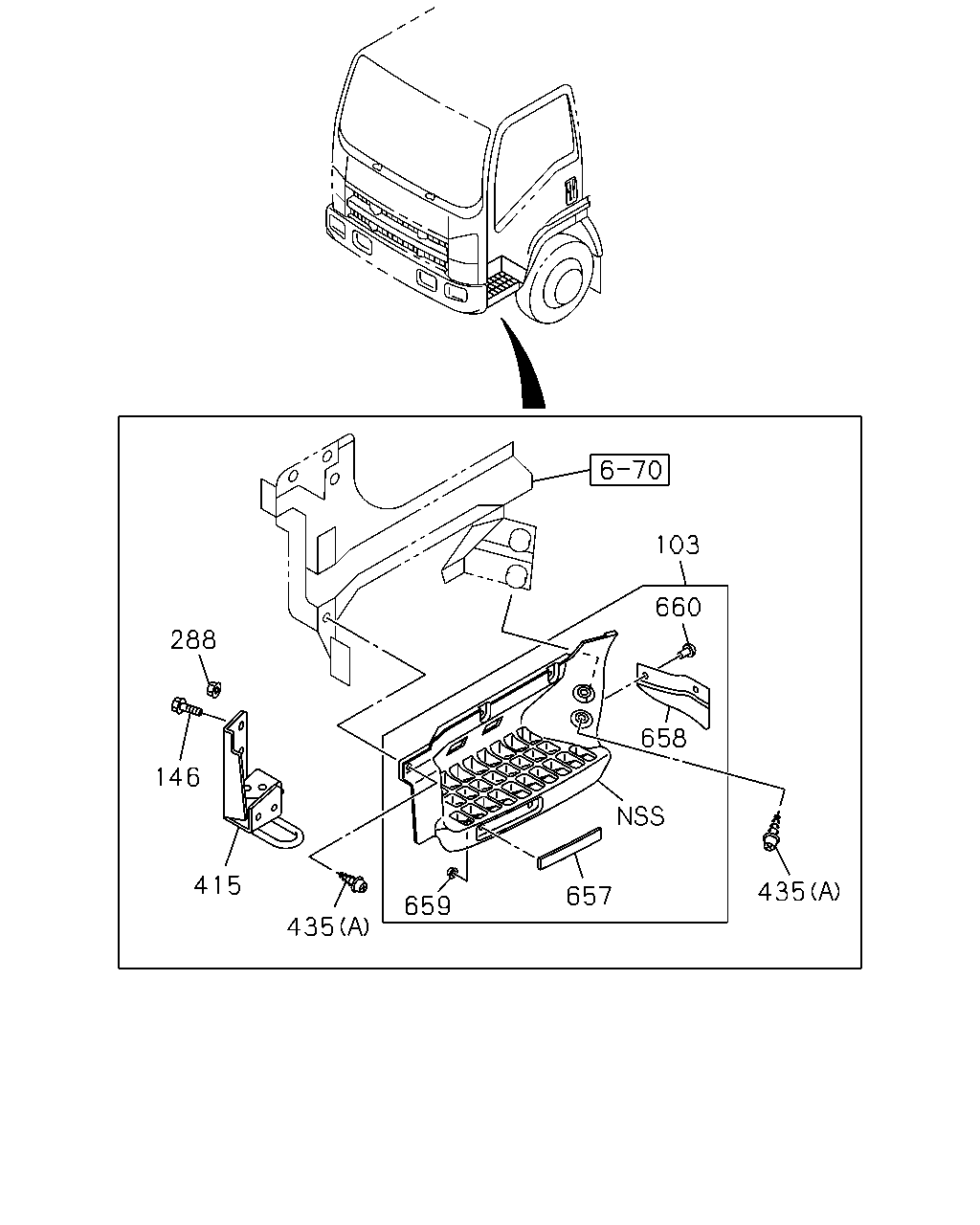

çizim 389273
288 146 415 435 659 657 658 660 103 435
BalonParca AdiParca NoAdetTipApplied Date A B C
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1309-1310 ● ●
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1311- ● ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1309-1310 ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1311- ● ● ●
146 08.228 BOLT; STEP BRKT
4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1509- ●
146 08.228 BOLT; STEP BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409-1410 ● ● ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 M8 FLANGE 		0-91180-108-0 06 1 1409- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 1311-1408 ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1409- ●
415 08.228 REINFORCEMENT; ASSIST STEP
4JJ1-TCS ENG(LFB) 		8-98112-547-1 01 1 1509- ●
415 08.228 REINFORCEMENT; ASSIST STEP
4JJ1-TCS ENG(LFB) 		8-98112-548-1 01 1 1509- ●
415 08.228 REINFORCEMENT; ASSIST STEP 8-98112-547-1 01 1 1409-1410 ● ● ●
415 08.228 REINFORCEMENT; ASSIST STEP 8-98112-548-1 01 1 1409-1410 ● ● ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 06 1 1409- ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1311-1408 ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1409- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1309-1310 ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1311- ● ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1309-1310 ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1311- ● ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1309-1310 ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1311- ● ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1309-1310 ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1311- ● ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1309-1310 ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1311- ● ● ●

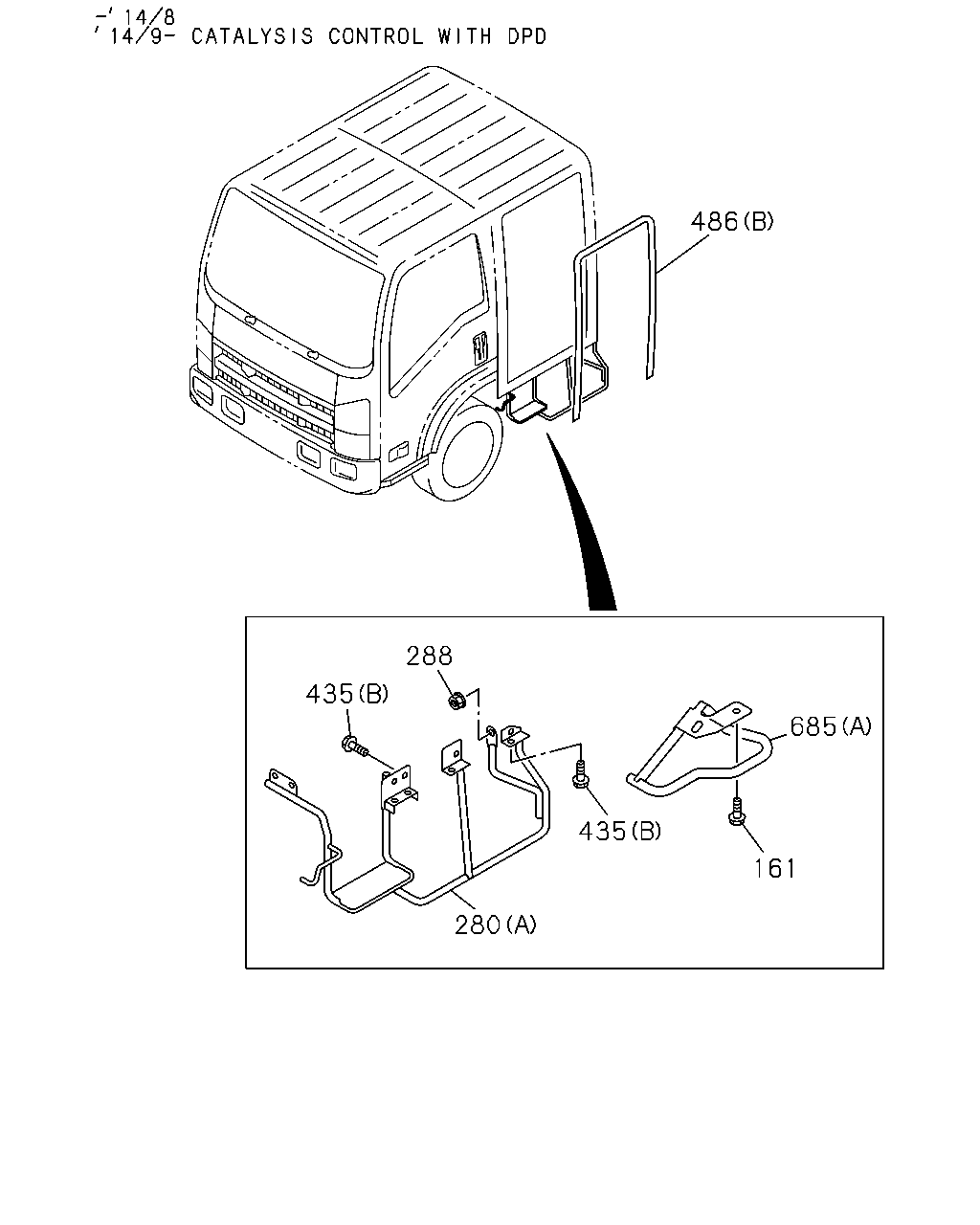

çizim 389277
161 685 435 280 288 435 486
BalonParca AdiParca NoAdetTipApplied Date A B C
161 08.225 BOLT; FIX
4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
161 08.225 BOLT; FIX
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
161 08.225 BOLT; FIX
4JJ1-TCC ENG(RDU) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1311- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. CAUTION SPANISH<YN1> (C) 		8-98299-317-0 01 1 1410- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (D) 		8-98279-451-0 01 1 1409- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98279-447-0 01 1 1409- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98279-448-0 01 1 1409-1409 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) CAUTION SPANISH<YN1> (C) 		8-98299-329-0 01 1 1410- ●
280 08.225 STEP ASM; RR
(A) 		8-98079-880-1 01 1 1311-1408 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98079-880-1 01 1 1409- ●
280 08.225 STEP ASM; RR
(A) 		8-98081-707-1 01 1 1311-1408 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98081-707-1 01 1 1409- ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 M8 FLANGE 		0-91180-108-0 06 1 1409- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 1311-1408 ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1409- ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 06 1 1409- ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1311-1408 ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1409- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1309-1310 ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1311- ● ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1311- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1309- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1309- ● ●
685 08.225 BAR ASM; GUARD
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98279-449-0 01 1 1409- ●
685 08.225 BAR ASM; GUARD
4JJ1-TCC ENG(RDU) (A) 		8-98240-398-0 01 1 1311-1408 ●
685 08.225 BAR ASM; GUARD
(A) 		8-98240-398-0 01 1 1409- ●
685 08.225 BAR ASM; GUARD
4JJ1-TCC ENG(RDU) (A) 		8-98240-399-0 01 1 1311- ●

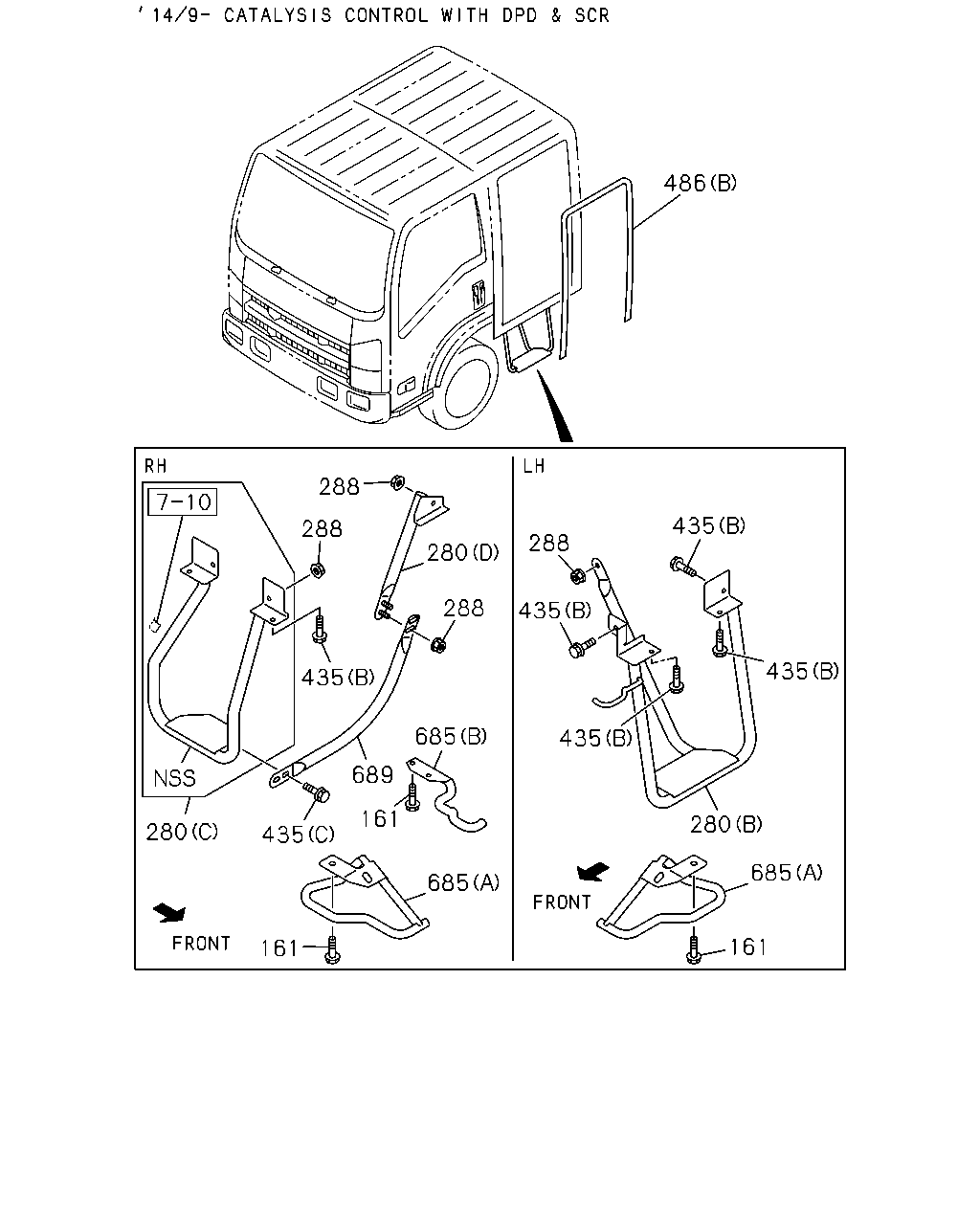

çizim 444170
486 435 435 435 435 288 280 288 288 288 435 689 685 161 435 280 685 280 685 161 161
BalonParca AdiParca NoAdetTipApplied Date A B C
161 08.225 BOLT; FIX
4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
161 08.225 BOLT; FIX
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
161 08.225 BOLT; FIX
4JJ1-TCC ENG(RDU) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1311- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. CAUTION SPANISH<YN1> (C) 		8-98299-317-0 01 1 1410- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (D) 		8-98279-451-0 01 1 1409- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98279-447-0 01 1 1409- ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98279-448-0 01 1 1409-1409 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) CAUTION SPANISH<YN1> (C) 		8-98299-329-0 01 1 1410- ●
280 08.225 STEP ASM; RR
(A) 		8-98079-880-1 01 1 1311-1408 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98079-880-1 01 1 1409- ●
280 08.225 STEP ASM; RR
(A) 		8-98081-707-1 01 1 1311-1408 ●
280 08.225 STEP ASM; RR
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98081-707-1 01 1 1409- ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 M8 FLANGE 		0-91180-108-0 06 1 1409- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 1311-1408 ●
288 08.225 NUT; STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1409- ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 06 1 1409- ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1311-1408 ●
435 08.225 BOLT; RR STEP
CATALYSIS CONTROL WITH DPD(8JM) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 14 1 1409- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1309-1310 ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1311- ● ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1311- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1309- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1309- ● ●
685 08.225 BAR ASM; GUARD
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98279-449-0 01 1 1409- ●
685 08.225 BAR ASM; GUARD
4JJ1-TCC ENG(RDU) (A) 		8-98240-398-0 01 1 1311-1408 ●
685 08.225 BAR ASM; GUARD
(A) 		8-98240-398-0 01 1 1409- ●
685 08.225 BAR ASM; GUARD
4JJ1-TCC ENG(RDU) (A) 		8-98240-399-0 01 1 1311- ●
689 08.225 SUPPORT; STEP REAR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 16.545 		8-98283-606-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
