6-01 — FRONT BUMPER (#126736) — 40 parça

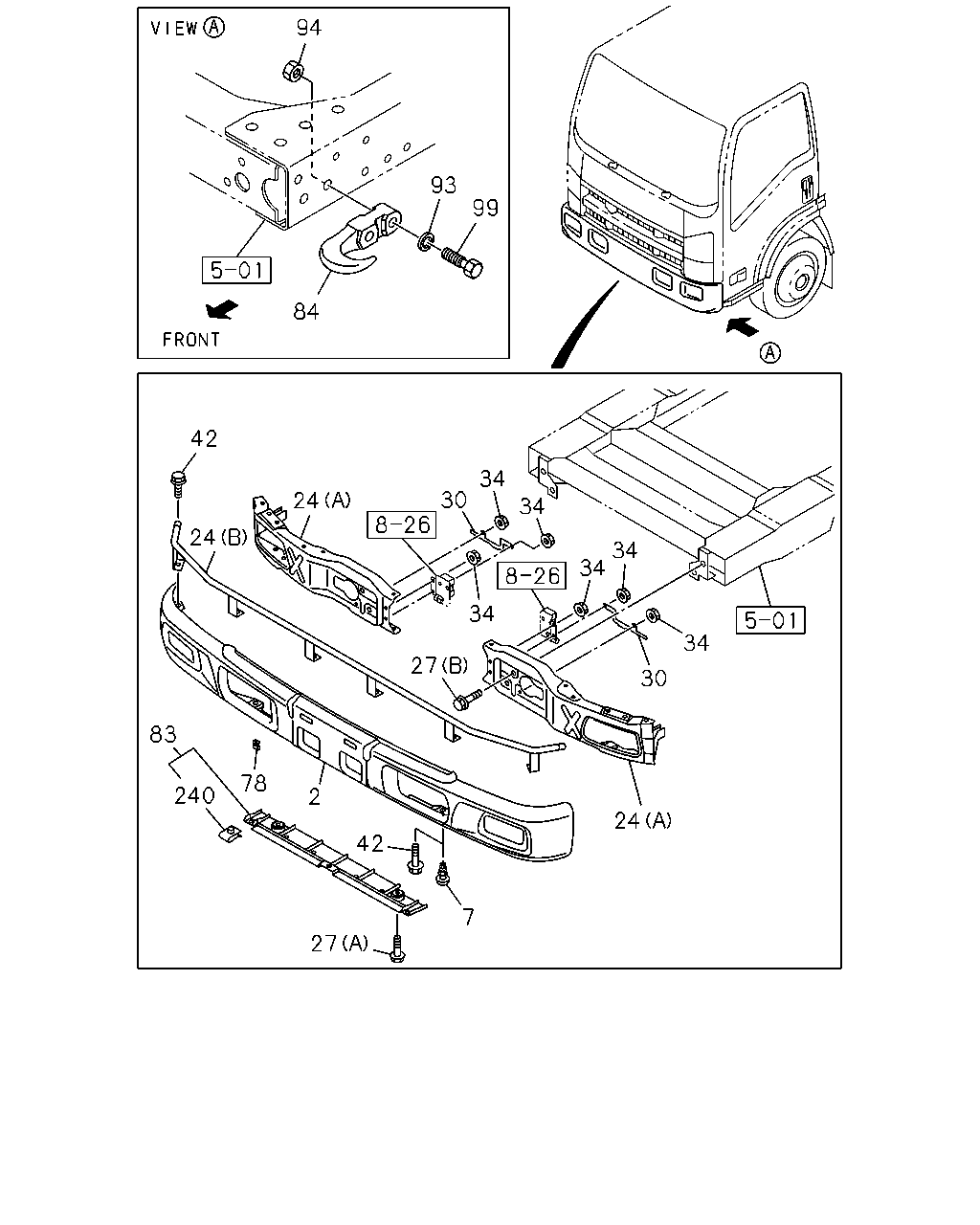

çizim 374055
94 93 99 84 42 24 24 30 34 34 34 34 34 30 34 27 83 240 78 2 42 27 7 24
BalonParca AdiParca NoAdetTipApplied Date A B C
2 07.831 BUMPER; FRT,CENTER
FOG LAMP FRONT VAR2<X99> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-077-2 01 1 1309-1310 ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP FRONT VAR2<X99> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-077-2 01 1 1311- ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP FRONT VAR2<X99> EXC. FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-814-4 01 1 1309-1310 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP FRONT VAR2<X99> EXC. FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-814-4 01 1 1311- ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP FRONT VAR2<X99> EXC. FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-815-4 01 1 1309-1310 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP FRONT VAR2<X99> EXC. FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-815-4 01 1 1311- ● ● ●
7 07.833 SCREW; FRT BUMPER
M6X20 TAPPING 		8-98082-975-0 03 1 1309-1310 ● ●
7 07.833 SCREW; FRT BUMPER
M6X20 TAPPING 		8-98082-975-0 03 1 1311- ● ● ●
24 07.869 BAR; FRT BUMPER
4JJ1-TCS ENG(LFB) (B) 		8-98112-604-3 01 1 1509- ●
24 07.869 BAR; FRT BUMPER
4JJ1-TCS ENG(LFB) (B) 		8-98112-604-3 01 1 1409-1410 ●
24 07.869 BAR; FRT BUMPER
(A) 		8-98229-434-0 01 1 1309-1310 ● ●
24 07.869 BAR; FRT BUMPER
(A) 		8-98229-434-0 01 1 1311- ● ● ●
24 07.869 BAR; FRT BUMPER
(A) 		8-98229-435-0 01 1 1309-1310 ● ●
24 07.869 BAR; FRT BUMPER
(A) 		8-98229-435-0 01 1 1311- ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
16.679 (A) M8X20 W/PL WASHER 		8-98031-841-0 02 1 1309-1310 ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
16.679 (A) M8X20 W/PL WASHER 		8-98031-841-0 02 1 1311- ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 1309-1310 ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 1311- ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-98232-133-0 02 1 1309-1310 ● ●
30 07.869 BRACKET; FRT BUMPER 8-98232-133-0 02 1 1311- ● ● ●
34 07.874 NUT; BRKT,BUMPER
01.062 M6 FLANGE 		0-91180-106-0 06 1 1309-1310 ● ●
34 07.874 NUT; BRKT,BUMPER
01.062 M6 FLANGE 		0-91180-106-0 06 1 1311- ● ● ●
42 07.874 BOLT; BUMPER
4JJ1-TCS ENG(LFB) 01.531 M6X20 W/LK WASHER 		0-50540-620-0 06 1 1509- ●
42 07.874 BOLT; BUMPER
4JJ1-TCS ENG(LFB) 01.531 M6X20 W/LK WASHER 		0-50540-620-0 06 1 1409-1410 ●
42 07.874 BOLT; BUMPER
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1309-1310 ● ●
42 07.874 BOLT; BUMPER
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1311- ● ● ●
78 07.874 NUT; SPIRE
M6 		8-98029-416-0 02 1 1309-1310 ● ●
78 07.874 NUT; SPIRE
M6 		8-98029-416-0 02 1 1311- ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98045-450-0 01 1 1309-1310 ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98045-450-0 01 1 1311- ● ● ●
84 07.068 HOOK 8-97387-665-0 01 1 1309-1310 ● ●
84 07.068 HOOK 8-97387-665-0 01 1 1311- ● ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 1309-1310 ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 1311- ● ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 01 1 1309-1310 ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 01 1 1311- ● ● ●
99 07.039 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1309-1310 ● ●
99 07.039 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1311- ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
16.550 		1-71996-035-1 03 1 1309-1310 ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
16.550 		1-71996-035-1 03 1 1311- ● ● ●
