5-30 — SPARE TIRE CARRIER AND COVER (#126735) — 42 parça

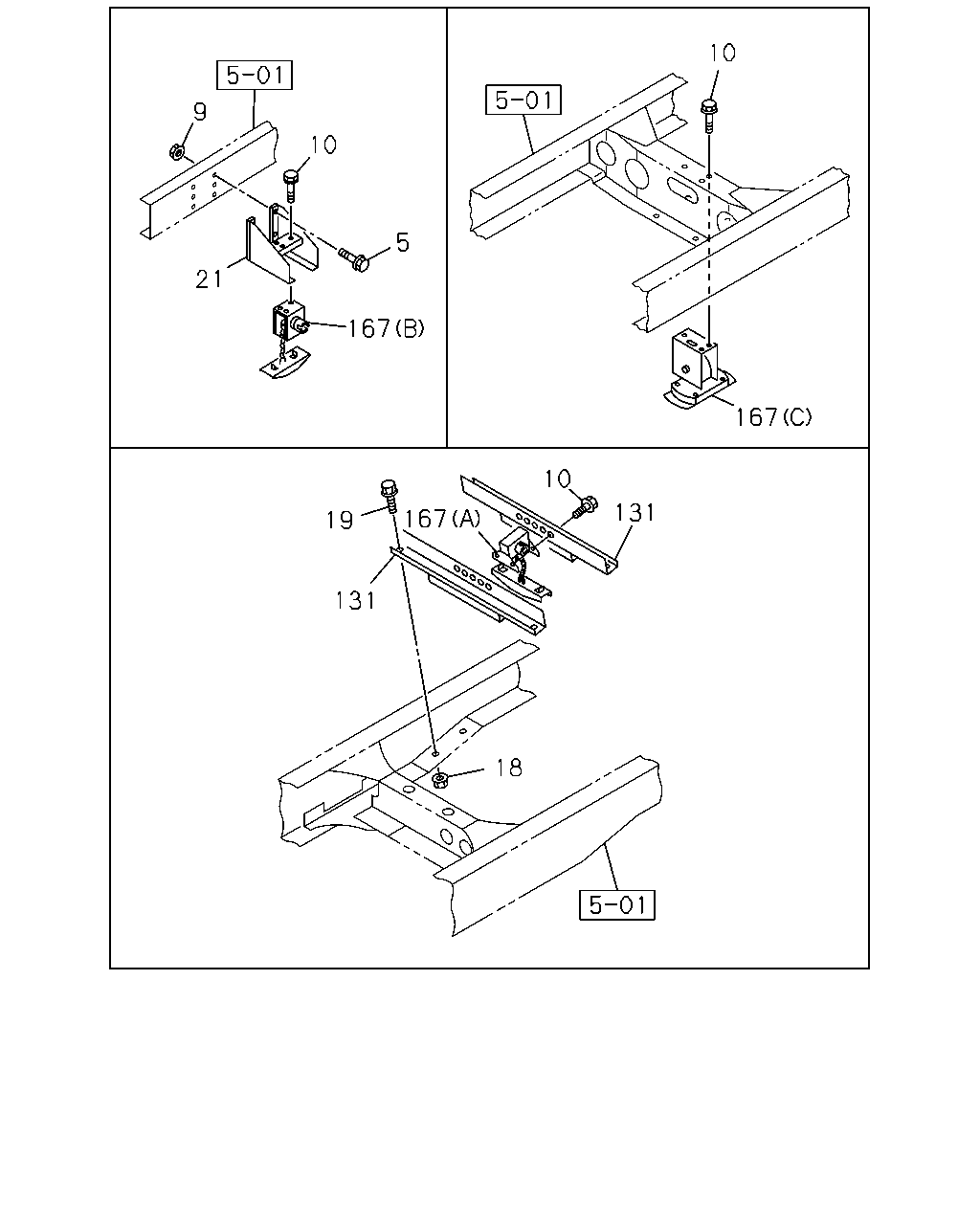

çizim 373420
18 131 10 167 19 131 167 5 10 9 21 10 167
BalonParca AdiParca NoAdetTipApplied Date A B C
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1311- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1311- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1311- ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1311- ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1311- ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE 		0-91180-110-0 03 1 1311- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1311- ● ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1311- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1309-1310 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1309-1310 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1311-1408 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1311-1408 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1311-1408 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1409- ● ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1409- ●
18 07.633 NUT; MEMBER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309-1310 ● ●
18 07.633 NUT; MEMBER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1311-1408 ● ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1311-1408 ●
18 07.633 NUT; MEMBER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1409- ● ● ●
19 07.632 BOLT; C/MBR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1309-1310 ● ●
19 07.632 BOLT; C/MBR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1311-1408 ● ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1311-1408 ●
19 07.632 BOLT; C/MBR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1409- ● ● ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98223-839-0 01 1 1311- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 		8-98223-839-0 01 1 1311- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 		8-98223-839-0 01 1 1311- ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 1309-1310 ● ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 1311-1408 ● ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 1311-1408 ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 1409- ● ● ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B) 		8-94382-875-1 01 1 1311- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B) 		8-94382-875-1 01 1 1311- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) 		8-94382-875-1 01 1 1311- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> SINGLE RR TIRE(6TD) (C) 		8-94380-175-1 01 1 1311- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) 		8-98036-384-0 01 1 1309-1310 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) (A) 		8-98036-384-0 01 1 1309-1310 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A) 		8-98036-384-0 01 1 1311-1408 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) (A) 		8-98036-384-0 01 1 1311-1408 ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) 		8-98036-384-0 01 1 1311-1408 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A) 		8-98036-384-0 01 1 1409- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) (A) 		8-98036-384-0 01 1 1409- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) 		8-98036-384-0 01 1 1409- ●
