2 |

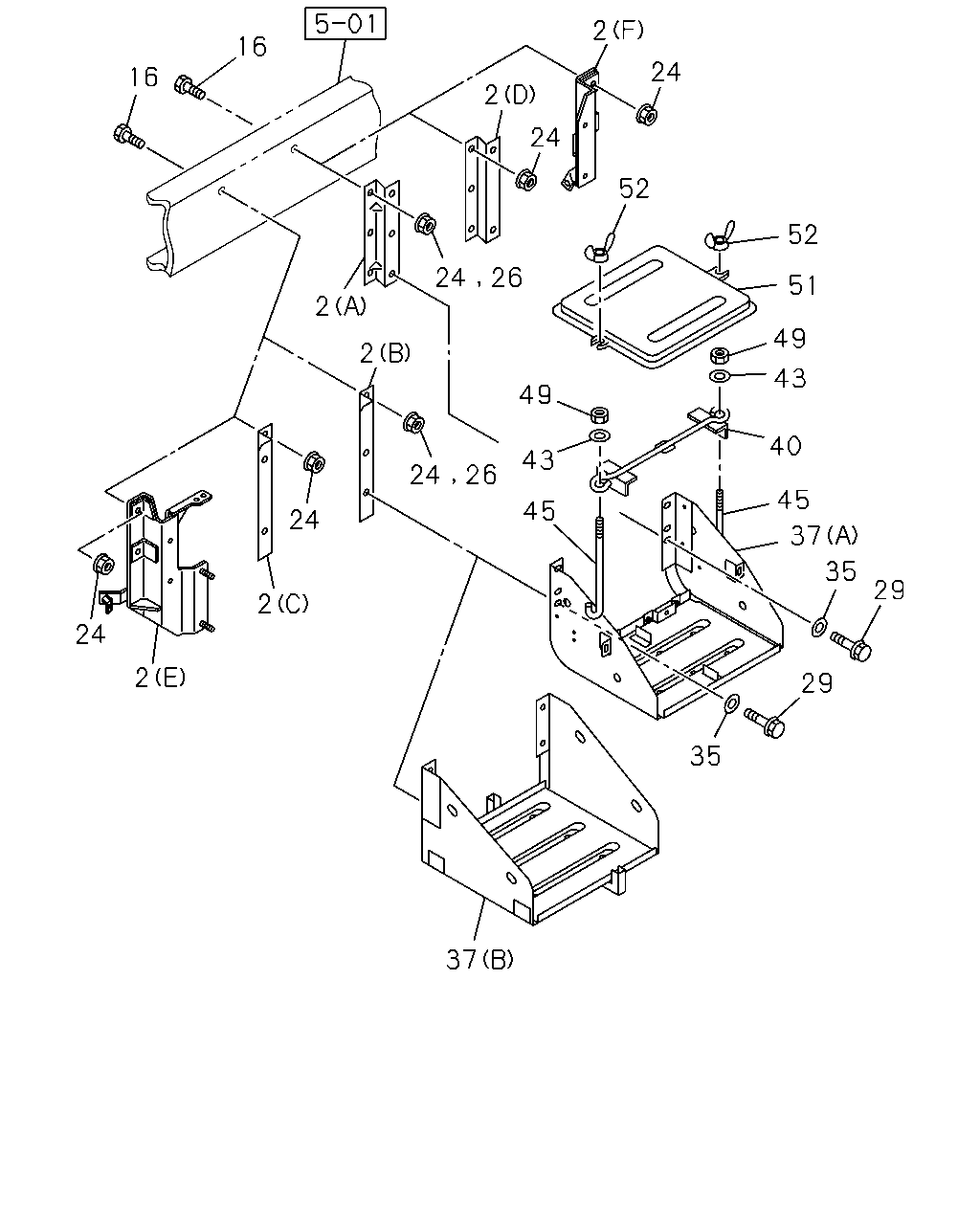

02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-97384-070-1 |
01 |
1 |
1311-1401 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
(B)
|
8-97384-070-1 |
01 |
1 |
1311-1401 |
|
|
● |
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(B)
|
8-97384-070-1 |
01 |
1 |
1402-1402 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
(B)
|
8-97384-070-1 |
01 |
1 |
1402-1402 |
|
|
● |
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(B)
|
8-97384-070-1 |
01 |
1 |
1402-1408 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(B)
|
8-97384-070-1 |
01 |
1 |
1402-1408 |
|
|
● |
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(B)
|
8-97384-070-1 |
01 |
1 |
1409- |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(B)
|
8-97384-070-1 |
01 |
1 |
1409- |
|
|
● |
| |
2 |
02.333 BRACKET; BATTERY
WHEEL BASE 2800MM(28W)
(D)
|
8-98207-423-0 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(D)
|
8-98207-423-0 |
01 |
1 |
1311-1312 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(E)
|
8-98261-672-0 |
01 |
1 |
1401- |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
WHEEL BASE 2800MM(28W)
(C)
|
8-98207-424-0 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(C)
|
8-98207-424-0 |
01 |
1 |
1311-1312 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(F)
|
8-98261-673-0 |
01 |
1 |
1401- |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
WHEEL BASE 3300MM(33W)
(A)
|
8-97384-069-1 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(A)
|
8-97384-069-1 |
01 |
1 |
1311-1401 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(A)
|
8-97384-069-1 |
01 |
1 |
1311-1401 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
(A)
|
8-97384-069-1 |
01 |
1 |
1311-1401 |
|
|
● |
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(A)
|
8-97384-069-1 |
01 |
1 |
1402-1402 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(A)
|
8-97384-069-1 |
01 |
1 |
1402-1402 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
(A)
|
8-97384-069-1 |
01 |
1 |
1402-1402 |
|
|
● |
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(A)
|
8-97384-069-1 |
01 |
1 |
1402-1408 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(A)
|
8-97384-069-1 |
01 |
1 |
1402-1408 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(A)
|
8-97384-069-1 |
01 |
1 |
1402-1408 |
|
|
● |
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(A)
|
8-97384-069-1 |
01 |
1 |
1409- |
● |
● |
● |
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(A)
|
8-97384-069-1 |
01 |
1 |
1409- |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(A)
|
8-97384-069-1 |
01 |
1 |
1409- |
|
|
● |
| |
2 |
02.333 BRACKET; BATTERY
WHEEL BASE 3300MM(33W)
(B)
|
8-98233-466-0 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(B)
|
8-98233-466-0 |
01 |
1 |
1311-1408 |
● |
● |
|
| |
2 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
(B)
|
8-98233-466-0 |
01 |
1 |
1409- |
● |
● |
● |
| |
16 |
02.334 BOLT; BRKT TO FRAME
02.277
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1309-1310 |
● |
● |
|
| |
16 |
02.334 BOLT; BRKT TO FRAME
02.277
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1311- |
● |
● |
● |
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
03 |
1 |
1402-1402 |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
03 |
1 |
1402-1408 |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
03 |
1 |
1402-1408 |
|
|
● |
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
03 |
1 |
1409- |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
03 |
1 |
1409- |
|
|
● |
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1311-1312 |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1311-1312 |
|
|
● |
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1401-1408 |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1409- |
● |
● |
● |
| |
24 |
02.334 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1309-1310 |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1311-1312 |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1401-1401 |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1401-1401 |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1401-1401 |
|
|
● |
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1402-1408 |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1402-1408 |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1402-1408 |
|
|
● |
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
SMOOTHER-EX(TYPE2)(8NS)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1409- |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1409- |
● |
● |
|
| |
24 |
02.334 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1409- |
|
|
● |
| |
26 |
02.334 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 2800MM(28W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1404- |
● |
● |
|
| |
26 |
02.334 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
04.085
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
1311-1401 |
● |
● |
|
| |
26 |
02.334 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)
04.085
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
1402- |
● |
● |
|
| |
29 |
02.334 BOLT; BRKT TO FRAME
03.023
M10X35 FLANGE
|
0-28661-035-0 |
04 |
1 |
1309-1310 |
● |
● |
|
| |
29 |
02.334 BOLT; BRKT TO FRAME
03.023
M10X35 FLANGE
|
0-28661-035-0 |
04 |
1 |
1311- |
● |
● |
● |
| |
35 |
02.334 WASHER; PL,BATTERY CARRIER
WHEEL BASE 2800MM(28W)
04.046
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
1309-1310 |
● |
● |
|
| |
35 |
02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
04.046
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
1311-1312 |
● |
● |
|
| |
35 |
02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
04.046
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
1311-1312 |
● |
● |
|
| |
35 |
02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
04.046
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
1311-1312 |
|
|
● |
| |
35 |
02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
04.046
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
1401-1403 |
● |
● |
|
| |
35 |
02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
04.046
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
1401-1403 |
|
|
● |
| |
35 |
02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCC ENG(RDU)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
04.046
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
1404-1408 |
● |
● |
|
| |
35 |
02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
04.046
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
1404-1408 |
|
|
● |
| |
35 |
02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCC ENG(RDU)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
04.046
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
1409- |
● |
● |
|
| |
35 |
02.334 WASHER; PL,BATTERY CARRIER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
04.046
ID=10.5 OD=22 T=1.6
|
0-91610-610-0 |
04 |
1 |
1409- |
|
|
● |
| |
37 |
02.333 BRACKET; BATTERY
WHEEL BASE 2800MM(28W)
BATTERY 80D26L<TM1>
(A)
|
8-97384-067-2 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
37 |
02.333 BRACKET; BATTERY
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>
(A)
|
8-97384-067-2 |
01 |
1 |
1311-1312 |
● |
● |
● |
| |
37 |
02.333 BRACKET; BATTERY
WHEEL BASE 2400MM(24W),WHEEL BASE
2800MM(28W)
BATTERY 80D26L<TM1>
(A)
|
8-97384-067-2 |
01 |
1 |
1311-1312 |
● |
● |
|
| |
37 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
BATTERY 80D26L<TM1>
(A)
|
8-97384-067-2 |
01 |
1 |
1401- |
● |
● |
● |
| |
37 |
02.333 BRACKET; BATTERY
WHEEL BASE 2800MM(28W)
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>
(A)
|
8-97384-068-2 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
37 |
02.333 BRACKET; BATTERY
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>
(A)
|
8-97384-068-2 |
01 |
1 |
1311-1312 |
● |
● |
● |
| |
37 |
02.333 BRACKET; BATTERY
WHEEL BASE 2400MM(24W),WHEEL BASE
2800MM(28W)
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>
(A)
|
8-97384-068-2 |
01 |
1 |
1311-1312 |
● |
● |
|
| |
37 |
02.333 BRACKET; BATTERY
4JJ1-TCC ENG(RDU)
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>
(A)
|
8-97384-068-2 |
01 |
1 |
1401- |
● |
● |
● |
| |
37 |
02.333 BRACKET; BATTERY
WHEEL BASE 3300MM(33W)
(B)
|
8-98222-824-4 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
37 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
(B)
|
8-98222-824-4 |
01 |
1 |
1311-1408 |
● |
● |
|
| |
37 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(B)
|
8-98222-824-4 |
01 |
1 |
1409- |
● |
● |
● |
| |
37 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
(B)
|
8-98269-801-0 |
01 |
1 |
1401-1408 |
● |
● |
|
| |
37 |
02.333 BRACKET; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
(B)
|
8-98269-801-0 |
01 |
1 |
1409- |
● |
● |
● |
| |
40 |
02.335 CLAMP; BATTERY
|
5-53615-004-1 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
40 |
02.335 CLAMP; BATTERY
|
5-53615-004-1 |
01 |
1 |
1311- |
● |
● |
● |
| |
43 |
02.334 WASHER; PL,CLAMP
02.277
ID=8.4 OD=22
|
0-91614-708-0 |
02 |
1 |
1309-1310 |
● |
● |
|
| |
43 |
02.334 WASHER; PL,CLAMP
02.277
ID=8.4 OD=22
|
0-91614-708-0 |
02 |
1 |
1311- |
● |
● |
● |
| |
45 |
02.334 ROD; TENSION,BATTERY
WHEEL BASE 2800MM(28W)
L=120
|
9-53616-615-0 |
02 |
1 |
1309-1310 |
● |
● |
|
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=120
|
9-53616-615-0 |
02 |
1 |
1311-1312 |
● |
● |
|
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=120
|
9-53616-615-0 |
02 |
1 |
1311-1312 |
● |
● |
|
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=120
|
9-53616-615-0 |
02 |
1 |
1311-1312 |
|
|
● |
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=120
|
9-53616-615-0 |
02 |
1 |
1401-1403 |
● |
● |
|
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=120
|
9-53616-615-0 |
02 |
1 |
1401-1403 |
|
|
● |
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCC ENG(RDU)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=120
|
9-53616-615-0 |
02 |
1 |
1404-1408 |
● |
● |
|
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=120
|
9-53616-615-0 |
02 |
1 |
1404-1408 |
|
|
● |
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCC ENG(RDU)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=120
|
9-53616-615-0 |
02 |
1 |
1409- |
● |
● |
|
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=120
|
9-53616-615-0 |
02 |
1 |
1409- |
|
|
● |
| |
45 |
02.334 ROD; TENSION,BATTERY
WHEEL BASE 3300MM(33W)
L=250
|
8-98239-958-0 |
02 |
1 |
1309-1310 |
● |
● |
|
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=250
|
8-98239-958-0 |
02 |
1 |
1311-1312 |
● |
● |
|
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=250
|
8-98239-958-0 |
02 |
1 |
1401-1408 |
● |
● |
|
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=250
|
8-98239-958-0 |
02 |
1 |
1409- |
● |
● |
|
| |
45 |
02.334 ROD; TENSION,BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
L=250
|
8-98239-958-0 |
02 |
1 |
1409- |
|
|
● |
| |
49 |
02.334 NUT; ROD,BATTERY
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1309-1310 |
● |
● |
|
| |
49 |
02.334 NUT; ROD,BATTERY
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1311- |
● |
● |
● |
| |
51 |
02.335 COVER; BATTERY
WHEEL BASE 2800MM(28W)
|
8-97120-747-0 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97120-747-0 |
01 |
1 |
1311-1312 |
● |
● |
|
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97120-747-0 |
01 |
1 |
1311-1312 |
● |
● |
|
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97120-747-0 |
01 |
1 |
1311-1312 |
|
|
● |
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97120-747-0 |
01 |
1 |
1401-1403 |
● |
● |
|
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97120-747-0 |
01 |
1 |
1401-1403 |
|
|
● |
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCC ENG(RDU)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97120-747-0 |
01 |
1 |
1404-1408 |
● |
● |
|
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97120-747-0 |
01 |
1 |
1404-1408 |
|
|
● |
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCC ENG(RDU)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97120-747-0 |
01 |
1 |
1409- |
● |
● |
|
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EURO5B+ SPECIFICATION(NT5)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97120-747-0 |
01 |
1 |
1409- |
|
|
● |
| |
51 |
02.335 COVER; BATTERY
WHEEL BASE 3300MM(33W)
|
8-97201-920-0 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97201-920-0 |
01 |
1 |
1311-1312 |
● |
● |
|
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97201-920-0 |
01 |
1 |
1401-1408 |
● |
● |
|
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97201-920-0 |
01 |
1 |
1409- |
● |
● |
|
| |
51 |
02.335 COVER; BATTERY
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EURO6 SPECIFICATION(NT6)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,
BATTERY 75D23L<8LZ>
|
8-97201-920-0 |
01 |
1 |
1409- |
|
|
● |
| |
52 |
02.335 NUT; WING,COVER FIX
M8 WING NUT
|
0-91118-408-0 |
02 |
1 |
1309-1310 |
● |
● |
|
| |
52 |
02.335 NUT; WING,COVER FIX
M8 WING NUT
|
0-91118-408-0 |
02 |
1 |
1311- |
● |
● |
● |
