Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#126731) — 371 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

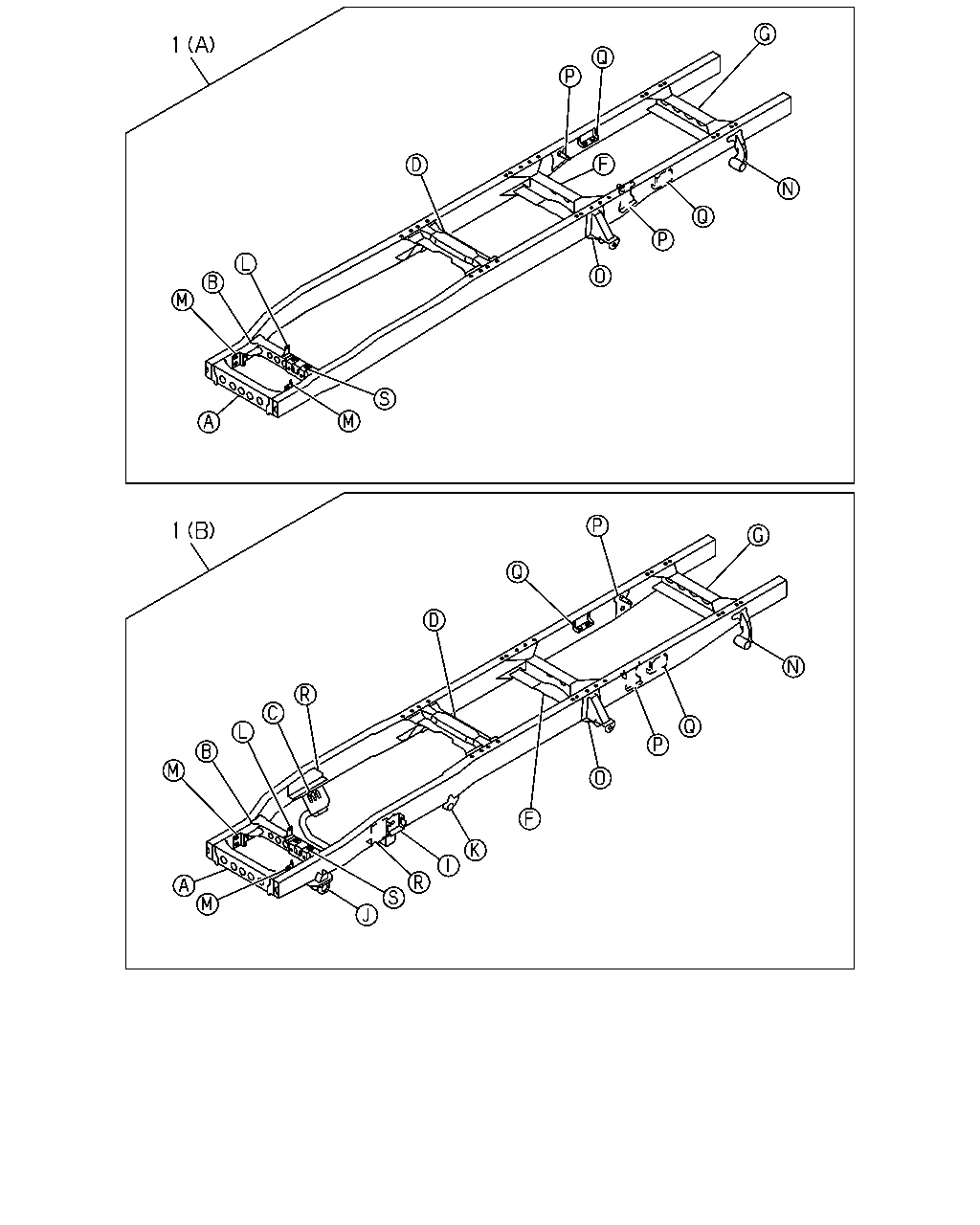

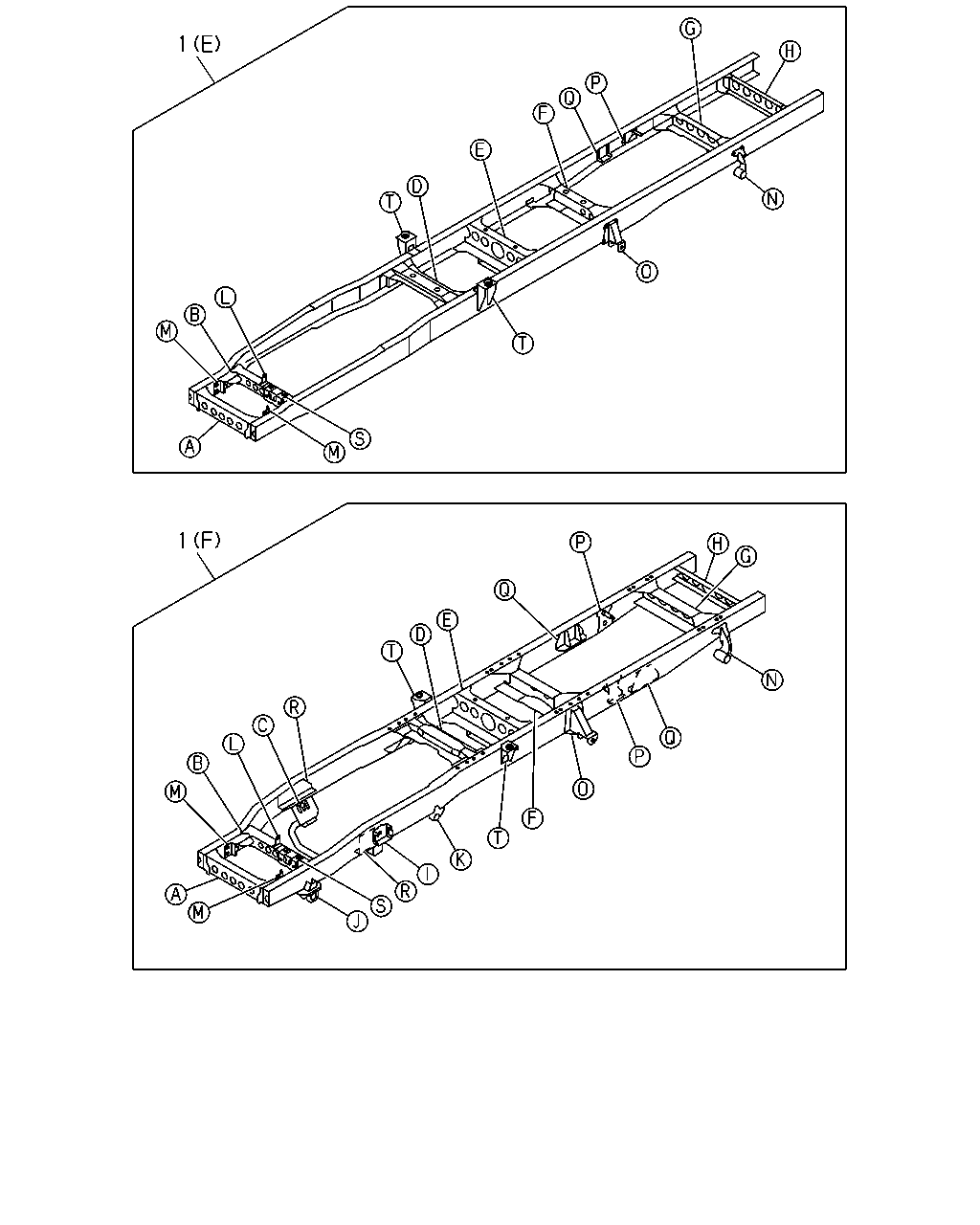

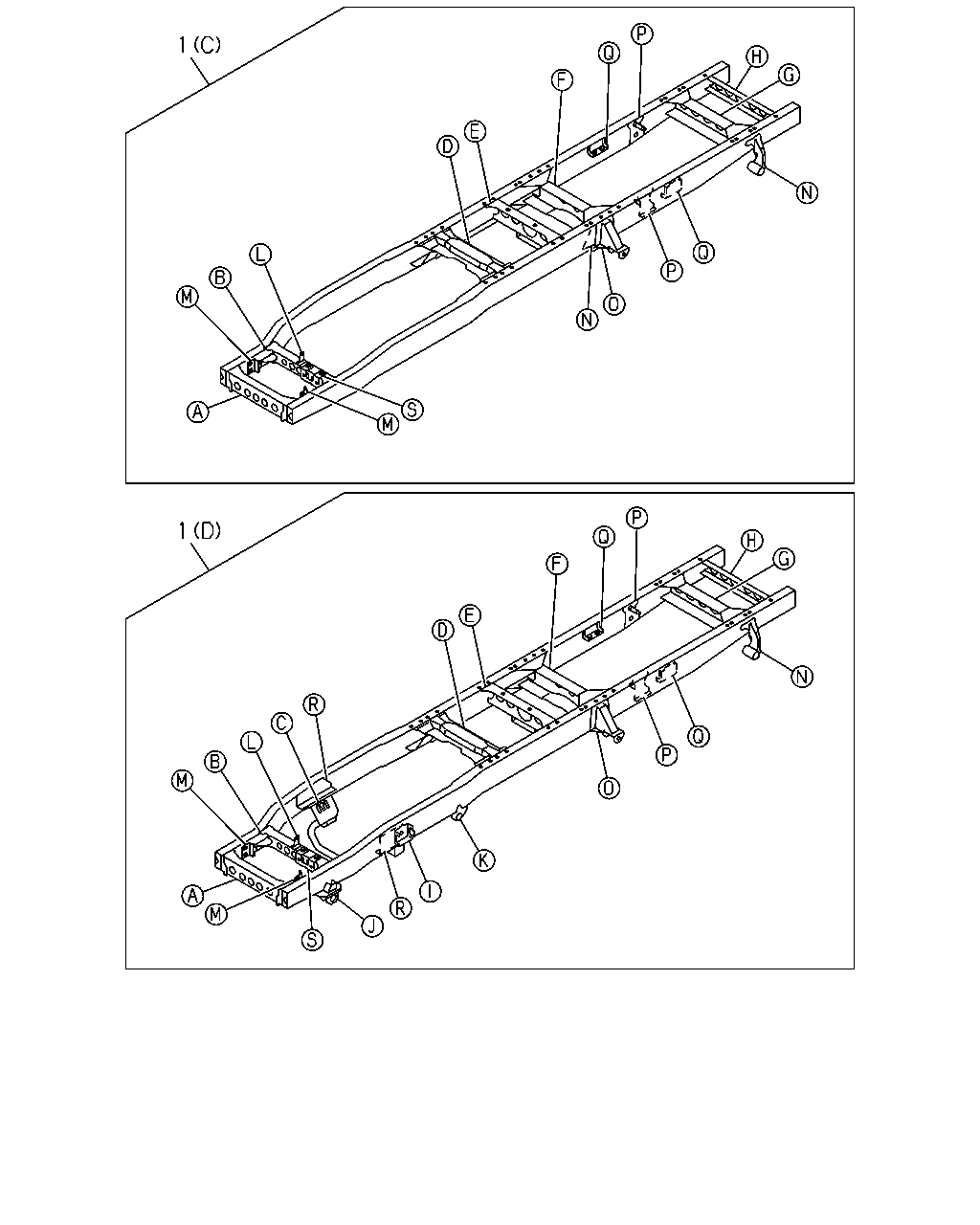

1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-633-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-634-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-667-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98231-668-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-631-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-632-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98271-850-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98271-849-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. REAR WIDE TREAD(V4T) (A)	8-98271-848-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98271-851-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98271-846-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98271-845-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98271-847-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98271-855-0	01	1	1402-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98271-854-0	01	1	1402-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-867-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-867-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-866-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-866-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-868-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-868-0	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-801-0	01	1	1403-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-538-0	01	1	1404-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98204-436-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A)	8-98204-445-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (A)	8-98204-435-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98204-437-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-630-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-666-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-628-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-626-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98204-438-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-664-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C)	8-98204-446-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-624-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98204-439-3	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98231-651-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-655-2	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98231-653-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98231-656-1	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-636-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-636-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-636-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98231-669-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-669-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98231-669-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-635-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-635-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-635-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-629-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-629-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98231-665-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-665-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-627-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-627-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-625-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-625-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98231-663-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-663-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-623-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-623-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98231-654-2	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98231-654-2	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (D)	8-98231-652-1	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98231-652-1	01	1	1311-			●

130 198 139 198 198 198 139 75 345 75 75 51 39 24 165 345 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

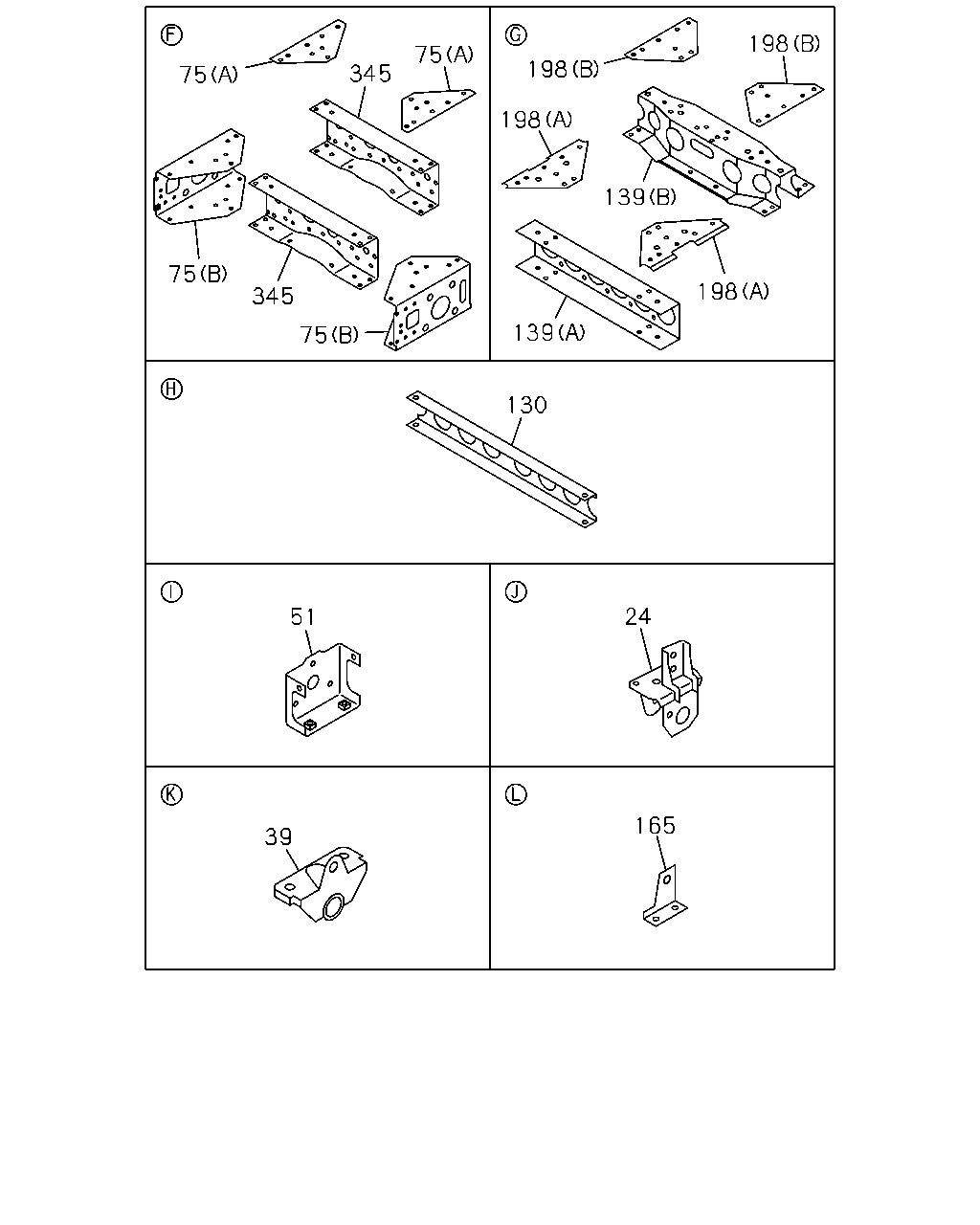

24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	1309-1310		●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1309-1310			●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	1311-	●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1311-			●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	1309-1310		●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1309-1310			●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	1311-	●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1311-			●
39	07.112 BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	1309-1310		●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1309-1310			●
39	07.112 BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	1311-	●	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1311-			●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	1309-1310		●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1309-1310			●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	1311-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1311-			●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B)	8-98006-124-1	01	1	1311-1407		●
75	07.039 GUSSET; 5TH C/MBR SINGLE RR TIRE(6TD) (B)	8-98006-124-1	01	1	1408-		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B)	8-98011-312-1	01	1	1311-1407		●
75	07.039 GUSSET; 5TH C/MBR SINGLE RR TIRE(6TD) (B)	8-98011-312-1	01	1	1408-		●
75	07.039 GUSSET; 5TH C/MBR (A)	8-98011-863-0	04	1	1309-1310		●	●
75	07.039 GUSSET; 5TH C/MBR EXC. SINGLE RR TIRE(6TD) (A)	8-98011-863-0	04	1	1311-		●
75	07.039 GUSSET; 5TH C/MBR (A)	8-98011-863-0	04	1	1311-	●		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-0	01	1	1309-1310		●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-0	01	1	1311-1407		●	●
130	07.014 MEMBER; CROSS,END	8-98041-239-0	01	1	1311-1407	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-1	01	1	1408-	●	●	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B)	8-98006-168-1	01	1	1311-1407		●
139	07.012 MEMBER; CROSS,6TH SINGLE RR TIRE(6TD) (B)	8-98006-168-1	01	1	1408-		●
139	07.012 MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	1309-1310		●	●
139	07.012 MEMBER; CROSS,6TH EXC. SINGLE RR TIRE(6TD) (A)	8-97384-745-0	01	1	1311-		●
139	07.012 MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	1311-	●		●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1309-1310		●	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1311-	●	●	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B)	8-98011-865-0	02	1	1311-1407		●
198	07.039 GUSSET; 6TH C/MBR SINGLE RR TIRE(6TD) (B)	8-98011-865-0	02	1	1408-		●
198	07.039 GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1309-1310		●	●
198	07.039 GUSSET; 6TH C/MBR EXC. SINGLE RR TIRE(6TD) (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1311-		●
198	07.039 GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1311-	●		●
198	07.039 GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1309-1310		●	●
198	07.039 GUSSET; 6TH C/MBR EXC. SINGLE RR TIRE(6TD) (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1311-		●
198	07.039 GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1311-	●		●
345	07.012 MEMBER; CROSS,5TH	8-98011-861-2	01	1	1309-1310		●	●
345	07.012 MEMBER; CROSS,5TH	8-98011-861-2	01	1	1311-	●	●	●

43 43 356 356 546 217 217 101 101 140 140 140 215 105 105 215 446 533 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

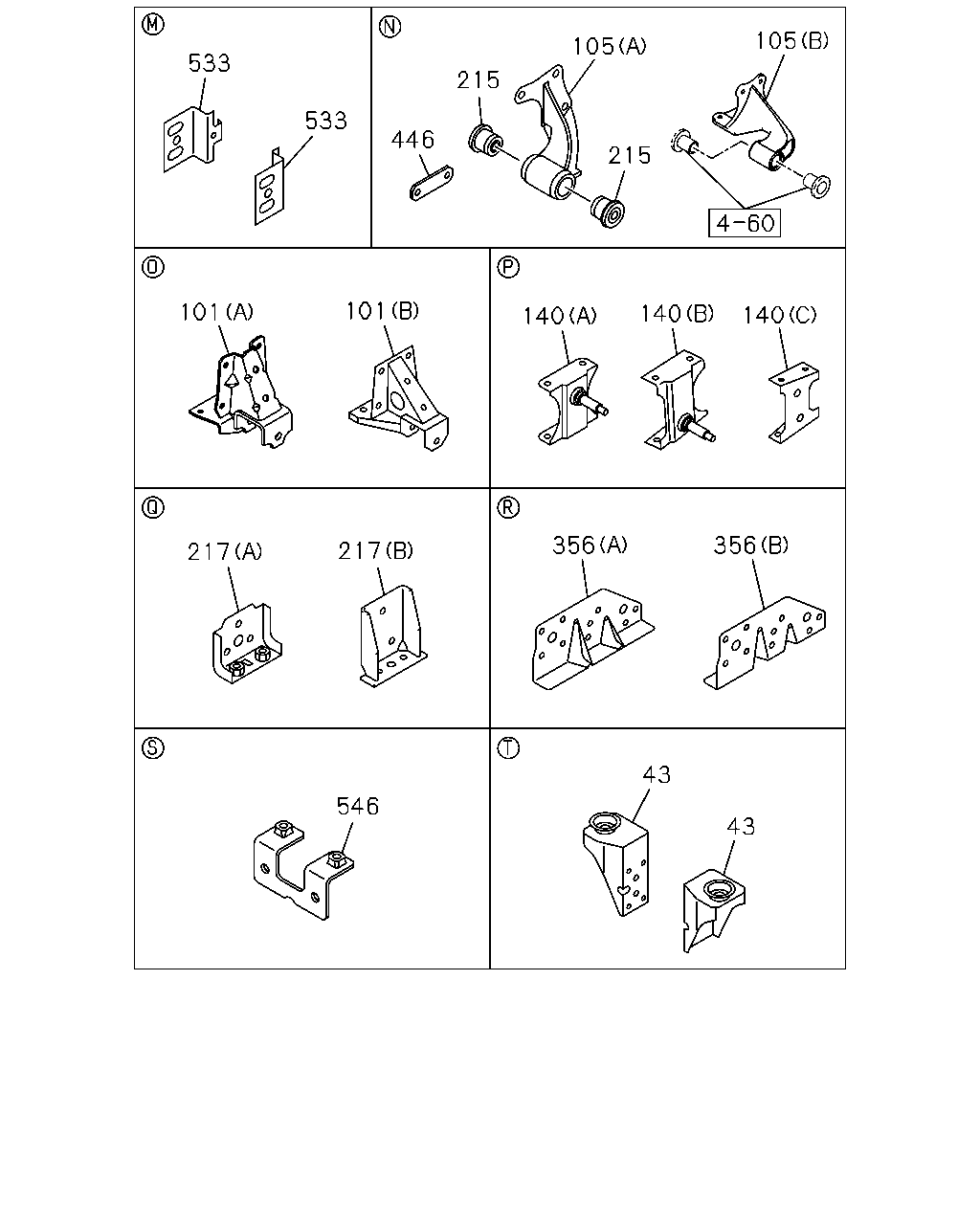

43	09.003 BRACKET; CAB MTG,RR CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98288-560-1	01	1	1409-	●
43	09.003 BRACKET; CAB MTG,RR CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98288-561-1	01	1	1409-	●
43	09.003 BRACKET; CAB MTG,RR	8-98035-851-1	01	1	1311-1408	●
43	09.003 BRACKET; CAB MTG,RR CATALYSIS CONTROL WITH DPD(8JM)	8-98035-851-1	01	1	1409-	●
43	09.003 BRACKET; CAB MTG,RR	8-98035-852-1	01	1	1311-1408	●
43	09.003 BRACKET; CAB MTG,RR CATALYSIS CONTROL WITH DPD(8JM)	8-98035-852-1	01	1	1409-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B)	8-98034-042-0	02	1	1311-1407		●
101	07.112 BRACKET; RR SPR,FRT SINGLE RR TIRE(6TD) (B)	8-98034-042-0	02	1	1408-		●
101	07.112 BRACKET; RR SPR,FRT (A)	8-98243-604-0	02	1	1309-1310		●	●
101	07.112 BRACKET; RR SPR,FRT EXC. SINGLE RR TIRE(6TD) (A)	8-98243-604-0	02	1	1311-		●
101	07.112 BRACKET; RR SPR,FRT (A)	8-98243-604-0	02	1	1311-	●		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B)	8-98031-058-0	01	1	1311-1407		●
105	07.112 BRACKET; RR SPR,RR SINGLE RR TIRE(6TD) (B)	8-98031-058-0	01	1	1408-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B)	8-98031-059-0	01	1	1311-1407		●
105	07.112 BRACKET; RR SPR,RR SINGLE RR TIRE(6TD) (B)	8-98031-059-0	01	1	1408-		●
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-488-0	01	1	1309-1310		●	●
105	07.112 BRACKET; RR SPR,RR EXC. SINGLE RR TIRE(6TD) (A)	8-98032-488-0	01	1	1311-		●
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-488-0	01	1	1311-	●		●
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-489-0	01	1	1309-1310		●	●
105	07.112 BRACKET; RR SPR,RR EXC. SINGLE RR TIRE(6TD) (A)	8-98032-489-0	01	1	1311-		●
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-489-0	01	1	1311-	●		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (C)	8-98006-174-0	02	1	1311-1407		●
140	07.112 BRACKET; S/ABS,RR SINGLE RR TIRE(6TD) (C)	8-98006-174-0	02	1	1408-		●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1309-1310		●	●
140	07.112 BRACKET; S/ABS,RR EXC. SINGLE RR TIRE(6TD) (B)	8-98006-176-0	01	1	1311-		●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1311-	●		●
140	07.112 BRACKET; S/ABS,RR (A)	8-98006-180-0	01	1	1309-1310		●	●
140	07.112 BRACKET; S/ABS,RR EXC. SINGLE RR TIRE(6TD) (A)	8-98006-180-0	01	1	1311-		●
140	07.112 BRACKET; S/ABS,RR (A)	8-98006-180-0	01	1	1311-	●		●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1309-1310		●	●
215	07.524 BUSHING; BRKT,RR SPRING EXC. SINGLE RR TIRE(6TD)	8-97184-699-1	04	1	1311-		●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1311-	●		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B)	8-97163-899-1	02	1	1311-1407		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING SINGLE RR TIRE(6TD) (B)	8-97163-899-1	02	1	1408-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (A)	8-97202-417-0	02	1	1309-1310		●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. SINGLE RR TIRE(6TD) (A)	8-97202-417-0	02	1	1311-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (A)	8-97202-417-0	02	1	1311-	●		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	1309-1310		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	1311-	●	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	1309-1310		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	1311-	●	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD)	8-98060-184-1	01	1	1311-1407		●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM)	8-98060-184-1	01	1	1408-		●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W)	8-98060-184-1	03	1	1309-1310		●	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ)	8-98060-184-1	03	1	1311-		●	●
533	07.010 STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1309-1310		●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1309-1310		●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1309-1310			●
533	07.010 STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1311-	●	●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1311-	●	●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1311-			●
546	03.671 BRACKET; ECM	8-98119-084-0	01	1	1309-1310		●	●
546	03.671 BRACKET; ECM	8-98119-084-0	01	1	1311-	●	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-633-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-634-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-667-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98231-668-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-631-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-632-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98271-850-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98271-849-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. REAR WIDE TREAD(V4T) (A)	8-98271-848-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98271-851-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98271-846-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98271-845-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98271-847-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98271-855-0	01	1	1402-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98271-854-0	01	1	1402-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-867-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-867-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-866-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-866-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-868-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-868-0	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-801-0	01	1	1403-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-538-0	01	1	1404-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98204-436-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A)	8-98204-445-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (A)	8-98204-435-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98204-437-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-630-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-666-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-628-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-626-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98204-438-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-664-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C)	8-98204-446-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-624-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98204-439-3	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98231-651-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-655-2	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98231-653-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98231-656-1	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-636-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-636-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-636-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98231-669-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-669-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98231-669-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-635-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-635-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-635-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-629-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-629-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98231-665-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-665-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-627-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-627-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-625-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-625-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98231-663-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-663-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-623-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-623-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98231-654-2	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98231-654-2	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (D)	8-98231-652-1	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98231-652-1	01	1	1311-			●

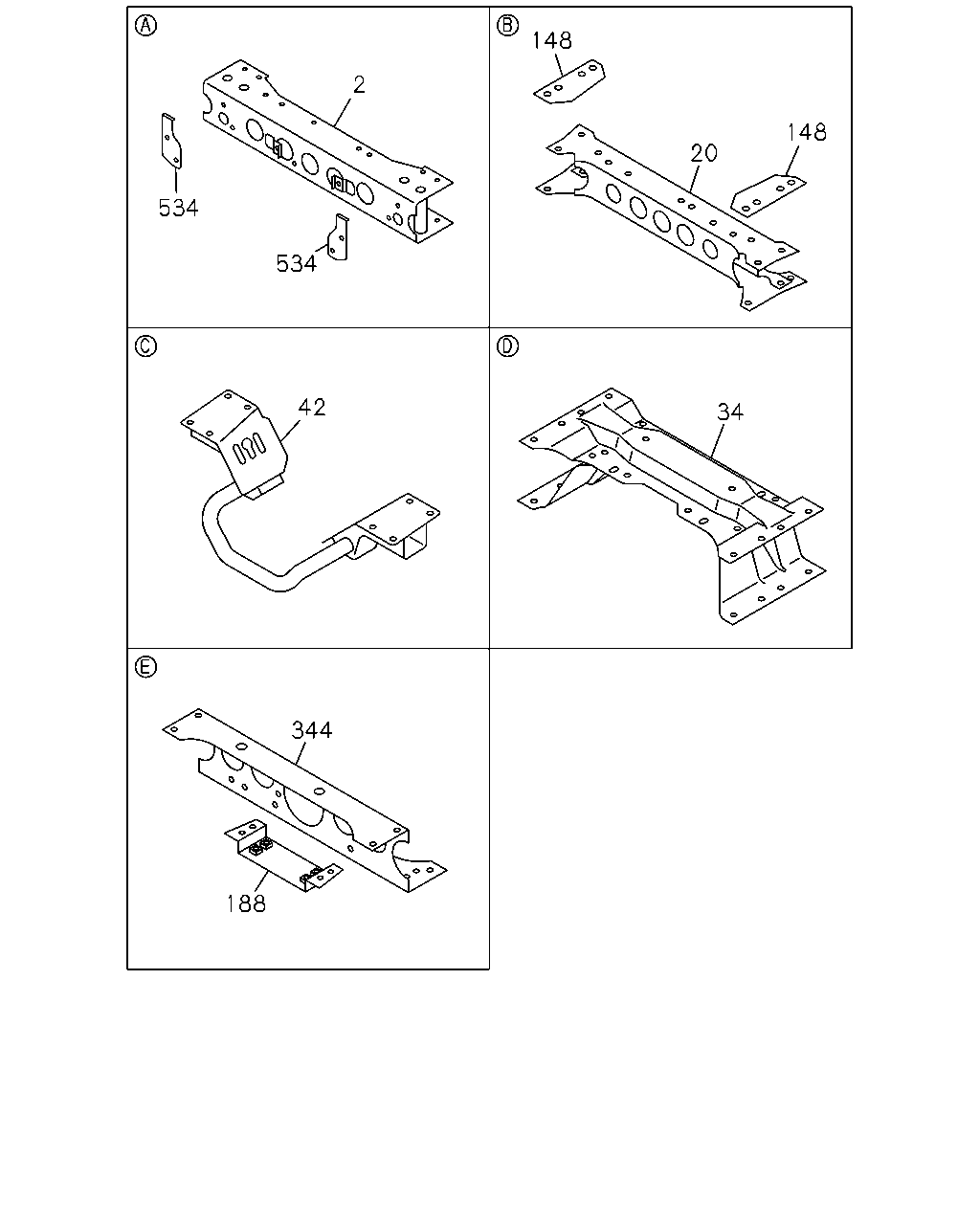

534 534 2 42 344 188 34 20 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	1309-1310		●	●
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	1311-	●	●	●
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1309-1310		●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1309-1310		●
20	07.012 MEMBER; CROSS,2ND	8-98038-419-2	01	1	1309-1310			●
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1311-	●	●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1311-	●	●
20	07.012 MEMBER; CROSS,2ND	8-98038-419-2	01	1	1311-			●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	1309-1310		●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	1311-	●	●
34	07.012 MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1309-1310		●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1309-1310		●
34	07.012 MEMBER; CROSS,3RD	8-97384-743-1	01	1	1309-1310			●
34	07.012 MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1311-	●	●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1311-	●	●
34	07.012 MEMBER; CROSS,3RD	8-97384-743-1	01	1	1311-			●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-959-0	01	1	1309-1310		●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-959-0	01	1	1311-	●	●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	1309-1310		●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	1309-1310			●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	1311-	●	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	1311-			●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	1309-1310		●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	1311-	●	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1309-1310		●	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1311-1407		●	●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97083-157-1	01	1	1311-1407	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1408-	●	●	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	1309-1310		●	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	1311-1407		●	●
344	07.012 MEMBER; CROSS,4TH	8-98005-959-1	01	1	1311-1407	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	1408-	●	●	●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	1309-1310		●	●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	1311-	●	●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	1309-1310		●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	1311-	●	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-633-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-634-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-667-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98231-668-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-631-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-632-1	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98271-850-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98271-849-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. REAR WIDE TREAD(V4T) (A)	8-98271-848-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98271-851-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98271-846-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98271-845-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98271-847-0	01	1	1402-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98271-855-0	01	1	1402-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98271-854-0	01	1	1402-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-867-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-867-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-866-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) (E)	8-98271-866-0	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-868-0	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98271-868-0	01	1	1409-	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-801-0	01	1	1403-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98273-538-0	01	1	1404-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98204-436-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (A)	8-98204-445-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (A)	8-98204-435-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98204-437-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-630-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-666-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-628-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-626-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98204-438-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-664-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. SINGLE RR TIRE(6TD) (C)	8-98204-446-2	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-624-1	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98204-439-3	01	1	1311-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98231-651-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98231-655-2	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) SMOOTHER-EX(TYPE2)(8NS) (D)	8-98231-653-1	01	1	1311-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98231-656-1	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-636-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-636-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-636-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98231-669-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98231-669-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98231-669-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-635-2	01	1	1311-1401	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-635-2	01	1	1402-1408	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98231-635-2	01	1	1409-	●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-629-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (B)	8-98231-629-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98231-665-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (A)	8-98231-665-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98231-627-2	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98231-627-2	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-625-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (D)	8-98231-625-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98231-663-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SINGLE RR TIRE(6TD) (C)	8-98231-663-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98231-623-1	01	1	1309-1310		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) (D)	8-98231-623-1	01	1	1311-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98231-654-2	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98231-654-2	01	1	1311-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (D)	8-98231-652-1	01	1	1309-1310			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD & SCR(JCQ) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98231-652-1	01	1	1311-			●

376 376 376 376 376 376 376 376 376 376 376 376 40 106 60 176 62 67 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	08.155 BOLT; BRKT TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1309-1310		●
40	08.155 BOLT; BRKT TO FRAME 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1309-1310			●
40	08.155 BOLT; BRKT TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1311-	●	●
40	08.155 BOLT; BRKT TO FRAME 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1311-			●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1309-1310		●	●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1311-	●	●	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-1310		●	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1311-	●	●	●
67	07.011 NUT; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-1310		●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-1310			●
67	07.011 NUT; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	1311-	●	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1311-			●
106	07.529 BOLT; BRKT CATALYSIS CONTROL WITH DPD & SCR(JCQ) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	1409-1409	●
106	07.529 BOLT; BRKT CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1410-	●
127	07.529 NUT; BRKT CATALYSIS CONTROL WITH DPD & SCR(JCQ) 04.085 M10 FLANGE	0-91180-210-0	02	1	1409-	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1309-1310		●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1309-1310			●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1311-	●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1311-			●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	1311-	●	●	●
376	07.039 RIVET; FRAME 07.428 (L) D12X36 TAPER END	9-06751-236-0	AR	1	1309-1310		●	●
376	07.039 RIVET; FRAME 07.428 (L) D12X36 TAPER END	9-06751-236-0	AR	1	1311-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
