◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51497 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶
4-65A — REAR LEAF SPRING (#126728) — 27 parça

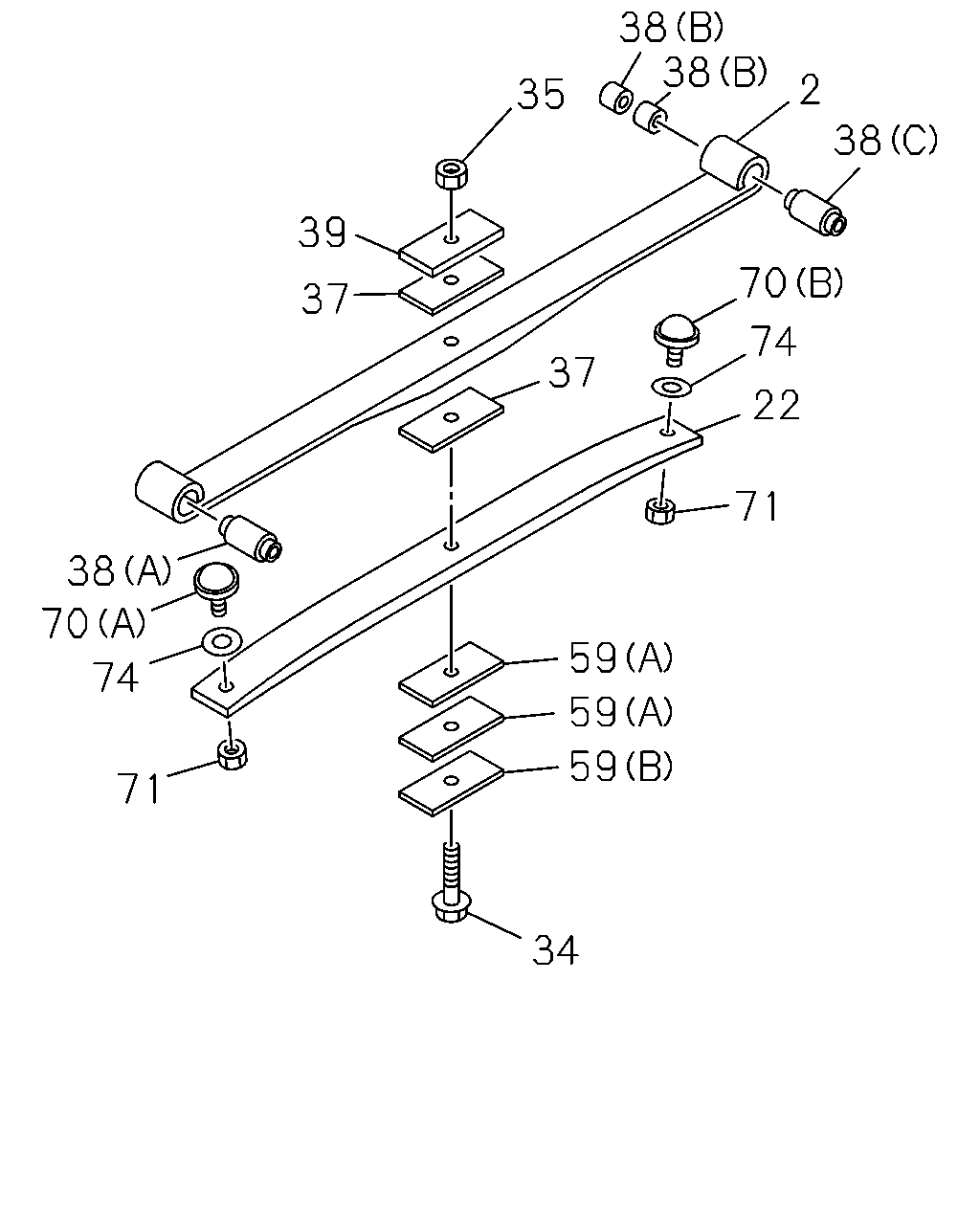

çizim 373993
34 59 59 59 71 22 74 70 38 2 38 8 35 37 39 37 38 70 74 71
BalonParca AdiParca NoAdetTipApplied Date
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98022-370-1, 98022370 		8-98039-305-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-98022-371-1, 98022371 		8-98046-893-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		8-98238-237-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98022-370-1, 98022370 		8-98039-306-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-98022-371-1, 98022371 		8-98046-894-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		8-98238-239-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=85 ASM PART: A = 8-98022-370-1, 98022370 		8-98037-590-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=95 ASM PART: D = 8-98233-168-0, 98233168 		8-98040-313-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=72 ASM PART: B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167 		8-98041-352-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		8-94448-734-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(C), BEST VALUE PARTS ASM PART: A = 8-98022-370-1, 98022370 		5-87610-162-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.105, (A) ASM PART: A = 8-98022-370-1, 98022370 		8-94130-354-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(C), OD=42 L=85.2 ASM PART: A = 8-98022-370-1, 98022370 		8-97034-380-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		8-94407-146-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
(A), T=10 ASM PART: A = 8-98022-370-1, 98022370 		1-51177-216-0 02 1 -
59 07.513 SEAT; RR SPRING,SUB
(A), T=6 ASM PART: B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167 		8-98041-367-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
(B), T=7 ASM PART: D = 8-98233-168-0, 98233168 		8-98041-606-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
(A), T=9 ASM PART: D = 8-98233-168-0, 98233168 		8-98083-223-0 02 1 -
70 07.505 RUBBER; LEAF SPR,RR
(A) ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		8-98039-335-0 01 1 -
70 07.505 RUBBER; LEAF SPR,RR
(B) ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		8-98039-336-0 01 1 -
71 07.505 NUT; RUBBER,RR LEAF SPR
07.506, M10 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		9-09110-010-0 02 1 -
74 07.518 SPACER; SILENSER
T=1 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		8-98069-694-0 AR 1 -
74 07.518 SPACER; SILENSER
T=2 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371, C = 8-98233-167-0, 98233167, D = 8-98233-168-0, 98233168 		8-98201-771-0 AR 1 -
