◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51497 - NLR/NMR RHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#126726) — 112 parça

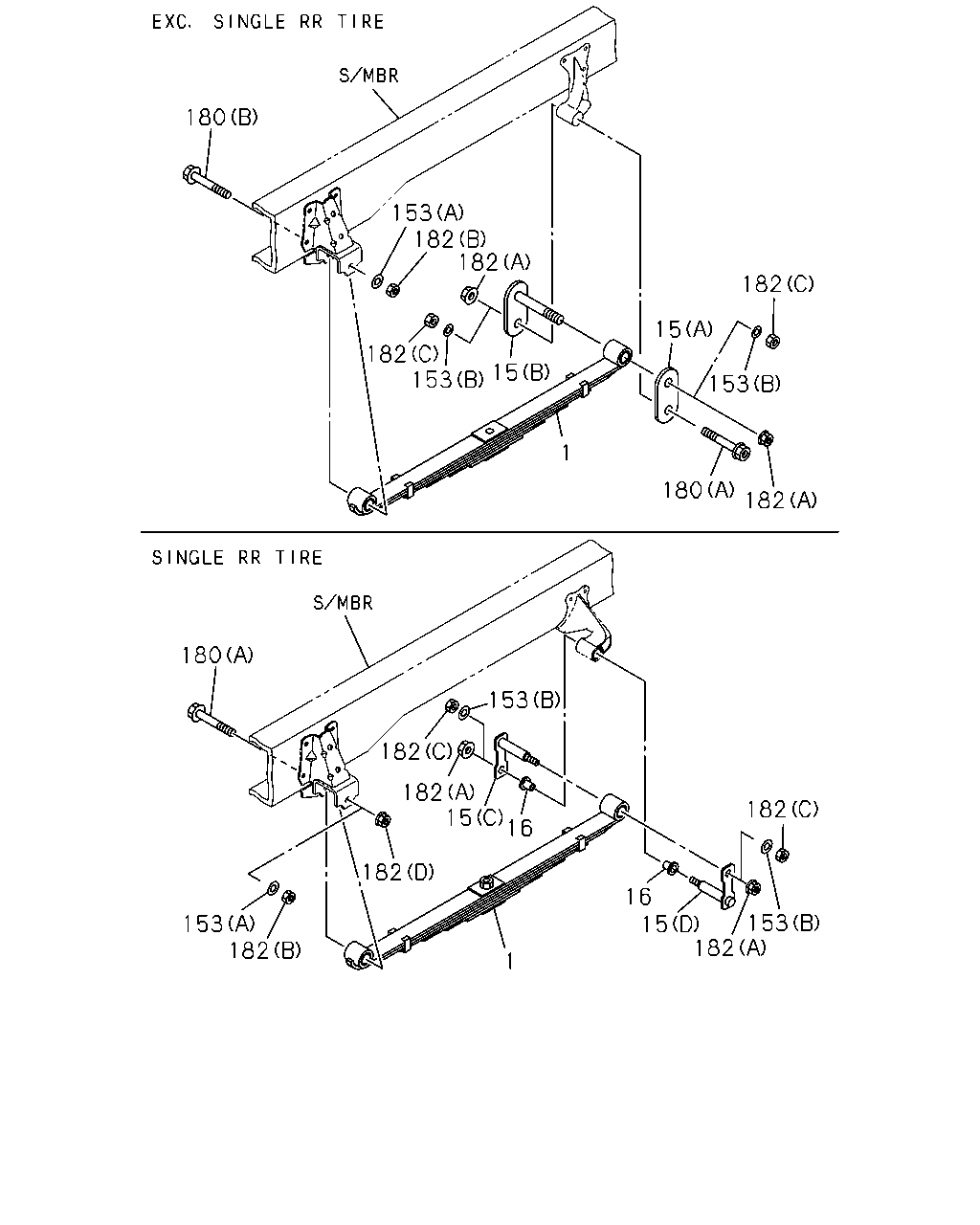

çizim 373911
180 153 182 182 15 153 180 182 15 1 153 182 182 180 182 182 15 16 153 153 182 182 16 1 15 182 182 153
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 2-LEAF 		8-98022-371-1 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) 2-LEAF 		8-98022-371-1 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 2-LEAF 		8-98022-370-1 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) 2-LEAF 		8-98233-167-0 02 1 1309-1310 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 2-LEAF 		8-98233-167-0 02 1 1311-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 2-LEAF 		8-98233-167-0 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) 2-LEAF 		8-98233-167-0 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) 2-LEAF 		8-98233-168-0 02 1 1309-1310 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 2-LEAF 		8-98233-168-0 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) 2-LEAF 		8-98233-168-0 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-98022-372-0 02 1 1309- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (D) 		8-94113-322-3 02 1 1311- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (C) 		8-97033-966-1 02 1 1311- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1309-1310 ● ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (A) 		8-94118-511-3 02 1 1311- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1311- ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1309-1310 ● ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (B) 		8-97360-011-0 02 1 1311- ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1311- ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 1311- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 1311- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 07.427 (A) ID=16.5 		8-98011-489-0 02 1 1311- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 1309-1310 ● ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 1311- ● ● ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1309-1310 ● ●
153 07.529 WASHER; PL,SPRING PIN
EXC. SINGLE RR TIRE(6TD) (A) ID=19 		8-97360-119-0 02 1 1311- ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1311- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1309-1310 ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1311- ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1309-1310 ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD) (B) M18X130 		8-98011-488-0 02 1 1311- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1311- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1309-1310 ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1311- ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1309-1310 ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>,SINGLE RR TIRE(6TD) (B) M18X130 FLANGE 		8-97360-112-0 02 1 1311- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1311- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 06.509 (B) M16 		0-91110-516-0 02 1 1311- ●
182 07.529 NUT; PIN,RR SPR
SINGLE RR TIRE(6TD) EXC. KD PREPARATORY PACK<6HF> 07.427 (D) M16 FLANGE 		8-97360-125-0 02 1 1311- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 1309-1310 ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 1311- ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1309-1310 ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1311- ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1309-1310 ● ●
182 07.529 NUT; PIN,RR SPR
EXC. SINGLE RR TIRE(6TD) (B) M18 		0-91110-518-0 02 1 1311- ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1311- ● ●
çizim 374752
227 225 230 4 502 155 1 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 2-LEAF 		8-98022-371-1 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) 2-LEAF 		8-98022-371-1 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 2-LEAF 		8-98022-370-1 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) 2-LEAF 		8-98233-167-0 02 1 1309-1310 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 2-LEAF 		8-98233-167-0 02 1 1311-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 2-LEAF 		8-98233-167-0 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2800MM(28W) 2-LEAF 		8-98233-167-0 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) 2-LEAF 		8-98233-168-0 02 1 1309-1310 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 2-LEAF 		8-98233-168-0 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) 2-LEAF 		8-98233-168-0 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-98022-372-0 02 1 1309- ●
4 07.516 U-BOLT; RR SPR
AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) L=225 		8-94127-919-3 04 1 1311- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) L=235 		8-94127-920-3 04 1 1309-1310 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) L=235 		8-94127-920-3 04 1 1311-1403 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) L=235 		8-94127-920-3 04 1 1311-1403 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) L=235 		8-94127-920-3 04 1 1311-1403 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) L=235 		8-94127-920-3 04 1 1404- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) L=235 		8-94127-920-3 04 1 1404- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2800MM(28W) L=215 		8-94127-918-3 04 1 1309-1310 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) L=215 		8-94127-918-3 04 1 1311-1403 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) L=215 		8-94127-918-3 04 1 1311-1403 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W) L=215 		8-94127-918-3 04 1 1311-1403 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) L=215 		8-94127-918-3 04 1 1404-1408 ●
4 07.516 U-BOLT; RR SPR
AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) L=215 		8-94127-918-3 04 1 1404-1408 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W) L=215 		8-94127-918-3 04 1 1404-1408 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) L=215 		8-94127-918-3 04 1 1409- ●
4 07.516 U-BOLT; RR SPR
AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) L=215 		8-94127-918-3 04 1 1409- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2800MM(28W) L=215 		8-94127-918-3 04 1 1409- ●
4 07.516 U-BOLT; RR SPR
AXLE REAR - LIGHT DUTY(8PB) WHEEL BASE 2400MM(24W) L=215 		8-94127-918-3 04 1 1409- ●
4 07.516 U-BOLT; RR SPR
L=255 		8-94127-922-3 04 1 1309-1310 ●
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) L=255 		8-94127-922-3 04 1 1311- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1309-1310 ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1311- ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1309-1310 ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1311- ● ● ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-360-4 01 1 1311- ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-361-4 01 1 1311- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98002-085-1 02 1 1311- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 1309-1310 ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1311- ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 1311- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W) 		8-98021-554-0 02 1 1311- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98025-096-1 02 1 1309-1310 ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98025-096-1 02 1 1311-1408 ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 3300MM(33W) 		8-98025-096-1 02 1 1311-1408 ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98025-096-1 02 1 1409- ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 		8-98025-096-1 02 1 1409- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1309-1310 ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1311- ● ● ●
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 1309-1310 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-97136-852-0 02 1 1311- ●
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 1311- ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 2400MM(24W) 		8-97136-852-0 02 1 1311- ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3300MM(33W) 		8-98240-436-0 02 1 1309-1310 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98240-436-0 02 1 1311- ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3300MM(33W) 		8-98240-436-0 02 1 1311- ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1309-1310 ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1309-1310 ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1311-1403 ●
502 07.506 CLAMP; RR LEAF SPR
SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1311-1403 ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1311-1403 ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1311-1403 ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1404- ●
502 07.506 CLAMP; RR LEAF SPR
AXLE REAR - LIGHT DUTY(8PB) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1404- ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1404- ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1404- ●
