2-26B — MANUAL TRANSMISSION GEAR (#12672) — 230 parça

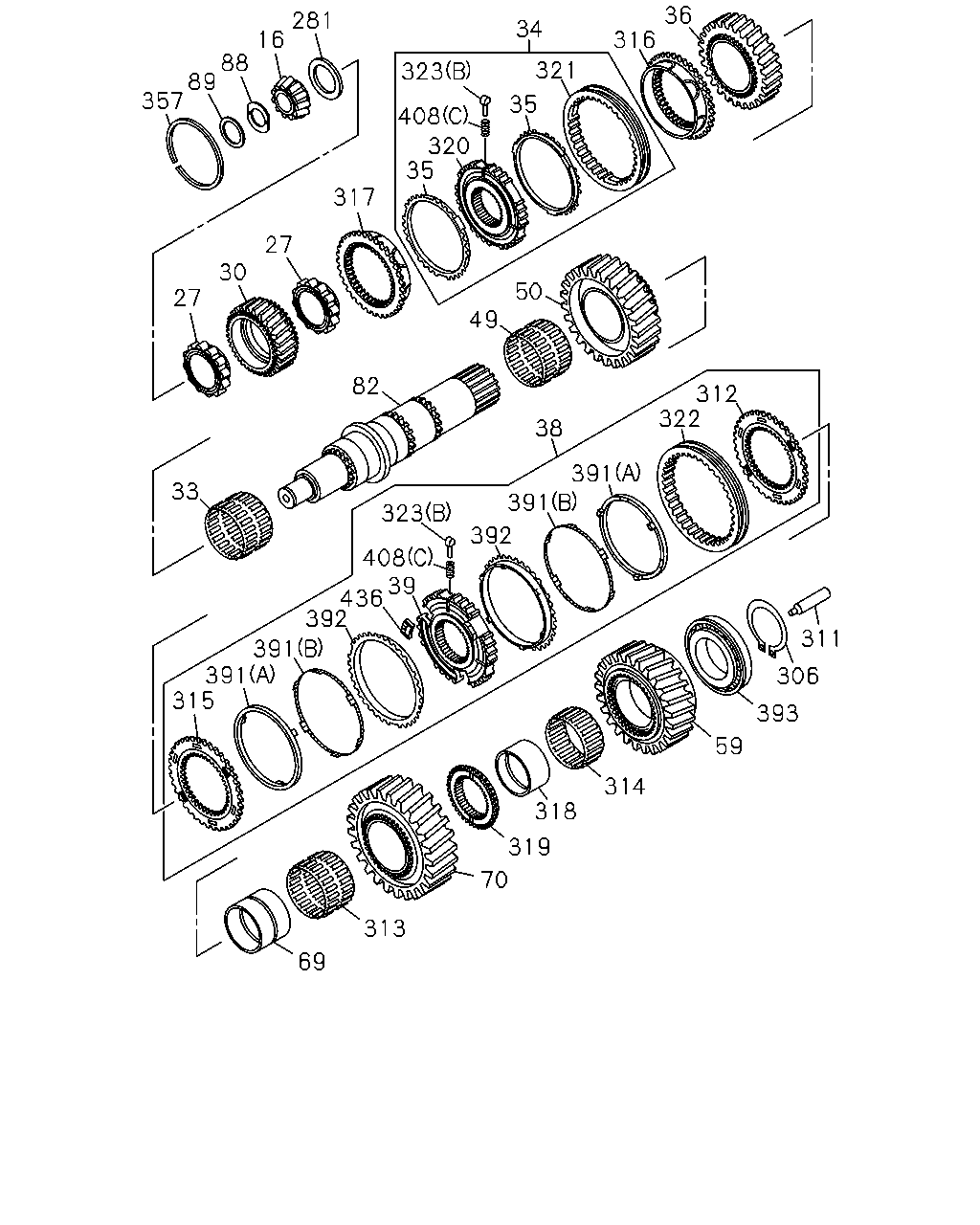

çizim 21617
36 316 281 16 34 88 89 357 321 323 35 408 320 35 317 27 30 50 27 49 82 312 322 38 391 33 391 323 392 408 39 436 392 311 391 306 391 315 393 59 314 318 319 70 313 69
BalonParca AdiParca NoAdetTipApplied Date
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0105-
27 BEARING; 4TH GEAR 1-33259-046-0 02 1 0105-
30 GEAR; 4TH,MAINSHAFT 1-33252-466-0 01 1 0105-
33 BEARING; NEEDLE,3RD GEAR 1-33239-223-0 01 1 0105-
34 SYNCHRONIZER; 4TH & 3RD 1-33260-151-0 01 1 0105-
35 RING; BLOCK,4TH & 3RD 1-33219-241-0 02 1 0105-
36 GEAR; 3RD,MAINSHAFT 1-33252-465-0 01 1 0105-
38 SYNCHRONIZER; LOW & 2ND 1-33260-152-0 01 1 0105-
39 HUB; CLU,LOW & 2ND 1-33261-224-0 01 1 0105-
49 BEARING; NEEDLE,2ND GEAR 1-33239-223-0 01 1 0105-
50 GEAR; 2ND,MAINSHAFT 1-33251-395-0 01 1 0105-
59 GEAR; REV MAINSHAFT 1-33257-082-0 01 1 0105-
69 COLLAR; 1ST GEAR MAIN 1-33259-067-0 01 1 0105-
70 GEAR; 1ST,MAINSHAFT 1-33251-396-0 01 1 0105-
82 SHAFT; MAIN,TRANS 1-33231-239-0 01 1 0105-
88 RING; THRUST,THRUST WASHER
T=4.90 		1-33239-213-0 02 1 0105-
88 RING; THRUST,THRUST WASHER
T=4.70 		1-33239-214-0 02 1 0105-
88 RING; THRUST,THRUST WASHER
T=4.60 		1-33239-215-0 02 1 0105-
88 RING; THRUST,THRUST WASHER
T=5.00 		1-33239-305-0 02 1 0105-
88 RING; THRUST,THRUST WASHER
T=4.80 		1-33239-306-0 02 1 0105-
89 RING; RET,THRUST RING 1-33239-216-0 01 1 0105-
281 WASHER; THRUST,MAINSHAFT
T=8.30 		1-33239-210-0 01 1 0105-
281 WASHER; THRUST,MAINSHAFT
T=7.90 		1-33239-211-0 01 1 0105-
306 RING; SNAP,MAINSHAFT
T=2.50 		1-33239-098-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=2.40 		1-33239-099-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=2.30 		1-33239-100-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=2.20 		1-33239-101-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.50 		1-33239-189-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.45 		1-33239-190-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.40 		1-33239-191-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.35 		1-33239-192-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.30 		1-33239-193-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.25 		1-33239-194-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.20 		1-33239-195-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.15 		1-33239-196-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.10 		1-33239-197-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.05 		1-33239-198-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.00 		1-33239-199-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=2.95 		1-33239-200-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=2.90 		1-33239-201-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=2.85 		1-33239-202-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=2.80 		1-33239-203-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=2.70 		1-33239-204-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=2.60 		1-33239-205-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.55 		1-33239-206-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.60 		1-33239-207-0 AR 1 0105-
306 RING; SNAP,MAINSHAFT
T=3.65 		1-33239-208-0 AR 1 0105-
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 0105-
312 CLUTCH; DOG,1ST GEAR 1-33265-439-0 01 1 0105-
313 BEARING; NEEDLE,LOW GEAR 1-33259-043-0 01 1 0105-
314 BEARING; NEEDLE,REV GEAR 1-33259-045-0 01 1 0105-
315 CLUTCH; DOG,2ND GEAR 1-33265-439-0 01 1 0105-
316 CLUTCH; DOG,3RD GEAR 1-33265-436-0 01 1 0105-
317 CLUTCH; DOG,4TH GEAR 1-33265-436-0 01 1 0105-
318 COLLAR; DIST,REV GEAR 1-33259-044-0 01 1 0105-
319 CLUTCH; SLIDING 1-33261-229-0 01 1 0105-
320 HUB; CLU,4TH & 3RD 1-33261-228-0 01 1 0105-
321 SLEEVE; SYN,4TH & 3RD 1-33262-208-0 01 1 0105-
322 SLEEVE; SYN,LOW & 2ND 1-33269-079-0 01 1 0105-
323 INSERT
(A) 		1-33263-027-0 09 1 0105-
323 INSERT
(B) 		1-33263-030-0 09 1 0105-
357 RING
T=4.00 		1-33239-217-0 01 1 0105-
357 RING
T=3.60 		1-33239-218-0 01 1 0105-
391 RING; INSIDE,SYN
(A) 		1-33265-440-0 02 1 0105-
391 RING; INSIDE,SYN
(B) 		1-33269-044-0 02 1 0105-
392 RING; OUTSIDE,SYN 1-33269-045-0 02 1 0105-
393 BEARING; MAINSHAFT END 1-33239-304-0 01 1 0105-
408 SPRING
(A) 		1-33269-038-0 09 1 0105-
408 SPRING
(B) 		1-33269-039-0 09 1 0105-
408 SPRING
(C) 		1-33269-042-0 09 1 0105-
436 KEY; LOW & 2ND 1-33269-046-0 03 1 0105-

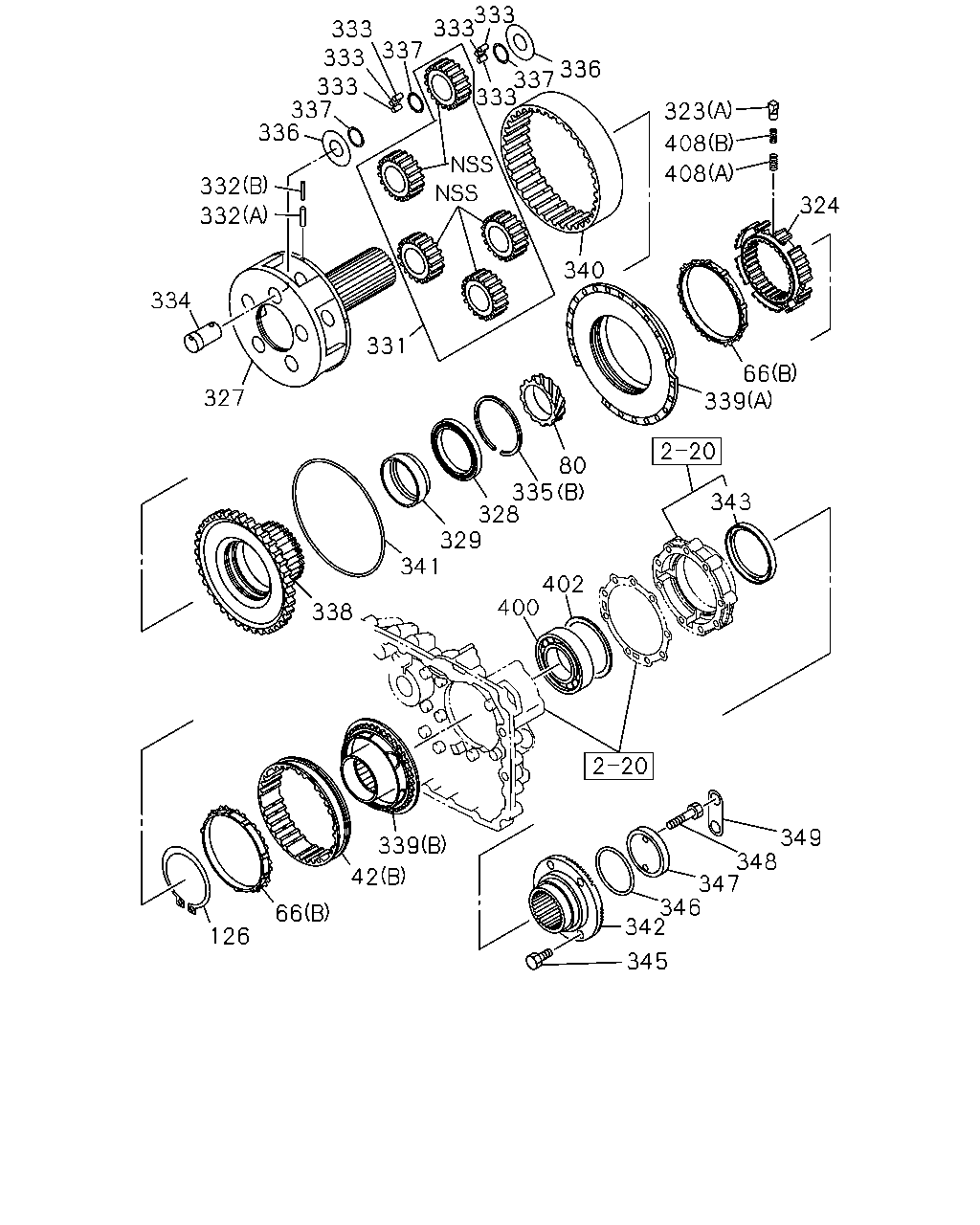

çizim 22612
333 333 333 337 333 336 337 333 333 337 336 323 408 408 332 324 332 340 334 331 66 339 327 80 335 328 329 341 343 402 400 338 349 348 347 346 342 339 42 66 126 345
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE
(A) 		1-33262-208-0 01 1 0105-
42 SLEEVE
(B) 		1-33339-020-0 01 1 0105-
66 RING; BLOCK,SYN
(A) 		1-33219-241-0 02 1 0105-
66 RING; BLOCK,SYN
(B) 		1-33339-069-0 02 1 0105-
80 GEAR; SPD DRIVE 1-33371-063-0 01 1 0105-
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 0105-
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 0105-
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 0105-
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 0105-
323 INSERT
(A) 		1-33263-027-0 09 1 0105-
323 INSERT
(B) 		1-33263-030-0 09 1 0105-
324 HUB; CLU 1-33261-230-0 01 1 0105-
327 CARRIER; PLANETARY GEAR 1-33231-284-0 01 1 0105-
328 BEARING; CARRIER 1-33339-025-0 01 1 0105-
329 COLLAR; BEARING 1-33339-002-0 01 1 0105-
331 GEAR SET; PLANETARY 1-33239-224-0 01 1 0105-
332 PIN; LOCK,SHAFT
(A) 		1-33239-185-0 05 1 0105-
332 PIN; LOCK,SHAFT
(B) 		1-33239-186-0 05 1 0105-
333 ROLLER; PLANETARY GEAR 1-33239-225-0 AR 1 0105-
334 SHAFT; PLANETARY GEAR 1-33239-226-0 05 1 0105-
335 RING; SNAP,BEARING
(A) 		1-33219-246-0 01 1 0105-
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-075-0 AR 1 0105-
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-076-0 AR 1 0105-
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-077-0 AR 1 0105-
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-078-0 AR 1 0105-
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-079-0 AR 1 0105-
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-080-0 AR 1 0105-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-182-0 10 1 0105-
337 WASHER; PLANETARY GEAR,INNER 1-33239-181-0 15 1 0105-
338 CARRIER; RING GEAR 1-33331-240-0 01 1 0105-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33261-226-0 01 1 0105-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33339-021-0 01 1 0105-
340 GEAR; RING 1-33339-046-0 01 1 0105-
341 WIRE; LOCK,CARRIER 1-33339-012-0 01 1 0105-
342 FLANGE; OUTPUT 1-37243-324-0 01 1 0105-
343 SEAL; FLANGE 1-33139-052-0 01 1 0105-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0105-
346 GASKET; FLANGE 1-37249-079-0 01 1 0105-
347 WASHER; FLANGE 1-37249-080-0 01 1 0105-
348 BOLT; SHAFT 1-37249-155-0 02 1 0105-
349 WASHER; LK,SHAFT 1-37249-081-0 01 1 0105-
400 BEARING; OUTPUT SHAFT RR 1-33139-014-0 01 1 0105-
402 SHIM
T=0.60 		1-33139-015-0 AR 1 0105-
402 SHIM
T=0.50 		1-33139-016-0 AR 1 0105-
402 SHIM
T=0.30 		1-33139-017-0 AR 1 0105-
402 SHIM
T=0.40 		1-33139-018-0 AR 1 0105-
402 SHIM
T=0.20 		1-33139-019-0 AR 1 0105-
408 SPRING
(A) 		1-33269-038-0 09 1 0105-
408 SPRING
(B) 		1-33269-039-0 09 1 0105-
408 SPRING
(C) 		1-33269-042-0 09 1 0105-

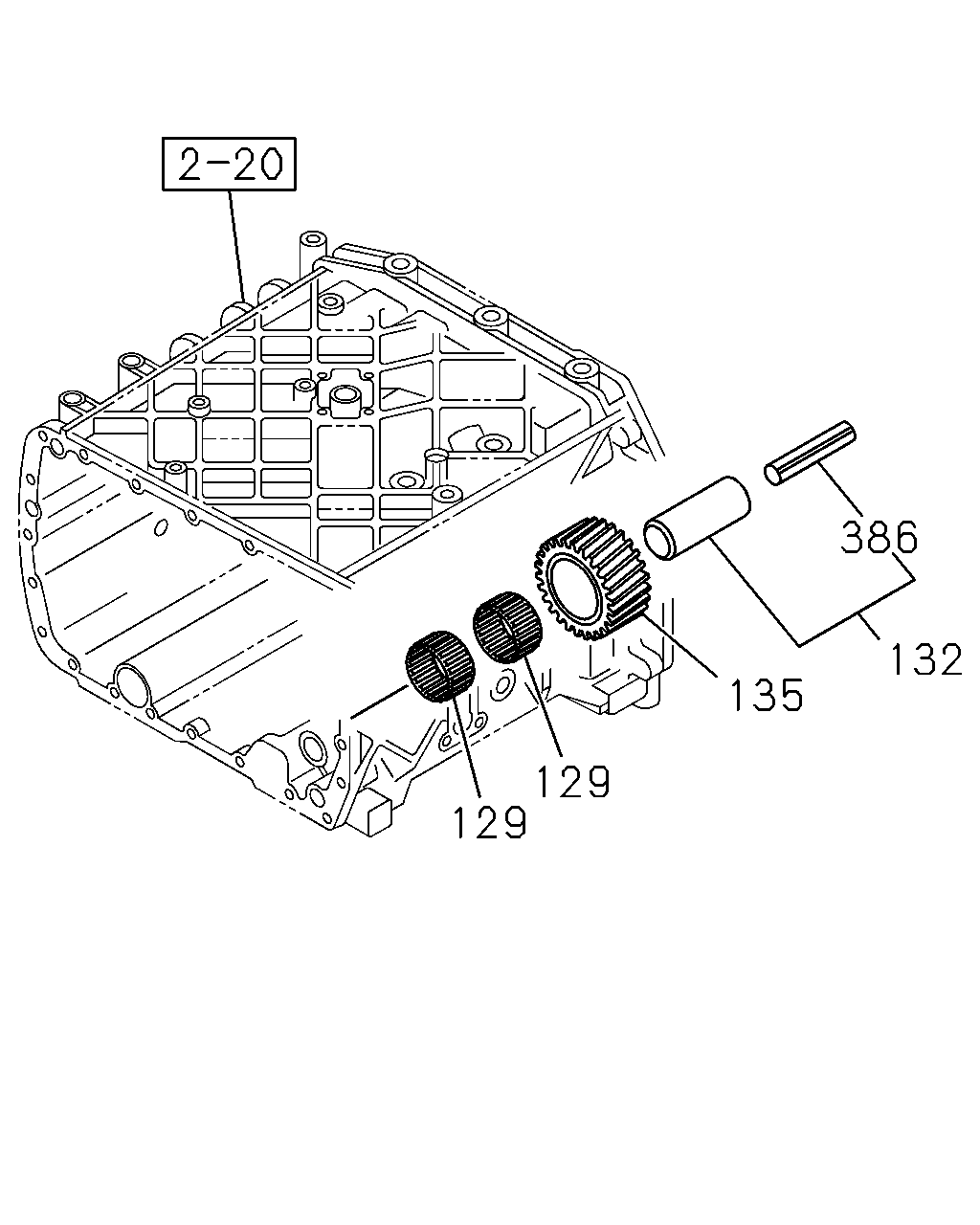

çizim 80334
386 132 135 129 129
BalonParca AdiParca NoAdetTipApplied Date
129 BEARING; NEEDLE,IDLER 1-33369-020-0 02 1 0105-
132 SHAFT; REV 1-33351-032-0 01 1 0105-
135 GEAR; REV IDLER 1-33361-082-0 01 1 0105-
386 PIN; REV SHAFT 1-33359-012-0 01 1 0105-

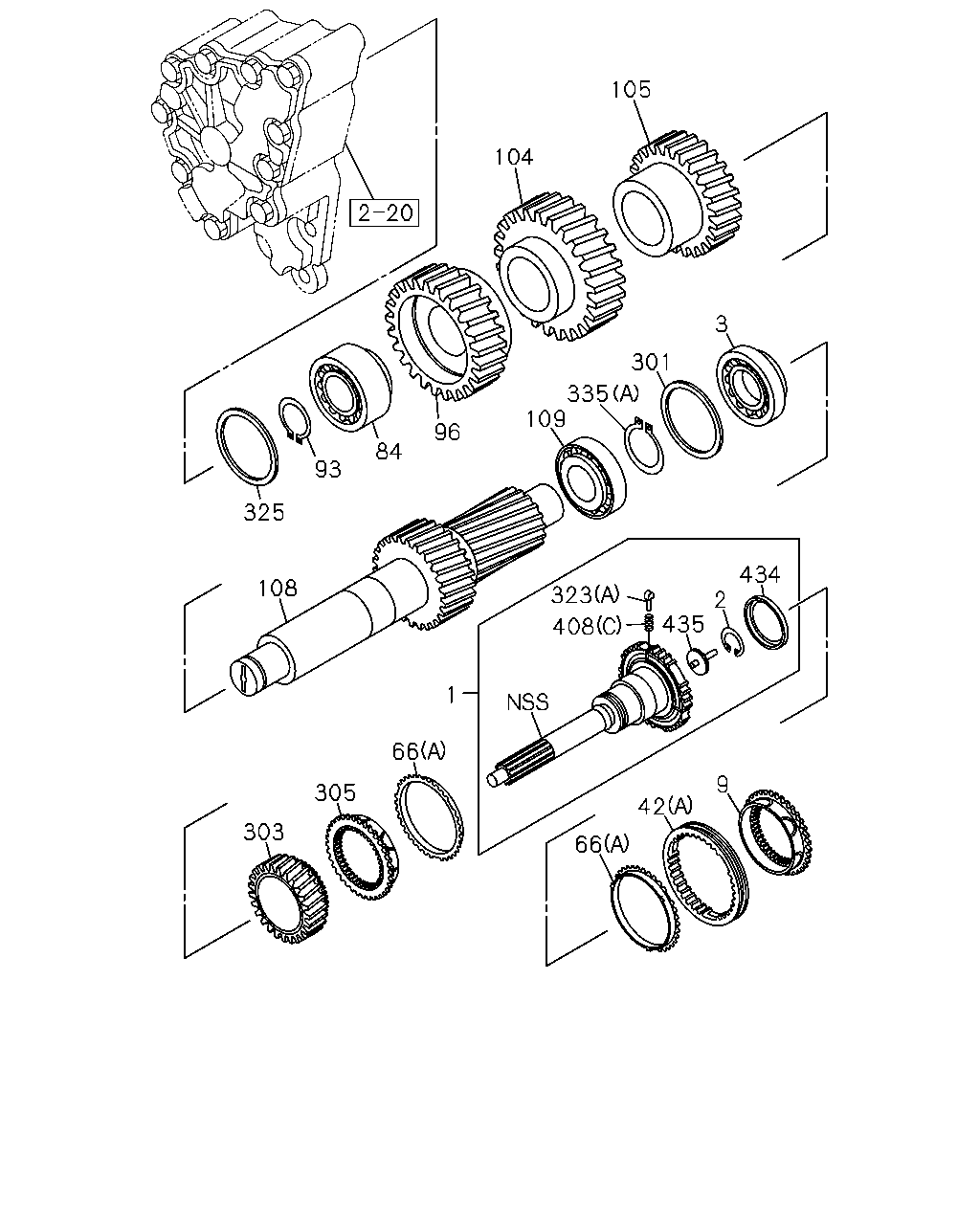

çizim 80338
105 104 3 301 335 109 96 84 93 325 434 2 435 108 323 408 1 66 9 305 42 303 66
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33219-244-0 01 1 0105-
2 RING; SNAP,TOP GEAR SHAFT 1-33219-115-0 01 1 0105-
3 BEARING; TOP GEAR SHAFT 1-33219-242-0 01 1 0105-
9 CLUTCH; DOG,TOP GEAR 1-33265-437-0 01 1 0105-
42 SLEEVE
(A) 		1-33262-208-0 01 1 0105-
42 SLEEVE
(B) 		1-33339-020-0 01 1 0105-
66 RING; BLOCK,SYN
(A) 		1-33219-241-0 02 1 0105-
66 RING; BLOCK,SYN
(B) 		1-33339-069-0 02 1 0105-
84 BEARING; COUNTER SHAFT,FRT 1-33319-087-0 01 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=3.20 		1-33319-061-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=3.15 		1-33319-062-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=3.10 		1-33319-063-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=3.05 		1-33319-064-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=3.00 		1-33319-065-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.95 		1-33319-066-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.90 		1-33319-067-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.85 		1-33319-068-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.80 		1-33319-069-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.75 		1-33319-070-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.70 		1-33319-071-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.65 		1-33319-072-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.60 		1-33319-073-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.55 		1-33319-074-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-075-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-076-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-077-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.35 		1-33319-078-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-079-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.25 		1-33319-080-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-081-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.15 		1-33319-082-0 AR 1 0105-
93 RING; SNAP,COUNTER FRT BRG
T=2.10 		1-33319-083-0 AR 1 0105-
96 GEAR; COUNTER DRIVE 1-33331-259-0 01 1 0105-
104 GEAR; 4TH,COUNTER 1-33338-375-0 01 1 0105-
105 GEAR; 3RD,COUNTER 1-33333-163-0 01 1 0105-
108 SHAFT; COUNTER 1-33311-310-0 01 1 0105-
109 BEARING; COUNTER SHAFT,RR 1-33319-134-0 01 1 0105-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-117-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-118-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-119-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-120-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-121-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33219-122-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33219-123-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33219-124-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33219-125-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33219-126-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33219-127-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33219-128-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33219-129-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33219-130-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33219-131-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33219-132-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33219-133-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33219-134-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33219-135-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33219-136-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33219-137-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33219-138-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33219-139-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33219-140-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33219-141-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33219-142-0 AR 1 0105-
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33219-143-0 AR 1 0105-
303 GEAR; SPLITTER 1-33219-249-0 01 1 0105-
305 CLUTCH; DOG,SPLITTER GEAR 1-33265-436-0 01 1 0105-
323 INSERT
(A) 		1-33263-027-0 09 1 0105-
323 INSERT
(B) 		1-33263-030-0 09 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33319-108-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33319-109-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33319-110-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33319-111-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33319-112-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33319-113-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33319-114-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33319-115-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33319-116-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33319-117-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33319-118-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33319-119-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33319-120-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33319-121-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33319-122-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33319-123-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33319-124-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33319-125-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33319-126-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33319-127-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33319-128-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33319-129-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33319-130-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33319-131-0 AR 1 0105-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33319-132-0 AR 1 0105-
335 RING; SNAP,BEARING
(A) 		1-33219-246-0 01 1 0105-
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-075-0 AR 1 0105-
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-076-0 AR 1 0105-
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-077-0 AR 1 0105-
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-078-0 AR 1 0105-
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-079-0 AR 1 0105-
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-080-0 AR 1 0105-
408 SPRING
(A) 		1-33269-038-0 09 1 0105-
408 SPRING
(B) 		1-33269-039-0 09 1 0105-
408 SPRING
(C) 		1-33269-042-0 09 1 0105-
434 GASKET; INPUTSHAFT 1-33219-116-0 01 1 0105-
435 PIPE; INPUTSHAFT 1-33219-114-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
