Sayfa 4-35 - Isuzu EPC

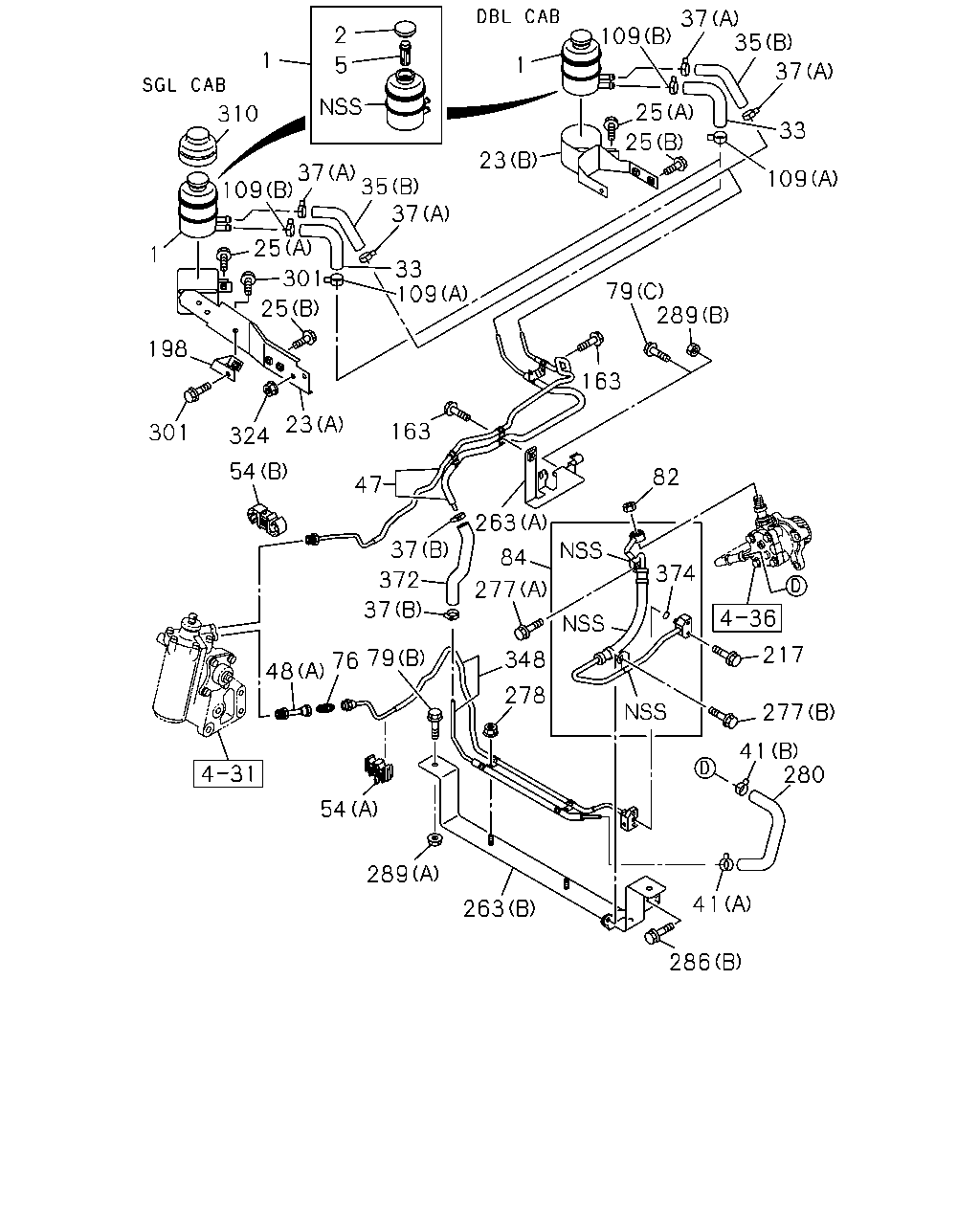

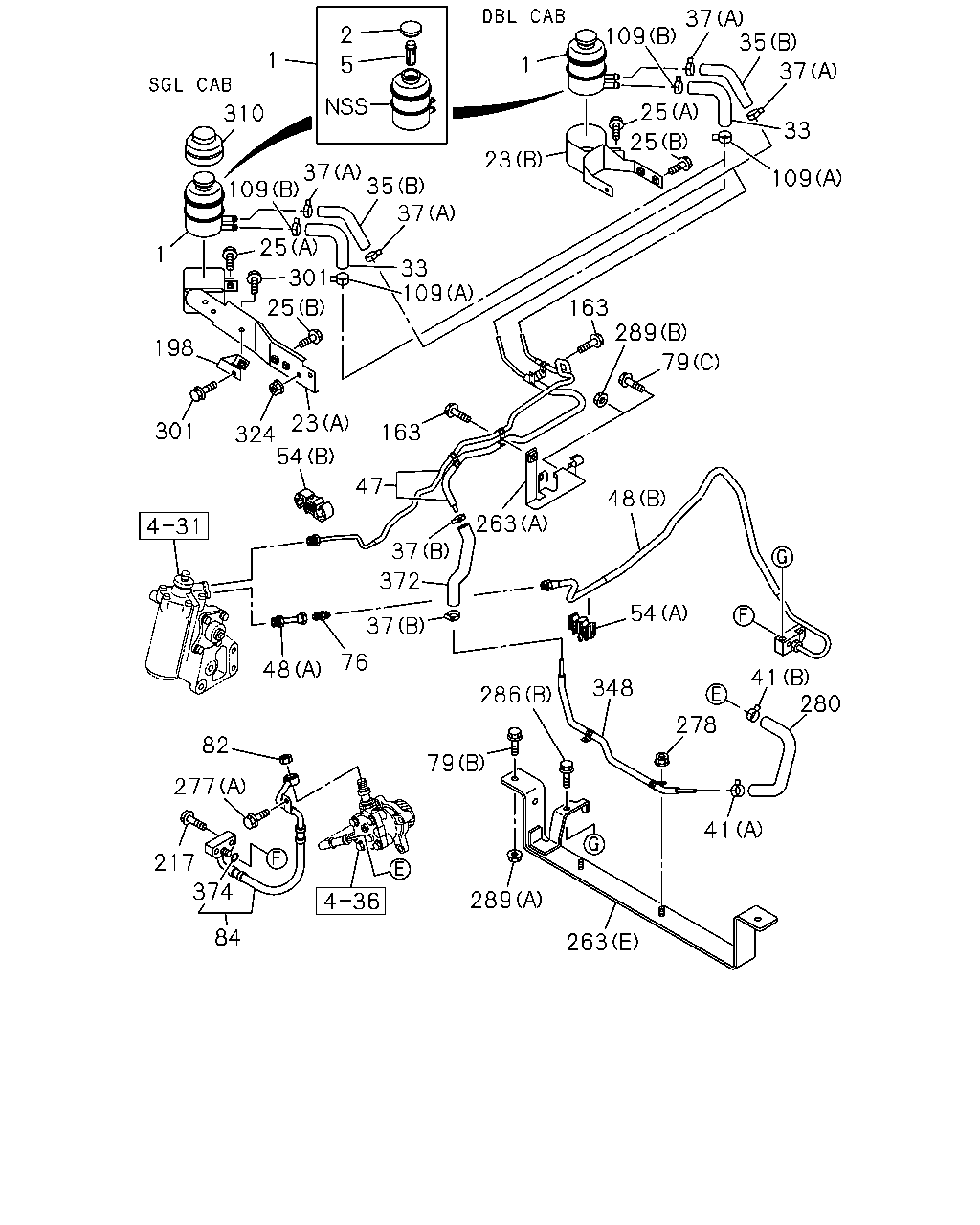

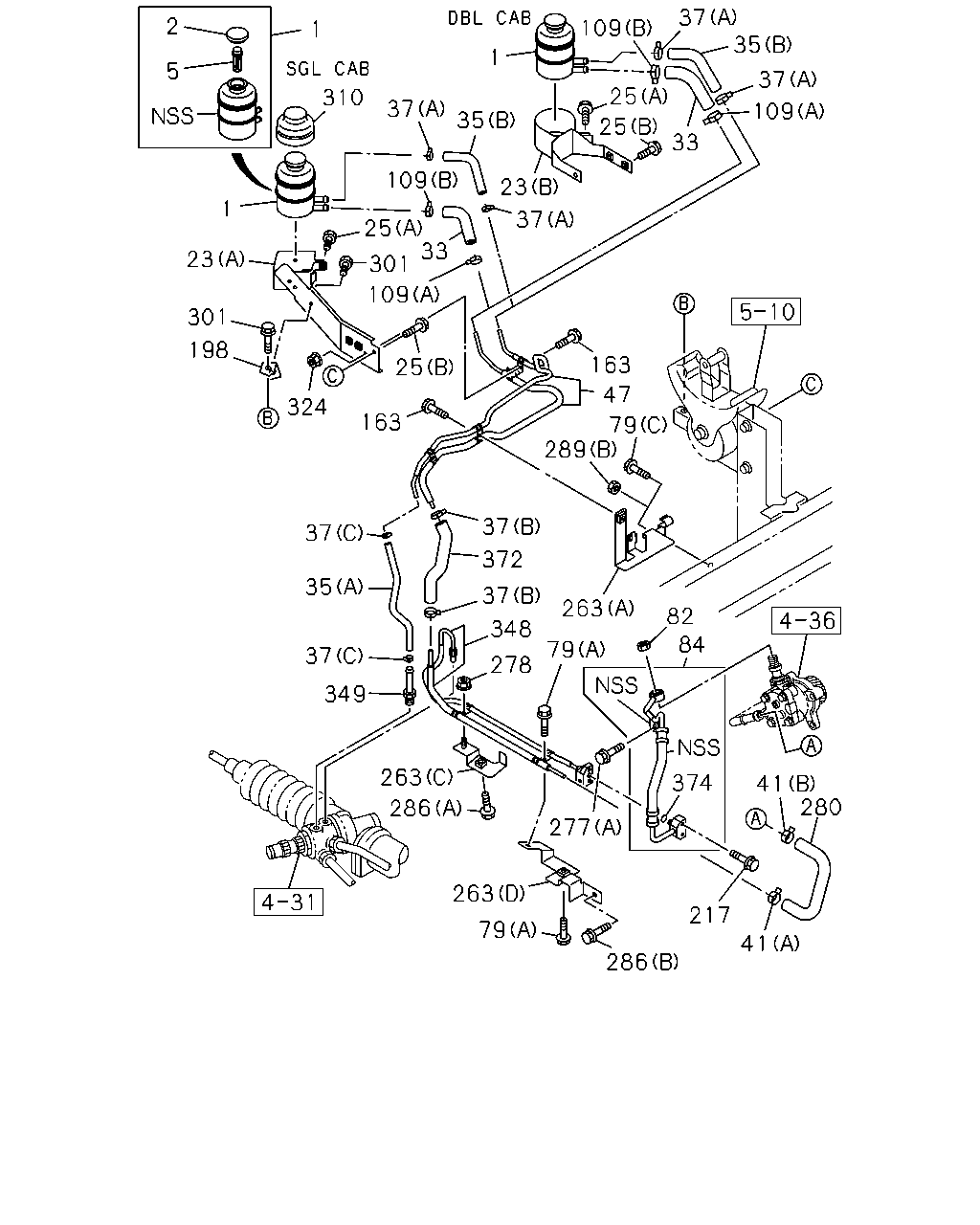

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#126719) — 521 parça

2 5 1 23 1 301 198 324 163 37 35 37 349 263 286 263 79 286 217 41 280 374 277 79 263 82 84 348 278 37 372 37 289 79 47 163 25 37 23 109 1 310 37 109 25 25 37 35 37 109 33 35 25 301 33 109 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1309-1310	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1311-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1309-1310	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1311-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1309-1310	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1311-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	1311-			●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	1309-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1311-			●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1309-1310	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1311-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1311-			●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1309-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98054-272-1	01	1	1311-1408	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98054-272-1	01	1	1409-	●		●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98117-895-0	01	1	1309-1310	●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1311-1401	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98117-895-0	01	1	1311-1401			●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1402-1402	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1402-1402			●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98117-895-0	01	1	1402-1408	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1402-1408	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1409-	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98117-895-0	01	1	1409-	●		●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1309-1310	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1311-	●	●	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1309-1310	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1311-	●		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1309-1310	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1311-	●	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1309-1310	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1311-	●	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1309-1310	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1311-	●	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1309-1310	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1311-	●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98054-225-0	01	1	1409-			●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98054-228-0	01	1	1409-			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98203-811-0	01	1	1311-1401	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98203-811-0	01	1	1402-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98203-812-0	01	1	1311-1401	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98203-812-0	01	1	1311-1401		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98203-812-0	01	1	1402-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98203-812-0	01	1	1402-		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98227-658-0	01	1	1311-1401			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-658-0	01	1	1402-1402			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98227-658-0	01	1	1402-			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98227-657-0	01	1	1311-1401			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98227-657-0	01	1	1402-1402			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98227-657-0	01	1	1402-			●
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98173-324-0	01	1	1309-1310	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98173-324-0	01	1	1311-	●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1309-1310	●
47	06.671 PIPE; RETURN	8-98173-325-0	01	1	1309-1310		●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1311-	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98173-325-0	01	1	1311-		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1311-1401	●	●
79	06.672 BOLT; BRKT SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1402-1408	●	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1402-1408			●
79	06.672 BOLT; BRKT SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●	●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1309-1310	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-1401	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-1401	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-1401			●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1402	●		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1402	●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1408	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1408			●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1409-	●		●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1309-1310	●
79	06.672 BOLT; BRKT 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1309-1310		●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1311-	●		●
79	06.672 BOLT; BRKT 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1311-		●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1309-1310	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1311-	●	●	●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	1309-1310	●
84	06.670 HOSE; FLEX,P/S	8-98032-376-4	01	1	1309-1310		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	1311-1312	●		●
84	06.670 HOSE; FLEX,P/S	8-98032-376-4	01	1	1311-1312		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●		●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	1309-1310	●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	1311-	●		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1309-1310	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1311-	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1309-1310	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1311-	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1309-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1309-1310	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1311-	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98203-818-0	01	1	1311-1401	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98203-818-0	01	1	1311-1401			●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98203-818-0	01	1	1402-1402	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98203-818-0	01	1	1402-	●	●	●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	1309-1310		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	1311-1312	●		●
263	06.672 BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	1311-1312		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-108-0	01	1	1401-	●		●
263	06.672 BRACKET; P/S PIPE (E)	8-98250-108-0	01	1	1401-		●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	1311-	●		●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	1311-	●		●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1309-1310	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98008-078-0	01	1	1311-1408	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98008-078-0	01	1	1409-	●	●	●
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●
277	06.672 BOLT; HOSE CLIP 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310		●
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-1312	●		●
277	06.672 BOLT; HOSE CLIP 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-1312		●
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1309-1310	●	●
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1311-	●	●	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●		●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310		●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-	●		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-		●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	1309-1310	●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	1311-	●		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1309-1310	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1309-1310		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1311-	●		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1311-		●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●		●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1309-1310	●	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●	●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1309-1310	●
289	06.673 NUT; BRKT,POWER STRG 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1309-1310		●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1311-	●		●
289	06.673 NUT; BRKT,POWER STRG 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1311-		●
289	06.673 NUT; BRKT,POWER STRG 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1311-1401	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1311-1401			●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1402-1408	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1402-1408			●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1409-	●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1309-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●	●	●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	1309-1310	●
348	06.671 PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	1309-1310		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	1311-1312	●		●
348	06.671 PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	1311-1312		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-107-0	01	1	1401-	●		●
348	06.671 PIPE; OIL,P/S PRESS	8-98250-107-0	01	1	1401-		●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1309-1310	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1311-	●		●
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98008-162-1	01	1	1309-1310	●
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98008-162-1	01	1	1311-	●		●
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●		●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1309-1310	●	●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1311-1312	●	●	●
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●		●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1309-1310	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1311-	●	●	●

1 2 5 310 109 37 1 198 25 301 301 324 25 35 37 33 109 23 54 47 163 79 1 109 37 35 37 33 109 25 25 23 289 163 82 37 372 37 79 76 48 54 289 263 41 280 41 277 217 374 278 348 277 263 84 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1309-1310	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1311-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1309-1310	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1311-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1309-1310	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1311-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	1311-			●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	1309-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1311-			●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1309-1310	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1311-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1311-			●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1309-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98054-272-1	01	1	1311-1408	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98054-272-1	01	1	1409-	●		●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98117-895-0	01	1	1309-1310	●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1311-1401	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98117-895-0	01	1	1311-1401			●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1402-1402	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1402-1402			●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98117-895-0	01	1	1402-1408	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1402-1408	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1409-	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98117-895-0	01	1	1409-	●		●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1309-1310	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1311-	●	●	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1309-1310	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1311-	●		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1309-1310	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1311-	●	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1309-1310	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1311-	●	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1309-1310	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1311-	●	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1309-1310	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1311-	●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98054-225-0	01	1	1409-			●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98054-228-0	01	1	1409-			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98203-811-0	01	1	1311-1401	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98203-811-0	01	1	1402-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98203-812-0	01	1	1311-1401	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98203-812-0	01	1	1311-1401		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98203-812-0	01	1	1402-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98203-812-0	01	1	1402-		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98227-658-0	01	1	1311-1401			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-658-0	01	1	1402-1402			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98227-658-0	01	1	1402-			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98227-657-0	01	1	1311-1401			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98227-657-0	01	1	1402-1402			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98227-657-0	01	1	1402-			●
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98173-324-0	01	1	1309-1310	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98173-324-0	01	1	1311-	●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1309-1310	●
47	06.671 PIPE; RETURN	8-98173-325-0	01	1	1309-1310		●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1311-	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98173-325-0	01	1	1311-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-105-0	01	1	1401-	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-105-0	01	1	1401-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98041-027-0	01	1	1309-1310	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98041-027-0	01	1	1309-1310		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98041-027-0	01	1	1311-	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98041-027-0	01	1	1311-		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=12 & 12	1-09709-280-1	01	1	1309-1310	●
54	06.672 CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	1309-1310		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=12 & 12	1-09709-280-1	01	1	1311-	●		●
54	06.672 CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	1311-		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1309-1310	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1309-1310		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1311-	●		●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1311-		●
76	06.673 UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1309-1310	●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1309-1310		●
76	06.673 UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1311-	●		●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1311-		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1311-1401	●	●
79	06.672 BOLT; BRKT SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1402-1408	●	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1402-1408			●
79	06.672 BOLT; BRKT SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●	●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1309-1310	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-1401	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-1401	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-1401			●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1402	●		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1402	●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1408	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1408			●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1409-	●		●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1309-1310	●
79	06.672 BOLT; BRKT 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1309-1310		●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1311-	●		●
79	06.672 BOLT; BRKT 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1311-		●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1309-1310	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1311-	●	●	●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	1309-1310	●
84	06.670 HOSE; FLEX,P/S	8-98032-376-4	01	1	1309-1310		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	1311-1312	●		●
84	06.670 HOSE; FLEX,P/S	8-98032-376-4	01	1	1311-1312		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●		●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	1309-1310	●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	1311-	●		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1309-1310	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1311-	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1309-1310	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1311-	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1309-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1309-1310	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1311-	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98203-818-0	01	1	1311-1401	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98203-818-0	01	1	1311-1401			●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98203-818-0	01	1	1402-1402	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98203-818-0	01	1	1402-	●	●	●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	1309-1310		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	1311-1312	●		●
263	06.672 BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	1311-1312		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-108-0	01	1	1401-	●		●
263	06.672 BRACKET; P/S PIPE (E)	8-98250-108-0	01	1	1401-		●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	1311-	●		●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	1311-	●		●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1309-1310	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98008-078-0	01	1	1311-1408	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98008-078-0	01	1	1409-	●	●	●
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●
277	06.672 BOLT; HOSE CLIP 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310		●
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-1312	●		●
277	06.672 BOLT; HOSE CLIP 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-1312		●
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1309-1310	●	●
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1311-	●	●	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●		●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310		●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-	●		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-		●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	1309-1310	●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	1311-	●		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1309-1310	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1309-1310		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1311-	●		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1311-		●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●		●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1309-1310	●	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●	●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1309-1310	●
289	06.673 NUT; BRKT,POWER STRG 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1309-1310		●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1311-	●		●
289	06.673 NUT; BRKT,POWER STRG 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1311-		●
289	06.673 NUT; BRKT,POWER STRG 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1311-1401	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1311-1401			●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1402-1408	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1402-1408			●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1409-	●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1309-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●	●	●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	1309-1310	●
348	06.671 PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	1309-1310		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	1311-1312	●		●
348	06.671 PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	1311-1312		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-107-0	01	1	1401-	●		●
348	06.671 PIPE; OIL,P/S PRESS	8-98250-107-0	01	1	1401-		●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1309-1310	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1311-	●		●
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●		●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1309-1310	●	●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1311-1312	●	●	●
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●		●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1309-1310	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1311-	●	●	●

1 109 37 37 33 35 109 25 25 23 37 35 1 2 5 310 1 109 37 25 301 25 198 301 324 23 47 163 37 37 372 76 48 82 277 217 374 84 79 286 289 263 41 278 280 41 54 48 348 263 163 109 33 89 79 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1309-1310	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1311-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1309-1310	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1311-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1309-1310	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1311-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	1311-			●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	1309-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1311-			●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1309-1310	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1311-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1311-			●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1309-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98054-272-1	01	1	1311-1408	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) SMOOTHER-EX(TYPE2)(8NS) (A)	8-98054-272-1	01	1	1409-	●		●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98117-895-0	01	1	1309-1310	●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1311-1401	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98117-895-0	01	1	1311-1401			●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1402-1402	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1402-1402			●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98117-895-0	01	1	1402-1408	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1402-1408	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98117-895-0	01	1	1409-	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98117-895-0	01	1	1409-	●		●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1309-1310	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1311-	●	●	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1309-1310	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1311-	●		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1309-1310	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1311-	●	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1309-1310	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1311-	●	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1309-1310	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1311-	●	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1309-1310	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1311-	●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98054-225-0	01	1	1409-			●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98054-228-0	01	1	1409-			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98203-811-0	01	1	1311-1401	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98203-811-0	01	1	1402-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98203-812-0	01	1	1311-1401	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98203-812-0	01	1	1311-1401		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98203-812-0	01	1	1402-	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98203-812-0	01	1	1402-		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98227-658-0	01	1	1311-1401			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98227-658-0	01	1	1402-1402			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98227-658-0	01	1	1402-			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98227-657-0	01	1	1311-1401			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98227-657-0	01	1	1402-1402			●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98227-657-0	01	1	1402-			●
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98173-324-0	01	1	1309-1310	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98173-324-0	01	1	1311-	●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1309-1310	●
47	06.671 PIPE; RETURN	8-98173-325-0	01	1	1309-1310		●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1311-	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS)	8-98173-325-0	01	1	1311-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-105-0	01	1	1401-	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-105-0	01	1	1401-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98041-027-0	01	1	1309-1310	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98041-027-0	01	1	1309-1310		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98041-027-0	01	1	1311-	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98041-027-0	01	1	1311-		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=12 & 12	1-09709-280-1	01	1	1309-1310	●
54	06.672 CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	1309-1310		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=12 & 12	1-09709-280-1	01	1	1311-	●		●
54	06.672 CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	1311-		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1309-1310	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1309-1310		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1311-	●		●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1311-		●
76	06.673 UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1309-1310	●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1309-1310		●
76	06.673 UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1311-	●		●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1311-		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1311-1401	●	●
79	06.672 BOLT; BRKT SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1402-1408	●	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1402-1408			●
79	06.672 BOLT; BRKT SMOOTHER-EX(TYPE2)(8NS) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1409-	●	●	●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1309-1310	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-1401	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-1401	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-1401			●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1402	●		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1402	●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1408	●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1402-1408			●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1409-	●		●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1309-1310	●
79	06.672 BOLT; BRKT 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1309-1310		●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1311-	●		●
79	06.672 BOLT; BRKT 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	1311-		●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1309-1310	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1311-	●	●	●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	1309-1310	●
84	06.670 HOSE; FLEX,P/S	8-98032-376-4	01	1	1309-1310		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	1311-1312	●		●
84	06.670 HOSE; FLEX,P/S	8-98032-376-4	01	1	1311-1312		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●		●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	1309-1310	●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	1311-	●		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1309-1310	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1311-	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1309-1310	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1311-	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-1310	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1309-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1309-1310	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1311-	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98203-818-0	01	1	1311-1401	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98203-818-0	01	1	1311-1401			●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98203-818-0	01	1	1402-1402	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (A)	8-98203-818-0	01	1	1402-	●	●	●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	1309-1310		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	1311-1312	●		●
263	06.672 BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	1311-1312		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-108-0	01	1	1401-	●		●
263	06.672 BRACKET; P/S PIPE (E)	8-98250-108-0	01	1	1401-		●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	1311-	●		●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	1309-1310	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	1311-	●		●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1309-1310	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98008-078-0	01	1	1311-1408	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98008-078-0	01	1	1409-	●	●	●
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●
277	06.672 BOLT; HOSE CLIP 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310		●
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-1312	●		●
277	06.672 BOLT; HOSE CLIP 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-1312		●
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1309-1310	●	●
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1311-	●	●	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●		●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1310		●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-	●		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-		●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	1309-1310	●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	1311-	●		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1309-1310	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1309-1310		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1311-	●		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1311-		●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1309-1310	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●		●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1309-1310	●	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●	●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1309-1310	●
289	06.673 NUT; BRKT,POWER STRG 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1309-1310		●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1311-	●		●
289	06.673 NUT; BRKT,POWER STRG 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1311-		●
289	06.673 NUT; BRKT,POWER STRG 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1311-1401	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1311-1401			●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1402-1408	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1402-1408			●
289	06.673 NUT; BRKT,POWER STRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1409-	●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1309-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-1310	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1311-	●	●	●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	1309-1310	●
348	06.671 PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	1309-1310		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	1311-1312	●		●
348	06.671 PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	1311-1312		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-107-0	01	1	1401-	●		●
348	06.671 PIPE; OIL,P/S PRESS	8-98250-107-0	01	1	1401-		●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1309-1310	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1311-	●		●
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●		●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1309-1310	●	●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1311-1312	●	●	●
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●		●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1309-1310	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1311-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
